Citroen C3 DAG 2008 1.G Manual PDF
Manufacturer: CITROEN, Model Year: 2008, Model line: C3 DAG, Model: Citroen C3 DAG 2008 1.GPages: 184, PDF Size: 6.11 MB
Page 71 of 184
5
2
4
1
3
III
8 6

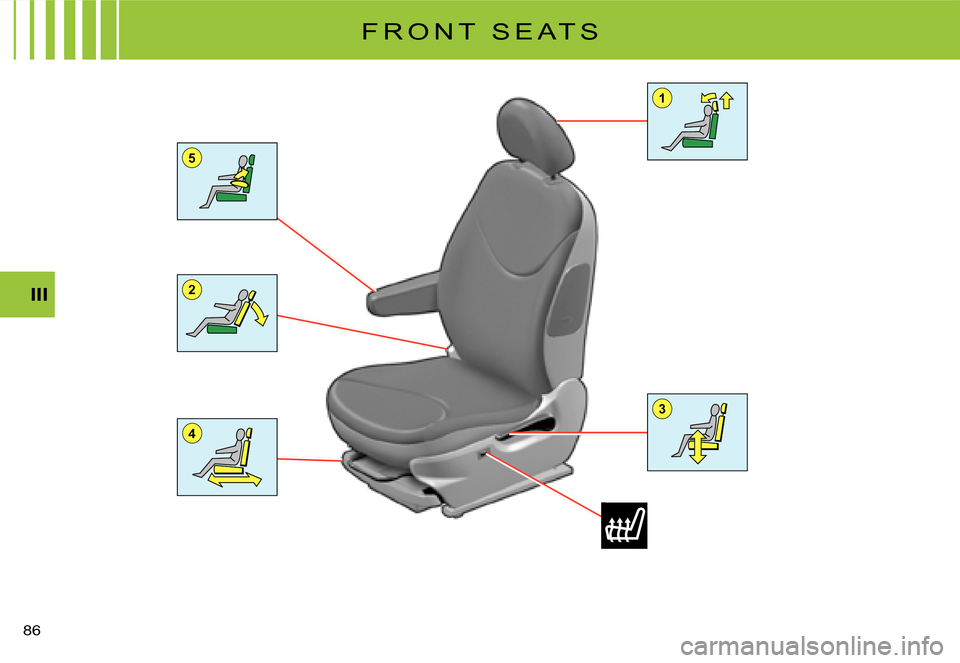

F R O N T S E A T S
Page 72 of 184
1
5
4
3
2III
8 7
F R O N T S E A T S

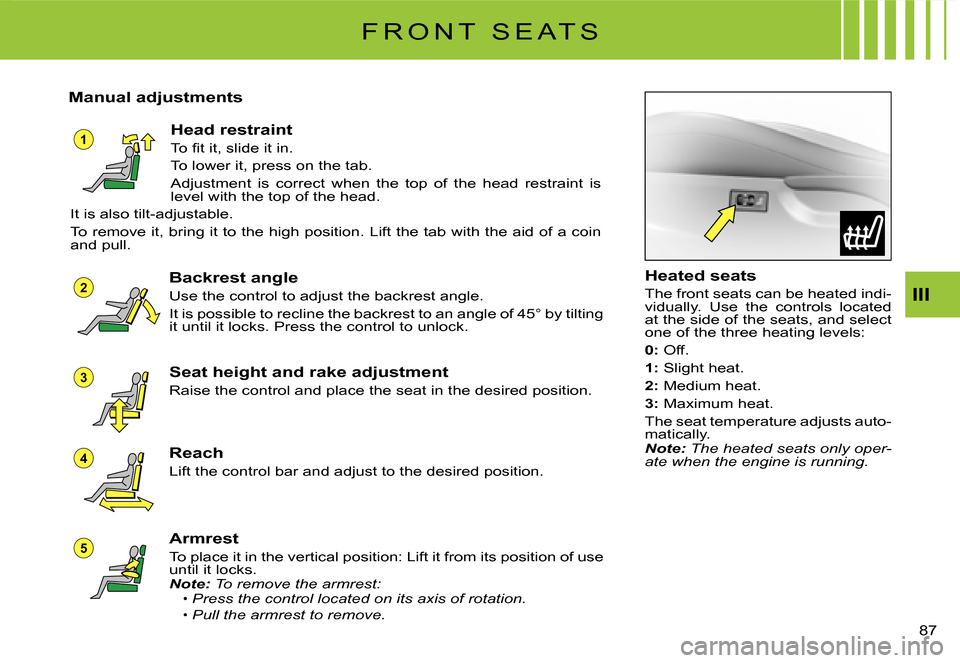

Manual adjustments
Head restraint
T o fi t i t , s l i d e i t i n .
To lower it, press on the tab.
Adjustment is correct when the top of the head restraint is level with the top of the head.
It is also tilt-adjustable.
To remove it, bring it to the high position. Lift the tab with the aid of a coin and pull.
Backrest angle
Use the control to adjust the backrest angle.
I t i s p o s s i b l e t o r e c l i n e t h e b a c k r e s t t o a n a n g l e o f 4 5 ° b y t i l t i n g it until it locks. Press the control to unlock.
Heated seats
The front seats can be heated indi-vidually. Use the controls located at the side of the seats, and select one of the three heating levels:
0: Off.
1: Slight heat.
2: Medium heat.
3: Maximum heat.
The seat temperature adjusts auto-matically.Note: The heated seats only oper-ate when the engine is running.
Seat height and rake adjustment
Raise the control and place the seat in the desired positio n.
Reach
Lift the control bar and adjust to the desired position.
Armrest
To place it in the vertical position: Lift it from its position of use until it locks.Note: To remove the armrest:Press the control located on its axis of rotation.
Pull the armrest to remove.
Page 73 of 184
III
8 8

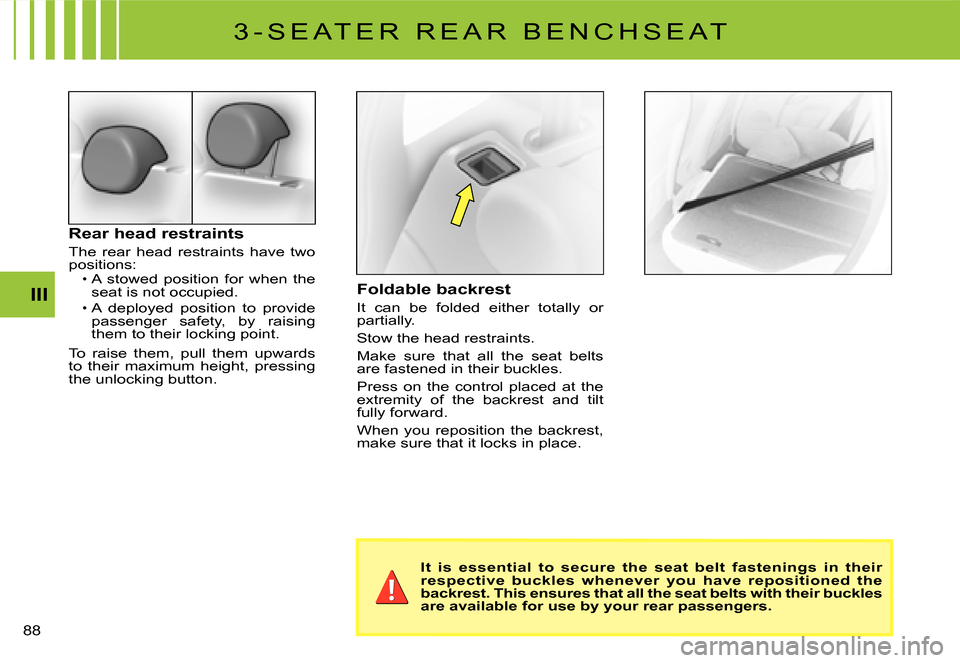

Rear head restraints
The rear head restraints have two positions:A stowed position for when the seat is not occupied.A deployed position to provide passenger safety, by raising them to their locking point.
To raise them, pull them upwards to their maximum height, pressing the unlocking button.
Page 74 of 184
A
III
8 9
A I R B A G S
In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a "r ear-facing" child seat there. Otherwise the child risks being killed or serio usly injured should the airbag deploy.
Front passenger's airbag deactivation
In order to be able to use a rear-facing child seat in the front passenger's seat position, it is imperative to deactivate the passenger's airbag.
For that:With the ignition switched off, insert the key into the switch A.
Turn the key to the "OFF" position, the passenger's airbag is deactivated.
The front passenger's airbag deactivation warning lamp, in th e instrument panel, lights up when you switch on the ignition.
Reactivating the front passenger's airbag
Do not forget to reactivate the function.
For that:With the ignition switched off, insert the key into the switch A.
Turn the key to the "ON" position, the airbag is activated.
The warning lamp in the instrument panel lights up for a f ew seconds when you switch on the ignition.
The airbags only function with the ignition switched on. A slight noise is emitted when they are triggered.
Note: the gas released from the airbags may be a mild irritant.
Page 75 of 184
III
9 0

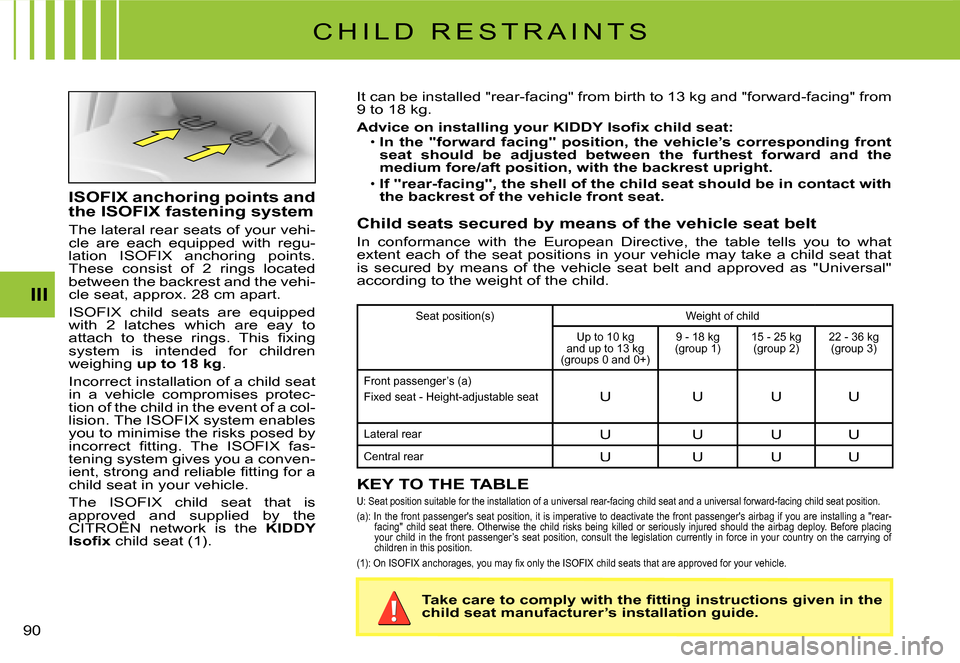

C H I L D R E S T R A I N T S
ISOFIX anchoring points and the ISOFIX fastening system
The lateral rear seats of your vehi-cle are each equipped with regu-lation ISOFIX anchoring points. T h e s e c o n s i s t o f 2 r i n g s l o c a t e d between the backrest and the vehi- c l e s e a t , a p p r o x . 2 8 c m a p a r t .
ISOFIX child seats are equipped w i t h 2 l a t c h e s w h i c h a r e e a y t o a t t a c h t o t h e s e r i n g s . T h i s fi x i n g system is intended for children weighing up to 18 kg.
Incorrect installation of a child seat in a vehicle compromises protec-tion of the child in the event of a col-lision. The ISOFIX system enables you to minimise the risks posed by i n c o r r e c t fi t t i n g . T h e I S O F I X f a s -tening system gives you a conven- i e n t , s t r o n g a n d r e l i a b l e fi t t i n g f o r a child seat in your vehicle.
The ISOFIX child seat that is approved and supplied by the CITROËN network is the approved and supplied by approved KIDDY I s o fi x child seat (1).
I t c a n b e i n s t a l l e d " r e a r - f a c i n g " f r o m b i r t h t o 1 3 k g a n d " f o r w a r d - f a c i n g " f r o m 9 t o 1 8 k g .
A d v i c e o n i n s t a l l i n g y o u r K I D D Y I s o fi x c h i l d s e a t :In the "forward facing" position, the vehicle’s corresponding front seat should be adjusted between the furthest forward and the medium fore/aft position, with the backrest upright.
If "rear-facing", the shell of the child seat should be in contact with the backrest of the vehicle front seat.
Child seats secured by means of the vehicle seat belt
In conformance with the European Directive, the table tells yo u to what extent each of the seat positions in your vehicle may take a child seat that is secured by means of the vehicle seat belt and approved as "Uni versal" according to the weight of the child.
Page 76 of 184
122
III
91

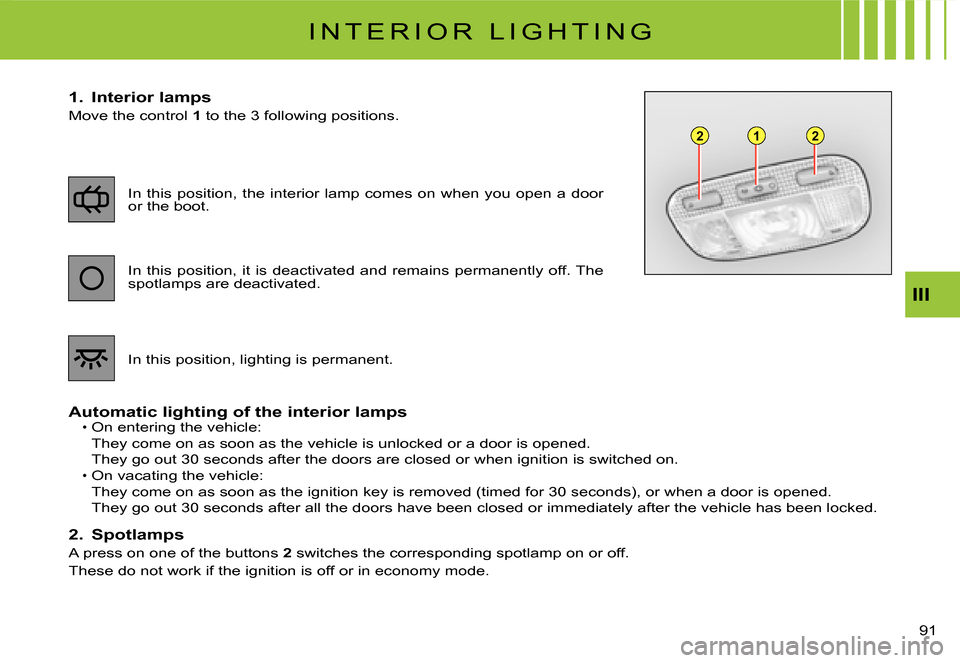

I N T E R I O R L I G H T I N G
1. Interior lamps
Move the control 1 t o t h e 3 f o l l o w i n g p o s i t i o n s .
Automatic lighting of the interior lampsOn entering the vehicle:
They come on as soon as the vehicle is unlocked or a door is opened. T h e y g o o u t 3 0 s e c o n d s a f t e r t h e d o o r s a r e c l o s e d o r w h e n i g n i t i o n i s s w i t c h e d o n .
On vacating the vehicle: T h e y c o m e o n a s s o o n a s t h e i g n i t i o n k e y i s r e m o v e d ( t i m e d f o r 3 0 s e c o n d s ) , o r w h e n a d o o r i s o p e n e d .
T h e y g o o u t 3 0 s e c o n d s a f t e r a l l t h e d o o r s h a v e b e e n c l o s e d o r i m m e d i a t e l y a f t e r t h e v e h i c l e h a s b e e n l o c k e d .
2. Spotlamps
A press on one of the buttons 2 switches the corresponding spotlamp on or off.
These do not work if the ignition is off or in economy mode.
Page 77 of 184
III
9 2
I N T E R I O R C O M F O R T
Lower glovebox
To open, pull the handle and lower the lid.
It comprises a storage area for vehicle documents.
Front seat drawers
To open, lift then pull towards the front.
Boot storage
Straps anchored to the boot aper-ture are provided for the securing of a wide variety of objects (e.g. doctor’s bag, warning triangle, oil container etc).
Further items can be stowed in the s t o r a g e a r e a fi t t e d i n t o t h e r i g h t hand side of the load area.
WARNING
As a safety measure, the glovebox must remain shut when the vehicle is in motion.
Page 78 of 184
III
9 3
I N T E R I O R C O M F O R T

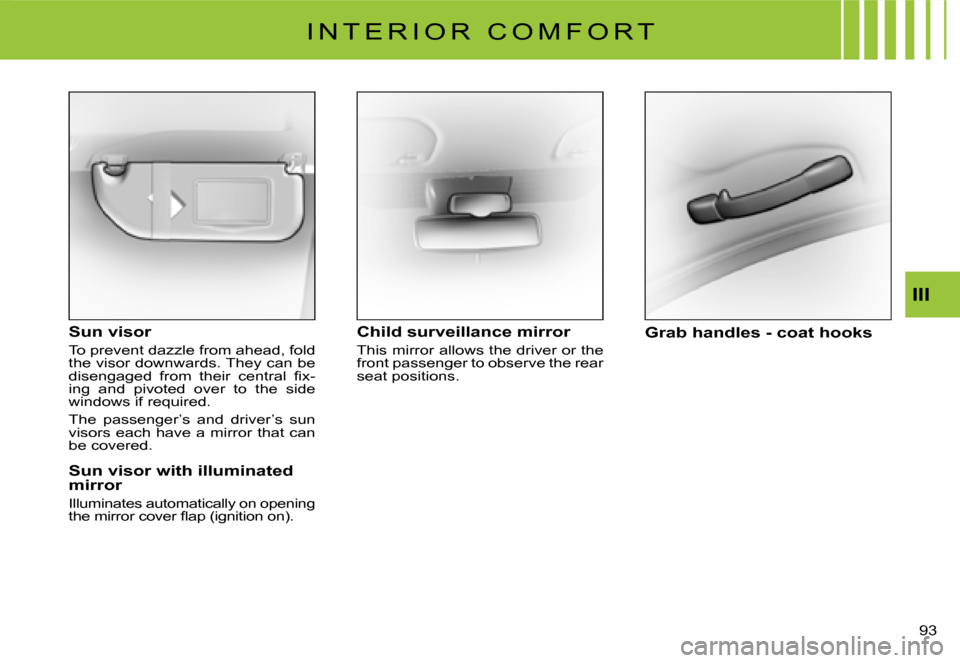

Sun visor
To prevent dazzle from ahead, fold the visor downwards. They can be d i s e n g a g e d f r o m t h e i r c e n t r a l fi x -ing and pivoted over to the side windows if required.
The passenger’s and driver’s sun visors each have a mirror that can be covered.
Sun visor with illuminated mirror
Illuminates automatically on opening t h e m i r r o r c o v e r fl a p ( i g n i t i o n o n ) .
Child surveillance mirror
This mirror allows the driver or the front passenger to observe the rear seat positions.
Grab handles - coat hooks
Page 79 of 184
III
9 4
I N T E R I O R C O M F O R T

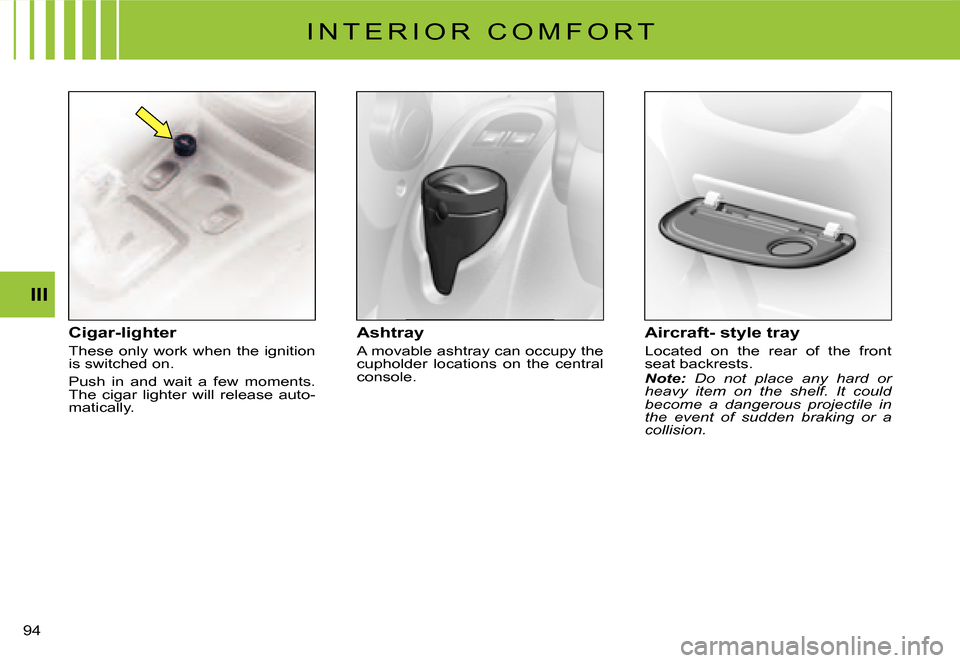

Cigar-lighter
These only work when the ignition is switched on.
Push in and wait a few moments. The cigar lighter will release auto-matically.
Ashtray
A movable ashtray can occupy the cupholder locations on the central console.
Aircraft- style tray
Located on the rear of the front seat backrests.Note: Do not place any hard or heavy item on the shelf. It could become a dangerous projectile in the event of sudden braking or a collision.
Page 80 of 184
21
1
12
4
4
3
III
9 5
M O D U B O A R D S H E L F
The Moduboard shelf, located at the rear of the benchseat backrests, ena-bles the bootspace to be variously c o n fi g u r e d .
A - Shelf stowed vertically against the benchseat backrests.
Removing the parcel shelfHold it with one hand.
Unlock by pressing on the controls 1.Tilt the Moduboard shelf (still folded) towards you.
Release it from its mountings.
Handle the shelf without forcing the joints that link the various sections.Note: It is possible to fold the central retaining tab 2 between the seat back-rests.
Fitting the shelf in placeunfold the central retaining tab 2 (the presence of this tab is essential for supporting weight).
present the shelf (folded) in a position tilted towards the mountings.lock it in the stowed position.
Locking the shelffold it.lock by engaging it in the controls 1.
