Page 34 of 204
i
38
COMFORT The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer.
In order for these systems to be fully effective, follow the operation and main-
tenance rules below:
If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, do not hesitate t o ventilate the
passenger compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e r e -
newal of air in the passenger compartment.
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the passenger
compartment on both sides of the rear shelf.
Do not cover the sunshine sensor, located on the fascia (beh ind the instru-
ment panel); this is used for regulation of the air conditio ning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r . T h a n k s
t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n o f t h e a i r
breathed by the occupants and the cleanliness of th e passenger compart-
ment (reduction of allergic symptoms, bad odours an d greasy deposits).
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not u se it and contact a CITROËN
dealer.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.
Page 39 of 204
i
!
!
42
COMFORT
Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automati-
cally.
Pressing the "AUTO" button returns
the system to completely automatic
operation.
Press this button to switch
off the air conditioning. 6 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press one or more but-
t o n s t o d i r e c t t h e a i r fl o w
towards:
7 . A i r fl o w a d j u s t m e n t
Turn this control to the left
t o d e c r e a s e t h e a i r fl o w o r
to the right to increase the
a i r fl o w .
8. Air intake/Air recirculation S w i t c h i n g t h e s y s t e m o f f
T u r n t h e a i r fl o w c o n t r o l t o t h e l e f t u n t i l
all of the indicator lights switch off.
This action switches off all of the func-
tions of the system.
Temperature related comfort is no longer
g u a r a n t e e d b u t a s l i g h t fl o w o f a i r , d u e
to the movement of the vehicle, can still
be felt.
T u r n t h e a i r fl o w d i a l t o t h e r i g h t o r
press the "AUTO" button to reacti-
vate the system with the values set
before it was switched off.
Press this button for recir-
culation of the interior air.
The indicator light on the
button comes on.
5. Air conditioning On/Off
Avoid driving for prolonged periods
with the system off.
Avoid prolonged recirculation of
interior air (risk of condensation and
deterioration of the air quality).
- the windscreen and side windows
(de-icing or demisting),
- the windscreen, the side windows and the vents,
- the windscreen, the side windows, the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows and the footwells.
T h e a i r fl o w i n d i c a t o r l i g h t s , b e t w e e n
the two fans, come on progressively in
relation to the value requested.
As soon as possible, press this but-
ton again to permit the intake of out-
side air and prevent condensation.
The indicator light on the button
switches off.
For maximum cooling or heating
of the passenger compartment, it
is possible to exceed the minimum
value 14 or the maximum value 28.
Turn control 2 or 3 to the left
until "LO" is displayed or to the
right until "HI" is displayed. 9. Mono zone/Dual zone
Press this button to equa-
lise the comfort value on
the passenger side with that
on the driver’s side (mono
zone). The indicator light on
the button comes on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
Switching the system off could result in
discomfort (humidity, condensation).
Press this button again to return to
automatic operation of the air con-
ditioning. The indicator light on the
"A/C" button comes on.
Page 49 of 204
ACCESS
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
t e s y l i g h t s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting
of this warning lamp, an au-
dible signal and a message
on the multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Folding the key
First press button A to fold the key. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Page 50 of 204
i
i
52

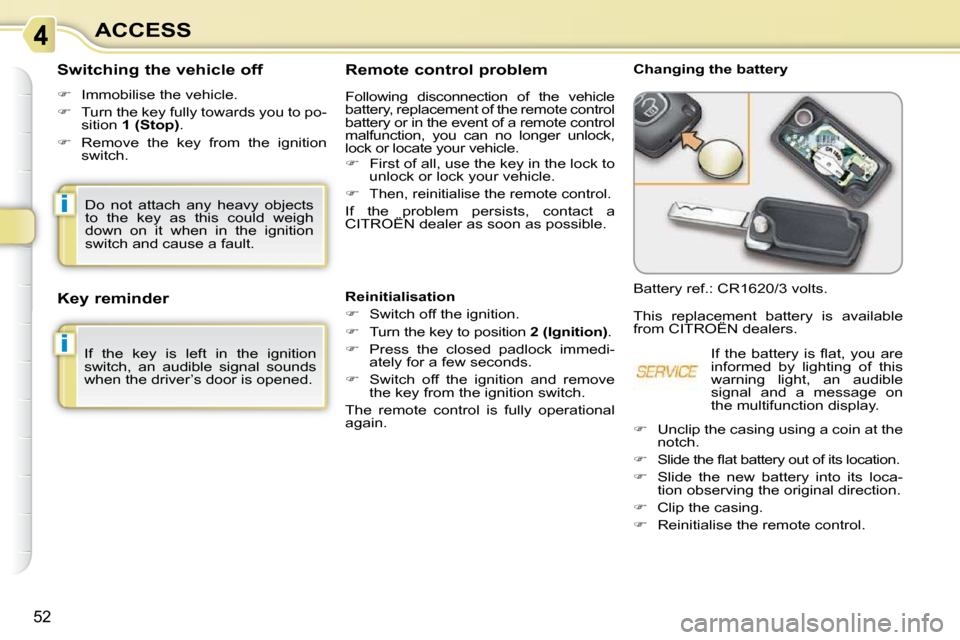

ACCESS Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote control
battery or in the event of a remote control
malfunction, you can no longer unlock,
lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e
informed by lighting of this
warning light, an audible
signal and a message on
the multifunction display.
This replacement battery is available
from CITROËN dealers.
Key reminder
If the key is left in the ignition
switch, an audible signal sounds
when the driver’s door is opened.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch.
Do not attach any heavy objects
to the key as this could weigh
down on it when in the ignition
switch and cause a fault.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a t i o n .
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control.
Page 52 of 204
ACCESS
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
t e s y l i g h t s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting
of this warning lamp, an au-
dible signal and a message
on the multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Folding the key
First press button A to fold the key. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Page 54 of 204
ACCESS
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
t e s y l i g h t s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting
of this warning lamp, an au-
dible signal and a message
on the multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Folding the key
First press button A to fold the key. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Page 55 of 204
i
i
52
ACCESS Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote control
battery or in the event of a remote control
malfunction, you can no longer unlock,
lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e
informed by lighting of this
warning light, an audible
signal and a message on
the multifunction display.
This replacement battery is available
from CITROËN dealers.
Key reminder
If the key is left in the ignition
switch, an audible signal sounds
when the driver’s door is opened.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch.
Do not attach any heavy objects
to the key as this could weigh
down on it when in the ignition
switch and cause a fault.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a t i o n .
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control.
Page 71 of 204
!
66
VISIBILITY Windscreen wash
Pull the wiper stalk towards you.
The windscreen wash, then the windscreen
w i p e r s , o p e r a t e f o r a s p e c i fi e d t i m e .
B. rear wiper selection ring:
park,
intermittent wipe,
w a s h - w i p e ( s e t d u r a t i o n ) .
Reverse gear
When reverse gear is engaged, the rear wiper will come into operation if the windscreen wipers are operating.
Programming
The function is activated or deactivated v i a t h e m u l t i f u n c t i o n d i s p l a y c o n fi g u r a t i o n menu. This function is activated by default.
Rear wiper Wiping zone
The curved shape of the rear screen results in a smaller wiping zone.
Page 76 of 204
71
LAYOUT
CHILD MIRROR SUN VISOR
Component which protects against sun-
light from the front or the side.
T h e s u n v i s o r s a r e fi t t e d w i t h a c o u r t e s y
m i r r o r , w i t h c o n c e a l i n g fl a p f o r t h e d r i v e r
and a ticket/card holder.
GLOVE BOX
This permits access to the fuse box.
To open the glove box, pull the han-
dle towards you.
A child monitoring mirror is installed
above the interior rear view mirror. This
allows you to monitor the vehicle’s rear
passengers, or it can facilitate conver-
sation between the front and rear pas-
sengers without the need to move the
rear view mirror. It can be folded away
to eliminate dazzle.
Page 87 of 204
i
78
LAYOUT
Movable boot floor
T h i s m o v a b l e b o o t fl o o r w i t h t w o p o s i -
tions allows you to:
- maximise the volume of the boot,
- partition the boot (storing of the rear shelf...),
- o b t a i n a fl a t fl o o r f r o m t h e b o o t opening to the front seats, when the
rear bench seat is in the retracted
position. P l a c i n g t h e m o v a b l e b o o t fl o o r i n
the low position
Press to release the handle located
at the boot opening.
U n l o c k t h e m o v a b l e b o o t fl o o r b y
lifting the handle.
M a n o e u v r e t h e m o v a b l e b o o t fl o o r
rearwards, then downwards, using
the handle, following the slides on
the sides.
Lock it by folding down the handle. P l a c i n g t h e m o v a b l e b o o t fl o o r i n
the high position
Press to release the handle.
U n l o c k t h e m o v a b l e b o o t fl o o r b y
lifting the handle.
Use the handle to manoeuvre the
m o v a b l e b o o t fl o o r r e a r w a r d s , t h e n
upwards to its high position.
Lock it by folding down the handle.
In the high position, the movable boot
fl o o r p e r m i t s s t o r i n g o f t h e r e a r s h e l f
and fragile objects.
T h e m o v a b l e b o o t fl o o r i s fi t t e d w i t h f o u r
stowing rings to secure your loads using
the net available as an accessory.
Ensure that your boot is empty
before handling the movable boot
fl o o r .
