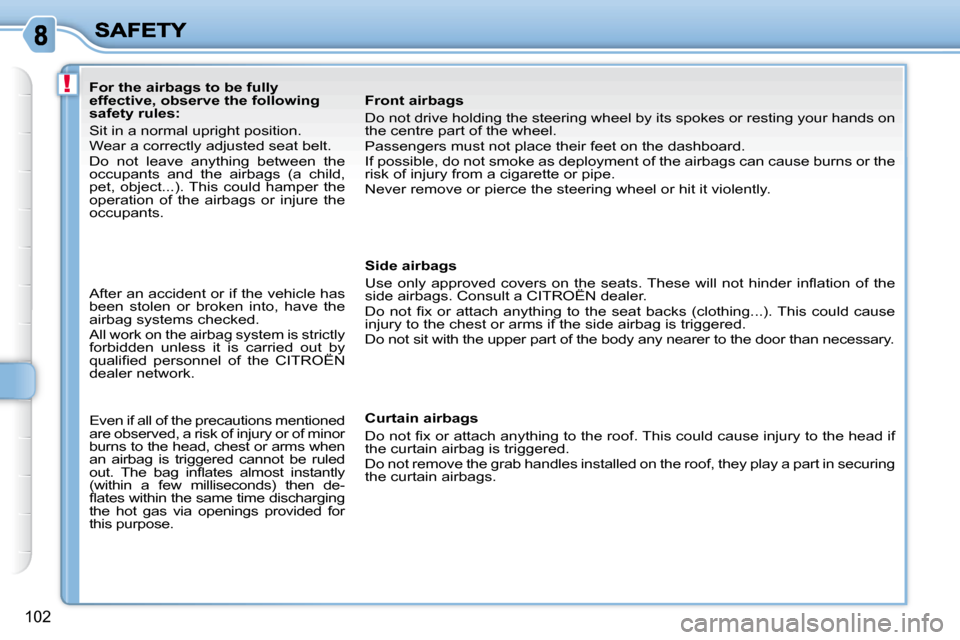

102
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants. Front airbags
Do not drive holding the steering wheel by its spokes or resti
ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cau se burns or the
risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Side airbags
U s e o n l y a p p r o v e d c o v e r s o n t h e s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f t h e
side airbags. Consult a CITROËN dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e s e a t b a c k s ( c l o t h i n g . . . ) . T h i s c o u l d c a u s e
injury to the chest or arms if the side airbag is triggered.
Do not sit with the upper part of the body any nea rer to the door than necessary.
Curtain airbags
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e h e a d i f
the curtain airbag is triggered.
Do not remove the grab handles installed on the ro of, they play a part in securing
the curtain airbags.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strictly
forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e C I T R O Ë N
dealer network.
Even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when
an airbag is triggered cannot be ruled
o u t . T h e b a g i n fl a t e s a l m o s t i n s t a n t l y
(within a few milliseconds) then de-
fl a t e s w i t h i n t h e s a m e t i m e d i s c h a r g i n g
the hot gas via openings provided for
this purpose.
Page 134 of 198
131
PRACTICAL INFORMATION
Dashboard fuses
T h e f u s e b o x i s l o c a t e d i n t h e g l o v e b o x .
Access to the fuses
refer to the paragraph "Access to
the tools". Fuse tables
Fuse N° Rating Functions
FH36 5 A Trailer relay unit.
FH37 15 A Trailer accessories socket supply.
FH38 20 A Navigation.
FH39 - Not used.
FH40 30 A Trailer relay unit.
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Airbags and pretensioners control unit.
F4 10 A Steering wheel angle sensor, air conditioning,
c l u t c h s w i t c h , p a r t i c l e fi l t e r p u m p , d i a g n o s t i c
s o c k e t , a i r fl o w m e t e r .
F5 30 A Electric windows panel, passenger’s electric
window control, front electric windows motor.
F6 30 A Rear electric windows motor and driver’s electric
window motor.
F7 5 A Courtesy and front map reading lamps, torch, rear
reading lamps.
