Citroen C3 PICASSO 2009.5 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2009.5, Model line: C3 PICASSO, Model: Citroen C3 PICASSO 2009.5 1.GPages: 198, PDF Size: 9.99 MB
Page 1 of 198
i
2
DRIVING
GEAR EFFICIENCY INDICATOR *
System which reduces fuel consumption
by advising the driver to change up on
v e h i c l e s fi t t e d w i t h a m a n u a l g e a r b o x .
* A c c o r d i n g t o e n g i n e .
Operation
The system intervenes only when driving
e c o n o m i c a l l y .
Depending on the driving situation and
your vehicle’s equipment, the system may
a d v i s e y o u t o s k i p o n e o r m o r e g e a r s . Y o u
can follow this instruction without engag-
i n g t h e i n t e r m e d i a t e g e a r s .
The gear engagement recommenda-
tions must not be considered compulso-
r y . I n f a c t , t h e c o n fi g u r a t i o n o f t h e r o a d ,
t h e a m o u n t o f t r a f fi c a n d s a f e t y r e m a i n
determining factors when choosing the
b e s t g e a r . T h e r e f o r e , t h e d r i v e r r e m a i n s
responsible for deciding whether or not to
f o l l o w t h e a d v i c e g i v e n b y t h e s y s t e m .
T h i s f u n c t i o n c a n n o t b e d e a c t i v a t e d .
- Y o u p r e s s t h e a c c e l e r a t o r p e d a l
m o d e r a t e l y .
E x a m p l e :
- Y o u a r e i n t h i r d g e a r .
- The system may suggest that you
e n g a g e a h i g h e r g e a r , i f a p p r o p r i a t e . The information appears in the instru-
ment panel screen in the form of an
arrow accompanied by the suggested
g e a r .
I n t h e c a s e o f d r i v i n g w h i c h m a k e s
particular demands on the perform-
a n c e o f t h e e n g i n e ( fi r m p r e s s u r e o n
t h e a c c e l e r a t o r p e d a l , f o r e x a m p l e ,
w h e n o v e r t a k i n g . . . ) , t h e s y s t e m w i l l
n o t r e c o m m e n d a g e a r c h a n g e .
T h e s y s t e m n e v e r s u g g e s t s :
- e n g a g i n g fi r s t g e a r ,
- engaging reverse gear,
- e n g a g i n g a l o w e r g e a r .
Page 2 of 198
3
MODELS:
ENGINES AND GEARBOXES
Model codes:
SH...
8FP0 9HP0
ENGINES
Petrol VTi 95 Diesel HDi 90 PEF
Cubic capacity (cc) 1 397 1 560
Bore x stroke (mm) 77 x 75 75 x 88.3
Max power: EU standard (kW) 70 68
Max power engine speed (rpm) 6 000 4 000
Max torque: EU standard (Nm) 136 230
Max torque engine speed (rpm) 4 000 1 750
Fuel Unleaded Diesel
Catalytic converter yes yes
P a r t i c l e fi l t e r no yes
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 4.25 3.75
Gearbox - Final drive 1.9 1.9
Page 3 of 198
4
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Engines
Petrol
VTi 95 Diesel HDi 90 PEF
Model codes:
SH...
8FP0 9HP0
- Unladen weight 1 246 1 277
- Kerb weight 1 321 1 352
- Payload 501 502
- Gross vehicle weight (GVW) 1 747 1 779
- Gross train weight (GTW) on a 12 % gradient 2 597 2 979
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 850 1 200
- Braked trailer * (with load transfer within the GTW limit) 1 100 1 200
- Unbraked trailer 650 675
- Recommended nose weight 54 54
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
Page 4 of 198
i
18
INSTRUMENTS and CONTROLS
PETROL - DIESEL INSTRUMENT PANEL
Panel grouping together the digital indicator, the multifunction screen and the vehicle
operation indicator lamps.
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Rev counter zone indicating that you
must change up a gear.
3. Speed limiter
or
Cruise control.
(mph or km/h)
4. Electric child lock indicator lamp.
Indicates, for a few seconds, the acti- vation of the electric child lock (deacti-
vation of the rear windows and doors).
Translucent digital instrument panel
This screen groups together the warning
and information messages.
Multifunction screen
Indicator lamps display zone
This zone groups together the vehicle
operation indicator lamps.
Display zero reset button
This permits resetting of the function
selected to zero (trip distance recorder
or service indicator).
Instrument panel lighting button
This adjusts the brightness of the lighting
of the instruments and controls.
For more information, refer to the
paragraph relating to the button or
function and its associated display.
5. Fuel level.
Indicates the quantity of fuel remaining in the tank.
6. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).
7. Trip distance recorder.
(miles or km)
8. Service indicator.
(miles or km) then,
Distance recorder.
(miles or km)
9. Engine oil level indicator.
Page 5 of 198
!
19
INSTRUMENTS and CONTROLS Certain warning lamps may come
on in two different modes. Only
by relating the type of lighting to
the operating status of the vehicle
can it be ascertained whether the
situation is normal or whether a
fault has occurred.
Indicator and warning lamps
Visual indicators informing the driver that a syst
em is in operation (operation or deactivation indic ator lamps) or of the occurrence
of a fault (warning lamp).
Associated warnings
The switching on of certain warning lamps may be accompanied b y an audible
signal and a message on the multifunction screen.
T h e w a r n i n g l a m p s m a y c o m e o n c o n t i n u o u s l y ( fi x e d ) o r fl a s h .
Operation indicator lamps
I f o n e o f t h e f o l l o w i n g i n d i c a t o r l a m p s c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d i n g
system has come into operation.
When the ignition is switched on
Certain warning lamps come on for a few seconds when the veh
icle's ignition is switched on.
When the engine is started, these same warning lamps should switch off.
If they remain on, before moving off, refer to the information on the warning lamp concerned.
Warning lamp is on Cause Action/Observations
Left-hand
direction
indicato
r fl a s h i n g w i t h
buzzer. The lighting stalk is pushed
down.
Right-hand
direction
indicator fl a s h i n g w i t h
buzzer. The lighting stalk is pushed
up.
Sidelamps fi x e d . The lighting stalk is in the
"Sidelamps" position. Turn the control to the desired position.
Dipped beam
headlamps fi x e d . The lighting stalk is in the
"Dipped beam headlamps"
position. Turn the control to the desired position .
Main beam
headlamps fi x e d . The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam headlamps.
Page 6 of 198

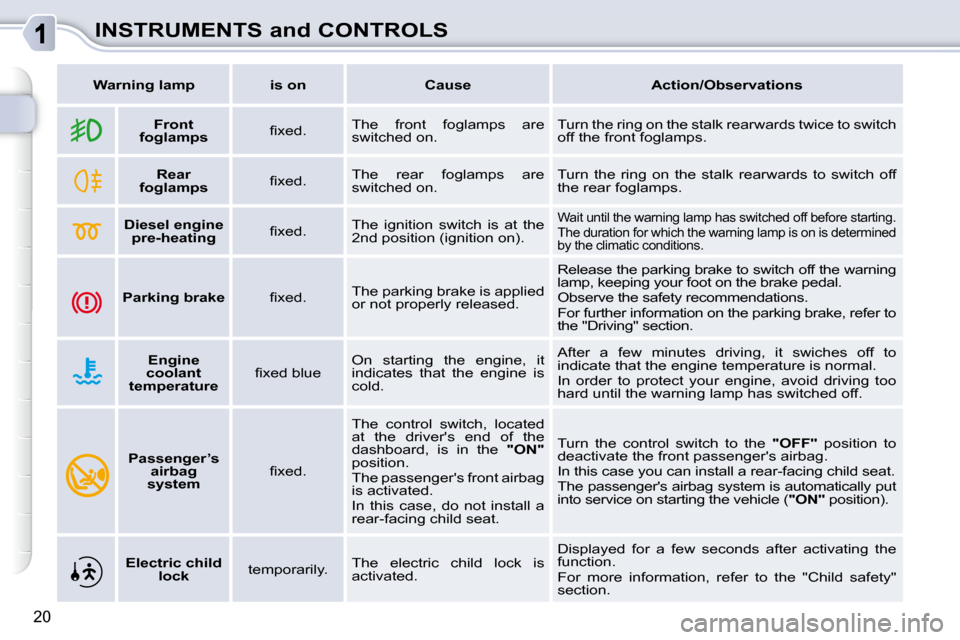

20
INSTRUMENTS and CONTROLS
Warning lamp is on Cause Action/Observations
Front
foglamps fi x e d . The front foglamps are
switched on. Turn the ring on the stalk rearwards twice to switch
off the front foglamps.
Rear
foglamps fi x e d . The rear foglamps are
switched on. Turn the ring on the stalk rearwards to switch off
the rear foglamps.
Diesel engine
pre-heating fi x e d . The ignition switch is at the
2 nd position (ignition on). Wait until the warning lamp has switched off befor
e starting.
The duration for which the warning lamp is on is d etermined
by the climatic conditions.
Parking brake fi x e d . The parking brake is applied
or not properly released. Release the parking brake to switch off the warnin
g
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For further information on the parking brake, refe r to
the "Driving" section.
Engine
coolant
temperature fi x e d b l u e On starting the engine, it
indicates that the engine is
cold. After a few minutes driving, it swiches off to
indicate that the engine temperature is normal.
In order to protect your engine, avoid driving too
hard until the warning lamp has switched off.
Passenger’s
airbag
system fi x e d . The control switch, located
at the driver's end of the
dashboard, is in the
"
ON
"
position.
The passenger's front airbag
is activated.
In this case, do not install a
rear-facing child seat. Turn the control switch to the
"
OFF
" position to
deactivate the front passenger's airbag.
In this case you can install a rear-facing child se at.
The passenger's airbag system is automatically put
into service on starting the vehicle ( "
ON
" position).
Electric child
lock temporarily. The electric child lock is
activated. Displayed for a few seconds after activating the
function.
For more information, refer to the "Child safety"
section.
Page 7 of 198
21
INSTRUMENTS and CONTROLS
Deactivation indicator lamps
I f o n e o f t h e f o l l o w i n g i n d i c a t o r l a m p s c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d i n g s y s t e m h a s b e e n s w i t c h e d o f f i n t e n t i o n a l l y .
This is accompanied by an audible signal and a message on the multifunction screen.
Warning lamp is on Cause Action/Observations
Passenger’s
airbag
system fi x e d . The control switch, located
at the driver's end of the
dashboard, is set to the
"OFF
" position.
The passenger’s front airbag
is deactivated.
In this case you can install a
"rear facing" child seat. Set the control switch to the
"ON" position to acti-
vate the passenger’s front airbag. In this case, do
n o t fi t a c h i l d s e a t i n t h e r e a r - f a c i n g p o s i t i o n .
The passenger’s airbag system is put into service
automatically when the vehicle is started ( "ON"
position).
ESP/ASR fi x e d . The button, located in the
middle of the dashboard, is
pressed. Its indicator lamp
is on.
The ESP/ASR is deactivated.
ESP: electronic stability pro-
gramme.
ASR: anti-skid regulation. Press the button to activate the ESP/ASR. Its
indicator lamp switches off.
The ESP/ASR system is activated automatically
when the vehicle is started.
If deactivated, the system is reactivated automati
cally
from approximately 30 mph (50 km/h).
Page 8 of 198
!
22
INSTRUMENTS and CONTROLS
Warning lamps
When the engine is running or the vehicle is
being driven, the switching on of one of the fol-
lowing warning lamps indicates a fault which
requires action on the part of the driver. Any fault resulting in the switching on of a warning lamp must be investigated
further by reading the associated message on the multifunction screen.
If you encounter any problems, do not hesitate to contact a CITROËN dealer.
Warning lamp is on Cause Action/Observations
STOP fi x e d , a s s o c i a t e d
with another
warning lamp,
accompanied by
an audible signal and a message on the screen. It is associated with the
braking system, the power
steering, the engine oil pres-
sure or the engine coolant
temperature.
Stop as soon as it is safe to do so.
Park, switch off the ignition and call a CITROËN
dealer.
Service temporarily,
accompanied
by an audible signal and a
message on the multifunction screen. A minor fault has occurred
f o r w h i c h t h e r e i s n o s p e c i fi c
warning lamp. Identify the fault by reading the message shown
on the screen, such as, for example:
- engine oil level,
- screenwash level,
- remote control battery,
- state of the bulbs,
- s a t u r a t i o n o f t h e p a r t i c l e e m i s s i o n fi l t e r ( D i e
s e l ) .
For any other faults, contact a CITROËN dealer.
fi x e d , a c c o m p a n i e d
by an audible signal
and a message on the multifunction screen. A major fault has occurred
f o r w h i c h t h e r e i s n o s p e c i fi c
warning lamp. Identify the fault by reading the message shown
on the screen and contact a CITROËN dealer.
Braking fi x e d .
T h e b r a k i n g s y s t e m fl u i d
l e v e l h a s d r o p p e d s i g n i fi -
cantly. T o p u p w i t h b r a k e fl u i d r e c o m m e n d e d b y
CITROËN.
If the problem persists, have the system checked
by a CITROËN dealer.
+ fi x e d , a s s o c i a t e d
with the ABS
warning lamp. The electronic brake force
distribution (EBFD) system
has a fault.
Have it checked by a CITROËN dealer.
Page 9 of 198
23
INSTRUMENTS and CONTROLS
Warning lamp is on Cause Action/Observations
Anti-lock
Braking System (ABS) fi x e d .
The anti-lock braking system
has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
CITROËN dealer without delay.
Dynamic
stability control
(ESP/ASR) fl a s h i n g .
The ESP/ASR regulation is
active. The system optimises traction and improves the
directional stability of the vehicle.
fi x e d . Unless it has been deactivated
with the indicator lamp on
the button on, the ESP/ASR
system is faulty. Have it checked by a CITROËN dealer.
Engine
autodiagnosis system fi x e d .
The emission control system
has a fault. This lamp should switch off when the engine is
started.
If it does not switch off, contact a CITROËN dealer
urgently.
fl a s h i n g . The engine management
system has a fault. Risk of destruction of the catalytic convertor.
Have it checked by a CITROËN dealer.
Low fuel level fi x e d . W h e n i t fi r s t c o m e s o n t h e r e
remains
approximately
5 litres of fuel in the tank. You must refuel as soon as possible to avoid
running out of fuel.
This warning lamp will come on every time the
i g n i t i o n i s s w i t c h e d o n , u n t i l a s u f fi c i e n t a d d i t i o n
of fuel is made.
Fuel tank capacity: approximately 50 litres (petrol)
or 48 litres (Diesel).
Never continue to drive until you run out of fuel
as this could damage the emission control and
injection systems.
Page 10 of 198
INSTRUMENTS and CONTROLS
Warning lamp is on Cause Action/Observations
Maximum
coolant
temperature fi x e d r e d .
The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a CITROËN
dealer.
Engine oil
pressure fi x e d . There is a fault with the
engine lubrication system. Stop as soon it is safe to do so.
Park, switch off the ignition and contact a
CITROËN dealer.
Battery
charge fi x e d . The battery charging circuit
has a fault (dirty or loose ter-
minals, slack or cut alterna-
tor belt, ...). This lamp should switch off when the engine is
started.
If it does not switch off, contact a CITROËN
dealer.
Door(s) open fi x e d i f t h e
speed is
below 6 mph (10 km/h).
A door or the boot is still
open. Close the door or boot.
fi x e d a n d
accompanied
by an audible signal if the speed is
above 6 mph (10 km/h).
