Page 19 of 198
i
i
!
!
33
MULTIFUNCTION SCREENS
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not active,
faulty).
Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or km/l).
Displays on MyWay satellite navigation colour screen
"SETUP" menu
Date and time
This menu allows you to adjust the date
and time, and their format (refer to the
"Audio and telematics section").
Display
This menu allows you to adjust the
brightness of the display, the display
contrast and the colour of the map (day/
night and auto mode).
System parameters
This menu allows you to restore the
factory settings, to display the software
version and to activate scrolling text.
This displays the following information:
- time,
- date,
- audio functions,
- guidance system information.
The chosen language will also be
used on the MyWay satellite navi-
gation colour screen.
Once the fuel consumption unit
has been changed to l/100 km or
km/l, the information relating to
speed and distance also changes
to kilometres.
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when
stationary. F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when
stationary.
Press the SETUP button to access the
"SETUP" menu. It gives you access to
the following functions:
- Date and time,
- Display,
- System parameters.
Page 25 of 198
i
i
!
39
MULTIFUNCTION SCREENS

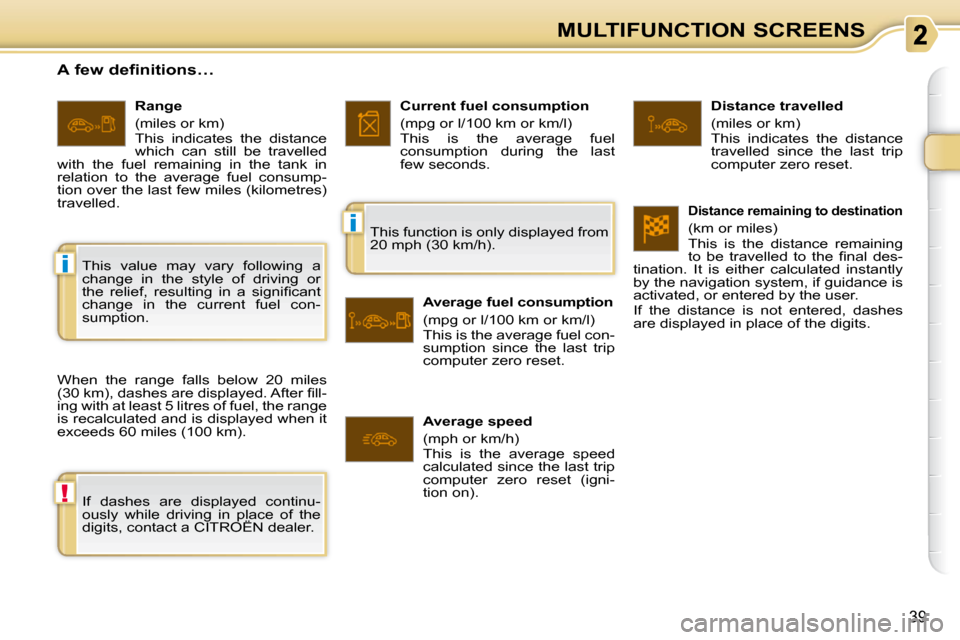

A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a CITROËN dealer. This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
t h e r e l i e f , r e s u l t i n g i n a s i g n i fi c a n t
change in the current fuel con-
sumption. Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption during the last
few seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset. Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed
calculated since the last trip
computer zero reset (igni-
tion on).
Distance remaining to destination
(km or miles)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s -
tination. It is either calculated instantly
by the navigation system, if guidance is
activated, or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 135 of 198
132
PRACTICAL INFORMATION
Fuse N° Rating Functions
F8 20 A Multifunction screen, audio system, navigation radio.
F9 30 A A u d i o s y s t e m ( fi t t e d a s a n o p t i o n ) , 1 2 V s o c k e t .
F10 15 A Steering mounted controls.
F11 15 A Ignition, diagnostic socket.
F12 15 A Rain/brightness sensor, trailer relay unit.
F13 5 A Main stop switch, engine relay unit.
F14 15 A Parking sensor control unit, seat belt unfastened
warning lamp, airbag control unit, instrument panel,
a i r c o n d i t i o n i n g , U S B B o x .
F15 30 A Locking.
F16 - Not used.
F17 40 A R e a r s c r e e n a n d e x t e r i o r m i r r o r s d e m i s t / d e f r o s t .
SH - PARC shunt.
Page 140 of 198
i
!
137
PRACTICAL INFORMATION
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
LOAD REDUCTION MODE
System which manages the use of
certain functions according to the level
of charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily de-
activates certain functions, such as
the air conditioning, the heated rear
screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if minor problems
persist following this operation,
contact a CITROËN dealer.
Referring to the corresponding
section, you should yourself reini-
t i a l i s e :
- the remote control key,
- the GPS satellite navigation
system.
Page 141 of 198
i
!
137
PRACTICAL INFORMATION
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
LOAD REDUCTION MODE
System which manages the use of
certain functions according to the level
of charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily de-
activates certain functions, such as
the air conditioning, the heated rear
screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if minor problems
persist following this operation,
contact a CITROËN dealer.
Referring to the corresponding
section, you should yourself reini-
t i a l i s e :
- the remote control key,
- the GPS satellite navigation
system.
Page 142 of 198
i
!
138
PRACTICAL INFORMATION A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .
If the telephone is being used at
the same time on the MyWay audio
navigation system, it will be inter-
rupted after 10 minutes.
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
e q u i p m e n t , w i n d s c r e e n w i p e r s , d i p p e d
beam headlamps, courtesy lamps, etc.
f o r a m a x i m u m c o m b i n e d p e r i o d o f
thirty minutes.
This period may be greatly reduced if
the battery is not fully charged. Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y t h e n e x t t i m e t h e v e h i c l e i s
driven.
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be dou-
ble the period for which the engine is left
running. However, this period will always
b e b e t w e e n fi v e a n d t h i r t y m i n u t e s .
Switching to economy mode
Once this period has elapsed, a mes-
sage appears on the multifunction
screen indicating that the vehicle has
switched to economy mode and the
active functions are put on standby.
CHANGING A FRONT OR REAR WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removal
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting
At the front, check the size of the wiper
b l a d e a s t h e s h o r t e r b l a d e i s fi t t e d t o
the passenger side of the vehicle.
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades in the
vertical position.
This position must be used in order to avoid
damaging the wiper blade and the bonnet.
After fitting a front wiper blade
Switch on the ignition.
Operate the wiper stalk again to
park the wiper blades.
Page 146 of 198
i
!
142
PRACTICAL INFORMATION
ACCESSORIES
You can obtain a wide range of accessories and genuine parts from the CITROËN
dealer network.
T h e y a l l b e n e fi t f r o m t h e C I T R O Ë N w a r r a n t y a n d r e c o m m e n d a t i o n .
These accessories and parts, having been tested and approved f or reliability and
safety, are all adapted to your CITROËN vehicle.
T h e p r o d u c t r a n g e i s s t r u c t u r e d a r o u n d 5 c a t e g o r i e s :
"Styling":
seat covers, 15, 16 and 17 inch alloy
wheels, wheel embellishers, styling
strips...
"Protection":
a n t i - t h e f t a l a r m , fi r s t a i d k i t , w a r n i n g t r i -
angle, high visibility jacket, snow chains
and non-slip covers, front foglamp kit,
parking assistance system...
* To avoid any risk of jamming of the p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
"In-car technology":
Bluetooth
®
hands free kit, audio sys-
tems, portable navigation system,
a u x i l i a r y a u d i o c a b l e ( e . g . f o r a n M P 3
c o n n e c t i o n ) , l o u d s p e a k e r s , U S B B o x ,
portable video screen...
"Comfort and Leisure":
mats * , boot tray, sun blinds, roof bars,
towbar, bicycle carrier, ski carrier, dog
guard, luggage net, booster seats and
child seats... "Universal":
s c r e e n w a s h fl u i d , m a i n t e n a n c e a n d c l e a n -
i n g p r o d u c t s f o r i n t e r i o r a n d e x t e r i o r .
Depending on the country in which
the vehicle is sold, it is compulso-
ry to have a high visibilty jacket,
warning triangle and spare bulbs
available in the vehicle.
T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t o r
accessories which are not recom-
mended by CITROËN may result
in a failure of your vehicle's elec-
t r o n i c s y s t e m a n d e x c e s s i v e p o w e r
consumption.
P l e a s e t a k e n o t e o f t h i s s p e c i fi c
warning. You are advised to contact
your dealer to be shown the range
o f r e c o m m e n d e d e q u i p m e n t a n d
accessories.
