18
INSTRUMENTS and CONTROLS
PETROL - DIESEL INSTRUMENT PANEL
Panel grouping together the digital indicator, the multifunction screen and the vehicle
operation indicator lamps.
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Rev counter zone indicating that you
must change up a gear.
3. Speed limiter
or
Cruise control.
(mph or km/h)
4. Electric child lock indicator lamp.
Indicates, for a few seconds, the acti- vation of the electric child lock (deacti-
vation of the rear windows and doors).
Translucent digital instrument panel
This screen groups together the warning
and information messages.
Multifunction screen
Indicator lamps display zone
This zone groups together the vehicle
operation indicator lamps.
Display zero reset button
This permits resetting of the function
selected to zero (trip distance recorder
or service indicator).
Instrument panel lighting button
This adjusts the brightness of the lighting
of the instruments and controls.
For more information, refer to the
paragraph relating to the button or
function and its associated display.
5. Fuel level.
Indicates the quantity of fuel remaining in the tank.
6. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).
7. Trip distance recorder.
(miles or km)
8. Service indicator.
(miles or km) then,
Distance recorder.
(miles or km)
9. Engine oil level indicator.
Page 26 of 198

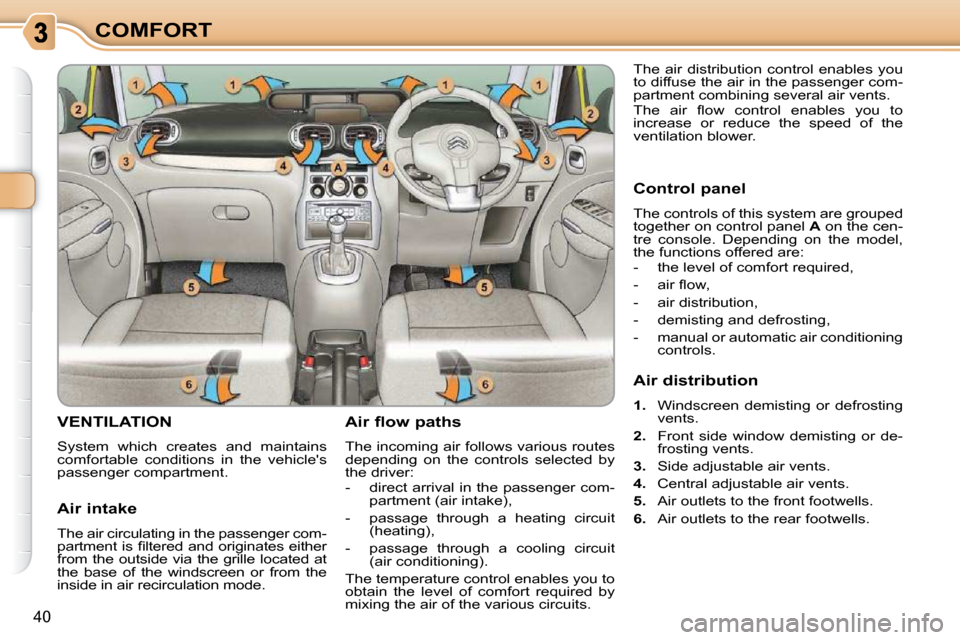

40
COMFORT
VENTILATION
System which creates and maintains
comfortable conditions in the vehicle's
passenger compartment. Air flow paths
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-
partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits. The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o
increase or reduce the speed of the
ventilation blower.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the cen-
tre console. Depending on the model,
the functions offered are:
- the level of comfort required,
- a i r fl o w ,
- air distribution,
- demisting and defrosting,
- manual or automatic air conditioning controls.
Air distribution
1. Windscreen demisting or defrosting
vents.
2. Front side window demisting or de-
frosting vents.
3. Side adjustable air vents.
4. Central adjustable air vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.
Page 28 of 198
i
42
COMFORT 2 . A i r fl o w a d j u s t m e n t
Turn the dial from posi-
tion 1 to position 5 to obtain
a c o m f o r t a b l e a i r fl o w .
Windscreen, side windows and
footwells.
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your re-
quirements.
Windscreen and side windows.
1 . T e m p e r a t u r e a d j u s t m e n t
The heating/ventilation or air condition-
ing systems can only operate with the
engine running.
I f y o u p l a c e t h e a i r fl o w c o n t r o l
in position 0 (deactivation of the
system), the temperature is no
longer maintained at a comfort-
able level. However, a slight
fl o w o f a i r , d u e t o t h e m o v e m e n t
of the vehicle, can still be felt.
3 . A i r d i s t r i b u t i o n a d j u s t m e n t
MANUAL AIR CONDITIONING
The control button is
located on the heat-
ing or air condition-
ing system control
panel.
REAR SCREEN DEMIST/DEFROST
Switch off the demist/defrost of
the rear screen and door mir-
rors as soon as you consider
this possible as lower current
consumption results in reduced
fuel consumption.
Switching on
The rear screen demist/defrost can only
operate when the engine is running.
Press this button to demist/defrost
the rear screen and the door mir-
rors. The indicator lamp associated
with the button comes on.
Switching off
The demist/defrost switches off auto-
matically to prevent an excessive con-
sumption of current.
It is possible to stop the demist/de-
frost operation before it is switched off
automatically by pressing the button
again. The indicator lamp associated
with the button switches off.
Page 29 of 198
i
42
COMFORT 2 . A i r fl o w a d j u s t m e n t
Turn the dial from posi-
tion 1 to position 5 to obtain
a c o m f o r t a b l e a i r fl o w .
Windscreen, side windows and
footwells.
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your re-
quirements.
Windscreen and side windows.
1 . T e m p e r a t u r e a d j u s t m e n t
The heating/ventilation or air condition-
ing systems can only operate with the
engine running.
I f y o u p l a c e t h e a i r fl o w c o n t r o l
in position 0 (deactivation of the
system), the temperature is no
longer maintained at a comfort-
able level. However, a slight
fl o w o f a i r , d u e t o t h e m o v e m e n t
of the vehicle, can still be felt.
3 . A i r d i s t r i b u t i o n a d j u s t m e n t
MANUAL AIR CONDITIONING
The control button is
located on the heat-
ing or air condition-
ing system control
panel.
REAR SCREEN DEMIST/DEFROST
Switch off the demist/defrost of
the rear screen and door mir-
rors as soon as you consider
this possible as lower current
consumption results in reduced
fuel consumption.
Switching on
The rear screen demist/defrost can only
operate when the engine is running.
Press this button to demist/defrost
the rear screen and the door mir-
rors. The indicator lamp associated
with the button comes on.
Switching off
The demist/defrost switches off auto-
matically to prevent an excessive con-
sumption of current.
It is possible to stop the demist/de-
frost operation before it is switched off
automatically by pressing the button
again. The indicator lamp associated
with the button switches off.
Page 30 of 198
43
COMFORT
Footwells.
Central and side vents.
The air distribution can be
adapted by placing the dial in
an intermediate position.
4. Air intake/Air recirculation
The intake of exterior air prevents the
formation of mist on the windscreen and
side windows.
The recirculation of interior air isolates
the passenger compartment from exterior
odours and smoke.
Return to exterior air intake as soon
as possible to prevent deterioration of
the the air quality and the formation of
mist.
Press the button to recir-
culate the interior air. The
indicator lamp comes on to
c o n fi r m t h i s .
Press the button again to permit the
intake of exterior air. The indicator
l a m p s w i t c h e s o f f t o c o n fi r m t h i s . 5. Air conditioning On/Off
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the
demisting in winter, above 3 °C.
Switching off
Press the "A/C" button again, the
associated green indicator lamp
switches off. The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
Switching on
Press the "A/C" button, the associ-
ated green indicator lamp comes on.
The air conditioning does not
o p e r a t e w h e n t h e a i r fl o w a d j u s t -
m e n t c o n t r o l 2 i s i n p o s i t i o n " 0 " .
Page 31 of 198
ii
44
COMFORT When the engine is cold, to prevent
too great a distribution of cold air,
t h e a i r fl o w w i l l r e a c h i t s o p t i m u m
level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, side windows and footwells
only. On entering the vehicle, if the inte-
rior temperature is much colder or
warmer than the comfort value, there
is no need to change the value dis-
played in order to obtain the comfort
required. The system corrects the
difference in temperature automati-
cally and as quickly as possible.
The air conditioning only operates when
the engine is running. The driver and his front pas-
senger can each adjust the
temperature to their require-
ments.
Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending
on your requirements, a setting between
18 and 24 is normal.
You are advised to avoid a left/right
setting difference of more than 3. 4 . A u t o m a t i c v i s i b i l i t y p r o g r a m m e
The automatic comfort pro-
g r a m m e m a y n o t b e s u f fi c i e n t
to quickly demist or defrost the
windscreen and side windows
(humidity, several passengers,
ice, etc.).
In this case, select the automatic
visibility programme.
The system automatically controls the
a i r c o n d i t i o n i n g , t h e a i r fl o w a n d t h e a i r
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
A u t o m a t i c o p e r a t i o n
Press the "AUTO" button.
The indicator lamp on the
button comes on. 2 . D r i v e r ' s s i d e a d j u s t m e n t
D U A L - Z O N E D I G I T A L A I R CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
g e r c o m p a r t m e n t t e m p e r a t u r e , a i r fl o w ,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
To switch it off, press the " v i s i b i l i t y "
button again or press the "AUTO"
button, the indicator lamp on the but-
ton switches off and the indicator lamp
on the "AUTO" button comes on.
1 . A u t o m a t i c c o m f o r t p r o g r a m m e
3 . P a s s e n g e r s i d e a d j u s t m e n t
Page 32 of 198
i
!
45
COMFORT
Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automatically.
Pressing the "AUTO" button returns
the system to completely automatic
operation.
Press this button to switch
off the air conditioning. 6 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press one or more buttons
t o d i r e c t t h e a i r fl o w t o -
wards:
7 . A i r fl o w a d j u s t m e n t
Turn this control to the left
t o d e c r e a s e t h e a i r fl o w o r
to the right to increase the
a i r fl o w .
8. Air intake/Air recirculation S w i t c h i n g t h e s y s t e m o f f
T u r n t h e a i r fl o w c o n t r o l t o t h e l e f t u n t i l
all of the indicator lamps switch off.
This action switches off the air condi-
tioning and the ventilation.
Temperature related comfort is no lon-
g e r g u a r a n t e e d b u t a s l i g h t fl o w o f a i r ,
due to the movement of the vehicle, can
still be felt.
T u r n t h e a i r fl o w d i a l t o t h e r i g h t o r
press the "AUTO" button to reacti-
vate the system with the values set
before it was switched off.
Press this button for recir-
culation of the interior air.
The indicator lamp on the
button comes on.

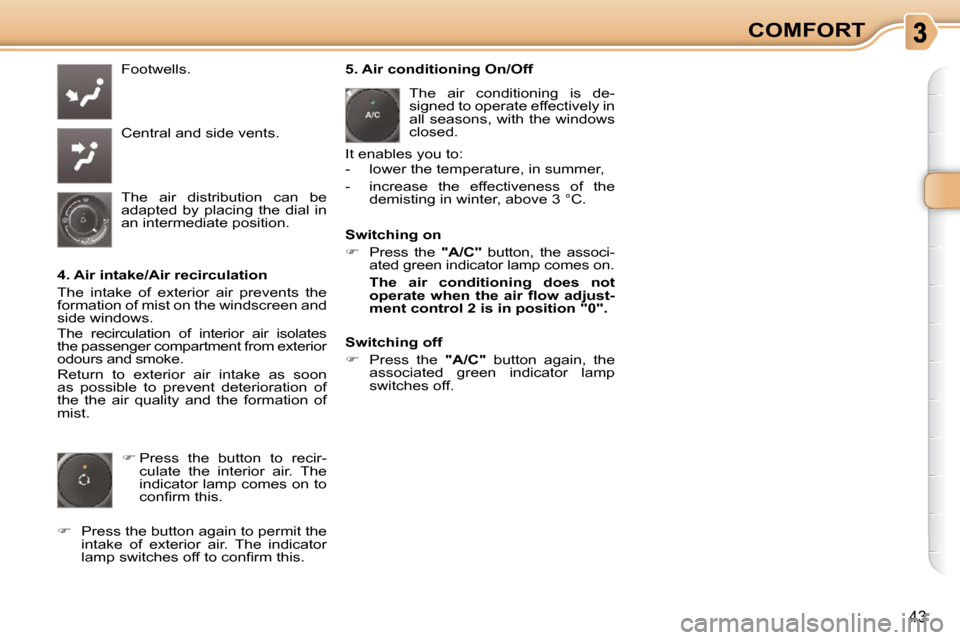

5. Air conditioning On/Off
Avoid prolonged operation in inte-
rior air recirculation mode or driving
for long periods with the system off
(risk of condensation and deterio-
ration of the air quality).
- the windscreen and side windows
(demisting or defrosting),
- the windscreen, the side windows and the vents,
- the windscreen, the side windows, the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows and the footwells.
T h e a i r fl o w i n d i c a t o r l a m p s , b e t w e e n
the two fans, come on progressively in
relation to the value requested.
As soon as possible, press this but-
ton again to permit the intake of out-
side air and prevent the formation
of condensation. The indicator lamp
on the button switches off.
For maximum cooling or heating
of the passenger compartment, it
is possible to exceed the minimum
value 14 or the maximum value 28.
Turn control 2 or 3 to the left
until "LO" is displayed or to the
right until "HI" is displayed. 9 . M o n o - z o n e / D u a l - z o n e
Press this button to equalise
the comfort value on the
passenger side with that
on the driver's side (mono
zone). The indicator lamp
on the button comes on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
Switching the system off could result in
discomfort (humidity, condensation).
Press this button again to return to
automatic operation of the air con-
ditioning. The indicator lamp on the
"A/C" button comes on.
Page 49 of 198
i
i
i
57
ACCESS
WINDOW CONTROLS
System which opens or closes a win-
dow manually or automatically. It is
fi t t e d w i t h a n t i - p i n c h p r o t e c t i o n i f a n
obstacle is detected on the one-touch
models and a deactivation system to
prevent misuse of the rear switches on
all models.
1. Driver's electric window control
switch.
2. Passenger's electric window
control switch.
3. Rear right electric window control
switch.
4. Rear left electric window control
switch.
5. Deactivating the rear electric
window and door controls. In the event of unwanted opening of
the window on closing (for example
in the presence of frost):
press the switch until it opens
completely,
then pull it immediately until it
closes,
continue to hold the switch for
approximately one second after
the window has closed.
The safety anti-pinch function is
not active during these operations.
Safety anti-pinch
The one-touch electric windows are
fi t t e d w i t h a s a f e t y a n t i - p i n c h f u n c t i o n .
When the window rises and meets an
obstacle, it stops and partially lowers
again.
The electric window switches re-
main operational for approximately
45 seconds after the ignition is
switched off or until a front door is
opened.
Electric windows
Press or pull the switch.
The window stops as soon
as the switch is released.
One-touch electric windows There are two methods
of operation:
- manual mode
Press or pull the switch gently.
The window stops as soon as the
switch is released.
- automatic mode
Press or pull the switch fully. The
window opens or closes completely
when the switch is released.
Pressing the switch again stops
the movement of the window. The electric window switches re-
main operational for approximately
45 seconds after the ignition is
switched off or until a front door is
opened.
Page 50 of 198
!
i
58
ACCESS
Deactivating the rear window and
door switches Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of the
window. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches,
they must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when opera-
ting the windows.
Reinitialisation
In the event of a malfunction you must
reinitialise the operation of the electric
windows:
release the switch and pull it again
until the window closes completely,
hold the switch for approximately
one second after closing,
press the switch to lower the window
automatically.
The safety anti-pinch function is not
active during these operations.
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
With the indicator lamp on, the rear
controls are deactivated.
With the indicator lamp off, the rear
controls are activated.
When the function is activated,
this warning lamp lights up
on the instrument panel for a
few seconds.
This control also deactivates the
interior rear door controls (see
"Child safety - § Electric child
lock").
Page 77 of 198
!
79
FITTINGS
Lift the catch to release the table and
unfold it.
Aircraft style tables
Reading lamps are built into the back of
the front seats, behind the tables. With
the ignition on, they light up the top of
the table without inconveniencing other
passengers.
They are only accessible if the table is
unfolded.
Press the button to switch the lamp
on or off.
Individual reading lamps
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event
of sharp braking or impact.
As a safety precaution, if too much
pressure is exerted the table will
fold downwards. Side blinds
Blinds are available for the side windows.
Pull the side blind longways by the tab
to use it.
Always guide the blind slowly using the
tab.
