Page 91 of 222
!
79
FITTINGS
Lift the catch to release the table and
unfold it.
Aircraft style tables
Reading lamps are built into the back of
the front seats, behind the tables. With
the ignition on, they illuminate the top of
the table without inconveniencing other
passengers.
They are only accessible if the table is
unfolded.
Press the button to switch the lamp
on or off.
Individual reading lamps
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event
of sharp braking or impact.
As a safety precaution, if too much
pressure is exerted the table will
fold downwards. Side blinds
Blinds are available for the side
windows.
Pull the side blind longways by the tab
to use it.
Always guide the blind slowly using the
tab.
Page 92 of 222
80
FITTINGS Opening
Lower the storage shelf.
P r e s s t h e fl a p o p e n i n g c o n t r o l .
L o w e r t h e fl a p .
C h e c k t h a t t h e a d j u s t a b l e b o o t fl o o r
is in the high position.
L o w e r t h e fl a p i n t h e b e n c h s e a t b y
pulling at the top.
Load the objects from inside the
boot.
Ski flap
Device for storing and transporting long
objects.
When unfolded, this provides a storage
area split into 2 sections, completing
the storage spaces available at the rear
of the vehicle.
Storage tray
Page 93 of 222
81
FITTINGS
Boot fittings
1. Storage net on right-hand boot trim.
2. Open storage compartments.
3. Torch.
4. A d j u s t a b l e b o o t fl o o r .
5. Carrier bag hook.
6. Securing rings.
7. Storage area under boot carpet
8. Rear parcel shelf.
Page 94 of 222
i
82
FITTINGS
2-position adjustable boot
T h e t w o - p o s i t i o n a d j u s t a b l e b o o t fl o o r
allows you to:
- maximise the volume of the boot,
- partition the boot (stowing the rear shelf...),
- o b t a i n a fl a t fl o o r f r o m t h e b o o t o p e n - ing to the front seats, when the rear
bench seat is in the folded and fully
back position. P l a c i n g t h e a d j u s t a b l e b o o t fl o o r i n
the low position
L i f t t h e a d j u s t a b l e b o o t fl o o r b y p u l l -
ing on the strap.
M o v e t h e a d j u s t a b l e b o o t fl o o r r e a r -
wards and then down, following the
guides on the sides. P l a c i n g t h e a d j u s t a b l e b o o t fl o o r i n
the high position
L i f t t h e a d j u s t a b l e b o o t fl o o r b y p u l l -
ing the strap.
M o v e t h e a d j u s t a b l e b o o t fl o o r r e a r -
wards then up to its high position.
In the high position, the adjustable boot
fl o o r a l l o w s s t o w i n g o f t h e r e a r p a r c e l
shelf and fragile objects.
T h e a d j u s t a b l e b o o t fl o o r i s fi t t e d w i t h
four stowing rings to secure your loads
using the net available as an accessory.
Ensure that your boot is empty be-
fore handling the adjustable boot
fl o o r .
Page 95 of 222
83
FITTINGS
Hooks Rear parcel shelf
This consists of three sections.
T h e f r o n t s e c t i o n i s fl e x i b l e , a n d t h e
central and rear sections are rigid.
The rear section is secured to the tail-
gate by two cords.
To remove it from the boot:
unhook the two cords,
gently lift up the cover to remove it
f r o m i t s fi x i n g s ,
remove the cover.
It can be stored under the adjustable
b o o t fl o o r , i f t h i s i s i n i t s h i g h p o s i t i o n .
The hooks can be used to hold shop-
ping bags.

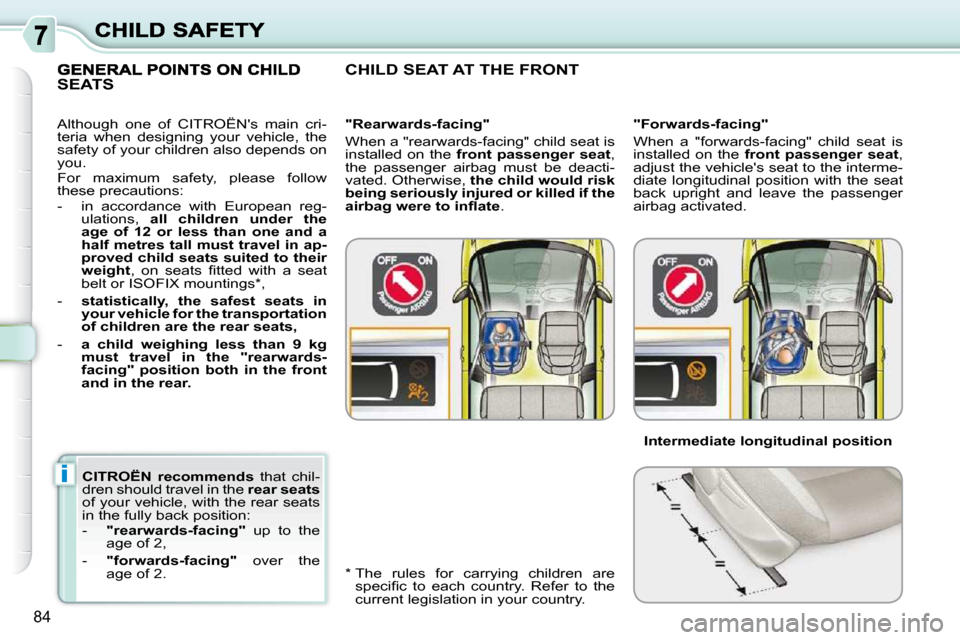

Page 96 of 222
i
84
CITROËN recommends that chil-
dren should travel in the rear seats
of your vehicle, with the rear seats
in the fully back position:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the
age of 2.
SEATS
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
the passenger airbag must be deacti-
vated. Otherwise, the child would risk
being seriously injured or killed if the
a i r b a g w e r e t o i n fl a t e .
* The rules for carrying children are s p e c i fi c t o e a c h c o u n t r y . R e f e r t o t h e
current legislation in your country.
A l t h o u g h o n e o f C I T R O Ë N ' s m a i n c r i -
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please follow
these precautions:
- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight , o n s e a t s fi t t e d w i t h a s e a t
belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transportation
of children are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
CHILD SEAT AT THE FRONT
Intermediate longitudinal position
Page 97 of 222
85
Group 0+: from birth to 13 kg Groups 1, 2 and 3: from 9 to 36 kg
L1
" R Ö M E R B a b y - Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for carrying
young children
(from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' '
L4
" K L I P P A N O p t i m a " From the age of 6 years
(approximately
22 kg), the booster is used on its own.
L5
" R Ö M E R K I D F I X "
C a n b e fi t t e d t o t h e v e h i c l e ' s I S O F I X m o u n t i n g s .
The child is restrained by the seat belt.
Passenger airbag OFF
CHILD SEATS RECOMMENDED BY CITROËN
C I T R O Ë N o f f e r s a c o m p l e t e r a n g e o f r e c o m m e n d e d c h i l d s e a t s w h i c h
a r e s e c u r e d
using a three point seat belt :
Page 98 of 222
85
Group 0+: from birth to 13 kg Groups 1, 2 and 3: from 9 to 36 kg
L1
" R Ö M E R B a b y - Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for carrying
young children
(from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' '
L4
" K L I P P A N O p t i m a " From the age of 6 years
(approximately
22 kg), the booster is used on its own.
L5
" R Ö M E R K I D F I X "
C a n b e fi t t e d t o t h e v e h i c l e ' s I S O F I X m o u n t i n g s .
The child is restrained by the seat belt.
Passenger airbag OFF
CHILD SEATS RECOMMENDED BY CITROËN
C I T R O Ë N o f f e r s a c o m p l e t e r a n g e o f r e c o m m e n d e d c h i l d s e a t s w h i c h
a r e s e c u r e d
using a three point seat belt :
Page 99 of 222
86
INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat b elt
and universally approved (a) in accordance with the weight of the child and the seat in the vehicle.
a Universal child seat: child seat that can be installed in all vehicles using a seat belt.
b Group 0: from birth to 10 kg. Shells seats and baby carriers cann ot be installed in the front passenger seat.
c Consult the legislation in force in your country before inst alling your child on this seat.
U: Seat suitable for the installation of a child seat secure d using a seat belt and universally approved, "rearwards-facing"
and/or "forwards-facing".
X: Sear position not suitable for installation of a child se at for the weight class indicated.
C I T R O Ë N r e c o m m e n d s t h a t c h i l d r e n t r a v e l i n t h e r e a r s e a t s , w i t h t h e r e a r s e a t s i n t h e f u l l y b a c k p o s i t i o n .
Weight of the child and indicative age
Seat
Under 13 kg
(groups 0 ( b )
and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( c )
U U U U
Outer rear seats U U U U
Centre rear seat X X X X
Page 100 of 222
!
87
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
C I T R O Ë N r e c o m m e n d s t h e u s e o f
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level. As a safety precaution, do not leave:
- a child or children alone and unsu-
pervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an ac-
cident.
R e m e m b e r t o f a s t e n t h e s e a t b e l t s o r
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
a n d t h a t i t s e c u r e s t h e c h i l d s e a t fi r m l y
o n t h e s e a t o f y o u r v e h i c l e . M o v e t h e
seat forwards if necessary.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in the
event of sharp braking. Children under the age of 10 must not
travel in the "forwards-facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
w e r e t o i n fl a t e .
