Page 141 of 222
i
1 2 6
PRACTICAL INFORMATION List of operations
Put the wheel in place on the hub
using the centring guide 4 .
Screw in the bolts by hand as far as
possible.
Pre-tighten the security bolt (if your ve-
h i c l e h a s t h e m ) u s i n g t h e w h e e l b r a c e
1 fi t t e d w i t h t h e s e c u r i t y s o c k e t 5 .
Pre-tighten the other bolts using the
wheelbrace 1 only.
Lower the vehicle fully.
Fold the jack 2 and detach it.
After changing a wheel
To store the punctured wheel in
t h e b o o t c o r r e c t l y , fi r s t r e m o v e t h e
central cover.
When using the "space-saver"
t y p e s p a r e w h e e l , d o n o t e x c e e d
5 0 m p h ( 8 0 k m / h ) .
Have the tightening of the bolts
and the pressure of the spare
wheel checked by a CITROËN
dealer without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.
Refitting the wheel
Tighten the security bolt (if your vehicle
h a s t h e m ) u s i n g t h e w h e e l b r a c e 1 fi t -
ted with the security socket 5 .
Tighten the other bolts using the
wheelbrace 1 only.
R e fi t t h e c h r o m e d b o l t c o v e r s o n
each of the bolts (with alloy wheels
o n l y ) .
S t o r e t h e t o o l s i n t h e b o x .
Page 142 of 222
!
!
1 2 7
PRACTICAL INFORMATION
CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb.
1. Direction indicators
(H21W amber).
2. Dipped
beam
headlamps
(H7-55W).
3. Main beam headlamps (H1-55W).
4. Sidelamps
(W5W).
5. Foglamps
(PSX24W).
T h e h e a d l a m p s a r e fi t t e d w i t h p o l y -
carbonate glass with a protective
coating:
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
use a sponge and soapy water,
when using a high pressure
washer on persistent marks, do
not direct at the lamps or their
outlines for too long, so as not
to damage their protective coat-
ing and seals. Front lamps
Do not touch the bulb directly
w i t h y o u r fi n g e r s , u s e l i n t - f r e e
cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk
o f s e r i o u s b u r n s ) .
It is imperative to use only anti-
u l t r a v i o l e t ( U V ) t y p e b u l b s i n o r d e r
not to damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
s p e c i fi c a t i o n .
Page 143 of 222
i
!
i
128
PRACTICAL INFORMATION
Changing direction indicator bulbs
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
s p e c i fi c a t i o n s a n d c o l o u r .
Remove the plastic protective cover.
Pull the bulb-holder and replace the
bulb.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
W h e n r e fi t t i n g , c l o s e t h e p l a s t i c
cover carefully to ensure the sealing
of the headlamp. If either of the direction indicator
w a r n i n g l a m p s i s fl a s h i n g q u i c k l y ,
one of the bulbs is faulty.
Changing main beam headlamp
bulbs
Remove the protective plastic cover
by pulling on the tab.
Disconnect the bulb connector.
Move the springs to release the bulb.
Remove the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Changing sidelamp bulbs
Remove the protective plastic cover
by pulling on the tab.
Pull the bulb-holder.
Remove the bulb and replace it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Changing dipped headlamp bulbs
Remove the protective plastic cover
by pulling on the tab.
T u r n t h e b u l b - h o l d e r b y a q u a r t e r
turn.
Remove the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Page 144 of 222
i
i
129
PRACTICAL INFORMATION
Changing integrated direction
indicator side repeaters
Contact a CITROËN dealer to obtain
replacement repeaters.
Insert a screwdriver on the edge of
the repeater.
T i l t t h e s c r e w d r i v e r t o e x t r a c t t h e
repeater and remove it.
Disconnect the repeater connector.
When removing:
- be careful not to damage the paintwork of your vehicle with the screwdriver,
- do not allow the wire and the con- nector to slide inside the wing.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
I f y o u e x p e r i e n c e a n y d i f fi c u l t y
in replacing bulbs, contact your
CITROËN dealer. Changing front foglamp bulbs
To obtain them, contact your CITROËN
dealer.
Remove the grille located under the
foglamp.
Disconnect the bulb holder connector,
by pressing on the tab.
Remove the bulb-holber by pressing on
t h e 2 c l i p s ( a t t h e t o p a n d t h e b o t t o m ) .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
I f y o u e x p e r i e n c e a n y d i f fi c u l t y
in replacing bulbs, contact your
CITROËN dealer.
Page 145 of 222
PRACTICAL INFORMATION
Rear lamps
1. Brake
lamps/sidelamps
(12VP21/5W).
2. Foglamp, right-hand side
(PR21W)
Reversing lamp, left-hand side
(P21W).
3. Direction indicators (P21W) Changing brake lamp/sidelamp and
direction indicator bulbs
u n s c r e w t h e t w o l a m p fi x i n g b o l t s ,
e x t r a c t t h e l i g h t c a r e f u l l y p u l l i n g i t
straight out,
t u r n t h e b u l b h o l d e r a q u a r t e r t u r n ,
remove the faulty bulb and replace it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Page 146 of 222
131
PRACTICAL INFORMATION
Changing foglamp/reversing lamp
bulbs
open the boot,
press on the tabs using 2 screwdrivers,
disconnect the lamp connector,
t u r n t h e b u l b h o l d e r b y a q u a r t e r t u r n ,
remove the bulb and replace it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order. Changing the third brake lamp bulbs
(4 W5W bulbs)
open the boot,
remove the two plugs located on the
boot inner panel,
press on the body of the lamp with
2 screwdrivers to remove it from its
housing,
turn the corresponding bulb-holder
a q u a r t e r t u r n ,
pull the bulb and replace it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order. Changing the number plate lamp
bulbs (W5W)
insert a thin screwdriver into one of
t h e l e n s ’ e x t e r i o r h o l e s ,
push it outwards to unclip,
remove the lens,
pull the bulb and replace it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Page 147 of 222
132
PRACTICAL INFORMATION
Interior lighting
Interior lamps (1/W5W)
Detach the cover of the interior lamp 1 with
a thin screwdriver, close to the button, to
access the faulty bulb.
Map reading lamps (2/W5W)
Detach the cover of the interior lamp. To
access the faulty bulb, detach the parti-
tion for the reading lamp 2 concerned,
as necessary. Footwell lamps (W5W)
Unclip the cover using a thin screw-
driver to access the faulty bulb.
Boot lamps (W5W)
Detach the unit by pushing it rear-
wards. Torch (Krypton 3.6V)
Open the tab.
P u s h w i t h a fl a t s c r e w d r i v e r i n t h e
hole under the tab and recover the
bulb unit.
Open the bulb unit fully to change
the bulb.
Door mirror lamps (W5W)
Unclip the cover using a thin screw-
driver to access the faulty bulb.
Page 148 of 222
i
!
133
PRACTICAL INFORMATION CITROËN will not accept respon-
sibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by CITROËN and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
a l e q u i p m e n t c o n n e c t e d e x c e e d s
1 0 m i l l i a m p e r e s .
Installing electrical accessories
Your vehicle’s electrical system is
designed to operate with standard
o r o p t i o n a l e q u i p m e n t .
Before installing other electrical
e q u i p m e n t o r a c c e s s o r i e s o n y o u r
vehicle, contact a CITROËN dealer.
CHANGING A FUSE
Procedure for replacing a failed fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
T h e e x t r a c t i o n t w e e z e r a n d t h e s p a r e
fuse storage compartment are installed
o n t h e b a c k o f t h e d a s h b o a r d f u s e b o x
cover.
For access to them:
O p e n t h e g l o v e b o x ,
unclip the fuse access cover by pulling
on the side,
remove the cover completely,
r e m o v e t h e t w e e z e r . Changing a fuse
Before changing a fuse, the cause of
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
Identify the failed fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l t w e e z e r t o e x t r a c t
the fuse from its housing.
Always replace the faulty fuse with a
fuse of the same rating.
Check that the number marked on
t h e f u s e b o x , t h e r a t i n g m a r k e d o n
the fuse and the following tables all
agree.
Good Failed
Page 149 of 222
134
PRACTICAL INFORMATION
Dashboard fuses
T h e f u s e b o x i s l o c a t e d i n t h e g l o v e b o x .
Access to the fuses
refer to the paragraph "Access to
the tools". Fuse tables
Fuse N° Rating Functions
FH36 5 A Trailer relay unit.
FH37 15 A Trailer accessories socket supply.
FH38 20 A Navigation.
FH39 - Not used.
FH40 30 A Trailer relay unit.
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Airbags and pretensioners control unit.
F4 10 A Steering wheel angle sensor, air conditioning,
c l u t c h s w i t c h , p a r t i c l e fi l t e r p u m p , d i a g n o s t i c
s o c k e t , a i r fl o w m e t e r .
F5 30 A Electric windows panel, passenger’s electric
window control, front electric windows motor.
F6 30 A Rear electric windows motor and driver’s electric
window motor.
F7 5 A Courtesy and front map reading lamps, torch, rear
reading lamps.

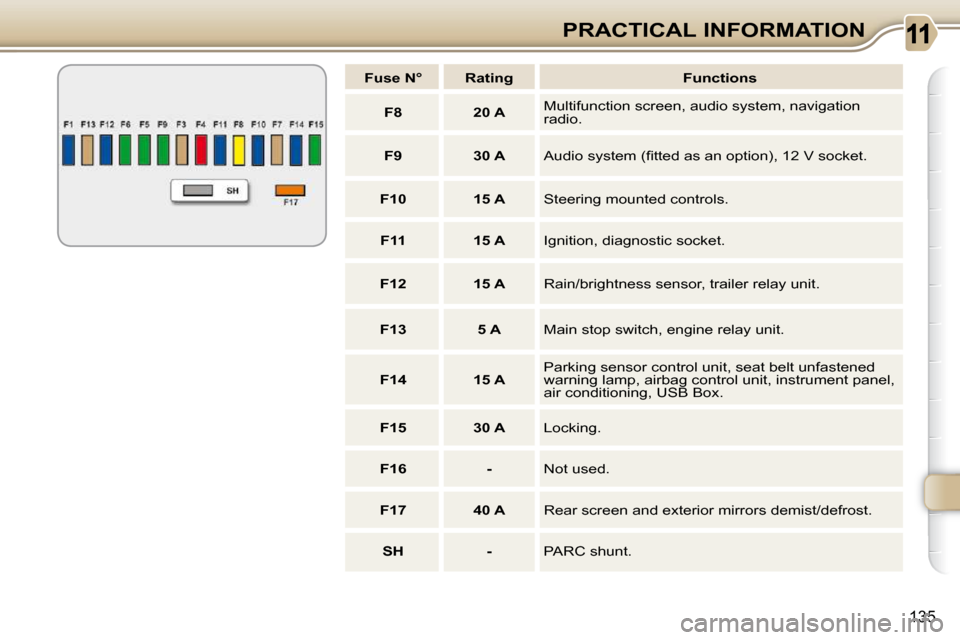

Page 150 of 222
1 3 5
PRACTICAL INFORMATION
Fuse N° Rating Functions
F8 20 A Multifunction screen, audio system, navigation
radio.
F9 30 A A u d i o s y s t e m ( fi t t e d a s a n o p t i o n ) , 1 2 V s o c k e t .
F10 15 A Steering mounted controls.
F11 15 A Ignition, diagnostic socket.
F12 15 A R a i n / b r i g h t n e s s s e n s o r , t r a i l e r r e l a y u n i t .
F13 5 A Main stop switch, engine relay unit.
F14 15 A Parking sensor control unit, seat belt unfastened
warning lamp, airbag control unit, instrument panel,
a i r c o n d i t i o n i n g , U S B B o x .
F15 30 A Locking.
F16 - Not used.
F17 40 A R e a r s c r e e n a n d e x t e r i o r m i r r o r s d e m i s t / d e f r o s t .
SH - PARC shunt.
