Page 27 of 222
30
MULTIFUNCTION SCREENS
MONOCHROME SCREEN A Controls
Displays in the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- state of the openings (doors, boot, ...),
- audio sources (radio, CD, ...),
- trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. Main menu
Press the "MENU" button for access
to the main menu , then press the
" " or " " buttons to scroll through
the various menus:
- radio-CD,
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- language,
- units.
Press the "OK" button to select the
menu required.
From the audio equipment control panel,
you can:
press the "MENU" button for access
to the main menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source, ...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Radio-CD
With the audio equipment switched on,
once the "Radio-CD" menu has been
selected you can activate or deacti-
vate the functions linked with use of the
radio (RDS, REG) or the CD (introscan,
s h u f fl e , C D r e p e a t ) .
For more information on the "Radio-
CD" application, refer to the Audio sys-
tem part of the "Audio and Telematics"
section.
Page 28 of 222
!
i
31
MULTIFUNCTION SCREENS Once the fuel consumption unit has
been changed to l/100 km or km/l,
the information relating to speed
and distance also changes to kilo-
metres.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
Once you have selected a setting,
press the " " or " " buttons to
change its value.
Press the " " or " " buttons to
switch respectively to the previous
or next setting.
Press the "OK" button to record the
change and return to the normal dis-
play or press the "ESC" button to
cancel.
V e h i c l e c o n fi g u r a t i o n
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).
O n c e t h e " V e h i c l e C o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when
stationary.
Page 29 of 222
32
MULTIFUNCTION SCREENS
MONOCHROME SCREEN A ASSOCIATED
WITH THE MYWAY SATELLITE
NAVIGATION COLOUR SCREEN
Main menu
Displays in screen A
This displays the following information:
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. Controls
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-
menu required.
Press the "MENU" button to scroll
through the various menus of the
main menu :
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- language,
- units.
Press the "OK" button to select the
menu required.
V e h i c l e c o n fi g u r a t i o n
O n c e t h e " V e h i c l e c o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following systems:
- wiper linked with reverse gear (refer to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).
Page 31 of 222
34
MULTIFUNCTION SCREENS
Displays in the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- state of the openings (doors, boot, etc.),
- audio sources (radio, CD, USB port, etc.),
- trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. From the audio system control panel,
you can:
press the "MENU" button to gain
access to the main menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source, ...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Main menu
Press the "MENU" button to gain
access to the main menu :
- audio functions,
- the trip computer (refer to the end of the section),
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n fi r m
by pressing the "OK" button.
MONOCHROME SCREEN C Controls
"Audio functions" menu
With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
R a d i o T e x t ) , t h e C D ( i n t r o s c a n , s h u f fl e ,
CD repeat) or the MP3 player (USB
port).
For more information on the "Audio func-
tions" application, refer to the Audio sys-
tems part of the "Audio and Telematics"
section.
Page 33 of 222
!
i
36
MULTIFUNCTION SCREENS
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected, you
can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Example: setting of the duration of the
"guide-me-home" lighting
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
Press the " " or " " buttons,
then the "OK" button to select the
"Guide-me-home headlamps" line.
Press the " " or " " buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK" button
t o c o n fi r m .
Press the " " or " " buttons, then
the "OK" button to select the "OK"
b o x a n d c o n fi r m o r p r e s s t h e "ESC"
button to cancel.
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when sta-
tionary.
Choice of language
Once this menu has been selected,
you can change the language used
by the display (Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Türkçe, Portugues-Brasil). Once the fuel consumption unit has
been changed to l/100 km or km/l,
the information relating to speed
and distance also changes to kilo-
metres. Telephone menu
With the Audio system on, with this menu
s e l e c t e d , y o u c a n c o n fi g u r e y o u r B l u e -
tooth hands-free kit (pairing), view the
various telephone directories (call log,
services...) and manage your calls (call,
hang up, double call, secret mode ...).
For more information on the "Telephone"
application, refer to the Audio system
section in "Audio and Telematics".
Page 55 of 222
!
56
ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration do cument and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to retrieve the key code a nd the transponder
code required to order a replacement key.
Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the keys
in your possession are the only ones which can start the vehicle.
Page 57 of 222
!
56
ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration do cument and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to retrieve the key code a nd the transponder
code required to order a replacement key.
Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the keys
in your possession are the only ones which can start the vehicle.
Page 185 of 222
06
3
2
1
1
171
SELECTING A STATION
When the current radio station is displayed on the screen, press the dial.
T h e r a d i o s o u r c e s h o r t - c u t s m e n u a p p e a r s a n d p r o v i d e s a c c e s s t o t h e f o l l o w i n g s h o r t - c u t s :
S e l e c t t h e f u n c t i o n r e q u i r e d a n d p r e s s t h e d i a l t o c o n fi r m t o g a i n access to the corresponding settings.
TA
R D S , i f d i s p l a y e d , a l l o w s y o u t o c o n t i n u e l i s t e n i n g t o t h e s a m e s t a t i o n b y a u t o m a t i c r e t u n i n g t o a l t e r n a t i v e f r e q u e n c i e s . H o w e v e r , i n c e r t a i n c o n d i t i o n s , c o v e r a g e o f a n R D S s t a t i o n m a y n o t b e assured throughout the entire country as radio stations do not cover 100 % of the territory. This explains the loss of receptio n of the station during a journey.
T h e e x t e r n a l e n v i r o n m e n t ( h i l l , b u i l d i n g , t u n n e l , u n d e r g r o u n d c a r p a r k . . . ) m a y i n t e r f e r e w i t h t h e r e c e p t i o n , i n c l u d i n g i n R D S f o l l o w i n g m o d e . T h i s phenomenon is a normal result of the way in which r adio waves are transmitted and does not in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE
P r e s s t h e R A D I O b u t t o n t o d i s p l a y the list of stations received locally sorted in alphabetical order.
S e l e c t t h e s t a t i o n r e q u i r e d b y t u r n i n g t h e d i a l a n d p r e s s t o c o n fi r m .
Regional prog.
Radiotext
RDS While listening to the radio, press one of the buttons to select the previous or next station on the list.
Press one of the buttons on the numeric keypad for more than 2 seconds to store the current station.
Press the button on the numeric keypad to recall the stored radi o station.
AM
A long press of one of the buttons starts the automatic search for a station with a lower or higher frequency.
RADIO
Page 187 of 222
07
3
2
1
6
4
5
173
SELECTING/PLAYING MUSIC
CD, MP3/WMA CD
T h e p l a y i n g a n d d i s p l a y i n g o f a n M P 3 / W M A c o m p i l a t i o n m a y d e p e n d o n t h e r e c o r d i n g p r o g r a m m e a n d / o r t h e s e t t i n g s u s e d . W e r e c o m m e n d t h e I S O 9 6 6 0 fi l e s t a n d a r d .
P r e s s t h e M U S I C b u t t o n .
S e l e c t t h e " S e l e c t m u s i c " f u n c t i o n a n d p r e s s t h e d i a l t o c o n fi r m .
Press the up or down button to select t h e n e x t / p r e v i o u s f o l d e r .
S e l e c t t h e m u s i c s o u r c e r e q u i r e d : C D , M P 3 / W M A C D . P r e s s t h e d i a l t o c o n fi r m . P l a y b e g i n s .
Select music
P r e s s t h e M U S I C b u t t o n a g a i n o r select the Music Menu function and p r e s s t h e d i a l t o c o n fi r m .
Press one of the buttons to select a music track.
Press and hold one of the buttons for fast forward or rewind play. Music Menu
T h e l i s t o f t r a c k s o r M P 3 / W M A fi l e s a p p e a r s u n d e r M u s i c M e n u .
MUSIC MEDIA PLAYERS
Page 193 of 222
02
157

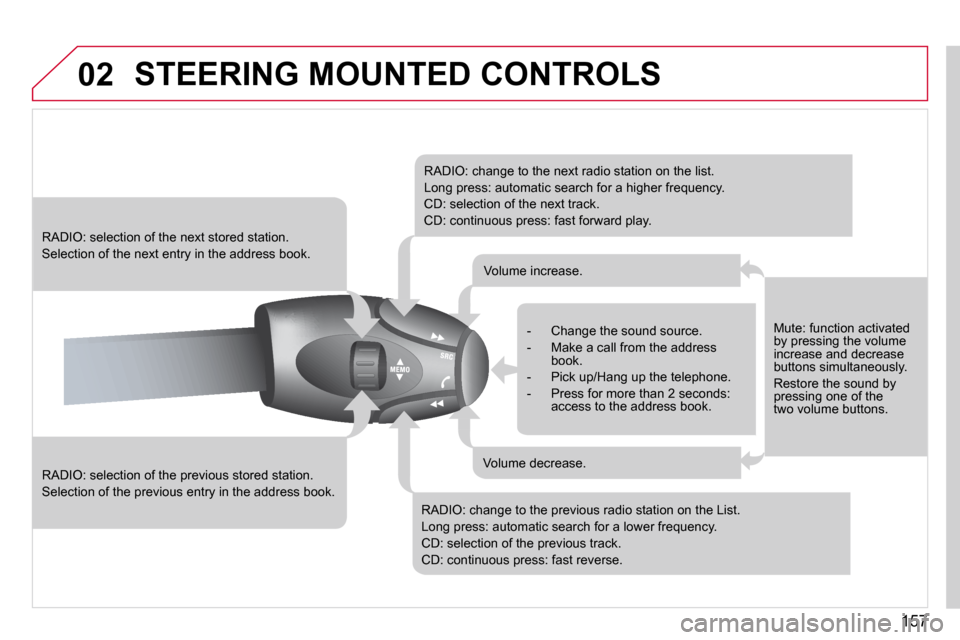

STEERING MOUNTED CONTROLS
R A D I O : s e l e c t i o n o f t h e p r e v i o u s s t o r e d s t a t i o n .
S e l e c t i o n o f t h e p r e v i o u s e n t r y i n t h e a d d r e s s b o o k .
R A D I O : s e l e c t i o n o f t h e n e x t s t o r e d s t a t i o n .
S e l e c t i o n o f t h e n e x t e n t r y i n t h e a d d r e s s b o o k .
R A D I O : c h a n g e t o t h e n e x t r a d i o s t a t i o n o n t h e l i s t .
L o n g p r e s s : a u t o m a t i c s e a r c h f o r a h i g h e r f r e q u e n c y .
C D : s e l e c t i o n o f t h e n e x t t r a c k .
C D : c o n t i n u o u s p r e s s : f a s t f o r w a r d p l a y .
R A D I O : c h a n g e t o t h e p r e v i o u s r a d i o s t a t i o n o n t h e L i s t .
L o n g p r e s s : a u t o m a t i c s e a r c h f o r a l o w e r f r e q u e n c y .
C D : s e l e c t i o n o f t h e p r e v i o u s t r a c k .
C D : c o n t i n u o u s p r e s s : f a s t r e v e r s e .
- C h a n g e t h e s o u n d s o u r c e .
- M a k e a c a l l f r o m t h e a d d r e s s book.
- P i c k u p / H a n g u p t h e t e l e p h o n e .
- P r e s s f o r m o r e t h a n 2 s e c o n d s : access to the address book.
Volume increase.
Volume decrease.
M u t e : f u n c t i o n a c t i v a t e d by pressing the volume increase and decrease buttons simultaneously.
Restore the sound by pressing one of the two volume buttons.
