ACCESS
PANORAMIC SUNROOF
System which consists of an area of
panoramic tinted glass to increase the
light and visibility in the passenger com-
partment. It is fi tted with 2 independent
manual blinds to help maintain a com-
fortable temperature.
Closing
Rear blind
)
Pull the blind forwards until it locks in.
Front blind
)
Pull the blind rearwards until it locks in.
Opening
Each blind is fi tted with a roller
which stores it once you release it.
)
Raise the blind's handle and re-
lease.
Page 72 of 244
4
70
ACCESS
Additions of fuel must be of at
least 5 litres to be registered by
the fuel gauge.
The key cannot be removed
from the lock until the cap is re-
fi tted.
Opening the fi ller cap may create
a noise caused by an inrush of
air. This vacuum is entirely nor-
mal and results from the sealing
of the fuel system.

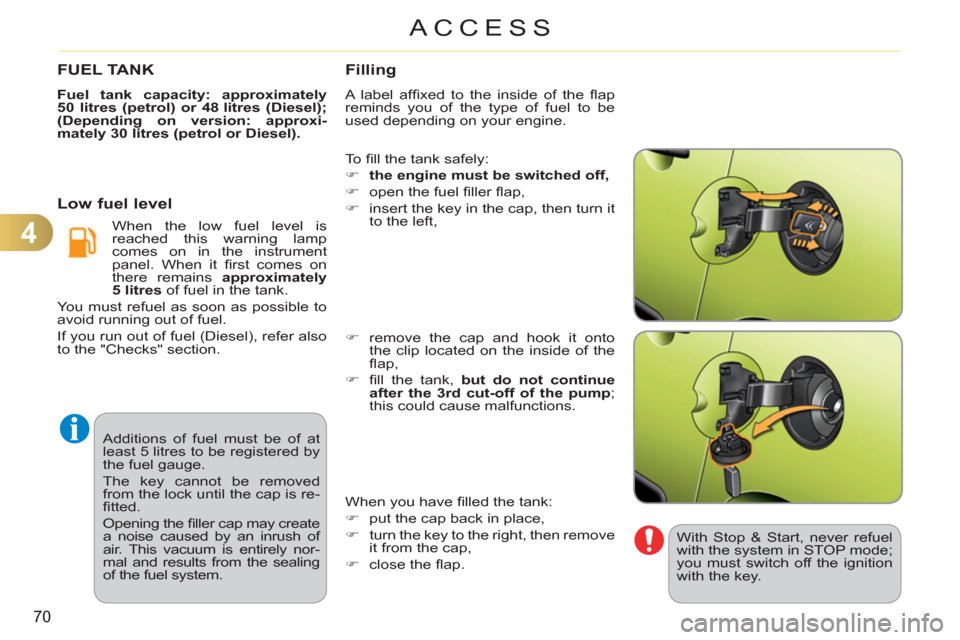

FUEL TANK
Fuel tank capacity: approximately
50 litres (petrol) or 48 litres (Diesel);
(Depending on version: approxi-
mately 30 litres (petrol or Diesel).
Low fuel levelFillin
g
A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used depending on your engine.
When the low fuel level is
reached this warning lamp
comes on in the instrument
panel. When it fi rst comes on
there remains approximately
5 litres
of fuel in the tank.
You must refuel as soon as possible to
avoid running out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section. To fi ll the tank safely:
)
the engine must be switched off,
)
open the fuel fi ller fl ap,
)
insert the key in the cap, then turn it
to the left,
)
remove the cap and hook it onto
the clip located on the inside of the
fl ap,
)
fi ll the tank, but do not continue
after the 3rd cut-off of the pump
;
this could cause malfunctions.
When you have fi lled the tank:
)
put the cap back in place,
)
turn the key to the right, then remove
it from the cap,
)
close the fl ap.
With Stop & Start, never refuel
with the system in STOP mode;
you must switch off the ignition
with the key.
Page 73 of 244
4
71
ACCESS
Quality of the fuel used for petrol engines
The petrol engines are perfectly com-
patible with E10 or E24 type petrol
biofuels (containing 10 % or 24 % etha-
nol), conforming to European standards
EN 228 and EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).
Quality of the fuel used for Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Contact a
CITROËN dealer or a qualifi ed work-
shop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
Page 74 of 244
4
72
ACCESS
MISFUEL PREVENTION(DIESEL) *Operation
It remains possible to use a fuel
can to fi ll the tank; this must be
done slowly.
In order to ensure a good fl ow of
fuel, do not place the nozzle of
the fuel can in direct contact with
the fl ap of the misfuel prevention
device.
This tool will become available during
the year. Mechanical device which prevents fi lling
the tank of a Diesel vehicle with petrol. It
avoids the risk of engine damage that can
result from fi lling with the wrong fuel.
Located in the fi ller neck, the misfuel
prevention device appears when the
fi ller cap is removed.
When a petrol fi ller nozzle is introduced into
the fuel fi ller neck of your Diesel vehicle, it
comes into contact with the fl ap. The sys-
tem remains closed and prevents fi lling.
Do not persist but introduce a Diesel
type fi ller nozzle.
Travelling abroad
As Diesel fuel pump nozzles
may be different in other coun-
tries, the presence of the misfuel
prevention device may make re-
fuelling impossible.
Before travelling abroad, we
recommend that you check with
the CITROËN dealer network,
whether your vehicle is suitable
for the fuel pumps in the country
in which you want to travel.
*
According to country of sale.
Deactivation
Before refuelling using non-standard
Diesel fuel nozzles (present in some
countries), a tool allows you to temporar-
ily disable the misfuel prevention device.
Use
)
Introduce the tool into the fi ller neck
as far as the handle will allow.
)
Remove the tool completely.
)
Fill with fuel.
The misfuel prevention device
will be activated the next time a
standard nozzle is used.
Page 75 of 244
5
73
VISIBILITY

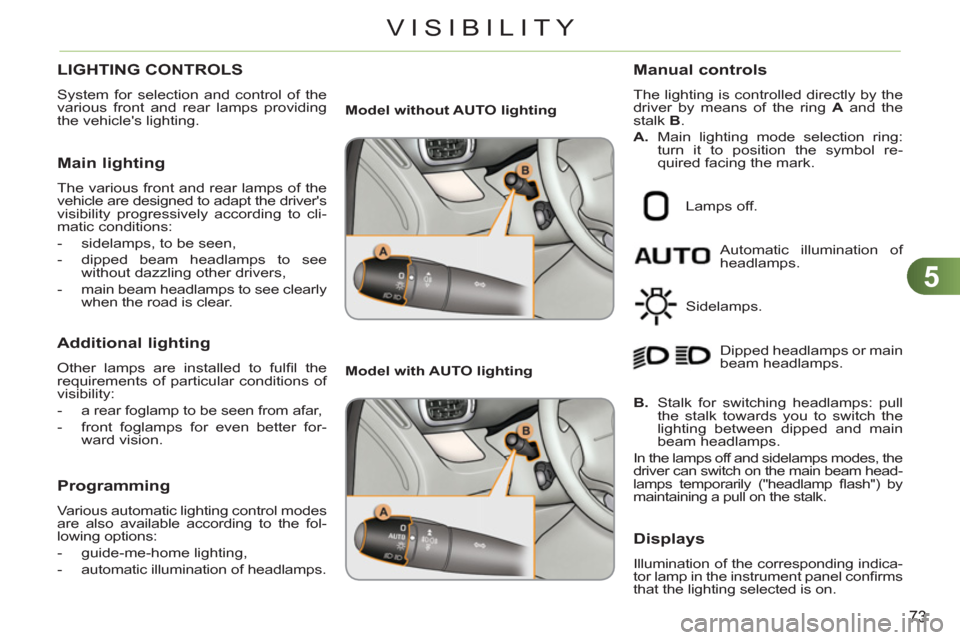

LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driver's
visibility progressively according to cli-
matic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see
without dazzling other drivers,
- main beam headlamps to see clearly
when the road is clear.
Additional lighting
Other lamps are installed to fulfi l the
requirements of particular conditions of
visibility:
- a rear foglamp to be seen from afar,
- front foglamps for even better for-
ward vision.
Programming
Various automatic lighting control modes
are also available according to the fol-
lowing options:
- guide-me-home lighting,
- automatic illumination of headlamps.
Model without AUTO lighting
Model with AUTO lighting
Automatic illumination of
headlamps.
Manual controls
The lighting is controlled directly by the
driver by means of the ring A
and the
stalk B
.
A.
Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Lamps off.
Sidelamps.
B.
Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main
beam headlamps.
In the lamps off and sidelamps modes, the
driver can switch on the main beam head-
lamps temporarily ("headlamp fl ash") by
maintaining a pull on the stalk. Dipped headlamps or main
beam headlamps.
Displays
Illumination of the corresponding indica-
tor lamp in the instrument panel confi rms
that the lighting selected is on.
Page 76 of 244
5
VISIBILITY
Model with rear foglamp only
Rear foglamp
)
To switch on the foglamp, turn the
ring C
forwards.
When the lighting is switched off au-
tomatically (with AUTO model), the
foglamp and the dipped beam head-
lamps will remain on.
)
To switch off all of the lighting, turn
the ring C
rearwards.
In good or rainy weather, by
both day and night, the front fo-
glamps and the rear foglamp are
prohibited. In these situations,
the power of their beams may
dazzle other drivers.
Do not forget to switch off the
front foglamps and the rear fo-
glamp when they are no longer
necessary.
Lighting on audible warning
When the ignition is switched
off, all of the lamps switch off
automatically, unless guide-me-
home lighting is activated.
If the lighting is switched on
manually after switching off the
ignition, there is an audible sig-
nal when a front door is opened
to warn the driver that they have
forgotten to switch off the vehi-
cle's lighting, with the ignition
off.
Model with front foglamps and a
rear foglamp Front and rear foglamps
Rotate and release the ring C
:
)
forwards a fi rst time to switch on the
front foglamps,
)
forwards a second time to switch on
the rear foglamp,
)
rearwards a fi rst time to switch off
the rear foglamp,
)
rearwards a second time to switch
of the front fog lamps.
C.
Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps. When the lighting is switched off auto-
matically (with AUTO model) or when
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.
)
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
Page 77 of 244
5
75
VISIBILITY
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.
Switching on
)
With the ignition off, "fl ash" the
headlamps using the lighting stalk.
)
A further "headlamp fl ash" switches
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
On vehicles fi tted with daytime run-
ning lamps, the dipped beams come on
when the vehicle is started.
*
According to country. This warning lamp comes on in
the instrument panel.
Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.
Activation
)
Turn ring A
to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the multifunction screen.
Deactivation
)
Turn ring A
to a position other than
"AUTO"
. Deactivation is accompa-
nied by a message in the multifunc-
tion screen.
The instruments and controls (instru-
ment panel, multifunction screen, air
conditioning control panel, etc.) are not
illuminated, except on switching to the
automatic lighting mode or when the
lighting is switched on manually.
This function can be activated/deactivat-
ed by a CITROËN dealer or a qualifi ed
workshop. In some weather conditions (e.g.
low temperature or humidity),
the presence of misting on the
internal surface of the glass of
the headlamps and rear lamps
is normal; it disappears after
the lamps have been on for a
few minutes.
Page 78 of 244
5
76
VISIBILITY
In fog or snow, the sunshine
sensor may detect suffi cient
light. Therefore, the lamps will
not come on automatically.
Do not cover the sunshine sen-
sor, linked with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
Linked with the Guide-me-home
lighting
Association with the automatic illumina-
tion of headlamps provides the guide-
me-home lighting with the following
additional options:
- automatic activation of guide-me-
home lighting when automatic illu-
mination of headlamps is switched
on (in the vehicle parameters of the
multifunction screen confi guration
menu),
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle param-
eters of the multifunction screen
confi guration menu (except for
monochrome screen A
where this
is preset).
Operating fault
In the event of a malfunction
of the sunshine sensor, the
lamps come on, this warn-
ing lamp is displayed in the
instrument panel and/or a message ap-
pears in the multifunction screen, ac-
companied by an audible signal.
Contact a CITROËN dealer or a quali-
fi ed workshop.
HEADLAMP ADJUSTMENT
The initial setting is position "0"
. To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing the load in the vehicle.
0.
1 or 2 people in the front seats.
-.
Less than 5 people.
1.
5 people.
-.
5 people + maximum authorised load.
2 - 3.
Driver + maximum authorised load.
Page 79 of 244
5
77
VISIBILITY
WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the climatic
conditions.
Manual controls
The wiper commands are issued direct-
ly by the driver by means of the stalk A
and the ring B
.
Model with intermittent wiping
Model with AUTO wiping
fast (heavy rain),
normal (moderate rain),
intermittent (proportional to
the speed of the vehicle),
automatic, then single
wipe (see following
page). park,
single wipe (press down and
release),
Various automatic wiper control modes
are also available according to the fol-
lowing options:
- automatic rain sensitive windscreen
wipers,
- rear wiping on engaging reverse
gear.
Windscreen wipers
A.
Wiping speed selection stalk:
or
Page 80 of 244
5
78
VISIBILITY
Windscreen wash
Pull the wiper stalk towards you.
The windscreen wash, then the windscreen
wipers, operate for a pre-determined time.
B.
Rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).
Reverse gear
When reverse gear is engaged, the rear
wiper will operate if the windscreen wipers
are operating.
Programming
The function is activated or deactivated
via the multifunction screen confi gura-
tion menu.
This function is activated by default.
Rear wiper
If a signifi cant accumulation of
snow or ice is present, or when
using a tailgate bicycle car-
rier, deactivate the automatic
rear wiper via the multifunction
screen confi guration menu.
Wiping zone
The curved shape of the rear screen re-
sults in a smaller wiping zone.
