On-line owner's handbook
Referring to the owner's handbook on-line also gives you
access to the latest information available, easily identifi ed by
the bookmarks, associated with this pictogram:
If the "MyCitroën" function is not available on the CITROËN public
website for your country, you can fi nd your handbook at the following
address:
http://service.citroen.com
Select:
You can fi nd your handbook on the CITROËN website, under the
heading "MyCitroën".
This personal and customisable space allows you to establish direct
and special contact with CITROËN.
The Vehicle documentation link in the home page (no registration is
needed),
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration
of your vehicle.
You have access to your handbook on line, together with
the latest information, identifi ed by the symbol:
Page 3 of 284
Your vehicle is fi tted with only some of the
equipment described in this document,
depending on the trim level, version and the
specifi cations for the country in which it is
sold.
The fi tting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of your
vehicle's electronic system. Please note this
specifi c warning and contact a CITROËN
dealer to be shown the recommended
equipment and accessories.
CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.
Happy motoring!
We draw your attention to the following...
At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.
refer to the page indicated Key
contributes to the protection of the environment
additional information
safety warning
Page 4 of 284
.
.
Contents
Conventional child seats 104
Isofi x child seats 110
Child lock 113
Child safety
Instrument panel 22
Indicator and warning lamps 23
Indicators 31
Adjustment buttons 34
Monitoring Familiarisation
Screen without audio equipment 35
Screen with audio equipment 37
Tr i p c o m p u t e r 47
Multifunction screens
Ventilation 50
Rear screen demist/defrost 52
Heating 53
Manual air conditioning 53
Dual-zone digital air conditioning 55
Scented air freshener 58
Front seats 59
Rear seats 62
Mirrors 64
Steering wheel adjustment 65
Comfort
Remote control key 66
Window controls 70
Doors 72
Boot 75
Panoramic sunroof 76
Fuel tank 77
Misfuel prevention (Diesel) 79
Access
Lighting controls 80
LED lamps 84
Cornering lighting 85
Headlamp adjustment 86
Wiper controls 87
Courtesy lamps 90
Boot lamp 92
Visibility
Front fi ttings 93
Rear fi ttings 97
Boot fi ttings 100
Fittings Eco-driving
Page 5 of 284
.
Contents
Direction indicators 114
Hazard warning lamps 114
Horn 114
Emergency or assistance call 115
Braking assistance systems 115
Tr ajectory control systems 117
Front seat belts 118
Airbags 122
Safety
Parking brake 126
6-speed manual gearbox 126
Gear effi ciency indicator 127
6-speed electronic gearbox system 128
Hill start assist 132
Stop & Start 133
Speed limiter 136
Cruise control 138
Rear parking sensors 140
Reversing camera 142
Driving
Emergency or assistance 199
eMyWay 201
Audio system 255
Audio and telematics
Alphabetical index
Bonnet 144
Running out of fuel (Diesel) 145
Petrol engines 146
Diesel engines 147
Checking levels 148
Checks 150
Checks
Te m p o r a ry puncture repair kit 152
Changing a wheel 157
Changing a bulb 164
Changing a fuse 173
Battery 180
Energy economy mode 182
Changing a wiper blade 183
To w i ng the vehicle 184
To w i ng a trailer 186
Fitting roof bars 187
Accessories 188
Snow chains 190
Practical informationTechnical data
Petrol engines 191
Petrol weights 192
LPG engines 193
LPG weights 194
Diesel engines 195
Diesel weights 196
Dimensions 197
Identifi cation markings 198
Page 6 of 284
Familiarisation
4
After the ignition has been switched off, the headlamps remain on briefly to make your exit from the vehicle easier when the light is poor.
ASR and ESP systems
These systems are linked to assure the
directional stability o
f the vehicle, within the
limits of the laws of physics.
Glass panoramic sunroof
This roof provides incomparable visibility and light in the passenger compartment.
Rear parking sensors / Reversing camera
These two systems warn you if an obstacle is detected behind the vehicle
when reversing.
11
7
Stop & Start
This system puts the engine
temporarily into standby
during stops in the traffic (red lights, traffic jams, etc....). The
engine restar ts automatically as soon as you want to move
off. The Stop & Start systemreduces fuel consumption, exhaust emissions and thenoise level when stationary.
Exterior
14 0 / 142
83
133
Page 7 of 284
.Familiarisation
5
Remote control key
A.Unfolding / Folding the key.
Lockin
g(press; fixed lighting of the direction
indicators).
Panoramic glass sunroof
Lift the handle of the blind concerned andrelease.
Each blind is fitted with a roller in which it isstored when you release it.
Unlockin
g of the vehicle (rapid flashing of the direction
indicators).
6
6
76
Fuel t ank
77
1.
Opening the fuel filler flap. 2.Opening and hooking the fuel filler cap.
Capacity of the tank:
- approximately 50 litres (petrol),
- approximately 48 litres (Diesel),
- (depending on version: approximately 30 litres (petrol or Diesel), approximately33 litres (LPG)).
Opening
Page 8 of 284
Familiarisation
6
2-position adjustable boot
This adjustable boot floor with two positions
allows you to:
- maximise the volume of the boot,
- par tition the boot
(storing of the rear parcel shelf...),
- obtain a flat floor from the boot opening to
the front seats, when the rear bench seat is
in the folded and fully back position.
1.
Unlocking the vehicle.2.
Opening the boot.
75
10
1A.Interior release lever.
B.Exterior safety catch. C.Bonnet stay.
144
Bonnet
Opening
Page 9 of 284
.Familiarisation
7
conditioning
This system allows you to set a different
l
evel of comfort for the driver and frontpassenger. It then controls this level
automatically relative to the ambient conditions.
Speed limiter / Cruise control
These two functions allow you tocontrol the speed of the vehicle in
accordance with the value that you have
programmed.
Scented air freshener
This air freshener diffuses the fragrance
that
you have selected throughout the passenger compartment by means of its
location in the ventilation system.
Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audiosystem, eMyWay, auxiliary sockets, emergency or assistance call. 5
5
136 / 1385
8
199

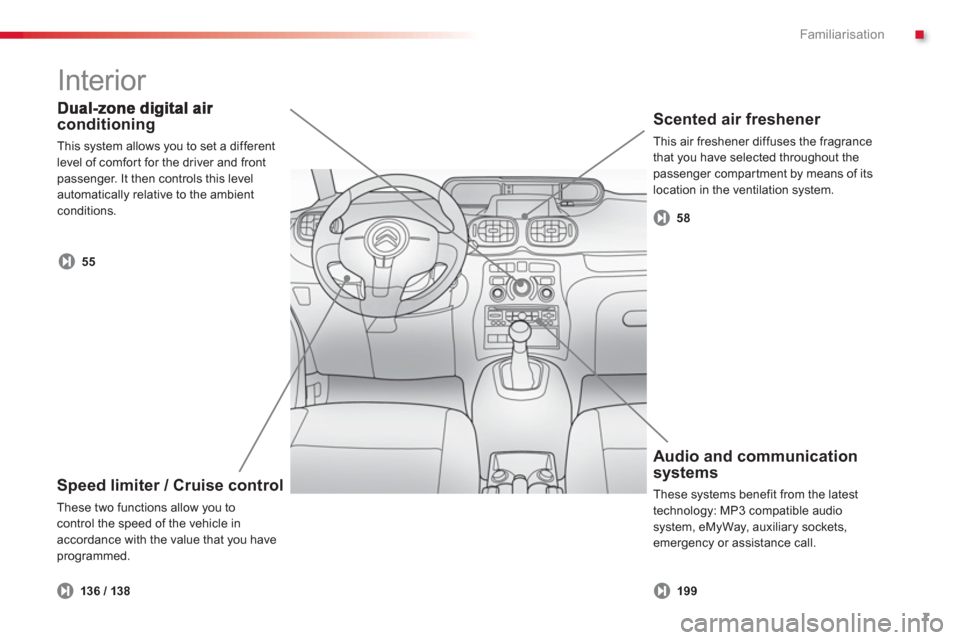

Interior
Page 10 of 284
Familiarisation
8
1. Cruise control / speed limiter switches. 2.
Steering wheel adjustment control.3.Lighting and direction indicator control stalk. 4.
Instrument panel. 5.
Driver's airbag.Horn.
6.Gear lever.
7. Bonnet release.
8.Door mirror controls.
Electric window controls.
Rear electric windows and doors deactivation control.9. Fusebox.10.Manual headlamp height adjustment. 11.
Front side window demisting vent.12 .Windscreen demisting vent.
Instruments and controls
