display Citroen C3 PICASSO 2013 1.G Owner's Guide

Safety
120
ndrow rear centre seat belt

Removal and storing
)Press the red button on the buckle B, then on the buckle A.)Guide the strap as it rolls up and bring the
tongue B, then A onto the magnet of the attachment point on the roof.


Installation
)
Pull the strap and inser t the tongue Ain theleft-hand buckle. )
Inser t the tongue Bin the right-hand buckle. )
Check the fastening of each buckle by
pulling the strap. Th
e seat belt for the rear centre seat of the 2 ndrow
is incorporated at the rear left of the roof.
Seat belt unfastened warninglamp display
When the ignition is switched on, thecorresponding warning lamps 4, 5 and 6
come
on in red for approximately 30 seconds, if the seat belt is not fastened.
When the en
gine is running or the vehicle
is moving, the corresponding warninglamp 4, 5 or 6
comes on in red, accompanied
by an audible signal and a message on themultifunction screen, if a rear passenger hasunfastened their seat belt.

8
Safety
123

Operating fault
If this warning lamp comes on in the
instrument panel, accompanied by
an audible warning and a message
in the multifunction screen, contact a CITROËN dealer or a qualified
workshop to have the system checked. The airbags may no longer be deployed
in the event of a serious impact.
Reactivation
When you remove the rear wards-facing child
seat, turn switch 1to the "ON"position toreactivate the airbag and so assure the safetyof your front passenger in the event of animpact.

With the ignition on, this warning lampcomes on in the instrument panel or in the seat belt and passenger's front airbag warning lamp display for approximately one minute, if the
passenger's front airbag is activated. According to version, this warning lamp comes on either in the instrument panel or on the seat belt and passenger's front airbag warning lamp display when the ignition is onand until the airbag is reactivated. If this warnin
g lamp flashes, contacta CITROËN dealer or a qualified
workshop. The passenger's front airbag may no longer be deployed in
the event of a serious impact.
Deactivation

Only the passenger's front airbag can be deactivated:)with the ignition off, inser t the key in thefpassenger airbag deactivation switch 1
, )turn it to the "OFF"position, )then, remove the key keeping the switch in
this position.
To assure the safety of your child, it isimperative that the passenger's front
airbag is deactivated when you installa "rearwards-facing" child seat on thefront passenger seat. Other wise, the child would risk beingseriously injured or killed if the airbag were deployed.

If at least one of the two airbag
warning lamps come on continuously, do not install a child seat on the front passenger seat.
Have it checked by a CITROËN dealer or a qualified workshop.

9
Driving
129

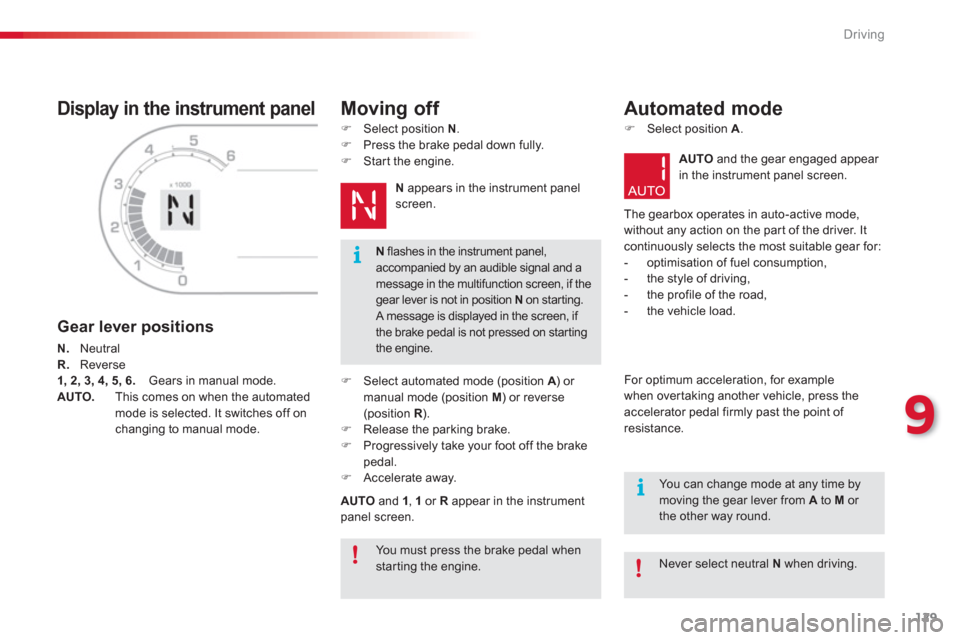

Display in the instrument panel


Gear lever positions
N.
Neutral R.Reverse1, 2, 3, 4, 5, 6.Gears in manual mode.
AUTO. This comes on when the automatedmode is selected. It switches off on changing to manual mode.

Moving off
)
Select position N.)
Press the brake pedal down fully.
)
Start the engine.
Nappears in the instrument panelscreen.
)
Select automated mode (position A
) or Amanual mode (position M ) or reverse(position R).R)
Release the parking brake.)
Progressively take your foot off the brake
pedal.
) Accelerate away.
AUTOand 1 , 1or R
appear in the instrumentpanel screen.


Automated mode
)
Select position A.
AUTOand the gear engaged appear
in the instrument panel screen.
The
gearbox operates in auto-active mode,
without any action on the par t of the driver. Itcontinuously selects the most suitable gear for:


- optimisation of fuel consumption,

- the style of driving,

- the profile of the road,

- the vehicle load.

For o
ptimum acceleration, for example
when over taking another vehicle, press the
accelerator pedal
firmly past the point of
resistance.
You must press the brake pedal whenstar ting the engine.


Never select neutral N
when driving.
Nflashes in the instrument panel,accompanied by an audible signal and amessage in the multifunction screen, if the gear lever is not in position Non starting.
A message is displayed in the screen, if the brake pedal is not pressed on startingthe engine.


You can change mode at any time by moving the gear lever from A
to Mor the other way round.

Driving
136

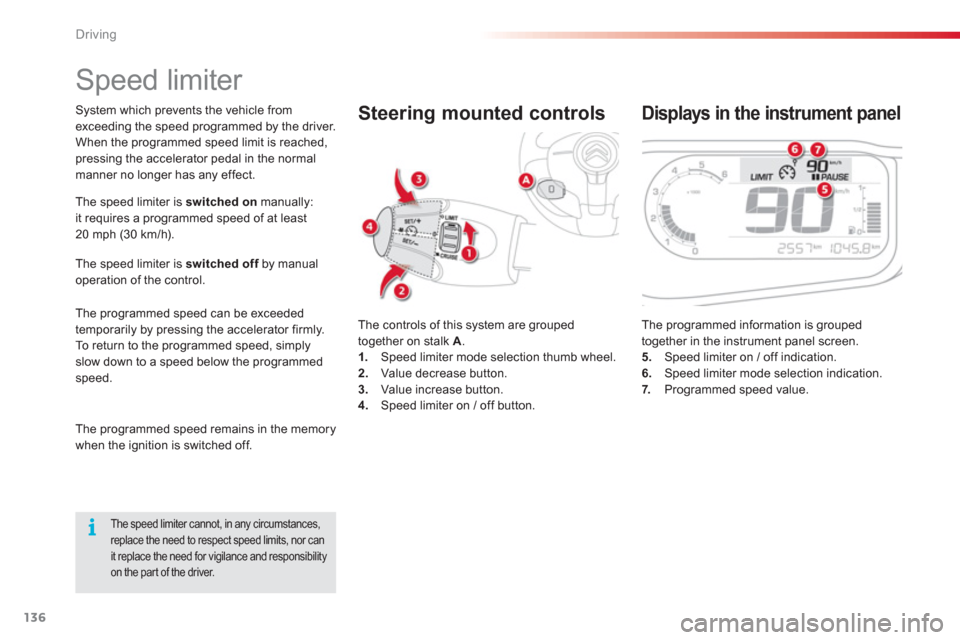

Speed limiter
The controls of this system are grouped
together on stalk A.1. Speed limiter mode selection thumb wheel. 2.
Value decrease button.3.Value increase button.4.
Speed limiter on / off button.
The pro
grammed information is grouped
together in the instrument panel screen.
5.Speed limiter on / off indication.
6. Speed limiter mode selection indication.7.Programmed speed value.
Steering mounted controls

Displays in the instrument panel
The speed limiter is switched onmanually:
it requires a programmed speed of at least
20 mph (30 km/h).
The speed limiter is switched off by manual foperation of the control.
The programmed speed can be exceeded
temporarily by pressing the accelerator firmly.To return to the programmed speed, simply slow down to a speed below the programmed speed.
The pro
grammed speed remains in the memorywhen the ignition is switched off.
The speed limiter cannot, in any circumstances,
replace the need to respect speed limits, nor can it replace the need for vigilance and responsibilityon the par t of the driver.

System which prevents the vehicle fromexceeding the speed programmed by the driver.
When the programmed speed limit is reached, pressing the accelerator pedal in the normalmanner no longer has any effect.

9
Driving
137
Programming
)Turn thumb wheel 1 to the "LIMIT"position: the speed limiter mode is selected but is not switched on (PAUSE).
You do not have to switch the s
peed limiter
on in order to set the speed.

Exceeding the programmed speed

Pressing the accelerator pedal to exceed the programmed speed will not have
an
y effect unless you press the pedal firmlypast the ypoint of resistance. e The speed limiter is deactivated temporarily and the programmed speed,
which is still displayed, flashes.
Returning to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the
programmed speed.


Leaving limiter mode
)Turn thumb wheel 1
to the "0"position: the speed limiter mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a speed limiter fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a qualified workshop.
)Set the speed value by pressing button 2or 3(e.g.: 55 mph(90 km/h)).
You can then change the programmed speed using buttons 2
and 3:


- by + or - 1 mph (km/h) = shor t press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press. )Switch the speed limiter on by pressing button 4
. )Switch the speed limiter off by pressing button 4
: the display confirms that it has been switched off (PAUS E).)Switch the speed limiter back on by pressing button 4
again.

On a steep descent or in the event of sharp acceleration, the speed limiter willnot be able to prevent the vehicle from exceeding the programmed speed.
To avoid any risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- do not fit one mat on top of another.

Driving
138

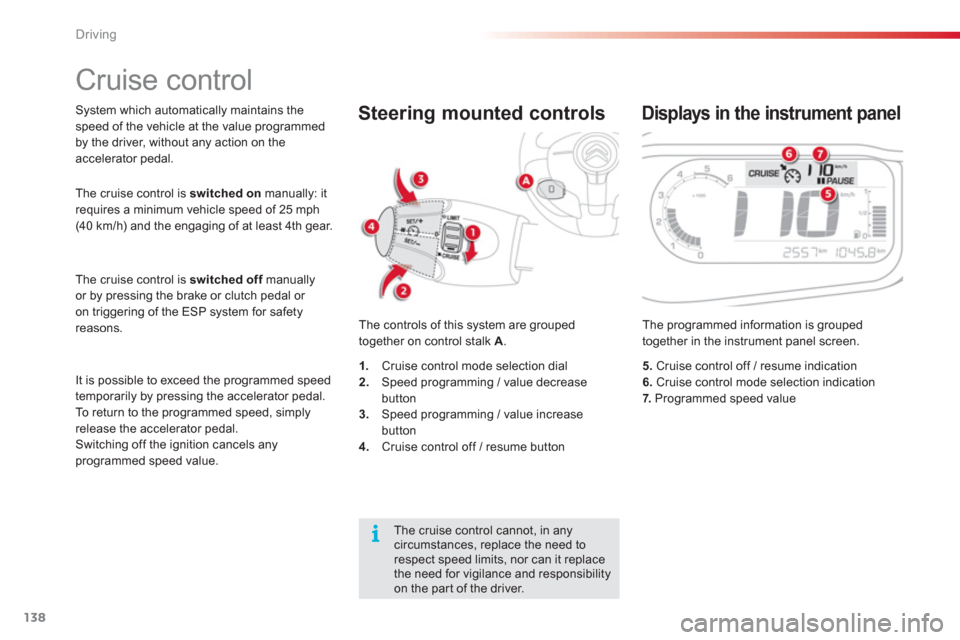

System which automatically maintains thespeed of the vehicle at the value programmed
by the driver, without any action on the
accelerator pedal.
The controls of this s
ystem are grouped
together on control stalk A. The programmed information is grouped
together in the instrument panel screen.
Steering mounted controls
Displays in the instrument panel
The cruise control is switched on
manually: itrequires a minimum vehicle speed of 25 mph(40 km/h) and the engaging of at least 4th gear.
Th
e cruise control is switched offmanuallyfor by pressing the brake or clutch pedal or
on triggering of the ESP system for safety reasons.
It is possible to exceed the programmed speed
temporaril
y by pressing the accelerator pedal.
To return to the programmed speed, simply release the accelerator pedal.
Switchin
g off the ignition cancels any programmed speed value. 1
.Cruise control mode selection dial
2. Speed programming / value decrease button3.
Speed programming / value increase button4.Cruise control off / resume button5
. Cruise control off / resume indication
6.Cruise control mode selection indication
7. Programmed speed value
The cruise control cannot, in anycircumstances, replace the need to respect speed limits, nor can it replace the need for vigilance and responsibilityon the par t of the driver.






Cruise control

9
Driving
139
Programming
)Turn dial 1 to the "CRUISE"
position:
the cruise control mode is selectedbut is not switched on (PAUSE).

Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed speed
results in flashing of this speed in the screen.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels theflashing of the speed.

Return to normal driving
)Turn dial 1to the "0"
position: the cruise control mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a cruise control malfunction,
the speed is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a
qualified workshop. )Set the programmed speed by accelerating to the required speed,
then press button 2or 3(e.g.: 70 mph (11 0 k m/h)).
)Switch off the cruise control by pressing button 4
: this is confirmed in the screen (PAUSE).
)Switch the cruise control back on by pressing button 4again.
You can then change the programmed speed using buttons 2 and 3:


- by + or - 1 mph (km/h) = shor t press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press.

When the cruise control is switched on,be careful if you maintain the pressure on one of the programmed speedchanging buttons: this may result in avery rapid change in the speed of your vehicle. Do not use the cruise control on slippery roads or in heavy traffic. On a steep descent, the cruise control will not be able to prevent the vehicle from exceeding the programmed speed.
To avoid any risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- never fit one mat on top of another.

11
Practical information
189

"Multimedia":

semi-integral navigation systems, Bluetooth®
hands free kit, audio systems interfaced to steering mounted controls, speakers, DVD player, USB box, por table navigation systems,mapping update CD, Hi-Fi module, drivingaid assistant, Wi-Fi on board, rear multimediasupport, telephone and smartphone carriers, iPhone ®
charger, head-up display...®
or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electrical consumption. Please note this precaution. Youare advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and
accessories.


Installation of radio communication transmitters

Before installing any after-market radio communication transmitter, you can
contact a CITROËN dealer for the specification of transmitters which canbe fitted (frequency, maximum power, aerial position, specific installationrequirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/10 4/EC).


By visiting a CITROËN dealer, you canalso obtain cleaning and maintenance products (interior and exterior), including the ecological products inthe "TECHNATURE" range, productsfor topping up (screenwash fluid...), touch-up pens and paint aerosols theexact colour of your vehicle, recharges (cartridge for the temporary puncturerepair kit...), ....
Depending on the legislation in force in the country, it may be compulsoryto have a high visibility safety vest, warning triangle and spare bulbs and fuses available in the vehicle. The fitting of electrical equipment

202
01 FIRST STEPS

Access to the" Navigation - guidance"
menu and display the
recent destinations. Short
press without the engine running: on / off.
Short press with the enginerunning: audio source off / restore.
Short press: select pre-set radio station.
Lon
g press: pre-set thecurrent station.
MODE
button: Selection of the
type of permanent display.
Lon
g press: black screen(DARK).
A
ccess to the " MUSIC
" menu, and display of the CD/MP3/Apple®
tracks and folders. ®

Long press: display the audio settings screen for the"MEDIA
(CD/USB/iPod/Streaming/AUX)" sources.
Long press: open the "Audio settings" menu: music ambience, bass, treble, loudness, left/right
balance, front/rear fader, automatic volume adjustment.


A
ccess to the "RADIO
" menu anddisplay the list of stations received.
Lon
g press: display the audio settingsscreen for the radio tuner source.
Selection and confi rmation OK dial:
Selection of an item on the screen or in a list or a
menu, then confi rmation with a short press.
Other than for menus and lists, a short press
displays a contextual menu depending on the current screen.
Rotation with map displa
yed: zoom the map scalein and out.
Volume ad
justment (each
source is independent,
includin
g TA messages and
navigation instructions).

203
01
Select:
- the next lower / hi
gher radiofrequency automatically.
- the previous
/ next CD track, MP3
track or media.
- the le
ft / right of the screen when a menu is displayed.
Move left / ri
ght in "Move the map
" mode.
Abandon the current
operation, up one level in
t
he menu.

Long press: return to the permanent display.
Continuous
press:
reinitialisation of the system.
Open the" Telephone" menu
and display the list of recent calls or accept
an incoming call.
Open the
"Confi guration
" menu.
Lon
g press: access
to the GPS coverageand the navigation demonstration mode.
Open the "Traffi c information " menuand display thecurrent traffi c alerts.

Select:
- the previous
/next line in a list or menu.
- the previous
/ next media folder.
- step b
y step selection of the previous/next radio frequency.
- the previous / next MP3 folder.
Move up/down, in "
Move the map " mode.
FIRST STEPS
