Citroen C3 PICASSO 2016 1.G Owners Manual

89
C3Picasso_en_Chap06_amenagement_ed01-2015
Reading lamps are built into the back of the
front seats, behind the tables.
Individual reading lamps
Blinds are available for the side windows.
Pull the side blind longways by the tab to use it.
Always guide the blind slowly using the tab.
Side blindsStorage tray
When unfolded, this provides a storage area
split into 2 sections, completing the storage
spaces available at the rear of the vehicle.
With the ignition on, they illuminate the top
of the table without inconveniencing other
passengers.
They are only accessible if the table is
unfolded.
F

P

ress the button to switch the lamp on or
of f.
6
Fittings

90
C3Picasso_en_Chap06_amenagement_ed01-2015
Opening
F Lower the storage shelf.
F P ress the flap opening control.
F

L
ower the flap.
F

C
heck that the adjustable boot floor is in
the high position.
F

L
oad the objects from inside the boot.
Ski flap
Device for storing and transporting long
objects.
Fittings

91
C3Picasso_en_Chap06_amenagement_ed01-2015
Boot fittings
1. Open storage compartments.
2. Adjustable boot floor.
3.
Ca

rrier bag hook.
4.
S

ecuring rings.
5.
S

torage space under boot carpet
6.
R

ear parcel shelf.
6
Fittings

92
C3Picasso_en_Chap06_amenagement_ed01-2015
2-position adjustable boot
The two-position adjustable boot floor allows
you to:
-
m
aximise the volume of the boot,
-

p
artition the boot (stowing the rear shelf...),
-

o
btain a flat floor from the boot opening to
the front seats, when the rear bench seat is
in the folded and fully back position.Placing the adjustable boot floor
in the low position
F Lift the adjustable boot floor by pulling on the strap.
F

M
ove the adjustable boot floor rear wards
and then down, following the guides on the
sides.
Placing the adjustable boot floor
in the high position
F Lift the adjustable boot floor by pulling the strap.
F

M
ove the adjustable boot floor rear wards
then up to its high position.
In the high position, the adjustable boot floor
allows stowing of the rear parcel shelf and
fragile objects.
The adjustable boot floor is fitted with four
stowing rings to secure your loads using the net
available as an accessory.
Ensure that your boot is empty before
handling the adjustable boot floor.
Fittings

93
C3Picasso_en_Chap06_amenagement_ed01-2015

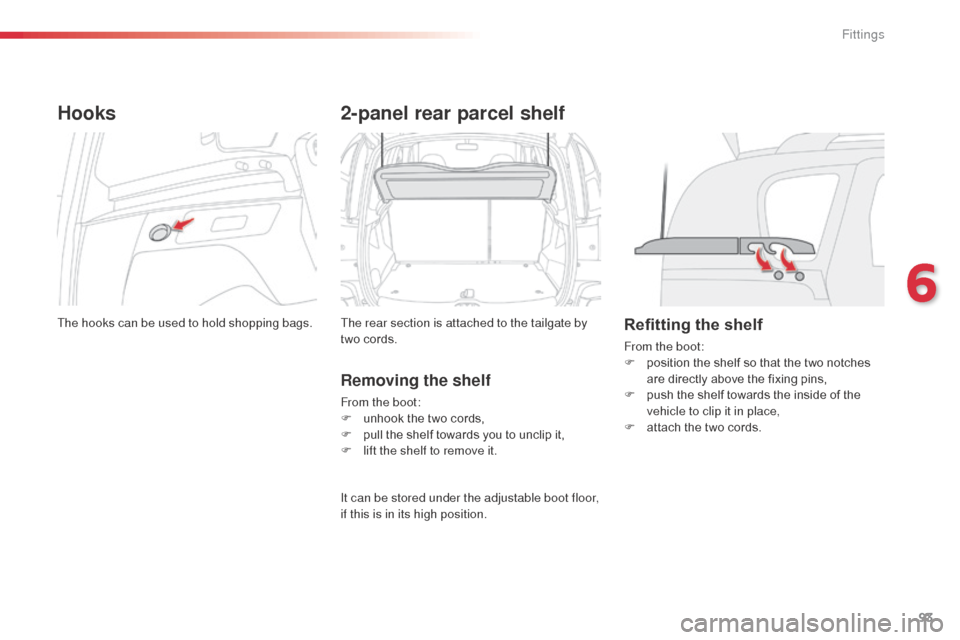

Hooks
The hooks can be used to hold shopping bags.
2-panel rear parcel shelf
The rear section is attached to the tailgate by
two cords.
Removing the shelf
From the boot:
F u nhook the two cords,
F

p
ull the shelf towards you to unclip it,
F

l
ift the shelf to remove it.
Refitting the shelf
From the boot:
F p osition the shelf so that the two notches
are directly above the fixing pins,
F

p
ush the shelf towards the inside of the
vehicle to clip it in place,
F

a
ttach the two cords.
It can be stored under the adjustable boot floor,
if this is in its high position.
6
Fittings

94
C3Picasso_en_Chap07_securite-enfants_ed01-2015
General points relating to child seats
* The regulations on carrying children are specific to each country. Refer to the
legislation in force in your country.
For maximum safety, please observe the
following recommendations:
-

i
n accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in approved child seats suited to
their weight , on seats fitted with a seat
belt or ISOFIX mountings*,
-
s
tatistically, the safest seats in your
vehicle for carr ying children are the
rear seats,
-
a c
hild weighing less than 9 kg must
travel in the rearward facing position
both in the front and in the rear. CITROËN recommends
that children
should travel on the rear seats of your
vehicle:
-
r
earward
facing up to the age of 3,
-
fo
rward
facing over the age of 3.
Although one of CITROËN main criteria when designing your vehicle, the safety of your children
also depends on you.
Child safety

95
C3Picasso_en_Chap07_securite-enfants_ed01-2015
Forward facing
Rearward facing
Child seat at the rear
Ensure that the seat belt is correctly
tensioned.
For child seats with a support leg,
ensure that this is in firm contact with
the floor. If necessary, adjust the front
seat of the vehicle.
When a rear ward facing child seat is installed
on a rear passenger seat
, move the vehicle's
front seat for ward and straighten the backrest
so that the rear ward facing child seat does not
touch the vehicle's front seat. When a for ward facing child seat is installed
on a rear passenger seat
, move the vehicle's
front seat for ward and straighten the backrest
so that the legs of the child in the for ward
facing child seat do not touch the vehicle's front
seat.
7
Child safety

96
C3Picasso_en_Chap07_securite-enfants_ed01-2015
Child seat in the front*
Rearward facing
When a rear ward facing child seat is installed
on the front passenger seat, adjust the seat to
the intermediate longitudinal position, with the
backrest straightened.
The passenger's front airbag must be
deactivated. Otherwise, the child would
risk being seriously injured or killed if the
airbag were to inflate .
Forward facing
When a for ward facing child seat is installed on
the front passenger seat , adjust the vehicle's
seat to the intermediate longitudinal position
with seat backrest straightened and leave the
passenger's front airbag activated.
*

R

efer to the current legislation in your country
before installing your child on the front seat. Ensure that the seat belt is correctly
tensioned.
For child seats with a support leg,
ensure that the support leg is in stable
contact with the floor. If necessary,
adjust the passenger seat.Passenger seat adjusted to the intermediate
longitudinal position.
Child safety

97
C3Picasso_en_Chap07_securite-enfants_ed01-2015
Passenger airbag OFF
Never install a rear ward facing child
restraint system on a seat protected by
an active front airbag. This could cause
the death of the child or serious injury.For information on deactivating the
passenger's front airbag, refer to the
"Airbags" section.
Deactivating the passenger's front airbag
The warning label present on both sides of the
passenger's sun visor repeats this advice. In
line with current legislation, the following tables
contain this warning in all of the languages
required.
7
Child safety

AR
BG
НИКОГА НЕ инсталирайте детско столче на седалка с АКТИВИРАНА предна ВЪЗДУШНА ВЪЗГЛАВНИЦ А. Това може да причини
СМЪРТ или СЕРИОЗНО НАРАНЯВАНЕ на детето.
CSNIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí
nebezpečí SMRTI DÍTĚTE nebo VÁ ŽNÉHO ZR ANĚNÍ.
DABrug ALDRIG en bagudvendt barnestol på et sæde, der er beskyttet af en AKTIV AIRBAG. BARNET risikerer at blive ALVORLIGT
K VÆSTET eller DR ÆBT.
DEMontieren Sie auf einem Sitz mit AKTIVIERTEM Front-Airbag NIEMALS einen Kindersitz oder eine Babyschale entgegen der Fahr trichtung,
das Kind könnte schwere oder sogar tödliche Verletzungen erleiden.
ELΜη χρησιμοποιείτε ΠΟΤΕ παιδικό κάθισμα με την πλάτη του προς το εμπρός μέρος του αυτοκινήτου, σε μια θέση που προστατεύεται από
ΜΕΤΩΠΙΚΟ αερόσακο που είναι ΕΝΕΡΓΟΣ. Αυτό μπορεί να έχει σαν συνέπεια το ΘΑΝΑΤΟ ή το ΣΟΒΑΡΟ ΤΡΑΥΜΑΤΙΣΜΟ του ΠΑΙΔΙΟΥ
ENNEVER use a rear ward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the
CHILD can occur
ESNO INSTALAR NUNCA un sistema de retención para niños de espaldas al sentido de la marcha en un asiento protegido mediante un
AIRBAG frontal ACTIVADO, ya que podría causar lesiones GR AVES o incluso la MUERTE del niño.
ETÄrge MITTE KUNAGI paigaldage “seljaga sõidusuunas“ lapseistet juhi kõrvalistmele, mille ESITURVAPADI on AKTIVEERITUD. Turvapadja
avanemine võib last TÕSISELT või ELUOHTLIKULT vigastada.
FIÄLÄ KOSK A AN aseta lapsen tur vaistuinta selkä ajosuuntaan istuimelle, jonka edessä suojana on käyttöön aktivoitu TURVAT Y YNY. Sen
laukeaminen voi aiheuttaa LAPSEN KUOLEMAN tai VAK AVAN LOUKK A ANTUMISEN.
FRNE JAMAIS installer de système de retenue pour enfants faisant face vers l’arrière sur un siège protégé par un COUSSIN GONFLABLE
frontal ACTIVÉ.
Cela peut provoquer la MORT de l’ENFANT ou le BLESSER GR AVEMENT
HRNIK ADA ne postavljati dječju sjedalicu leđima u smjeru vožnje na sjedalo zaštićeno UKLJUČENIM prednjim ZR AČNIM JASTUKOM. To bi
moglo uzrokovati SMRT ili TEŠKU OZLJEDU djeteta.
HUSOHA ne használjon menetiránynak háttal beszerelt gyermekülést AKTIVÁLT (BEK APCSOLT) FRONTLÉGZSÁKK AL védett ülésen. Ez a
gyermek HALÁLÁT vagy SÚLYOS SÉRÜLÉSÉT okozhatja.
ITNON installare MAI seggiolini per bambini posizionati in senso contrario a quello di marcia su un sedile protetto da un AIRBAG frontale
ATTIVATO. Ciò potrebbe provocare la MORTE o FERITE GR AVI al bambino.
LTNIEK ADA neįrenkite vaiko prilaikymo priemonės su atgal atgręžtu vaiku ant sėdynės, kuri saugoma VEIKIANČIOS priekinės ORO
PAGALVĖS. Išsiskleidus oro pagalvei vaikas gali būti MIRTINAI arba SUNKIAI TR AUMUOTAS.
98
C3Picasso_en_Chap07_securite-enfants_ed01-2015
Child safety
