AdBlue® additive and SCR system
for BlueHDi Diesel engines
To assure respect for the environment and
conformity with the new Euro 6 emissions
standard, without adversely affecting the
per formance or fuel consumption of Diesel
engines, CITROËN has taken the decision to
equip its vehicles with an effective system that
associates SCR (Selective Catalytic Reduction)
with a particle filter (FAP) for the treatment of
exhaust gases.
Presentation of the SCR system
Using an additive called AdBlue® containing
urea, a catalytic converter turns up to 85%
of nitrous oxides (NOx) into nitrogen and
water, which are harmless to health and the
environment. Once the AdBlue
® tank is empty, a
s
ystem required by regulations prevents
starting of the engine.
If the SCR is faulty, the level of
emissions from your vehicle will no
longer meet the Euro 6 standard: your
vehicle becomes polluting.
In the event of a confirmed fault
with the SCR system, you must go
to a CITROËN dealer or a qualified
workshop as soon as possible: after
a running distance of 650 miles
(1

100 km), a system will be triggered
automatically to prevent engine starting.
The AdBlue® additive is held in a special
tank located under the boot at the rear of
the vehicle. It has a capacity of 17 litres: this
provides a driving range of about 12 500 miles
(20 000 km), after which an alert is triggered
warning you when the reserve remaining is
enough for just 1 500 miles (2 400 km).
During each scheduled service of your vehicle
by a CITROËN dealer or a qualified workshop,
the AdBlue
® additive tank is refilled in order to
allow normal operation of the SCR system.
If the estimated mileage between two services
is greater than 12 500 miles (20 000 km), we
recommend that you go to a CITROËN dealer
or a qualified workshop to have the necessary
top-up carried out.
11
Practical information

168
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Never store bottles of AdBlue® in your
vehicle.
AdBlue
® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the additive can be
kept for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
Recommendations on storage
Before topping-up, ensure that the vehicle is
parked on a flat and level sur face.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Otherwise the AdBlue
® may be frozen and
so cannot be poured into its tank. Park your
vehicle in a warmer area for a few hours to
allow the top-up to be carried out.
Procedure
F For access to the AdBlue® tank, raise the
boot carpet then, depending on equipment,
lift out the spare wheel and/or the storage
box.
F

W

ithout pressing, turn the black cap a
quarter turn anti-clockwise and lift it off.
F

T

urn the blue cap a 6
th of a turn anti-
clockwise.
F

L

ift off the cap.
F

S

witch off the ignition and remove the key.
Practical information

169
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
F Obtain a bottle of AdBlue®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank.
Important : if your vehicle's
AdBlue
® tank is completely empty -
w
hich is confirmed by the alert
messages and the impossibility of
starting the engine, you must add at
least 3.8 litres (so two 1.89 litre bottles). If any additive is split or splashed, wash
immediately with cold water or wipe with
a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.
Important:
in the event of a top-up after
a breakdown because of a lack of
additive , you must wait around 5 minutes
before switching on the ignition, without
opening the driver's door, locking the
vehicle or introducing the key into the
ignition switch .
Switch on the ignition, then, after
10

seconds, start the engine.
Never dispose of AdBlue
® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your dealer.
F

A

fter emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth.
F

R

efit the blue cap to the tank and turn it a
6th of a turn clockwise, to its stop.
F
R
efit the black cap and turn it a quarter of
a turn clockwise without pressing. Ensure
that the indicator on the cap lines up with
the indicator on the support.
F

D

epending on equipment, return the spare
wheel and/or the storage box to the bottom
of the boot.
F

R

efit the boot carpet and close the tailgate.
11
Practical information

176
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Changing foglamp / reversing
lamp bulbs
F open the boot,
F p ress on the tabs using 2 screwdrivers,
F

d
isconnect the lamp unit connector,
F

t
urn the bulb-holder by a quarter turn,
F

r
emove the bulb and replace it.
To refit, carry out these operations in reverse
o r d e r.
Changing the third brake lamp
bulbs (4 x W 5 W bulbs)
F open the boot,
F r emove the two plugs located on the boot
inner panel,
F

p
ress on the body of the lamp with
2
screwdrivers to remove it from its
housing,
F

t
urn the corresponding bulb-holder a
quarter turn,
F

p
ull the bulb and replace it.
To refit, carry out these operations in reverse
o r d e r.
Changing the number plate lamp
bulbs (W5W)
F insert a thin screwdriver into one of the lens' exterior holes,
F

p
ush it outwards to unclip.
F

r
emove the lens.
F

p
ull the bulb and replace it.
To refit, carry out these operations in reverse
o r d e r.
Practical information

177
C3Picasso_en_Chap11_informations-pratiques_ed01-2015

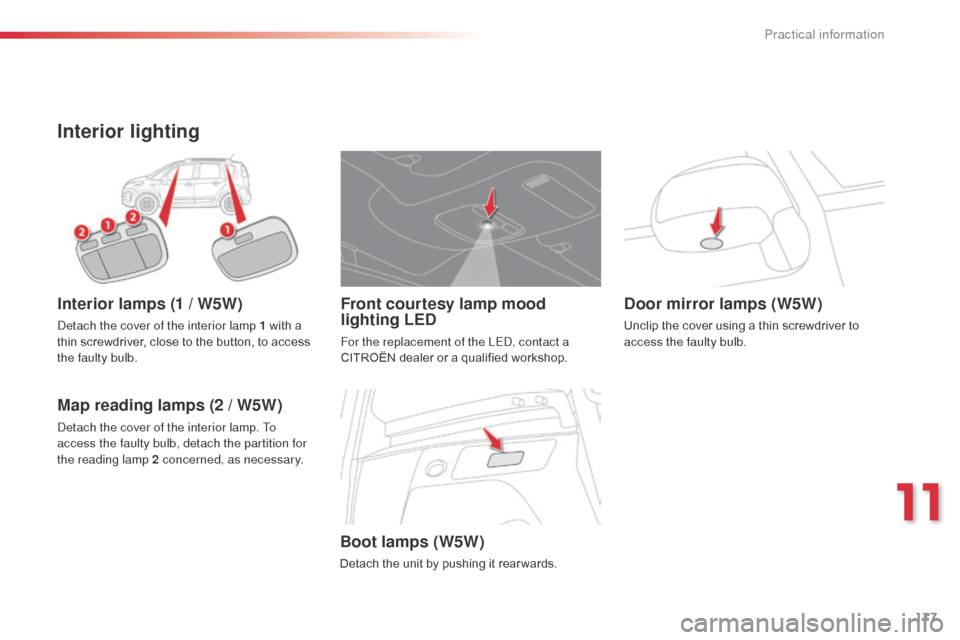

Interior lighting
Interior lamps (1 / W5W)
Detach the cover of the interior lamp 1 with a
thin screwdriver, close to the button, to access
the faulty bulb.
Map reading lamps (2 / W5W)
Detach the cover of the interior lamp. To
access the faulty bulb, detach the partition for
the reading lamp 2 concerned, as necessary.
Boot lamps (W5W)
Detach the unit by pushing it rear wards.
Front courtesy lamp mood
lighting LED
For the replacement of the LED, contact a
CITROËN dealer or a qualified workshop.
Door mirror lamps (W5W)
Unclip the cover using a thin screwdriver to
access the faulty bulb.
11
Practical information

189
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Towing the vehicle
The towing eye is installed under the boot floor.
To gain access to it:
F
o
pen the boot,
F

r
emove the adjustable boot floor,
F

l
ift up the boot carpet,
F

r
emove the towing eye from the tool holder.
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
General recommendations
Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
The driver must remain at the wheel of the towed vehicle and must have a valid driving licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing
arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off, there is no longer any power assistance for
braking or steering.
In the following cases, you must always call on a professional recovery service:
-

v
ehicle broken down on a motor way or fast road,
-

f
our-wheel drive vehicle,
-

w
hen it is not possible to put the gearbox into neutral, unlock the steering, or release
the parking brake,
-

t
owing with only two wheels on the ground,
-

w
here there is no approved towing arm available...
11
Practical information

193
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
"Comfort":
front and rear parking sensors, insulated
module, reading lamp, sun blinds, head
restraint-mounted coat hanger, centre armrest,
air deflector, scented air freshener cartridges,
portable ashtray, solar films for windows...
"Protection":
mats*, seat covers, mudflaps, bumper
protectors, vehicle protective cover, dog guard,
pet seat and boot covers...
"Transport solutions":
boot liner, boot carpet, towbar, towbar wiring
harness, transverse roof bars, bicycle carrier,
ski carrier, roof box, boot spacers, boot net,
business/commercial vehicle conversion kit,
sliding boot floor...
"Safety and security":
anti-theft alarm, warning triangle, high visibility
vest, breathalyzer, first aid kit, snow chains,
non-skid covers, security wheel bolts, vehicle
tracking system, child seats, fire extinguisher,
caravan mirror, glass security films...
"Style":
allow wheels, chromed mirror shells, leather
steering wheel, gear lever knob, aluminium
footrest, wheel caps...
AccessoriesA wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's recommendation and warranty.*

T
o avoid any risk of jamming of the pedals:
-

e
nsure that the mat is positioned and
secured correctly,
-

n
ever fit one mat on top of another.
11
Practical information

276
