tow Citroen C3 PICASSO 2016 1.G Owner's Guide

149
C3Picasso_en_Chap10_verification_ed01-2015
Parking brake
If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must be
checked, even between two services.
Manual gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component.For information on checking brake
disc wear, contact a CITROËN dealer
or a qualified workshop.
Brake disc wear
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to have
the condition of the brakes checked,
even between vehicle services.
Brake pads
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for details of the checking
interval for this component.
Electronic gearboxOnly use products recommended by
CITROËN or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, CITROËN selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
Checking this system must be done by a
CITROËN dealer or a qualified workshop.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
10
Checks

151
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
F Switch off the ignition.
F S ecure the speed limit sticker inside the
vehicle. F
U ncoil the pipe stowed under the
compressor.
F

C
onnect the pipe from the compressor to
the sealant cartridge.
F

T
urn the the sealant cartridge and secure it
in the cut-out provided on the compressor.
Avoid removing any foreign bodies
which have penetrated into the tyre. F
R emove the valve cap from the tyre to be
repaired, and place it in a clean area.
F

C
onnect the hose from the sealant
cartridge to the valve of the tyre to be
repaired and tighten firmly.
Repair procedure
11
Practical information

152
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
F Check that the compressor switch is at the "O " position.
F

U
ncoil fully the electric cable, stowed under
the compressor.
F

C
onnect compressor's plug to the vehicle's
12 V socket.
F

S
witch on the ignition. Take care, the sealant product
is harmful (e.g. ethylene-glycol,
colophony...) if swallowed and causes
irritation to the eyes.
Keep this product out of the reach of
children.
The use-by date is marked on the
cartridge.
After use, do not discard the
cartridge by the roadside, take it to
a CITROËN
dealer or an authorised
waste disposal site.
Don't forget to obtain a new sealant
cartridge, available from a CITROËN
dealer or a qualified workshop.
F
S tart the compressor by placing the switch
at the " I" position and leave it running until
the tyre pressure reaches 2.0 bar.
T

he sealant product is injected into the tyre
under pressure; do not disconnect the pipe
from the valve during this operation (risk of
splashing and stains). If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a CITROËN dealer or a qualified
workshop for assistance.
Practical information

153
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
F Place the switch in the "O" position.
F R emove the kit.
F

D
rive immediately for approximately
three miles (five kilometres), at reduced
speed (between 15 and 35 mph (20 and
60
km/h)), to plug the puncture.
F

S
top to check the repair and the tyre
pressure using the kit.
Checking / adjusting tyre pressures
You can also use the compressor, without
injecting sealant, to check and if necessary
adjust the tyre pressures
F

R
emove the valve cap from the tyre and
place it in a clean area.
F

U
ncoil the pipe stowed under the
compressor.
F

S
crew the pipe onto the valve and tighten
f i r m l y. F
C heck that the compressor switch is at the
" O " position.
F

U
ncoil fully the electric cable, stowed under
the compressor.
F

C
onnect the compressor's plug to the
vehicle's 12 V socket.
F

S
witch on the ignition.
11
Practical information

154
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
F Start the compressor by placing the switch at the " I" position and adjust the pressure
to the value shown on the vehicle's tyre
pressure label.
T

o deflate: press the black button on the
compressor pipe, at the valve connector.
F

O
nce the correct pressure is reached, put
the switch to the " O" position.
F

R
emove the kit then stow it.
Tyre under-inflation
detection
After repair of the tyre, the warning
lamp will remain on until the system is
reinitialised.
For more information on under-inflation
detection, refer to the corresponding
section.
Should the pressure of one or more
tyres be adjusted, it is necessary to
reinitialise the under-inflation detection
system.
For more information on under-inflation
detection, refer to the corresponding
section.
Practical information

155
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Spare wheel
The tools are installed under the boot floor.
For access to them:
F
o
pen the boot,
F

r
emove the boot floor,
F

l
ift up the boot carpet,
F

r
emove the box containing the tools,
F

r
emove the polystyrene storage box.
Other accessories
5. Removable towing eye. R
efer to the "Towing the vehicle" section.
Access to the tooling
Procedure for changing a wheel with a damaged tyre for the spare wheel using the tooling provided with the vehicle.
List of tools
All of these tools are specific to your vehicle.
Do not use them for any purpose other than
those indicated below.
1.


Wheelbrace.
F

or removing the wheel trim and removing
the wheel fixing bolts.
2.
J

ack with integral handle.
F

or raising the vehicle.
3.
W

heel bolt cover removal tool.
F

or removing the wheel bolt head covers
on alloy wheels.
4.
S

ocket for the security bolts (located in the
glove box).
F

or adapting the wheelbrace to the special
"security" bolts (if your vehicle has them).
11
Practical information

157
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Taking out the wheel
F Unscrew the yellow central bolt, and remove it.
F

R
aise the spare wheel towards you from
the rear.
F

T
ake the wheel out of the boot.
Putting the wheel back in place
F Put the wheel back in its housing.
F R efit the yellow central bolt in the centre of
the wheel.
F

T
ighten fully until the central bolt clicks to
retain the wheel correctly. F
P ut the polystyrene storage box back in
place.
F

P
ut the box back in place and clip it.
11
Practical information

160
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
List of operations
F Put the wheel in place on the hub.
F S crew in the bolts by hand as far as
possible.
F

P
re-tighten the security bolt (if your vehicle
has them) using the wheelbrace 1 fitted
with the security socket 4 .
F

P
re-tighten the other bolts using the
wheelbrace 1 o n l y.
Fitting a wheel
After changing a wheel
To stow the punctured wheel in the boot
correctly, first remove the central cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80


km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a CITROËN dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refit it to the vehicle as soon as
possible.
Practical information

161
C3Picasso_en_Chap11_informations-pratiques_ed01-2015

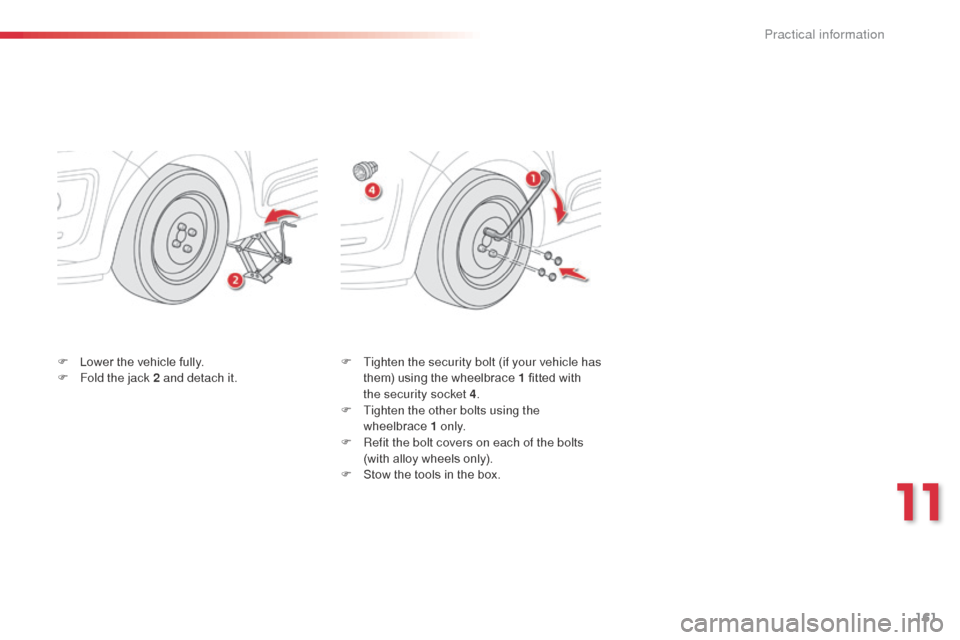

F Tighten the security bolt (if your vehicle has them) using the wheelbrace 1 fitted with
the security socket 4 .
F

T
ighten the other bolts using the
wheelbrace 1 o n l y.
F

R
efit the bolt covers on each of the bolts
(with alloy wheels only).
F

S
tow the tools in the box.
F
L
ower the vehicle fully.
F
F
old the jack 2 and detach it.
11
Practical information

170
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Changing a bulbProcedure for replacing a faulty bulb with a new bulb.1.
D
irection indicators (H21W amber).
2.
D

ipped beam headlamps (H7-55W).
3.
M

ain beam headlamps (H1-55W).
4.
S

idelamps (W5W).
5.
F

oglamps (PSX24W).
6.
L

ED daytime running lamps.
Front lampsThe headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u
se a sponge and soapy water or a
pH neutral product,
F

w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals. Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Practical information
