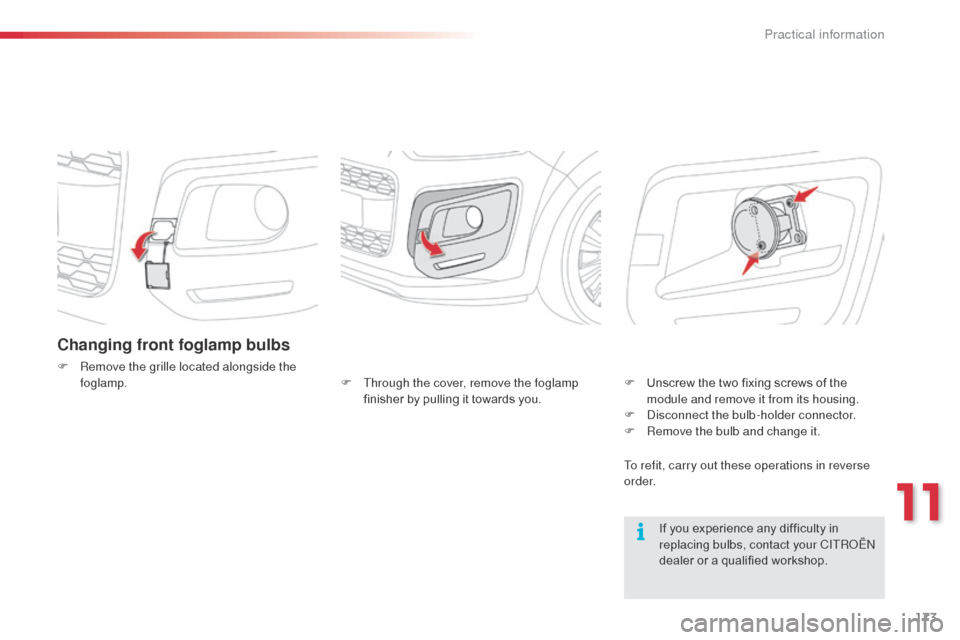

Changing front foglamp bulbs
F Remove the grille located alongside the foglamp.
If you experience any difficulty in
replacing bulbs, contact your CITROËN
dealer or a qualified workshop.
F

T
hrough the cover, remove the foglamp
finisher by pulling it towards you. F

U
nscrew the two fixing screws of the
module and remove it from its housing.
F

D
isconnect the bulb-holder connector.
F

R
emove the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
11
Practical information

189
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Towing the vehicle
The towing eye is installed under the boot floor.
To gain access to it:
F
o
pen the boot,
F

r
emove the adjustable boot floor,
F

l
ift up the boot carpet,
F

r
emove the towing eye from the tool holder.
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
General recommendations
Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
The driver must remain at the wheel of the towed vehicle and must have a valid driving licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing
arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off, there is no longer any power assistance for
braking or steering.
In the following cases, you must always call on a professional recovery service:
-

v
ehicle broken down on a motor way or fast road,
-

f
our-wheel drive vehicle,
-

w
hen it is not possible to put the gearbox into neutral, unlock the steering, or release
the parking brake,
-

t
owing with only two wheels on the ground,
-

w
here there is no approved towing arm available...
11
Practical information

190
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Towing your vehicle
F On the front bumper, passenger's side,
remove the protective access cover located
alongside the front fog lamp, using the flat
end of the towing eye. F
O n the rear bumper, unclip the cover by
pressing at the bottom.
F

S
crew the towing eye in fully.
F

I
nstall the towing arm.
F

S
witch on the hazard warning lamps on the
towed vehicle.
Towing another vehicle
Failure to observe this special condition
could result in damage to certain
braking components and the absence
of braking assistance the next time the
engine is started.
When removing the protective access
cover, take care to avoid damaging the
paintwork with the towing eye. F

S

crew the towing eye in fully.
F

I

nstall the towing arm.
F

S

witch on the hazard warning lamps on the
towed vehicle.
F

P

lace the gear lever in neutral.
Practical information

191
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Towing a trailer, ...
Driving advice
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F
T
o lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
Side wind
F Take into account the increased sensitivity to side wind.
F If the warning lamp and the STOP
warning lamp come on, stop the
vehicle and switch off the engine
as soon as possible.
Towbar suitable for the attachment of a trailer or installation of a bicycle carrier, with additional lighting and signalling.
Distribution of loads
F Distribute the load in the trailer so that the heaviest items are as close as possible to
the axle and the nose weight approaches the
maximum permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1
000 metres, the maximum towed load must
be reduced by 10
% for every 1 000 metres of
altitude.
We recommend the use of genuine
CITROËN towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a CITROËN dealer or a
qualified workshop.
If the towbar is not fitted by a CITROËN
dealer, it is imperative that it is
fitted in accordance with the vehicle
manufacturer's instructions.
Driving with a trailer places greater demands
on the towing vehicle and the driver must take
particular care. Your vehicle is primarily designed for transporting people and luggage, but it may also be used for towing a trailer.
Refer to the "Technical data" section for details
of the weights and towed loads which apply to
your vehicle.
11
Practical information

192
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Fitting roof bars
To fit longitudinal and/or transverse roof bars, visit your CITROËN dealer or a qualified workshop.Maximum authorised weight on the roof rack: 60 kg.
If the height exceeds 40 cm, adapt the speed of the vehicle to the profile of the road to avoid
damaging the roof bars and the fixings on the roof.
Be sure to refer to national legislation in order to comply with the regulations for transporting
objects which are longer than the vehicle.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling on the trailer.
The rear parking sensors will be
deactivated automatically if a genuine
CITROËN towbar is used.
Practical information

193
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
"Comfort":
front and rear parking sensors, insulated
module, reading lamp, sun blinds, head
restraint-mounted coat hanger, centre armrest,
air deflector, scented air freshener cartridges,
portable ashtray, solar films for windows...
"Protection":
mats*, seat covers, mudflaps, bumper
protectors, vehicle protective cover, dog guard,
pet seat and boot covers...
"Transport solutions":
boot liner, boot carpet, towbar, towbar wiring
harness, transverse roof bars, bicycle carrier,
ski carrier, roof box, boot spacers, boot net,
business/commercial vehicle conversion kit,
sliding boot floor...
"Safety and security":
anti-theft alarm, warning triangle, high visibility
vest, breathalyzer, first aid kit, snow chains,
non-skid covers, security wheel bolts, vehicle
tracking system, child seats, fire extinguisher,
caravan mirror, glass security films...
"Style":
allow wheels, chromed mirror shells, leather
steering wheel, gear lever knob, aluminium
footrest, wheel caps...
AccessoriesA wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's recommendation and warranty.*

T
o avoid any risk of jamming of the pedals:
-

e
nsure that the mat is positioned and
secured correctly,
-

n
ever fit one mat on top of another.
11
Practical information

196
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2015
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, you must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load. * For Russia only.
**
T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
PETROL ENGINE
VTi 95PureTech 110 V T i 115*
Gearbox Manual
(5-speed) Manual
(5-speed) Manual
(5-speed) Electronic
(6-speed)
Model code:
SH... 8FP0
8FP6
HNZ6
5 FJ 05 FJ 8 / P
-
U
nladen weight
1 2461 205 1 204 1 205
-
K
erb weight
1 3211 280 1 2791 280
-

Payload
501555 549564
-
G
ross vehicle weight (GV W)
1 7471 760 1 7531 769
-
G
ross train weight (GTW)
o

n a 12% gradient
2 597
2 6102 603 2 619
-
B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient
850
850850850
-
B
raked trailer** (with load transfer within the
GTW limit) 1 10 0
1 10 01 10 01 10 0
-
U
nbraked trailer
650620635 640
-
R
ecommended nose weight
543654 54
Weights and towed loads (kg)
Technical data

198
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2015
* The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
DIESEL ENGINE
BlueHDi 100
Gearbox Manual (5-speed)
Model code:
SH... BHY6
-
U
nladen weight
1 240
-
K
erb weight
1 315
-

Payload
560
-
G
ross vehicle weight (GV W)
1 800
-
G
ross train weight (GTW)

o
n a 12% gradient
2 700
-
B
raked trailer (within GTW limit)

o
n a 10% or 12% gradient
900
-
B
raked trailer* (with load transfer with the
GTW limit) 900
-
U
nbraked trailer
650
-
R
ecommended nose weight
36
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing you must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Weights and towed loads (kg)
Technical data

04
208
C3Picasso_en_Chap13a_RT6-2-8_ed01-2015
Press N AV to display the
"Navigation - guidance " menu.
Towards a new destination
Selecting a destination
Select "Select destination" and
confirm, then select "Enter an address"
and confirm.
Select the "Country" function then
confirm.
Select the "Town
" or "Post code"
function then confirm.
Select the letters in the name of the
town or the characters in a post code
one at a time, confirming each one with
the knob. Selection the town from the list offered,
then confirm.
A pre-set list (by entering the first few
letters) of the towns in the country selected
can be accessed directly by selecting and
confirming "List" in the screen.
If possible, enter the "Road" and "N°/X"
information in the same way.
Select "Archive" to save the address entered in a contact file.
After about 60 seconds with no address entered, the system returns
to the last home page; to return to the current input, start again with
steps 1 and 2 then press again.
Confirm "OK" to start guidance.
Select the guidance criteria: " Fastest
route", "Shortest route" or optimised
"Distance/Time", then select the
desired restriction criteria: " With tolls",
"With Ferry", or "Traffic info" then
confirm "OK".
NAVIGATION - GUIDANCE

04
209
C3Picasso_en_Chap13a_RT6-2-8_ed01-2015
Towards a recent destinationPress N AV to display the
"Navigation - guidance " menu.
Select the desired destination and
confirm to start navigation. Towards a contact in the directory of contacts
Select "Select destination" and
confirm, then select "Directory " and
confirm.
Selection the desired destination from
your contacts and confirm "OK" to start
navigation. Press N AV
to display the
"Navigation - guidance " menu.
Navigation towards a contact is only possible if there is an address
entered in the audio navigation system.
Delete recent destinations Press N AV to display the
"Navigation - guidance " menu.
Select "Options " and confirm and then
"Delete recent destinations" and
confirm.
NAVIGATION - GUIDANCE
