CITROEN C3 PICASSO 2017 Owners Manual

159
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
F Position the foot of the jack 2 on the ground, ensuring that it is directly below
one of the front A or rear B jacking points
provided on the underbody, whichever is
closest to the wheel to be changed. F
R emove the bolts and store them in a clean
place.
F

R
emove the wheel.
Ensure that the jack is stable. If the ground is slippery or loose, the jack could slip or drop -
Risk of injury!
Position the jack only at one of the jacking points A or B under the vehicle, ensuring that the
vehicle's contact area is positioned centrally on the head of the jack. Other wise, there is a
risk of damage to the vehicle and/or the jack dropping - Risk of injury! F
E xtend the jack 2 until its head comes into
contact with the jacking point A or B used.
The vehicle's contact area A or B must be
fully engaged with the central part of the
head of the jack.
F

Ra
ise the vehicle until there is sufficient
space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.
11
Practical information

160
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
List of operations
F Put the wheel in place on the hub.
F S crew in the bolts by hand as far as
possible.
F

P
re-tighten the security bolt (if your vehicle
has them) using the wheelbrace 1 fitted
with the security socket 4 .
F

P
re-tighten the other bolts using the
wheelbrace 1 o n l y.
Fitting a wheel
After changing a wheel
To stow the punctured wheel in the boot
correctly, first remove the central cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80


km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a CITROËN dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refit it to the vehicle as soon as
possible.
Practical information

161
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
F Tighten the security bolt (if your vehicle has them) using the wheelbrace 1 fitted with
the security socket 4 .
F

T
ighten the other bolts using the
wheelbrace 1 o n l y.
F

R
efit the bolt covers on each of the bolts
(with alloy wheels only).
F

S
tow the tools in the box.
F
L
ower the vehicle fully.
F
F
old the jack 2 and detach it.
11
Practical information

162
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Snow chains
Original tyre sizeMaximum link size
195 / 60 R15 9 mm
195 / 55 R16 9 mm
205 / 45 R17 7 mm
For more information on snow chains,
contact a CITROËN dealer or a
qualified workshop.
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when
braking.
The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.
Advice on installation
F If you have to fit the chains during a journey, stop the vehicle on a flat sur face
on the side of the road.
F

A
pply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.
F

F
it the chains following the instructions
provided by the manufacturer.
F

M
ove off gently and drive for a few
moments, without exceeding 30 mph
(50


km/h).
F

S
top your vehicle and check that the snow
chains are correctly tightened.
Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road sur face. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.
All original tyre sizes (15", 16", 17") can be
fitted with chains.
Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.
Practical information

163
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
AdBlue® additive and SCR system
for BlueHDi Diesel engines
To assure respect for the environment and
conformity with the new Euro 6 emissions
standard, without adversely affecting the
per formance or fuel consumption of Diesel
engines, CITROËN has taken the decision to
equip its vehicles with an effective system that
associates SCR (Selective Catalytic Reduction)
with a particle filter (FAP) for the treatment of
exhaust gases.
Presentation of the SCR system
Using an additive called AdBlue® containing
urea, a catalytic converter turns up to 85%
of nitrous oxides (NOx) into nitrogen and
water, which are harmless to health and the
environment. Once the AdBlue
® tank is empty, a
s
ystem required by regulations prevents
starting of the engine.
If the SCR is faulty, the level of
emissions from your vehicle will no
longer meet the Euro 6 standard: your
vehicle becomes polluting.
In the event of a confirmed fault
with the SCR system, you must go
to a CITROËN dealer or a qualified
workshop as soon as possible: after
a running distance of 650 miles
(1

100 km), a system will be triggered
automatically to prevent engine starting.
The AdBlue® additive is held in a special
tank located under the boot at the rear of
the vehicle. It has a capacity of 17 litres: this
provides a driving range of about 12 500 miles
(20 000 km), after which an alert is triggered
warning you when the reserve remaining is
enough for just 1 500 miles (2 400 km).
During each scheduled service of your vehicle
by a CITROËN dealer or a qualified workshop,
the AdBlue
® additive tank is refilled in order to
allow normal operation of the SCR system.
If the estimated mileage between two services
is greater than 12 500 miles (20 000 km), we
recommend that you go to a CITROËN dealer
or a qualified workshop to have the necessary
top-up carried out.
11
Practical information

164
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Range indicators
Once the AdBlue® tank is on reserve or after
detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of simultaneous system fault and
low AdBlue
® level, the shortest range figure is
the one displayed.
In the event of the risk of
non-starting related to a lack
of AdBlue
®
The engine start prevention system
required by regulations is activated
automatically once the AdBlue
® tank is
e m pt y.
Range greater than 1 500 miles (2 400 km)
When the ignition is switched on, no
information on range is displayed automatically
in the instrument panel.
For more information on topping-
up the AdBlue® additive, refer to the
corresponding section.
Practical information

165
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Remaining range between 350 and 1500 miles (600 and 2 400 km)
When switching on the ignition, the
UREA warning lamp comes on, accompanied
by an audible signal and the display of a
message (e.g.: "Top up emissions additive:
Starting prevented in 900 miles") indicating
the remaining range expressed in miles or
kilometres.
When driving, the message is displayed every
200 miles (300 km) until the additive tank has
been topped-up.
Go to a CITROËN dealer or a qualified
workshop to have the AdBlue
® tank topped-up.
You can also top-up the tank yourself.
For more information on topping-up the
AdBlue
® additive, refer to the corresponding
section.
Remaining range between 0 and 350 miles (0 and 600 km)
When switching on the ignition, the SERVICE
warning lamp comes on and the UREA warning
lamp flashes, accompanied by an audible
signal and the display of a message (e.g.
"Top up emissions additive: Starting prevented
in 350 miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the message is displayed every
30 seconds until the additive tank has been
topped-up.
Go to a CITROËN dealer or a qualified
workshop to have the AdBlue
® tank topped-up.
You can also top-up the tank yourself.
Other wise you will not be able to restart your
engine. When switching on the ignition, the SERVICE
warning lamp comes on and the UREA warning
lamp flashes, accompanied by an audible
signal and the display of the message "Top up
emissions additive: Starting prevented".
The AdBlue
® tank is empty: the system required
by regulations prevents engine starting.
Breakdown related to a lack of AdBlue® additive
To be able to start the engine,
we recommend that you call on
a CITROËN dealer or a qualified
workshop for the top-up required.
If you carry out the top-up yourself, it
is essential to add at least 3.8 litres of
AdBlue
® to the tank.
11
Practical information

166
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
In the event of a fault with the the SCR emissions control system
A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions control
system. Have the system checked by a CITROËN dealer or a qualified workshop as soon as possible.You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.
If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnosis of the SCR system.
The UREA, SERVICE and diagnostic warning
lamps comes on, accompanied by an audible
signal and the display of the message
"Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists. In the event of the detection of a fault
If a fault with the SCR system is confirmed (after
30
miles (50 km) covered with the permanent display
of the message signalling a fault), the SERVICE and
engine diagnostic warning lamps come on and the
UREA warning lamp flashes, accompanied by an
audible signal and the display of a message (e.g.:
"Emissions fault: Starting prevented in 150 miles")
indicating the remaining range express in miles or
kilometres.
While driving, the message is displayed every
30
seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the ignition.
You should go to a CITROËN dealer or a qualified
workshop as soon as possible.
Other wise, you will not be able to restart your engine.
During an authorised driving phase (between
650 miles and 0 miles) (1 100 km and 0 km)
Every time the ignition is switched on, the
SERVICE and engine diagnostic warning
lamps come on and the UREA warning lamp
flashes, accompanied by an audible signal and
the display of the message "Emissions fault:
Starting prevented". Starting prevented
To be able to start the engine, you must call on
a CITROËN dealer or a qualified workshop.
Practical information

167
C3Picasso_en_Chap11_informations-pratiques_ed01-2015

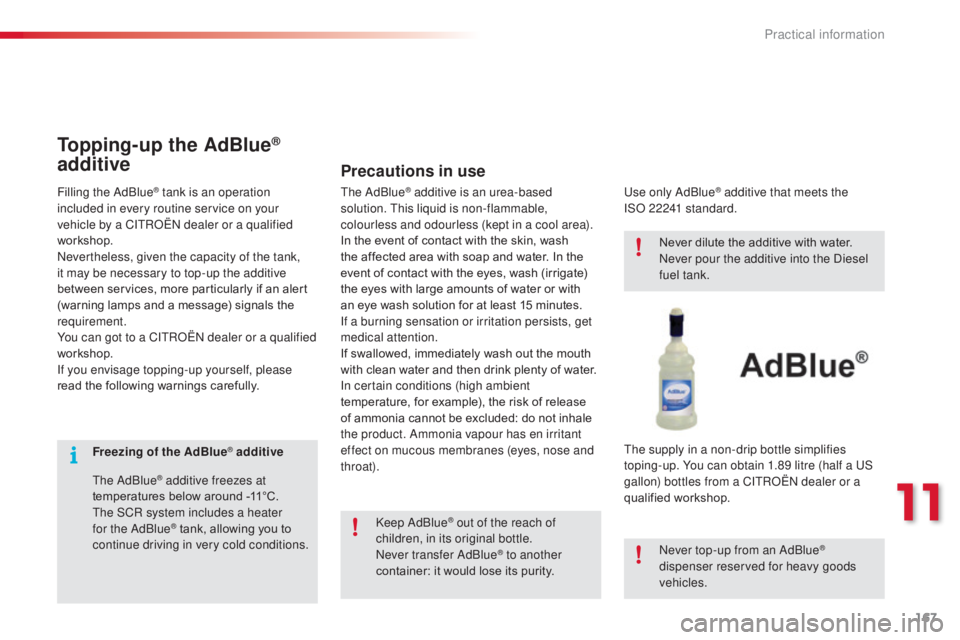

Freezing of the AdBlue® additive
The AdBlue
® additive freezes at
temperatures below around -11°C.
The SCR system includes a heater
for the AdBlue
® tank, allowing you to
continue driving in very cold conditions.
Filling the AdBlue
® tank is an operation
included in every routine service on your
vehicle by a CITROËN dealer or a qualified
workshop.
Nevertheless, given the capacity of the tank,
it may be necessary to top-up the additive
between services, more particularly if an alert
(warning lamps and a message) signals the
requirement.
You can got to a CITROËN dealer or a qualified
workshop.
If you envisage topping-up yourself, please
read the following warnings carefully.
Topping-up the AdBlue®
additive
The AdBlue® additive is an urea-based
solution. This liquid is non-flammable,
colourless and odourless (kept in a cool area).
In the event of contact with the skin, wash
the affected area with soap and water. In the
event of contact with the eyes, wash (irrigate)
the eyes with large amounts of water or with
an eye wash solution for at least 15 minutes.
If a burning sensation or irritation persists, get
medical attention.
If swallowed, immediately wash out the mouth
with clean water and then drink plenty of water.
In certain conditions (high ambient
temperature, for example), the risk of release
of ammonia cannot be excluded: do not inhale
the product. Ammonia vapour has en irritant
effect on mucous membranes (eyes, nose and
throat).
Precautions in use
Keep AdBlue® out of the reach of
children, in its original bottle.
Never transfer AdBlue
® to another
container: it would lose its purity. Use only AdBlue
® additive that meets the
ISO 22241 standard.
Never dilute the additive with water.
Never pour the additive into the Diesel
fuel tank.
Never top-up from an AdBlue
®
dispenser reserved for heavy goods
vehicles.
The supply in a non-drip bottle simplifies
toping-up. You can obtain 1.89 litre (half a US
gallon) bottles from a CITROËN

dealer or a
qualified workshop.
11
Practical information

168
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Never store bottles of AdBlue® in your
vehicle.
AdBlue
® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the additive can be
kept for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
Recommendations on storage
Before topping-up, ensure that the vehicle is
parked on a flat and level sur face.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Otherwise the AdBlue
® may be frozen and
so cannot be poured into its tank. Park your
vehicle in a warmer area for a few hours to
allow the top-up to be carried out.

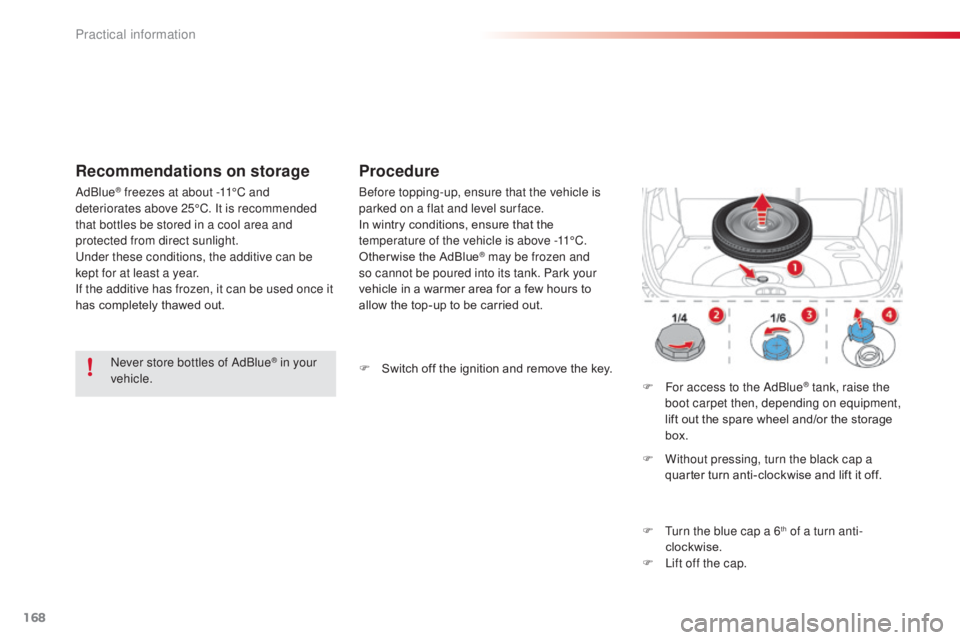

Procedure
F For access to the AdBlue® tank, raise the
boot carpet then, depending on equipment,
lift out the spare wheel and/or the storage
box.
F

W

ithout pressing, turn the black cap a
quarter turn anti-clockwise and lift it off.
F

T

urn the blue cap a 6
th of a turn anti-
clockwise.
F

L

ift off the cap.
F

S

witch off the ignition and remove the key.
Practical information
