CITROEN C3 PICASSO 2017 Owners Manual

169
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
F Obtain a bottle of AdBlue®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank.
Important : if your vehicle's
AdBlue
® tank is completely empty -
w
hich is confirmed by the alert
messages and the impossibility of
starting the engine, you must add at
least 3.8 litres (so two 1.89 litre bottles). If any additive is split or splashed, wash
immediately with cold water or wipe with
a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.
Important:
in the event of a top-up after
a breakdown because of a lack of
additive , you must wait around 5 minutes
before switching on the ignition, without
opening the driver's door, locking the
vehicle or introducing the key into the
ignition switch .
Switch on the ignition, then, after
10

seconds, start the engine.
Never dispose of AdBlue
® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your dealer.
F

A

fter emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth.
F

R

efit the blue cap to the tank and turn it a
6th of a turn clockwise, to its stop.
F
R
efit the black cap and turn it a quarter of
a turn clockwise without pressing. Ensure
that the indicator on the cap lines up with
the indicator on the support.
F

D

epending on equipment, return the spare
wheel and/or the storage box to the bottom
of the boot.
F

R

efit the boot carpet and close the tailgate.
11
Practical information

170
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Changing a bulbProcedure for replacing a faulty bulb with a new bulb.1.
D
irection indicators (H21W amber).
2.
D

ipped beam headlamps (H7-55W).
3.
M

ain beam headlamps (H1-55W).
4.
S

idelamps (W5W).
5.
F

oglamps (PSX24W).
6.
L

ED daytime running lamps.
Front lampsThe headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u
se a sponge and soapy water or a
pH neutral product,
F

w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals. Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Practical information

171
C3Picasso_en_Chap11_informations-pratiques_ed01-2015

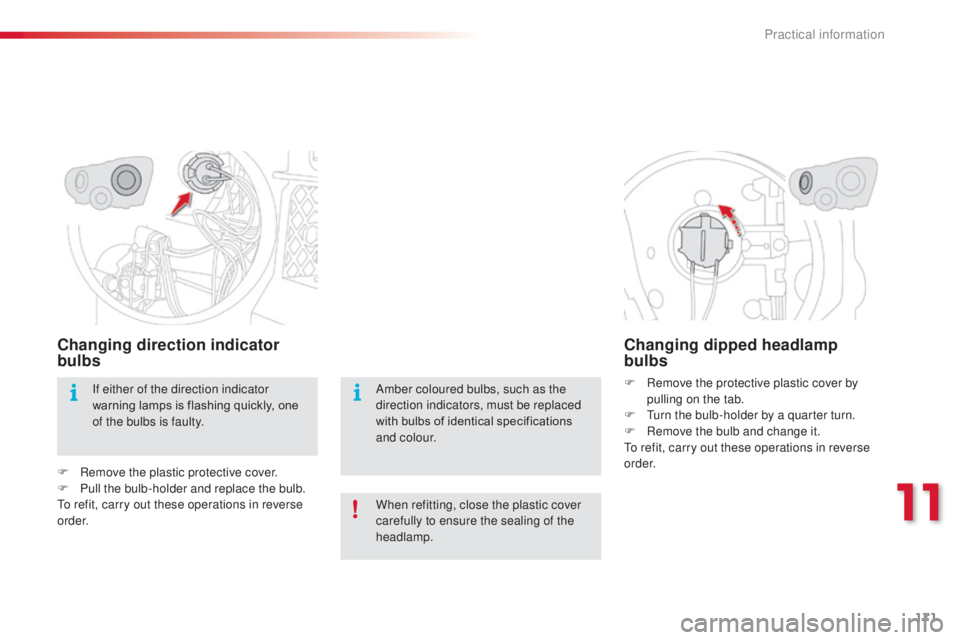

Changing direction indicator
bulbs
F Remove the plastic protective cover.
F P ull the bulb-holder and replace the bulb.
To refit, carry out these operations in reverse
o r d e r.
Changing dipped headlamp
bulbs
F Remove the protective plastic cover by pulling on the tab.
F

T
urn the bulb-holder by a quarter turn.
F

R
emove the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
If either of the direction indicator
warning lamps is flashing quickly, one
of the bulbs is faulty.
When refitting, close the plastic cover
carefully to ensure the sealing of the
headlamp. Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
11
Practical information

172
C3Picasso_en_Chap11_informations-pratiques_ed01-2015

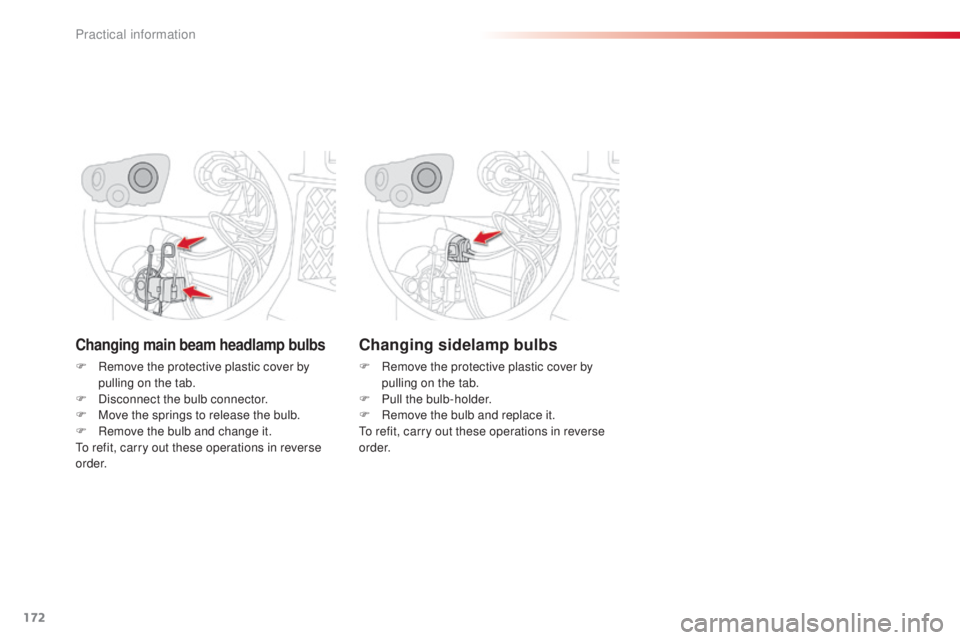

Changing main beam headlamp bulbs
F Remove the protective plastic cover by pulling on the tab.
F

D
isconnect the bulb connector.
F

M
ove the springs to release the bulb.
F

R
emove the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
Changing sidelamp bulbs
F Remove the protective plastic cover by pulling on the tab.
F

P
ull the bulb-holder.
F

R
emove the bulb and replace it.
To refit, carry out these operations in reverse
o r d e r.
Practical information

173
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Changing front foglamp bulbs
F Remove the grille located alongside the foglamp.
If you experience any difficulty in
replacing bulbs, contact your CITROËN
dealer or a qualified workshop.
F

T
hrough the cover, remove the foglamp
finisher by pulling it towards you. F

U
nscrew the two fixing screws of the
module and remove it from its housing.
F

D
isconnect the bulb-holder connector.
F

R
emove the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
11
Practical information

174
C3Picasso_en_Chap11_informations-pratiques_ed01-2015

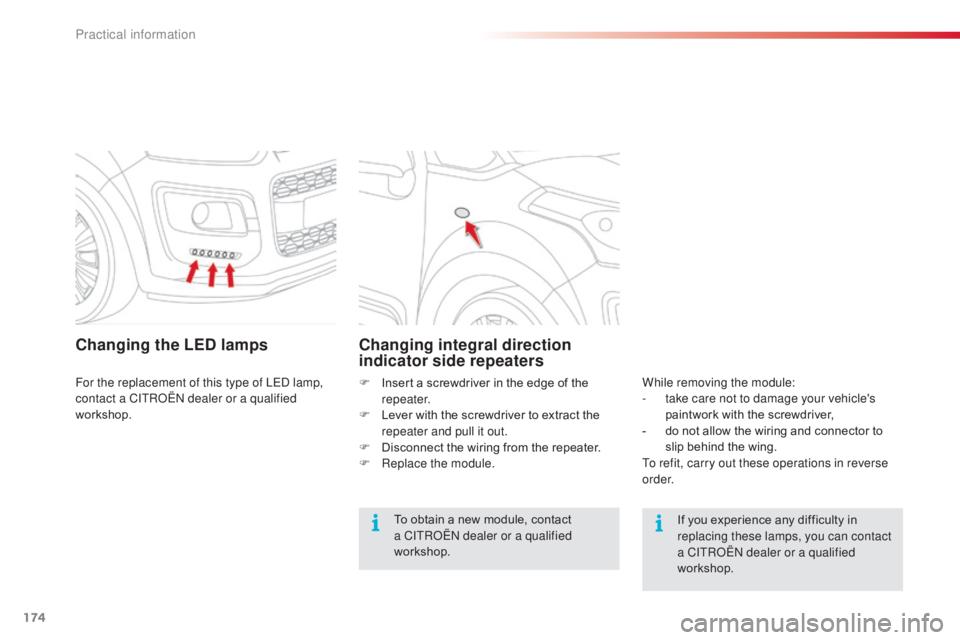

Changing the LED lamps
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.
Changing integral direction
indicator side repeaters
To obtain a new module, contact
a CITROËN dealer or a qualified
workshop.If you experience any difficulty in
replacing these lamps, you can contact
a CITROËN dealer or a qualified
workshop.
While removing the module:
-

t
ake care not to damage your vehicle's
paintwork with the screwdriver,
-
d
o not allow the wiring and connector to
slip behind the wing.
To refit, carry out these operations in reverse
o r d e r.
F

I

nsert a screwdriver in the edge of the
repeater.
F

L

ever with the screwdriver to extract the
repeater and pull it out.
F

D

isconnect the wiring from the repeater.
F

R

eplace the module.
Practical information

175
C3Picasso_en_Chap11_informations-pratiques_ed01-2015

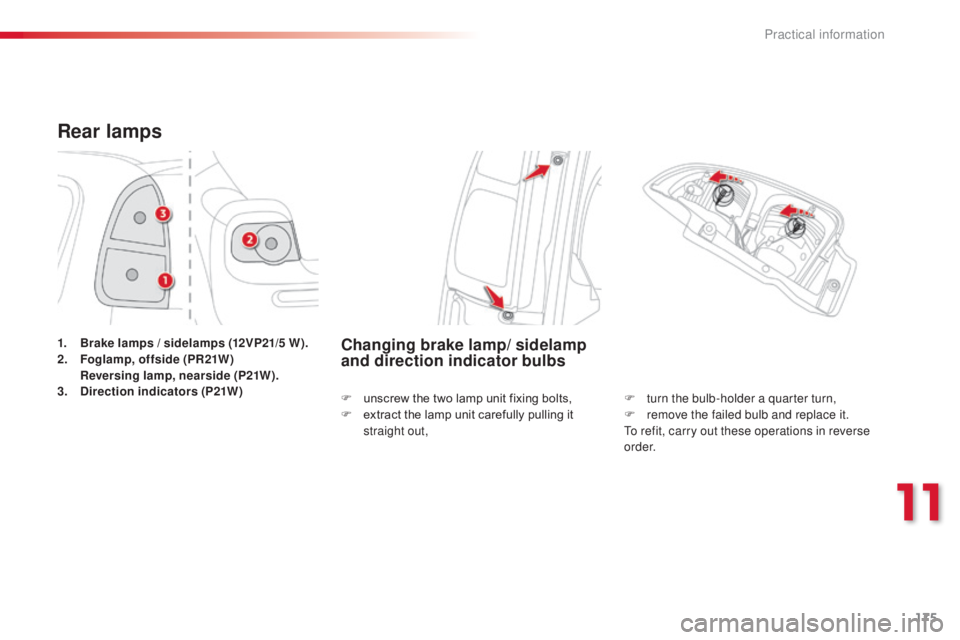

Rear lamps
1. Brake lamps / sidelamps (12VP21/5 W).
2. Foglamp, offside (PR21W)
R

eversing lamp, nearside (P21W).
3.
D

irection indicators (P21W)Changing brake lamp/ sidelamp
and direction indicator bulbs
F turn the bulb-holder a quarter turn,
F r emove the failed bulb and replace it.
To refit, carry out these operations in reverse
o r d e r.
F
u
nscrew the two lamp unit fixing bolts,
F
e
xtract the lamp unit carefully pulling it
straight out,
11
Practical information

176
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Changing foglamp / reversing
lamp bulbs
F open the boot,
F p ress on the tabs using 2 screwdrivers,
F

d
isconnect the lamp unit connector,
F

t
urn the bulb-holder by a quarter turn,
F

r
emove the bulb and replace it.
To refit, carry out these operations in reverse
o r d e r.
Changing the third brake lamp
bulbs (4 x W 5 W bulbs)
F open the boot,
F r emove the two plugs located on the boot
inner panel,
F

p
ress on the body of the lamp with
2
screwdrivers to remove it from its
housing,
F

t
urn the corresponding bulb-holder a
quarter turn,
F

p
ull the bulb and replace it.
To refit, carry out these operations in reverse
o r d e r.
Changing the number plate lamp
bulbs (W5W)
F insert a thin screwdriver into one of the lens' exterior holes,
F

p
ush it outwards to unclip.
F

r
emove the lens.
F

p
ull the bulb and replace it.
To refit, carry out these operations in reverse
o r d e r.
Practical information

177
C3Picasso_en_Chap11_informations-pratiques_ed01-2015

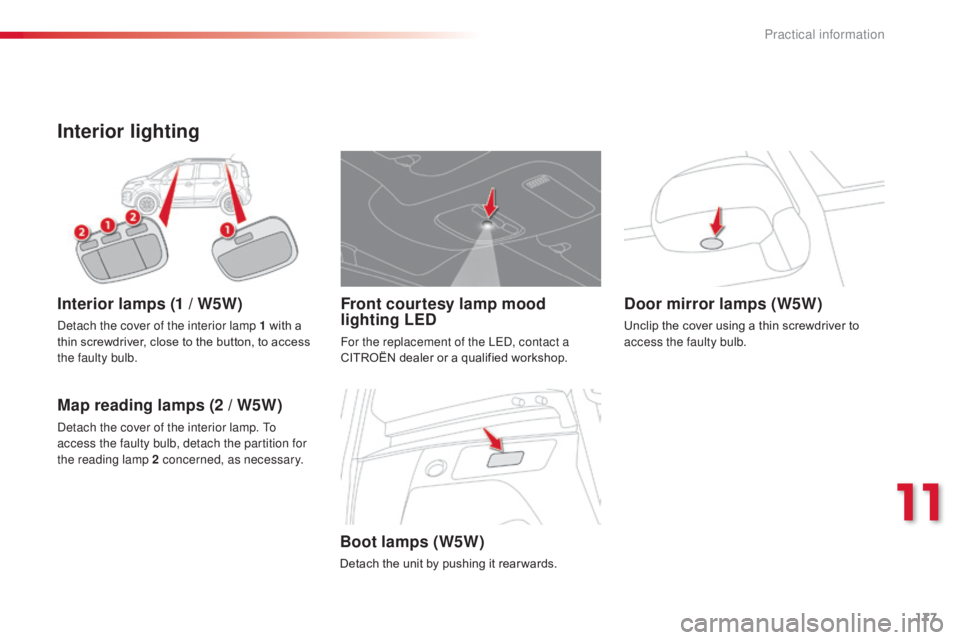

Interior lighting
Interior lamps (1 / W5W)
Detach the cover of the interior lamp 1 with a
thin screwdriver, close to the button, to access
the faulty bulb.
Map reading lamps (2 / W5W)
Detach the cover of the interior lamp. To
access the faulty bulb, detach the partition for
the reading lamp 2 concerned, as necessary.
Boot lamps (W5W)
Detach the unit by pushing it rear wards.
Front courtesy lamp mood
lighting LED
For the replacement of the LED, contact a
CITROËN dealer or a qualified workshop.
Door mirror lamps (W5W)
Unclip the cover using a thin screwdriver to
access the faulty bulb.
11
Practical information

178
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Changing a fuseProcedure for replacing a failed fuse with a new fuse to rectify a failure of the corresponding function.
The extraction tweezer and the spare fuse
storage compartment are installed on the back
of the dashboard fusebox cover.
For access to them:
F
u
nclip the cover by pulling on the side,
F

r
emove the cover completely,
F

r
emove the tweezer.
Changing a fuse
Before changing a fuse, the cause of the failure
must be identified and rectified.
F
I
dentify the faulty fuse by checking the
condition of its filament.
F

U
se the special tweezer to extract the fuse
from its housing.
F

A
lways replace the faulty fuse with a fuse
of the same rating.
F

C
heck that the number marked on the
fusebox, the rating marked on the fuse and
the following tables all agree. Good
FailedCITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer or a
qualified workshop.
Access to tooling
Practical information
