148
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

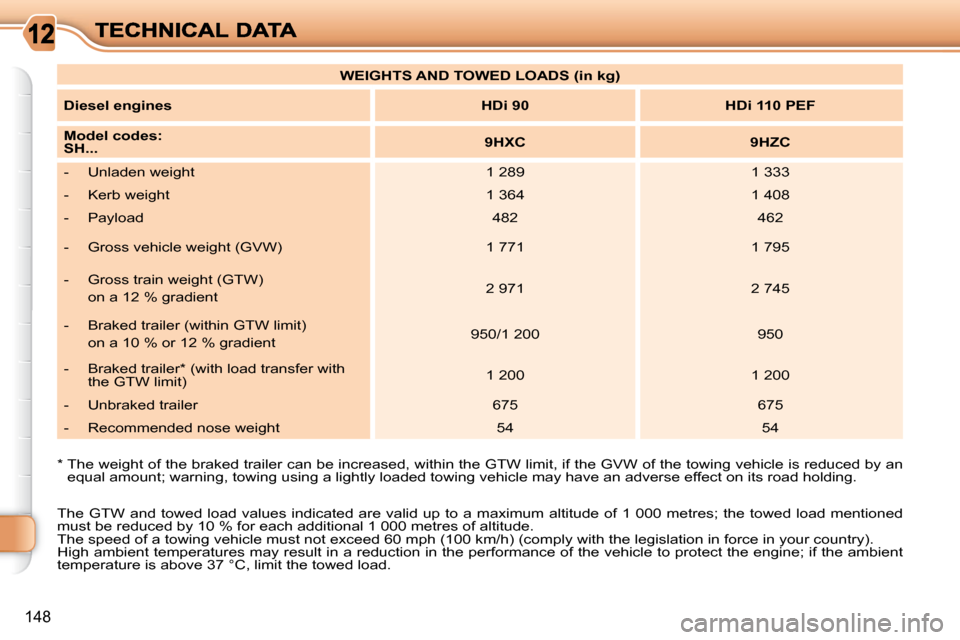

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
HDi 90 HDi 110 PEF
Model codes:
SH...
9HXC 9HZC
- Unladen weight 1 289 1 333
- Kerb weight 1 364 1 408
- Payload 482 462
- Gross vehicle weight (GVW) 1 771 1 795
- Gross train weight (GTW)
on a 12 % gradient 2 971 2 745
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 950/1 200 950
- Braked trailer * (with load transfer with the GTW limit) 1 200 1 200
- Unbraked trailer 675 675
- Recommended nose weight 54 54
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
