Page 81 of 200
!

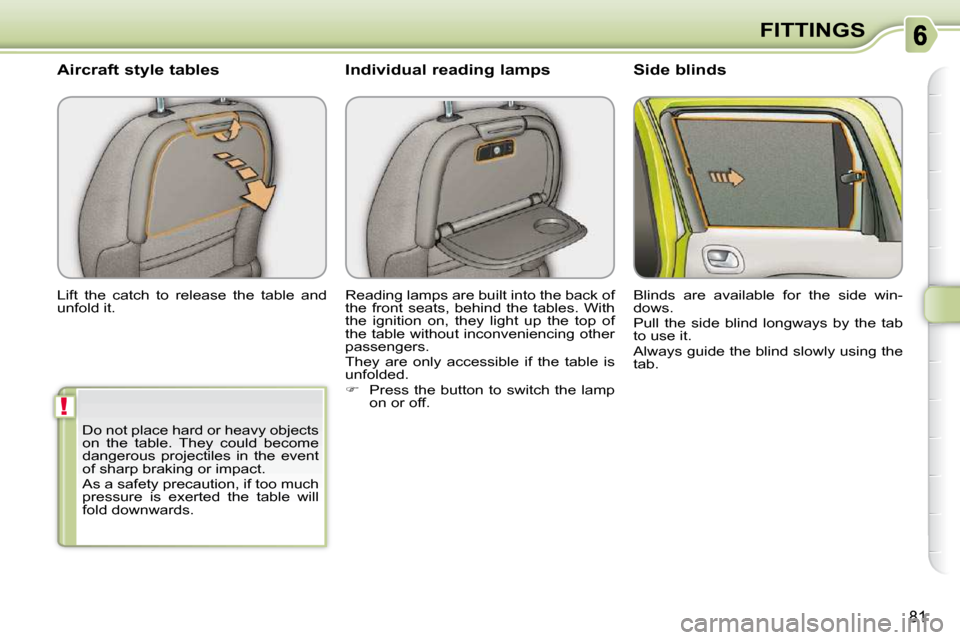

81
FITTINGS
Lift the catch to release the table and
unfold it.
Aircraft style tables
Reading lamps are built into the back of
the front seats, behind the tables. With
the ignition on, they light up the top of
the table without inconveniencing other
passengers.
They are only accessible if the table is
unfolded.
Press the button to switch the lamp
on or off.
Individual reading lamps
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event
of sharp braking or impact.
As a safety precaution, if too much
pressure is exerted the table will
fold downwards. Side blinds
Blinds are available for the side win-
dows.
Pull the side blind longways by the tab
to use it.
Always guide the blind slowly using the
tab.

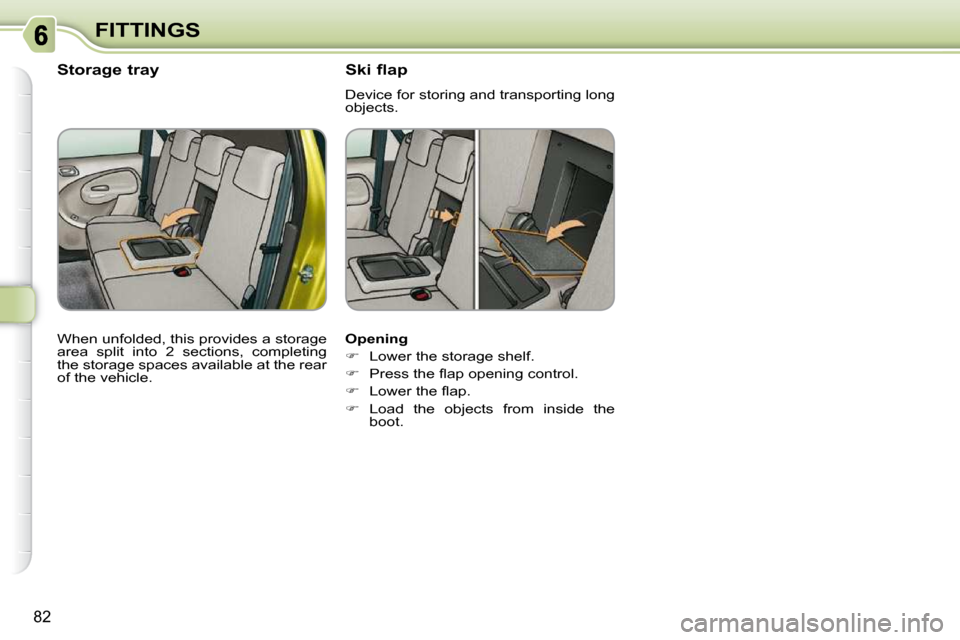

Page 82 of 200
82
FITTINGS Opening
Lower the storage shelf.
P r e s s t h e fl a p o p e n i n g c o n t r o l .
L o w e r t h e fl a p .
Load the objects from inside the
boot.
Ski flap
Device for storing and transporting long
objects.
When unfolded, this provides a storage
area split into 2 sections, completing
the storage spaces available at the rear
of the vehicle.
Storage tray

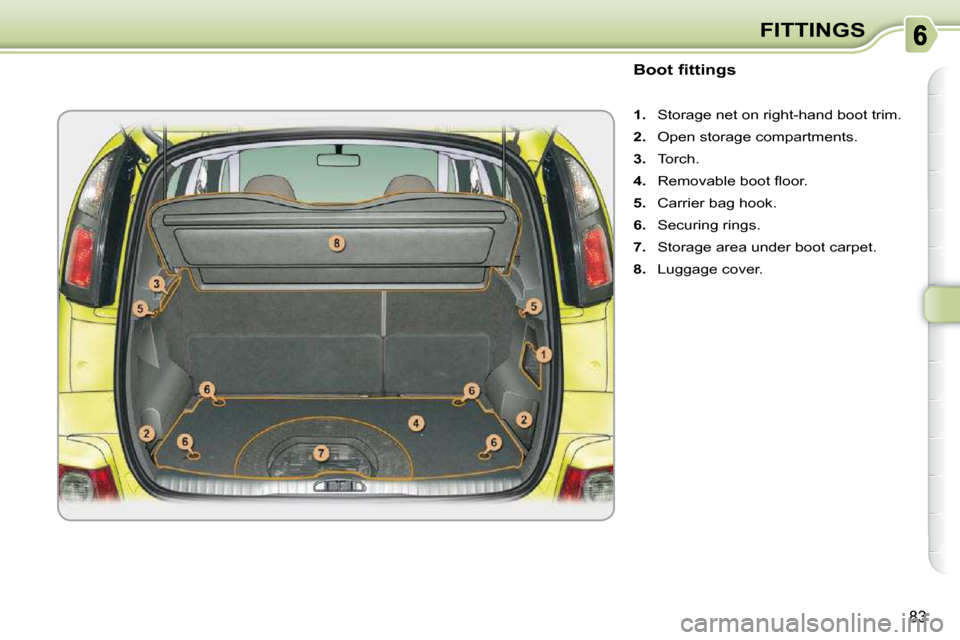

Page 83 of 200
83
FITTINGS
Boot fittings
1. Storage net on right-hand boot trim.
2. Open storage compartments.
3. Torch.
4. R e m o v a b l e b o o t fl o o r .
5. Carrier bag hook .
6. Securing rings.
7. Storage area under boot carpet .
8. Luggage cover.
Page 84 of 200
i
84
FITTINGS

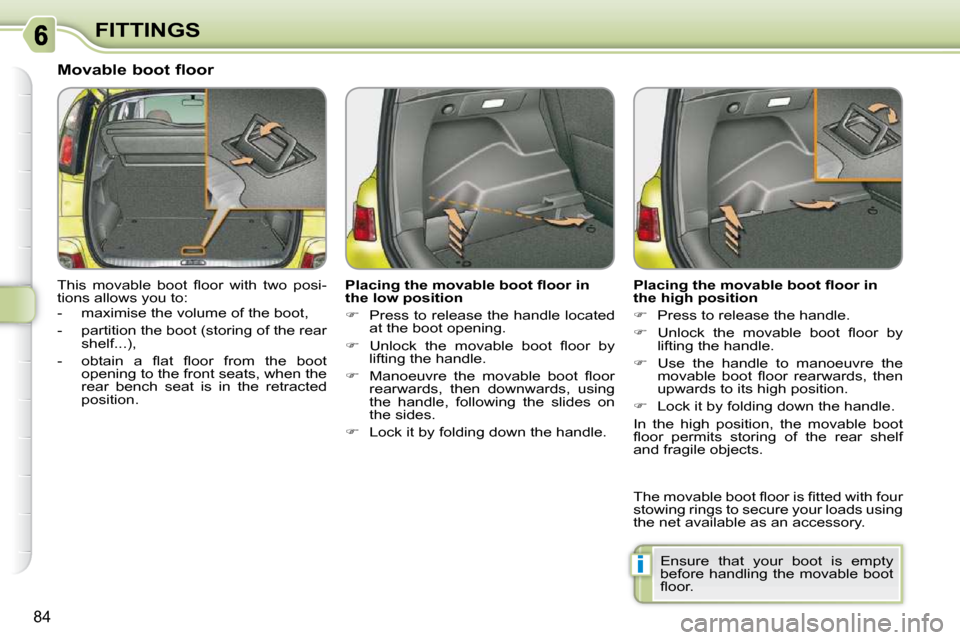

Movable boot floor
T h i s m o v a b l e b o o t fl o o r w i t h t w o p o s i -
tions allows you to:
- maximise the volume of the boot,
- partition the boot (storing of the rear shelf...),
- o b t a i n a fl a t fl o o r f r o m t h e b o o t opening to the front seats, when the
rear bench seat is in the retracted
position. P l a c i n g t h e m o v a b l e b o o t fl o o r i n
the low position
Press to release the handle located
at the boot opening.
U n l o c k t h e m o v a b l e b o o t fl o o r b y
lifting the handle.
M a n o e u v r e t h e m o v a b l e b o o t fl o o r
rearwards, then downwards, using
the handle, following the slides on
the sides.
Lock it by folding down the handle. P l a c i n g t h e m o v a b l e b o o t fl o o r i n
the high position
Press to release the handle.
U n l o c k t h e m o v a b l e b o o t fl o o r b y
lifting the handle.
Use the handle to manoeuvre the
m o v a b l e b o o t fl o o r r e a r w a r d s , t h e n
upwards to its high position.
Lock it by folding down the handle.
In the high position, the movable boot
fl o o r p e r m i t s s t o r i n g o f t h e r e a r s h e l f
and fragile objects.
T h e m o v a b l e b o o t fl o o r i s fi t t e d w i t h f o u r
stowing rings to secure your loads using
the net available as an accessory.
Ensure that your boot is empty
before handling the movable boot
fl o o r .

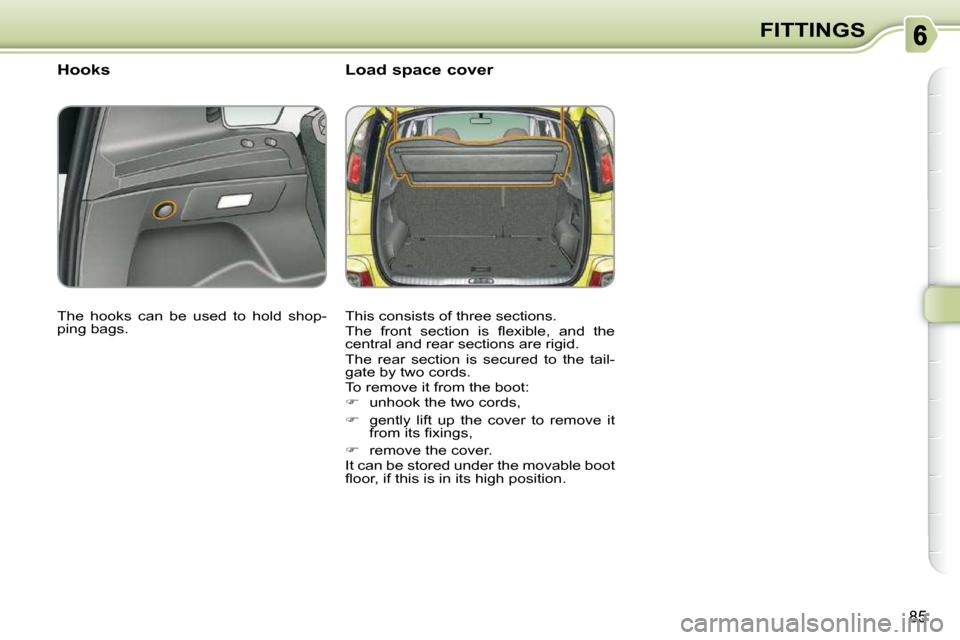

Page 85 of 200
85
FITTINGS
Hooks
The hooks can be used to hold shop-
ping bags. Load space cover
This consists of three sections.
T h e f r o n t s e c t i o n i s fl e x i b l e , a n d t h e
central and rear sections are rigid.
The rear section is secured to the tail-
gate by two cords.
To remove it from the boot:
unhook the two cords,
gently lift up the cover to remove it
f r o m i t s fi x i n g s ,
remove the cover.
It can be stored under the movable boot
fl o o r , i f t h i s i s i n i t s h i g h p o s i t i o n .

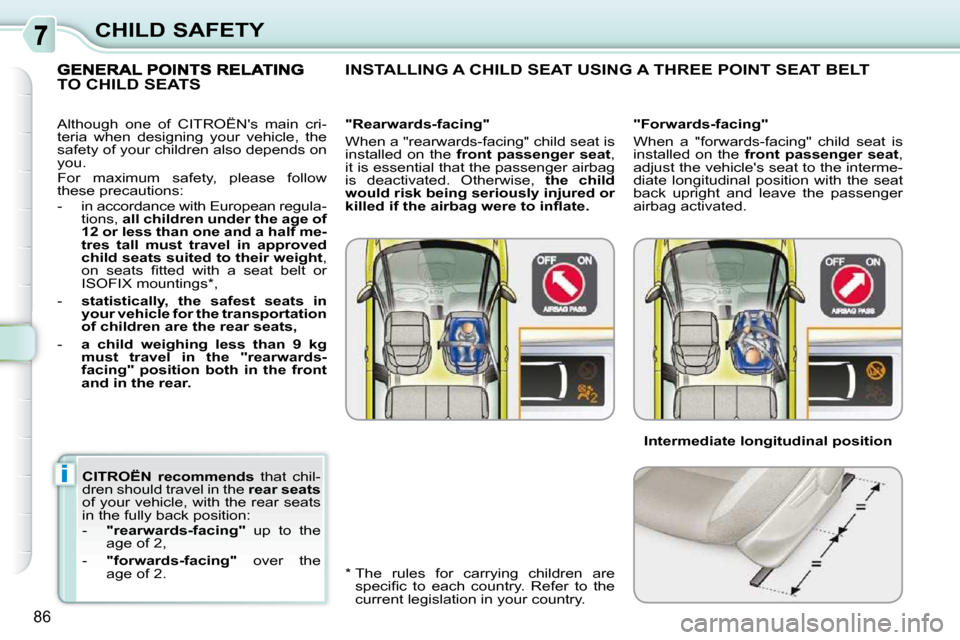

Page 86 of 200
i
86
CHILD SAFETY
CITROËN recommends that chil-
dren should travel in the rear seats
of your vehicle, with the rear seats
in the fully back position:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the
age of 2.
TO CHILD SEATS
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n fl a t e .
* The rules for carrying children are s p e c i fi c t o e a c h c o u n t r y . R e f e r t o t h e
current legislation in your country.
A l t h o u g h o n e o f C I T R O Ë N ' s m a i n c r i -
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please follow
these precautions:
- in accordance with European regula-
tions, all children under the age of
12 or less than one and a half me-
tres tall must travel in approved
child seats suited to their weight ,
o n s e a t s fi t t e d w i t h a s e a t b e l t o r
ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transportation
of children are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
a n d i n t h e r e a r .
INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT
Intermediate longitudinal position

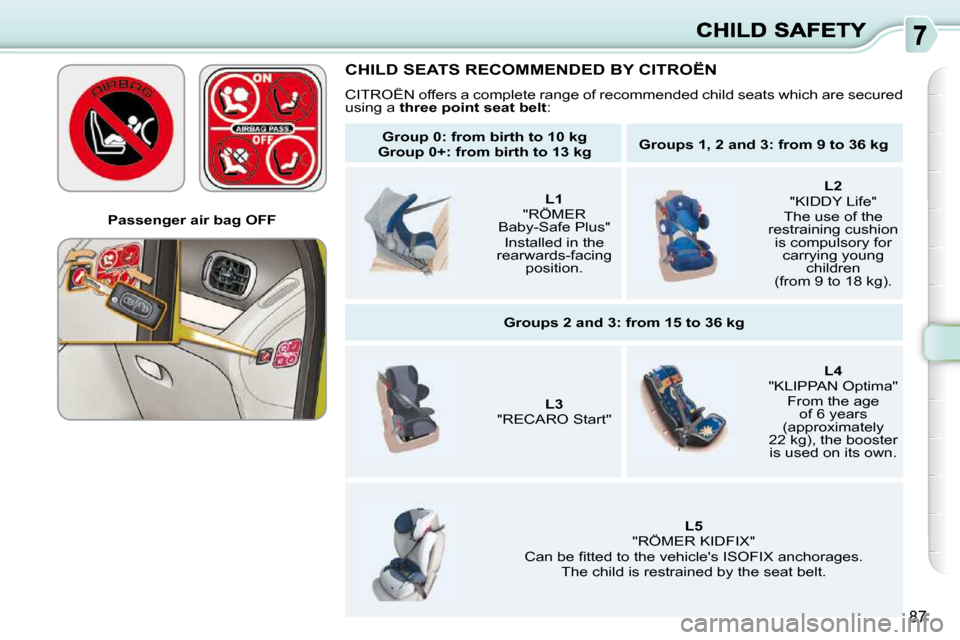

Page 87 of 200
87
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
" R Ö M E R
Baby-Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for carrying young children
(from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' '
L4
" K L I P P A N O p t i m a " From the age of 6 years
(approximately
22 kg), the booster is used on its own.
L5
" R Ö M E R K I D F I X "
C a n b e fi t t e d t o t h e v e h i c l e ' s I S O F I X a n c h o r a g e s .
The child is restrained by the seat belt.
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY CITROËN
C I T R O Ë N o f f e r s a c o m p l e t e r a n g e o f r e c o m m e n d e d c h i l d s e a t s w h i c h
a r e s e c u r e d
using a three point seat belt :
Page 88 of 200
87
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
" R Ö M E R
Baby-Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for carrying young children
(from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' '
L4
" K L I P P A N O p t i m a " From the age of 6 years
(approximately
22 kg), the booster is used on its own.
L5
" R Ö M E R K I D F I X "
C a n b e fi t t e d t o t h e v e h i c l e ' s I S O F I X a n c h o r a g e s .
The child is restrained by the seat belt.
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY CITROËN
C I T R O Ë N o f f e r s a c o m p l e t e r a n g e o f r e c o m m e n d e d c h i l d s e a t s w h i c h
a r e s e c u r e d
using a three point seat belt :

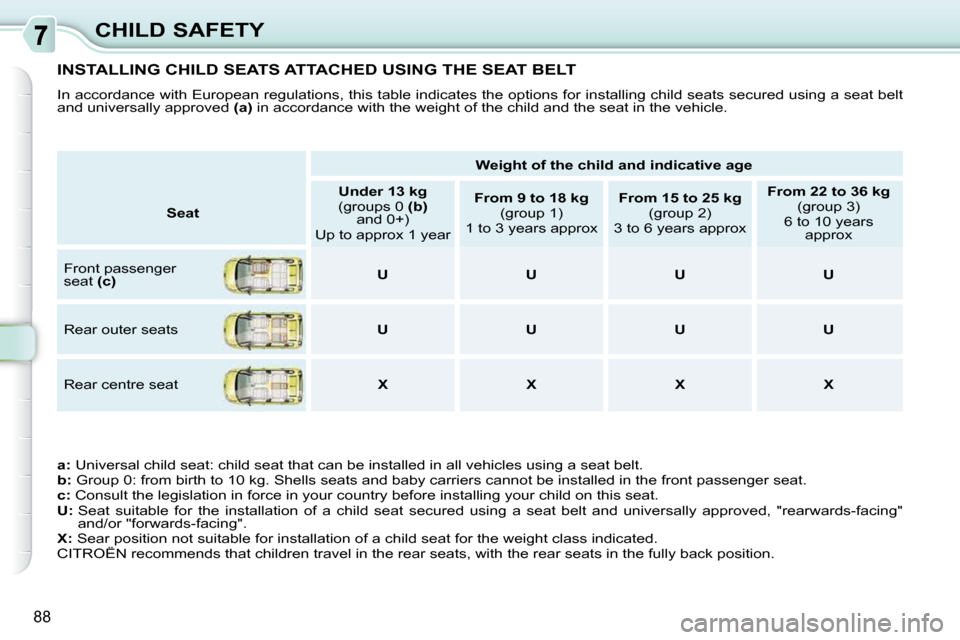

Page 89 of 200
88
CHILD SAFETY
INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat b elt
and universally approved (a) in accordance with the weight of the child and the seat in the vehicle.
a: Universal child seat: child seat that can be installed in all vehicles using a seat belt.
b: Group 0: from birth to 10 kg. Shells seats and baby carriers canno t be installed in the front passenger seat.
c: Consult the legislation in force in your country before inst alling your child on this seat.
U: Seat suitable for the installation of a child seat secure d using a seat belt and universally approved, "rearwards-facing"
and/or "forwards-facing".
X: Sear position not suitable for installation of a child se at for the weight class indicated.
C I T R O Ë N r e c o m m e n d s t h a t c h i l d r e n t r a v e l i n t h e r e a r s e a t s , w i t h t h e r e a r s e a t s i n t h e f u l l y b a c k p o s i t i o n .
Weight of the child and indicative age
Seat
Under 13 kg
(groups 0 ( b )
and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( c )
U U U U
R e a r o u t e r s e a t s
U U U U
R e a r c e n t r e s e a t
X X X X

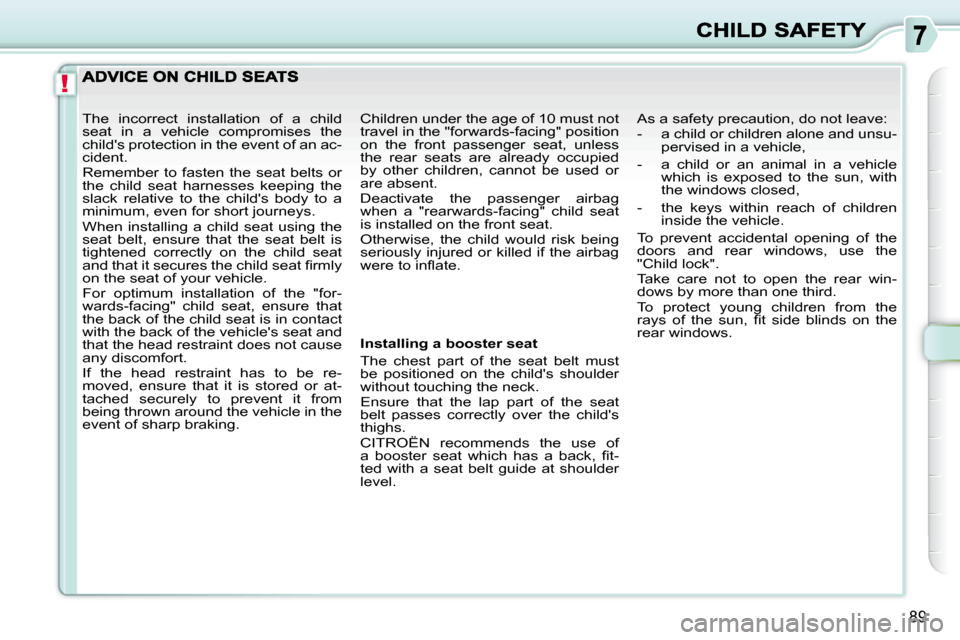

Page 90 of 200
!
89
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
C I T R O Ë N r e c o m m e n d s t h e u s e o f
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level. As a safety precaution, do not leave:
- a child or children alone and unsu-
pervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an ac-
cident.
R e m e m b e r t o f a s t e n t h e s e a t b e l t s o r
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
a n d t h a t i t s e c u r e s t h e c h i l d s e a t fi r m l y
on the seat of your vehicle.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or at-
tached securely to prevent it from
being thrown around the vehicle in the
event of sharp braking. Children under the age of 10 must not
travel in the "forwards-facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
w e r e t o i n fl a t e .
