Page 28 of 200
42
COMFORT
VENTILATION
System which creates and maintains
comfortable conditions in the vehicle's
passenger compartment. Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-
partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits. The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o
increase or reduce the speed of the
ventilation blower.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the cen-
tre console. Depending on the model,
the functions offered are:
- the level of comfort required,
- a i r fl o w ,
- air distribution,
- demisting and defrosting,
- manual or automatic air conditioning controls.
Air distribution
1. Windscreen demisting or defrosting
vents.
2. Front side window demisting or de-
frosting vents.
3. Side adjustable air vents.
4. Central adjustable air vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.
Page 35 of 200
i
i
!
48
COMFORT As a safety precaution, do not car-
ry out any action on the cartridge
while driving.
Do not dismantle the cartridges.
D o n o t a t t e m p t t o r e fi l l t h e f r a g r a n c e
diffuser or the cartridges.
Avoid all contact with the skin and
eyes.
Keep out of reach of children and
animals.
Leave the central vents open.
The intensity of diffusion of the fra-
grance may depend on the ventila-
tion or air conditioning settings.
SCENTED AIR FRESHENER
System permitting the diffusion of a fra-
grance in the passenger compartment
in accordance with your requirements,
by means of the adjustment dial and the
various fragrance cartridges available.
F i t t i n g t h e c a r t r i d g e
Remove the cartridge from the
sealing case.
I n s t a l l t h e c a r t r i d g e ( fl o w e r a t t o p
right).
Press the dial and turn it a quarter of
a turn clockwise.
A d j u s t m e n t d i a l
This dial is located on the dashboard or
in the upper glove box.
It allows you to adjust the intensity of
diffusion of the fragrance.
Turn the dial to the right to permit
diffusion of the fragrance.
Turn the dial to the left to stop diffu-
sion of the fragrance. F r a g r a n c e c a r t r i d g e
This cartridge can be removed easily.
You can change it at any time and store
it in the sealed case which keeps it
closed once it has been opened.
You can obtain different fragrance
cartridges from CITROËN dealers.
R e m o v i n g t h e c a r t r i d g e
Press the dial and turn it a quarter of
a turn anti-clockwise.
Remove the cartridge.
R e fi t i t s s e a l i n g c a s e .
Do not discard the original cartridge
as this serves as a plug when no
fragrance cartridge is in use.
In order to preserve the service
life of the cartridge, turn the dial to
the left when you no longer wish to
diffuse the fragrance in the passen-
ger compartment.
Page 116 of 200
114
CHECKS
PETROL ENGINES
1. Screenwash reservoir.
2. Coolant header tank.
3. A i r fi l t e r * .
4. B r a k e fl u i d r e s e r v o i r .
5. Battery.
6. Fusebox.
7. Engine oil dipstick.
8. E n g i n e o i l fi l l e r c a p .
* A c c o r d i n g t o e n g i n e .
Page 117 of 200
10
115
CHECKS
DIESEL ENGINES
1. Screenwash reservoir.
2. Coolant header tank.
3. A i r fi l t e r * .
4. B r a k e fl u i d r e s e r v o i r .
5. Battery.
6. Fusebox.
7. Engine oil dipstick.
8. E n g i n e o i l fi l l e r c a p .
9. P r i m i n g p u m p * .
* A c c o r d i n g t o e n g i n e .

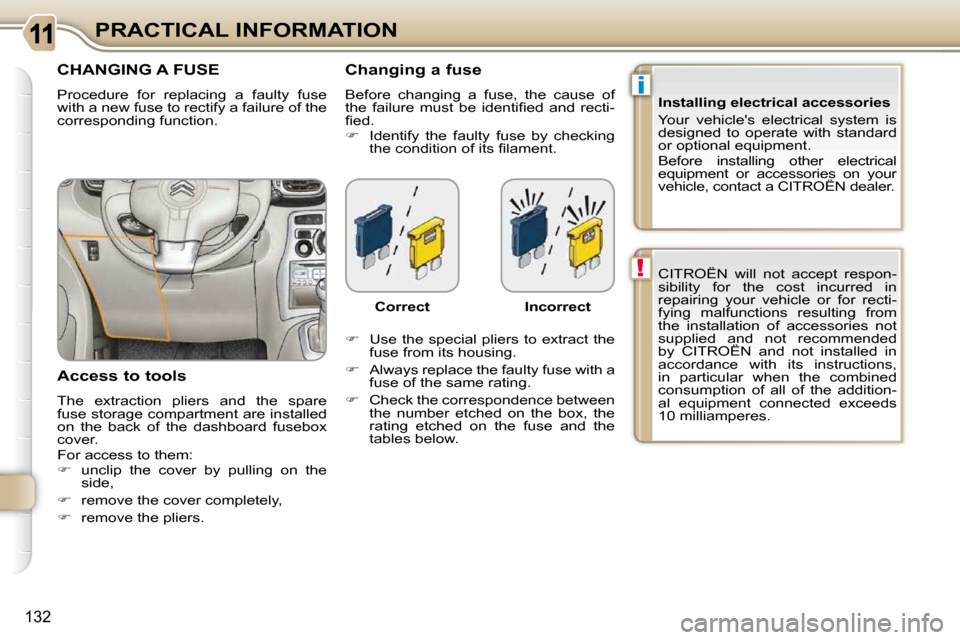

Page 135 of 200
i
!
132
PRACTICAL INFORMATION CITROËN will not accept respon-
sibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by CITROËN and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
a l e q u i p m e n t c o n n e c t e d e x c e e d s
10 milliamperes.
Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
o r o p t i o n a l e q u i p m e n t .
Before installing other electrical
e q u i p m e n t o r a c c e s s o r i e s o n y o u r
vehicle, contact a CITROËN dealer.
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to tools
T h e e x t r a c t i o n p l i e r s a n d t h e s p a r e
fuse storage compartment are installed
o n t h e b a c k o f t h e d a s h b o a r d f u s e b o x
cover.
F o r a c c e s s t o t h e m :
unclip the cover by pulling on the
side,
remove the cover completely,
remove the pliers. Changing a fuse
Before changing a fuse, the cause of
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
Identify the faulty fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its housing.
Always replace the faulty fuse with a
fuse of the same rating.
Check the correspondence between
t h e n u m b e r e t c h e d o n t h e b o x , t h e
rating etched on the fuse and the
tables below.
Correct Incorrect
Page 136 of 200
133
PRACTICAL INFORMATION
Dashboard fuses
T h e f u s e b o x i s p l a c e d i n t h e l o w e r s e c -
t i o n o f t h e d a s h b o a r d ( l e f t - h a n d s i d e ) .
Access to fuses
refer to the paragraph "Access to
tools". Fuse tables
Fuse N° Rating Functions
FH36 5 A Trailer relay unit.
FH37 15 A Trailer accessories socket supply.
FH38 20 A Aftermarket navigation.
FH39 20 A Heated seats.
FH40 30 A Trailer relay unit.
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Airbags and pretensioners control unit.
F4 10 A Steering wheel angle sensor, air conditioning,
c l u t c h s w i t c h , p a r t i c l e fi l t e r p u m p , d i a g n o s t i c
s o c k e t , a i r fl o w m e t e r .
F5 30 A Electric window switch panel, passenger's electric
window control, front electric window motor.
F6 30 A Rear electric window motor and driver's electric
window motor.
F7 5 A C o u r t e s y a n d f r o n t m a p r e a d i n g l a m p s , g l o v e b o x
lighting, torch, rear reading lamps.
Page 137 of 200
134
PRACTICAL INFORMATION
Fuse N° Rating Functions
F8 20 A Multifunction screen, audio system, navigation
radio.
F9 30 A A u d i o s y s t e m ( a f t e r m a r k e t ) , 1 2 V s o c k e t .
F10 15 A Steering wheel controls.
F11 15 A Ignition, diagnostic socket.
F12 15 A Rain/sunlight sensor, trailer relay unit.
F13 5 A Main stop switch, engine relay unit.
F14 15 A Parking assistance control unit, seat belt
unfastened warning lamp, airbag control unit,
i n s t r u m e n t p a n e l , a i r c o n d i t i o n i n g , U S B B o x .
F15 30 A Locking.
F16 - Not used.
F17 40 A R e a r s c r e e n a n d e x t e r i o r m i r r o r s d e m i s t / d e f r o s t .
SH - PARC shunt.
Page 138 of 200
135
PRACTICAL INFORMATION
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment near the battery (left-hand
s i d e ) .
Access to fuses
Unclip the cover.
Change the fuse (see corresponding
p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure the sealing
o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, cooling fan unit control,
multifunction engine control main relay.
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Daytime running lamps.
F5 15 A D i e s e l h e a t e r ( D i e s e l e n g i n e ) , f u e l p u m p
( p e t r o l e n g i n e ) .
F6 10 A ABS/ESP control unit, ABS/ESP cut-off relay,
secondary stop switch.
F7 10 A Electric power steering.
F8 25 A Starter motor control.
F9 10 A S w i t c h i n g a n d p r o t e c t i o n u n i t ( D i e s e l ) .
F10 30 A Diesel engine injection pump valve, injectors and
i g n i t i o n c o i l s ( p e t r o l e n g i n e ) .
F11 40 A Air conditioning blower.
Page 139 of 200
136
PRACTICAL INFORMATION
Fuse N° Rating Functions
F12 30 A Windscreen wipers slow/fast speed.
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 30 A V a l v e t r o n i c s u p p l y ( p e t r o l ) .
F15 10 A Right-hand main beam headlamp.
F16 10 A Left-hand main beam headlamp.
F17 15 A Left-hand dipped beam headlamp.
F18 15 A Right-hand dipped beam headlamp.
F19 15 A Multifunction engine management supply
( p e t r o l e n g i n e ) , a i r c o o l i n g e l e c t r o v a l v e s ( D i e s e l ) .
F20 10 A Multifunction engine management supply (petrol
e n g i n e ) , T u r b o p r e s s u r e r e g u l a t i o n e l e c t r o v a l v e
( D i e s e l ) , e n g i n e c o o l a n t l e v e l s e n s o r ( D i e s e l ) .
F21 5 A Fan assembly control supply, APC, ABS ESP
relays.
Page 140 of 200
137
PRACTICAL INFORMATION
Table of maxi-fuses
Fuse N° Rating
Functions
MF1 * 60 A Fan assembly.
MF2 * 30 A ABS/ESP control unit.
MF3 * 30 A ABS/ESP control unit.
MF4 * 60 A B u i l t - i n S y s t e m s I n t e r f a c e ( B S I ) s u p p l y .
MF5 * 60 A B u i l t - i n S y s t e m s I n t e r f a c e ( B S I ) s u p p l y .
MF6 * - Not used.
MF7 * - P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF8 * - Not used.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s . A l l w o r k o n t h e m a x i - f u s e s m u s t b e c a r r i e d o u t b y a
CITROËN dealer.
