Citroen C3 PICASSO DAG 2010.5 1.G Owners Manual
Manufacturer: CITROEN, Model Year: 2010.5, Model line: C3 PICASSO DAG, Model: Citroen C3 PICASSO DAG 2010.5 1.GPages: 224, PDF Size: 11.08 MB
Page 91 of 224
!
81
FITTINGS
Lift the catch to release the table and
unfold it.
Aircraft style tables
Reading lamps are built into the back of
the front seats, behind the tables. With
the ignition on, they light up the top of
the table without inconveniencing other
passengers.
They are only accessible if the table is
unfolded.
Press the button to switch the lamp
on or off.
Individual reading lamps
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event
of sharp braking or impact.
As a safety precaution, if too much
pressure is exerted the table will
fold downwards. Side blinds
Blinds are available for the side
windows.
Pull the side blind longways by the tab
to use it.
Always guide the blind slowly using the
tab.
Page 92 of 224
82

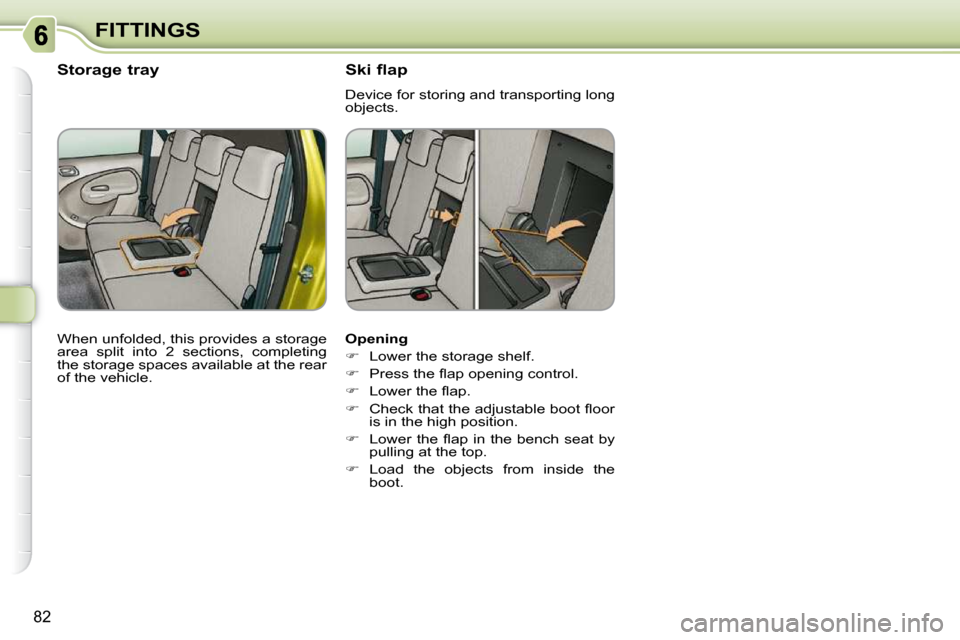

FITTINGS Opening
Lower the storage shelf.
P r e s s t h e fl a p o p e n i n g c o n t r o l .
L o w e r t h e fl a p .
C h e c k t h a t t h e a d j u s t a b l e b o o t fl o o r
is in the high position.
L o w e r t h e fl a p i n t h e b e n c h s e a t b y
pulling at the top.
Load the objects from inside the
boot.
Ski flap
Device for storing and transporting long
objects.
When unfolded, this provides a storage
area split into 2 sections, completing
the storage spaces available at the rear
of the vehicle.
Storage tray
Page 93 of 224
!
81
FITTINGS
Lift the catch to release the table and
unfold it.
Aircraft style tables
Reading lamps are built into the back of
the front seats, behind the tables. With
the ignition on, they light up the top of
the table without inconveniencing other
passengers.
They are only accessible if the table is
unfolded.
Press the button to switch the lamp
on or off.
Individual reading lamps
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event
of sharp braking or impact.
As a safety precaution, if too much
pressure is exerted the table will
fold downwards. Side blinds
Blinds are available for the side
windows.
Pull the side blind longways by the tab
to use it.
Always guide the blind slowly using the
tab.
Page 94 of 224
82
FITTINGS Opening
Lower the storage shelf.
P r e s s t h e fl a p o p e n i n g c o n t r o l .
L o w e r t h e fl a p .
C h e c k t h a t t h e a d j u s t a b l e b o o t fl o o r
is in the high position.
L o w e r t h e fl a p i n t h e b e n c h s e a t b y
pulling at the top.
Load the objects from inside the
boot.
Ski flap
Device for storing and transporting long
objects.
When unfolded, this provides a storage
area split into 2 sections, completing
the storage spaces available at the rear
of the vehicle.
Storage tray
Page 95 of 224
83
FITTINGS

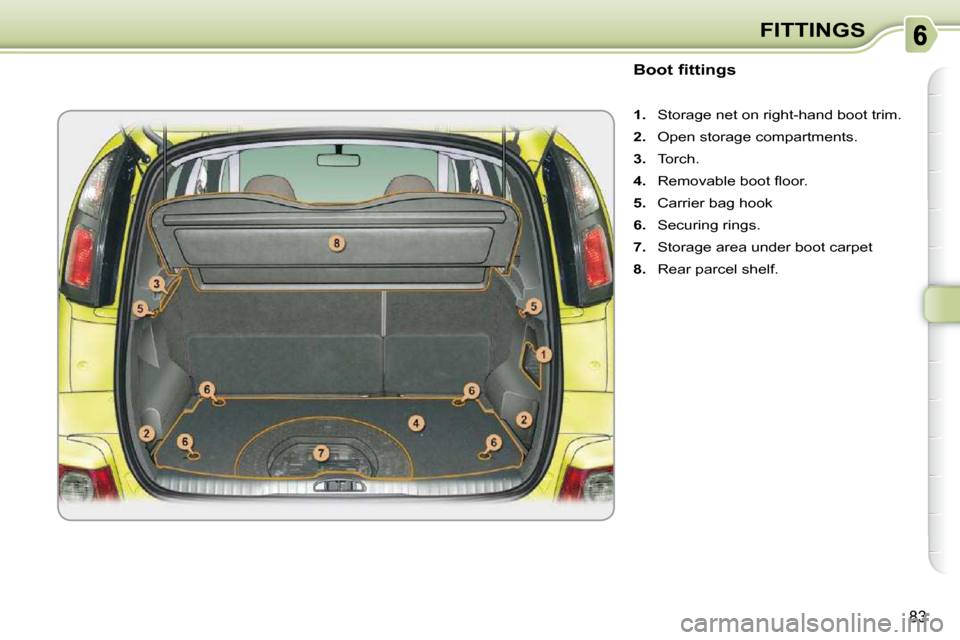

Boot fittings
1. Storage net on right-hand boot trim.
2. Open storage compartments.
3. Torch.
4. R e m o v a b l e b o o t fl o o r .
5. Carrier bag hook
6. Securing rings.
7. Storage area under boot carpet
8. Rear parcel shelf.
Page 96 of 224
i
84
FITTINGS
2-position adjustable boot
T h e t w o - p o s i t i o n a d j u s t a b l e b o o t fl o o r
allows you to:
- maximise the volume of the boot,
- partition the boot (stowing the rear shelf...),
- o b t a i n a fl a t fl o o r f r o m t h e b o o t o p e n - ing to the front seats, when the rear
bench seat is in the folded and fully
back position. P l a c i n g t h e a d j u s t a b l e b o o t fl o o r i n
the low position
L i f t t h e a d j u s t a b l e b o o t fl o o r b y p u l l -
ing on the strap.
M o v e t h e a d j u s t a b l e b o o t fl o o r r e a r -
wards and then down, following the
guides on the sides. P l a c i n g t h e a d j u s t a b l e b o o t fl o o r i n
the high position
L i f t t h e a d j u s t a b l e b o o t fl o o r b y p u l l -
ing the strap.
M o v e t h e a d j u s t a b l e b o o t fl o o r r e a r -
wards then up to its high position.
In the high position, the adjustable boot
fl o o r a l l o w s s t o w i n g o f t h e r e a r p a r c e l
shelf and fragile objects.
T h e a d j u s t a b l e b o o t fl o o r i s fi t t e d w i t h
four stowing rings to secure your loads
using the net available as an accessory.
Ensure that your boot is empty be-
fore handling the adjustable boot
fl o o r .
Page 97 of 224
85
FITTINGS

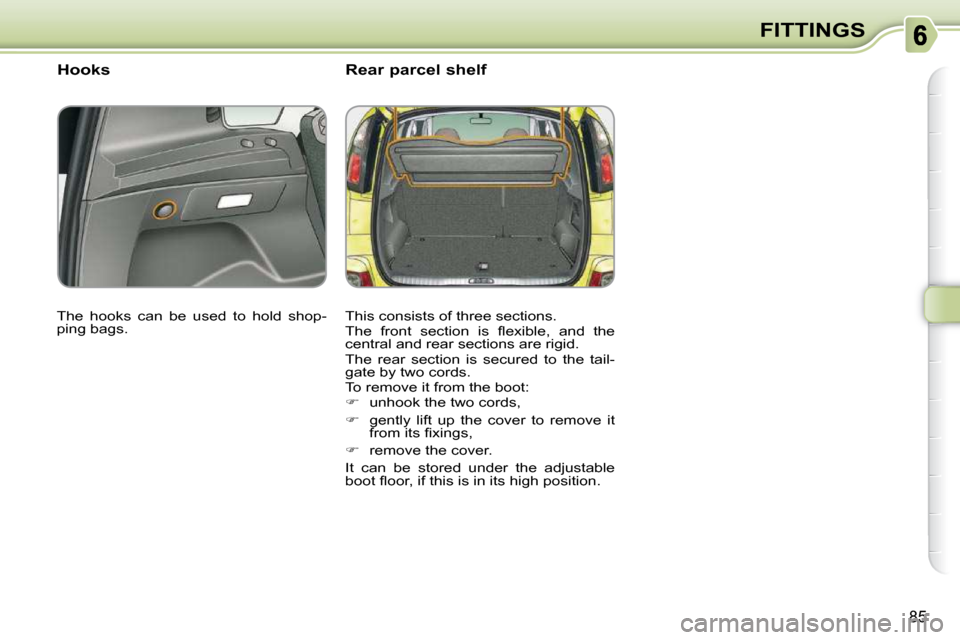

Hooks Rear parcel shelf
This consists of three sections.
T h e f r o n t s e c t i o n i s fl e x i b l e , a n d t h e
central and rear sections are rigid.
The rear section is secured to the tail-
gate by two cords.
To remove it from the boot:
unhook the two cords,
gently lift up the cover to remove it
f r o m i t s fi x i n g s ,
remove the cover.
It can be stored under the adjustable
b o o t fl o o r , i f t h i s i s i n i t s h i g h p o s i t i o n .
The hooks can be used to hold shop-
ping bags.
Page 98 of 224
i
86

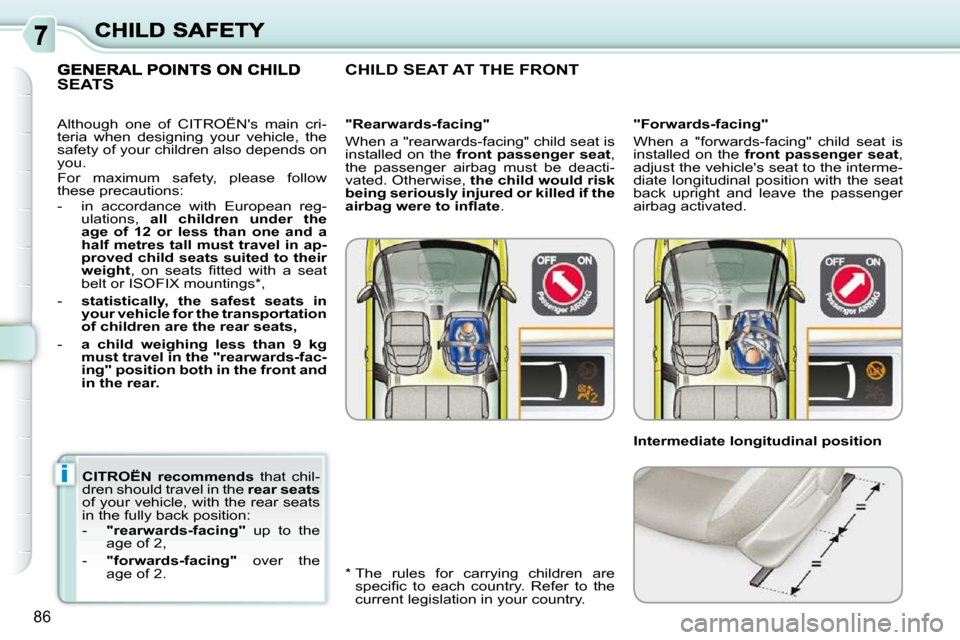

CITROËN recommends that chil-
dren should travel in the rear seats
of your vehicle, with the rear seats
in the fully back position:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the
age of 2.
SEATS
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
the passenger airbag must be deacti-
vated. Otherwise, the child would risk
being seriously injured or killed if the
a i r b a g w e r e t o i n fl a t e .
* The rules for carrying children are s p e c i fi c t o e a c h c o u n t r y . R e f e r t o t h e
current legislation in your country.
A l t h o u g h o n e o f C I T R O Ë N ' s m a i n c r i -
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please follow
these precautions:
- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight , o n s e a t s fi t t e d w i t h a s e a t
belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transportation
of children are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-fac-
ing" position both in the front and
in the rear.
CHILD SEAT AT THE FRONT
Intermediate longitudinal position
Page 99 of 224
87

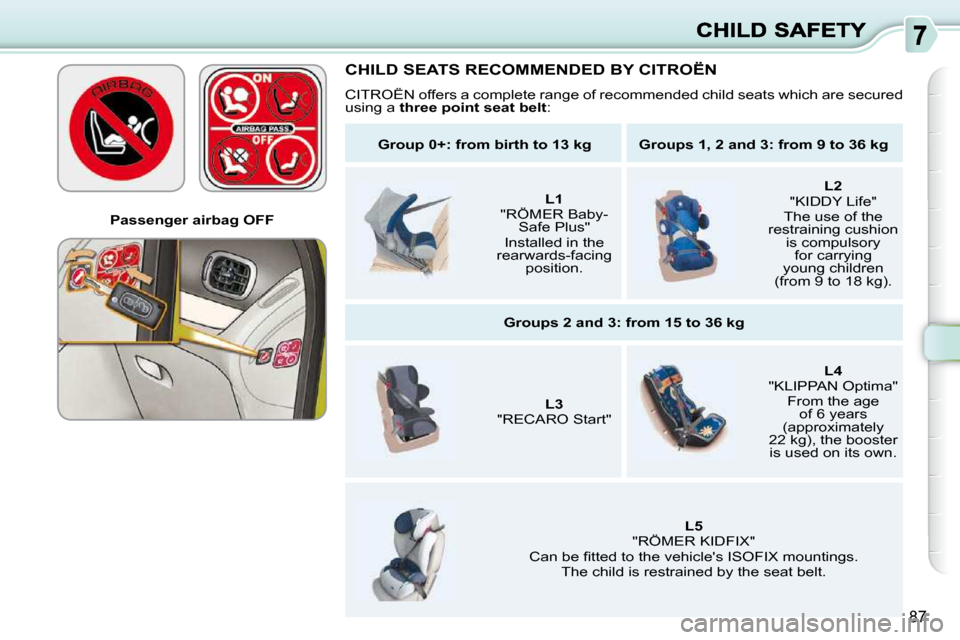

Group 0+: from birth to 13 kg Groups 1, 2 and 3: from 9 to 36 kg
L1
" R Ö M E R B a b y - Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for carrying
young children
(from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' '
L4
" K L I P P A N O p t i m a " From the age of 6 years
(approximately
22 kg), the booster is used on its own.
L5
" R Ö M E R K I D F I X "
C a n b e fi t t e d t o t h e v e h i c l e ' s I S O F I X m o u n t i n g s .
The child is restrained by the seat belt.
Passenger airbag OFF
CHILD SEATS RECOMMENDED BY CITROËN
C I T R O Ë N o f f e r s a c o m p l e t e r a n g e o f r e c o m m e n d e d c h i l d s e a t s w h i c h
a r e s e c u r e d
using a three point seat belt :
Page 100 of 224
87
Group 0+: from birth to 13 kg Groups 1, 2 and 3: from 9 to 36 kg
L1
" R Ö M E R B a b y - Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for carrying
young children
(from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' '
L4
" K L I P P A N O p t i m a " From the age of 6 years
(approximately
22 kg), the booster is used on its own.
L5
" R Ö M E R K I D F I X "
C a n b e fi t t e d t o t h e v e h i c l e ' s I S O F I X m o u n t i n g s .
The child is restrained by the seat belt.
Passenger airbag OFF
CHILD SEATS RECOMMENDED BY CITROËN
C I T R O Ë N o f f e r s a c o m p l e t e r a n g e o f r e c o m m e n d e d c h i l d s e a t s w h i c h
a r e s e c u r e d
using a three point seat belt :
