Citroen C3 PICASSO DAG 2010.5 1.G Manual PDF
Manufacturer: CITROEN, Model Year: 2010.5, Model line: C3 PICASSO DAG, Model: Citroen C3 PICASSO DAG 2010.5 1.GPages: 224, PDF Size: 11.08 MB
Page 71 of 224
i
66
ACCESS
Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
CITROËN dealer.
The use of any other type of (bio) fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
MISFUEL PREVENTION
Operation
It is still possible to use a fuel can
t o fi l l t h e r e s e r v o i r .
I n o r d e r t o e n s u r e a g o o d fl o w o f
fuel, do not place the nozzle of
the fuel can in direct contact with
t h e fl a p o f t h e m i s f u e l p r e v e n t i o n
device.
This equipment will become avail-
able during the year.
M e c h a n i c a l d e v i c e w h i c h p r e v e n t s fi l l -
ing the tank of a Diesel vehicle with
petrol. It avoids the risk of engine dam-
a g e t h a t c a n r e s u l t f r o m fi l l i n g w i t h t h e
wrong fuel.
L o c a t e d i n t h e fi l l e r n e c k , t h e m i s f u e l
prevention device appears when the
fi l l e r c a p i s r e m o v e d .
W h e n a p e t r o l fi l l e r n o z z l e i s i n t r o d u c e d i n t o
t h e f u e l fi l l e r n e c k o f y o u r D i e s e l v e h i c l e , i t
c o m e s i n t o c o n t a c t w i t h t h e fl a p . T h e s y s -
t e m r e m a i n s c l o s e d a n d p r e v e n t s fi l l i n g .
Do not persist but introduce a Diesel
t y p e fi l l e r n o z z l e .
Page 72 of 224
67
VISIBILITY
LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driver's
visibility progressively according to cli-
matic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.
Additional lighting
O t h e r l a m p s a r e i n s t a l l e d t o f u l fi l t h e
requirements of particular conditions of
visibility:
- a rear foglamp to be seen from afar,
- front foglamps for even better for- ward vision.
Programming
Various automatic lighting control
modes are also available according to
the following options:
- guide-me-home lighting,
- automatic illumination of headlamps. Model without AUTO lighting
Model with AUTO lighting
Automatic illumination of
headlamps.
Manual controls
The lighting commands are issued direct-
ly by the driver by means of the ring
A
and the stalk B .
A. Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Lamps off.
Sidelamps only.
B. Stalk for switching headlamps: pull
to switch the lighting between dipped
headlamps/main beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl a s h " ) b y m a i n t a i n i n g a p u l l o n t h e
stalk. Dipped headlamps or main
beam headlamps.
Displays
Lighting of the corresponding indicator
l a m p o n t h e i n s t r u m e n t p a n e l c o n fi r m s
the switching on of the lighting selected.

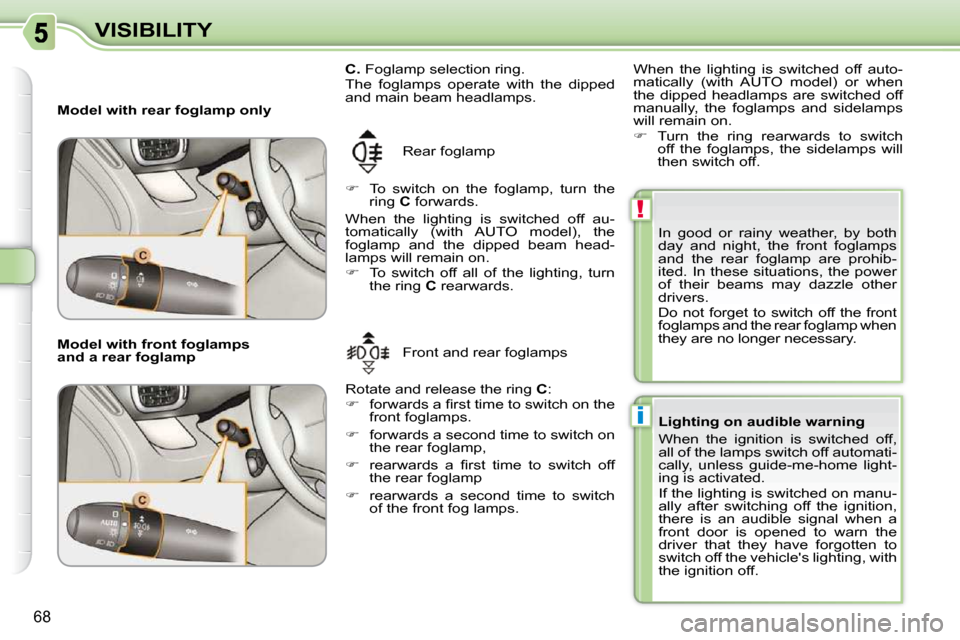

Page 73 of 224
!
i
68
VISIBILITY
Model with rear foglamp only Rear foglamp
To switch on the foglamp, turn the
ring C forwards.
When the lighting is switched off au-
t o m a t i c a l l y ( w i t h A U T O m o d e l ) , t h e
foglamp and the dipped beam head-
lamps will remain on.
To switch off all of the lighting, turn
the ring C rearwards. In good or rainy weather, by both
day and night, the front foglamps
and the rear foglamp are prohib-
ited. In these situations, the power
of their beams may dazzle other
drivers.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.
Lighting on audible warning
When the ignition is switched off,
all of the lamps switch off automati-
cally, unless guide-me-home light-
ing is activated.
If the lighting is switched on manu-
ally after switching off the ignition,
there is an audible signal when a
front door is opened to warn the
driver that they have forgotten to
switch off the vehicle's lighting, with
the ignition off.
Model with front foglamps
and a rear foglamp
Front and rear foglamps
Rotate and release the ring C :
f o r w a r d s a fi r s t t i m e t o s w i t c h o n t h e
front foglamps.
forwards a second time to switch on
the rear foglamp,
r e a r w a r d s a fi r s t t i m e t o s w i t c h o f f
the rear foglamp
rearwards a second time to switch
of the front fog lamps.
C. Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps. When the lighting is switched off auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) o r w h e n
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.

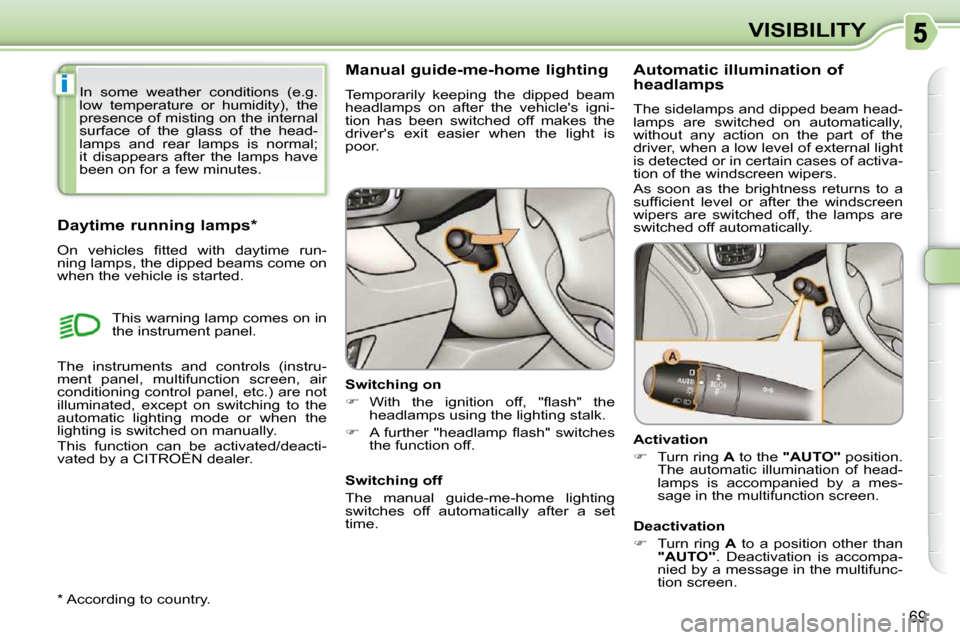

Page 74 of 224
i
69
VISIBILITY
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
Daytime running lamps *
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lamps, the dipped beams come on
when the vehicle is started.
* According to country.
This warning lamp comes on in
the instrument panel.
Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the multifunction screen.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompa-
nied by a message in the multifunc-
tion screen.
The instruments and controls (instru-
ment panel, multifunction screen, air
c o n d i t i o n i n g c o n t r o l p a n e l , e t c . ) a r e n o t
illuminated, except on switching to the
automatic lighting mode or when the
lighting is switched on manually.
This function can be activated/deacti-
vated by a CITROËN dealer. In some weather conditions (e.g.
l o w t e m p e r a t u r e o r h u m i d i t y ) , t h e
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes.
Page 75 of 224
!
i
70
VISIBILITY In fog or snow, the sunshine sen-
s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the sunshine sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Linked with the Guide-me-home
lighting
Association with the automatic illumina-
tion of headlamps provides the guide-
me-home lighting with the following
additional options:
- automatic activation of guide-me-home
lighting when automatic illumination of
headlamps is switched on (in the ve-
hicle parameters of the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ) ,
- selection of the duration of main- taining of the lighting for 15, 30 or
60 seconds in the vehicle param-
eters of the multifunction screen
c o n fi g u r a t i o n m e n u ( e x c e p t f o r
monochrome screen A where this
i s p r e s e t ) .
Operating fault In the event of a malfunction
of the sunshine sensor, the
lamps come on, this warn-
ing lamp is displayed in the
instrument panel and/or a message ap-
pears in the multifunction screen, ac-
companied by an audible signal.
Consult a CITROËN dealer.
HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing the load in the vehicle.
0. 1 or 2 people in the front seats.
-. Less than 5 people.
1. 5 people.
-. 5 people + maximum authorised load.
2 - 3. Driver + maximum authorised load.
Page 76 of 224
i
69
VISIBILITY
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
Daytime running lamps *
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lamps, the dipped beams come on
when the vehicle is started.
* According to country.
This warning lamp comes on in
the instrument panel.
Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the multifunction screen.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompa-
nied by a message in the multifunc-
tion screen.
The instruments and controls (instru-
ment panel, multifunction screen, air
c o n d i t i o n i n g c o n t r o l p a n e l , e t c . ) a r e n o t
illuminated, except on switching to the
automatic lighting mode or when the
lighting is switched on manually.
This function can be activated/deacti-
vated by a CITROËN dealer. In some weather conditions (e.g.
l o w t e m p e r a t u r e o r h u m i d i t y ) , t h e
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes.
Page 77 of 224
!
i
70
VISIBILITY In fog or snow, the sunshine sen-
s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the sunshine sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Linked with the Guide-me-home
lighting
Association with the automatic illumina-
tion of headlamps provides the guide-
me-home lighting with the following
additional options:
- automatic activation of guide-me-home
lighting when automatic illumination of
headlamps is switched on (in the ve-
hicle parameters of the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ) ,
- selection of the duration of main- taining of the lighting for 15, 30 or
60 seconds in the vehicle param-
eters of the multifunction screen
c o n fi g u r a t i o n m e n u ( e x c e p t f o r
monochrome screen A where this
i s p r e s e t ) .
Operating fault In the event of a malfunction
of the sunshine sensor, the
lamps come on, this warn-
ing lamp is displayed in the
instrument panel and/or a message ap-
pears in the multifunction screen, ac-
companied by an audible signal.
Consult a CITROËN dealer.
HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing the load in the vehicle.
0. 1 or 2 people in the front seats.
-. Less than 5 people.
1. 5 people.
-. 5 people + maximum authorised load.
2 - 3. Driver + maximum authorised load.
Page 78 of 224
!
i
70
VISIBILITY In fog or snow, the sunshine sen-
s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the sunshine sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Linked with the Guide-me-home
lighting
Association with the automatic illumina-
tion of headlamps provides the guide-
me-home lighting with the following
additional options:
- automatic activation of guide-me-home
lighting when automatic illumination of
headlamps is switched on (in the ve-
hicle parameters of the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ) ,
- selection of the duration of main- taining of the lighting for 15, 30 or
60 seconds in the vehicle param-
eters of the multifunction screen
c o n fi g u r a t i o n m e n u ( e x c e p t f o r
monochrome screen A where this
i s p r e s e t ) .
Operating fault In the event of a malfunction
of the sunshine sensor, the
lamps come on, this warn-
ing lamp is displayed in the
instrument panel and/or a message ap-
pears in the multifunction screen, ac-
companied by an audible signal.
Consult a CITROËN dealer.
HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing the load in the vehicle.
0. 1 or 2 people in the front seats.
-. Less than 5 people.
1. 5 people.
-. 5 people + maximum authorised load.
2 - 3. Driver + maximum authorised load.
Page 79 of 224
71
VISIBILITY

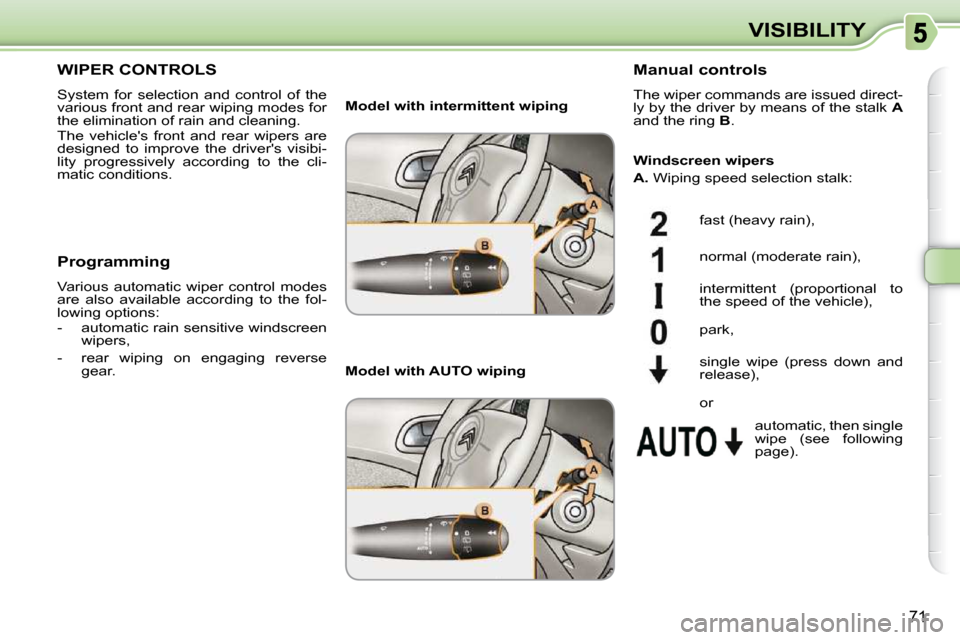

WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibi-
lity progressively according to the cli-
matic conditions. Manual controls
The wiper commands are issued direct-
ly by the driver by means of the stalk
A
and the ring B .
Model with intermittent wiping
Model with AUTO wiping f a s t ( h e a v y r a i n ) ,
n o r m a l ( m o d e r a t e r a i n ) ,
intermittent (proportional to
t h e s p e e d o f t h e v e h i c l e ) ,
automatic, then single
wipe (see following
p a g e ) .
park,
single wipe (press down and
r e l e a s e ) ,
Programming
Various automatic wiper control modes
are also available according to the fol-
lowing options:
- automatic rain sensitive windscreen
wipers,
- rear wiping on engaging reverse gear. Windscreen wipers
A. Wiping speed selection stalk:
or
Page 80 of 224
!
72
VISIBILITY Windscreen wash
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen
w i p e r s , o p e r a t e f o r a s p e c i fi e d t i m e .
B. Rear wiper selection ring:
park,
intermittent wipe,
w a s h - w i p e ( s e t d u r a t i o n ) .
Reverse gear
When reverse gear is engaged, the
rear wiper will operate if the windscreen
wipers are operating.
Programming
The function is activated or deactivated
v i a t h e m u l t i f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
This function is activated by default.
Rear wiper
I f a s i g n i fi c a n t a c c u m u l a t i o n o f s n o w
or ice is present, or when using a
tailgate bicycle carrier, deactivate
the automatic rear wiper via the
m u l t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu. Wiping zone
The curved shape of the rear screen
results in a smaller wiping zone.
