Dashboard fuses
T h e f u s e b o x i s p l a c e d i n t h e l o w e r s e c -
tion of the dashboard (left-hand side).
Access to fuses
refer to the paragraph "Access to
tools". Fuse tables
Fuse N° Rating Functions
FH36 5 A Trailer relay unit.
FH37 15 A Trailer accessories socket supply.
FH38 20 A Aftermarket navigation.
FH39 20 A Heated seats.
FH40 30 A Trailer relay unit.
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Airbags and pretensioners control unit.
F4 10 A Steering wheel angle sensor, air conditioning,
c l u t c h s w i t c h , p a r t i c l e fi l t e r p u m p , d i a g n o s t i c
s o c k e t , a i r fl o w m e t e r .
F5 30 A E l e c t r i c w i n d o w s w i t c h p a n e l , p a s s e n g e r ' s e l e c t r i c
window control, front electric window motor.
F6 30 A R e a r e l e c t r i c w i n d o w m o t o r a n d d r i v e r ' s e l e c t r i c
window motor.
F7 5 A C o u r t e s y a n d f r o n t m a p r e a d i n g l a m p s , g l o v e b o x
lighting, torch, rear reading lamps.
Page 152 of 224
1 3 7
PRACTICAL INFORMATION
Fuse N° Rating Functions
F8 20 A Multifunction screen, audio system, navigation
radio.
F9 30 A Audio system (aftermarket), 12 V socket.
F10 15 A Steering wheel controls.
F11 15 A Ignition, diagnostic socket.
F12 15 A Rain/sunshine sensor, trailer relay unit.
F13 5 A Main stop switch, engine relay unit.
F14 15 A Parking assistance control unit, seat belt
unfastened warning lamp, airbag control unit,
i n s t r u m e n t p a n e l , a i r c o n d i t i o n i n g , U S B B o x .
F15 30 A Locking.
F16 - Not used.
F17 40 A Rear screen and door mirrors demist/defrost.
SH - PARC shunt.
Page 153 of 224
138
PRACTICAL INFORMATION
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment near the battery (left-hand
side).
Access to fuses
Unclip the cover.
Change the fuse (see corresponding
paragraph).
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure the correct
s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, cooling fan unit control,
multifunction engine control main relay.
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Daytime running lamps.
F5 15 A Diesel heater (Diesel engine), fuel pump
(petrol engine).
F6 10 A ABS/ESP control unit, ABS/ESP cut-off relay,
secondary stop switch.
F7 10 A Electric power steering.
F8 25 A Starter motor control.
F9 10 A Switching and protection unit (Diesel).
F10 30 A Diesel engine injection pump valve, injectors and
ignition coils (petrol engine).
F11 40 A Air conditioning fan.
Page 154 of 224
139
PRACTICAL INFORMATION
Fuse N° Rating Functions
F12 30 A Windscreen wipers slow/fast speed.
F13 40 A Built-in systems interface supply (ignition positive).
F14 30 A Valvetronic supply (petrol).
F15 10 A Right-hand main beam headlamp.
F16 10 A Left-hand main beam headlamp.
F17 15 A Left-hand dipped beam headlamp.
F18 15 A Right-hand dipped beam headlamp.
F19 15 A Multifunction engine management supply
(petrol engine), air cooling electrovalves (Diesel).
F20 10 A Multifunction engine management supply (petrol
engine), Turbo pressure regulation electrovalve
(Diesel), engine coolant level sensor (Diesel).
F21 5 A Fan assembly control supply, APC, ABS ESP
relays.
Page 155 of 224
140
PRACTICAL INFORMATION
Table of maxi-fuses
Fuse N° Rating
Functions
MF1 * 60 A Cooling fan assembly.
MF2 * 30 A ABS/ESP control unit.
MF3 * 30 A ABS/ESP control unit.
MF4 * 60 A Built-in Systems Interface (BSI) supply.
MF5 * 60 A Built-in Systems Interface (BSI) supply.
MF6 * - Not used.
MF7 * - P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF8 * - Not used.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s . A l l w o r k o n t h e m a x i - f u s e s m u s t b e c a r r i e d o u t b y a
CITROËN dealer.
Page 156 of 224
141
PRACTICAL INFORMATION

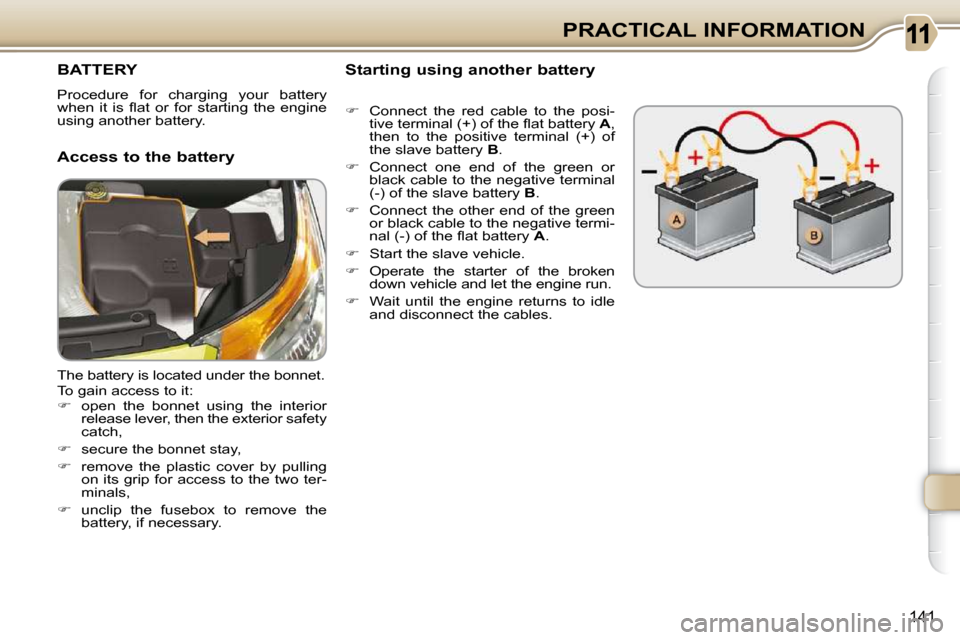

BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Access to the battery Starting using another battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B .
Connect the other end of the green
or black cable to the negative termi-
n a l ( - ) o f t h e fl a t b a t t e r y A .
Start the slave vehicle.
Operate the starter of the broken
down vehicle and let the engine run.
Wait until the engine returns to idle
and disconnect the cables.
The battery is located under the bonnet.
To gain access to it:
open the bonnet using the interior
r e l e a s e l e v e r , t h e n t h e e x t e r i o r s a f e t y
catch,
secure the bonnet stay,
remove the plastic cover by pulling
on its grip for access to the two ter-
minals,
u n c l i p t h e f u s e b o x t o r e m o v e t h e
battery, if necessary.
Page 157 of 224
i
!
142
PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the nega-
tive terminal (-).
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.
LOAD REDUCTION MODE
System which manages the use of
certain functions according to the level
of charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily de-
activates certain functions, such as
the air conditioning, the heated rear
screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if minor problems
persist following this operation,
contact a CITROËN dealer.
Referring to the corresponding
section, you should yourself reini-
tialise:
- the remote control key,
- the GPS satellite navigation
system.
Page 158 of 224
i
!
142
PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the nega-
tive terminal (-).
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.
LOAD REDUCTION MODE
System which manages the use of
certain functions according to the level
of charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily de-
activates certain functions, such as
the air conditioning, the heated rear
screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if minor problems
persist following this operation,
contact a CITROËN dealer.
Referring to the corresponding
section, you should yourself reini-
tialise:
- the remote control key,
- the GPS satellite navigation
system.
Page 159 of 224
i
!
143
PRACTICAL INFORMATION
A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
sponding paragraph).
If the telephone is being used at
the same time on the MyWay audio
navigation system, it will be inter-
rupted after 10 minutes.
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
e q u i p m e n t , w i n d s c r e e n w i p e r s , d i p p e d
beam headlamps, courtesy lamps, etc.
f o r a m a x i m u m c o m b i n e d p e r i o d o f
thirty minutes.
This period may be greatly reduced if
the battery is not fully charged. Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y t h e n e x t t i m e t h e v e h i c l e i s
driven.
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be dou-
ble the period for which the engine is left
running. However, this period will always
b e b e t w e e n fi v e a n d t h i r t y m i n u t e s .
Switching to economy mode
Once this period has elapsed, a mes-
sage appears on the multifunction
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
CHANGING A FRONT OR REAR WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removal
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting
A t t h e f r o n t , c h e c k t h e s i z e o f t h e w i p e r
b l a d e a s t h e s h o r t e r b l a d e i s fi t t e d t o
the passenger side of the vehicle.
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades in the
vertical position.
This position must be used in order to avoid
damaging the wiper blade and the bonnet.
After fitting a front wiper blade
Switch on the ignition.
Operate the wiper stalk again to
park the wiper blades.
Page 160 of 224
i
!
144
PRACTICAL INFORMATION
TOWING THE VEHICLE
Access to the tools Towing your vehicle
On the front bumper, unclip the cover
by pressing at the top left and pull-
ing at the bottom right of the cover.
Screw the towing eye in fully.
Install the towing bar.
S w i t c h o n t h e h a z a r d w a r n i n g l a m p s
on the towed vehicle.
Place the gear lever in neutral.
On the rear bumper, unclip the
cover by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
S w i t c h o n t h e h a z a r d w a r n i n g l a m p s
on the towed vehicle.
Towing another vehicle
The towing eye is installed under the
b o o t fl o o r .
To gain access to it:
open the boot,
r e m o v e t h e a d j u s t a b l e b o o t fl o o r ,
lift up the boot carpet,
remove the towing eye from the tool
holder. When towing with all four wheels
on the ground, always use a towing
bar.
When towing with only two wheels
on the ground, always use profes-
s i o n a l l i f t i n g e q u i p m e n t .
When towing with the engine off,
there is no longer any braking or
steering assistance.
Failure to observe this special con-
dition could result in damage to
certain braking components and
the absence of braking assistance
t h e n e x t t i m e t h e e n g i n e i s s t a r t e d .
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
