Page 52 of 224
i
!i
53
COMFORT
The objects observed are, in real-
ity, closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.

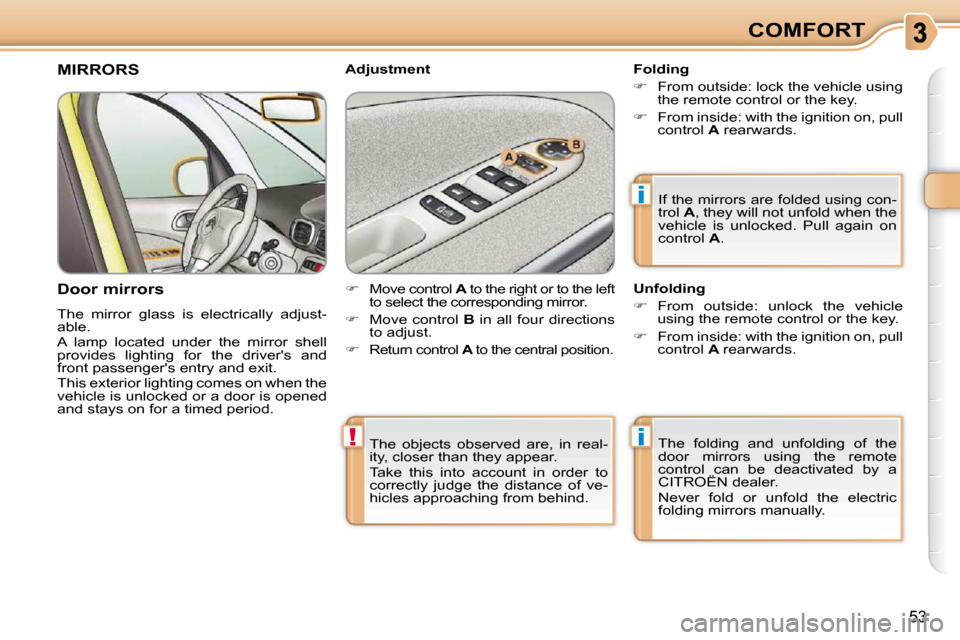

MIRRORS
D o o r m i r r o r s
The mirror glass is electrically adjust-
able.
A lamp located under the mirror shell
provides lighting for the driver's and
front passenger's entry and exit.
This exterior lighting comes on when the
vehicle is unlocked or a door is opened
and stays on for a timed period. Folding
From outside: lock the vehicle using
the remote control or the key.
From inside: with the ignition on, pull
control A rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer.
Never fold or unfold the electric
folding mirrors manually.
A d j u s t m e n t
Unfolding
From outside: unlock the vehicle
using the remote control or the key.
From inside: with the ignition on, pull
control A rearwards.
If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
Move control A to the right or to the left
to select the corresponding mirror.
Move control B in all four directions
to adjust.
Return control A to the central position.
Page 63 of 224
!
i
60
ACCESS

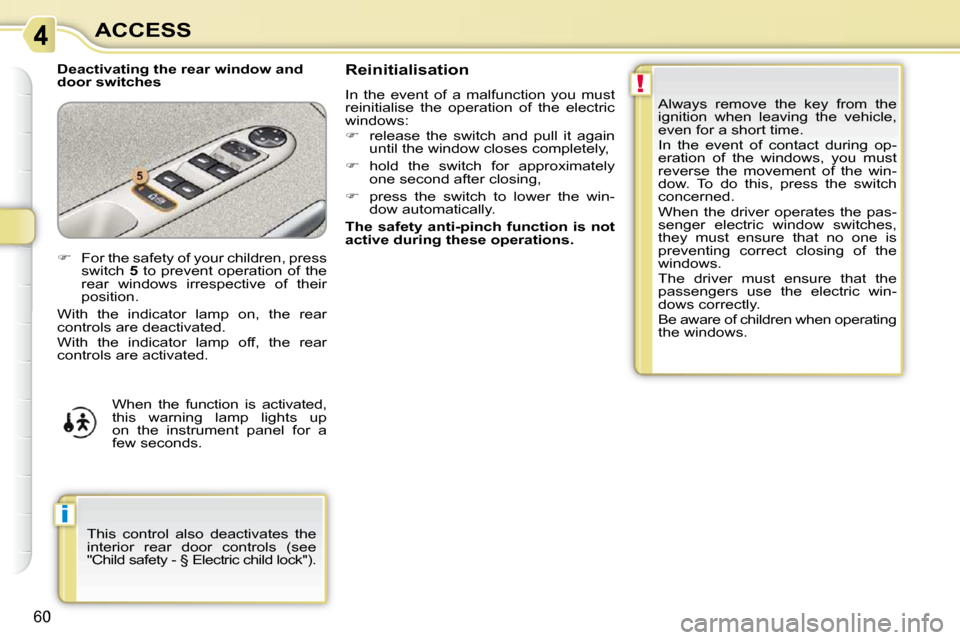

Deactivating the rear window and
door switches Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches,
they must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operating
the windows.
Reinitialisation
In the event of a malfunction you must
reinitialise the operation of the electric
windows:
release the switch and pull it again
until the window closes completely,
hold the switch for approximately
one second after closing,
press the switch to lower the win-
dow automatically.
The safety anti-pinch function is not
active during these operations.
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
With the indicator lamp on, the rear
controls are deactivated.
With the indicator lamp off, the rear
controls are activated.
When the function is activated,
this warning lamp lights up
on the instrument panel for a
few seconds.
This control also deactivates the
interior rear door controls (see
"Child safety - § Electric child lock").
Page 72 of 224
67
VISIBILITY
LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driver's
visibility progressively according to cli-
matic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.
Additional lighting
O t h e r l a m p s a r e i n s t a l l e d t o f u l fi l t h e
requirements of particular conditions of
visibility:
- a rear foglamp to be seen from afar,
- front foglamps for even better for- ward vision.
Programming
Various automatic lighting control
modes are also available according to
the following options:
- guide-me-home lighting,
- automatic illumination of headlamps. Model without AUTO lighting
Model with AUTO lighting
Automatic illumination of
headlamps.
Manual controls
The lighting commands are issued direct-
ly by the driver by means of the ring
A
and the stalk B .
A. Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Lamps off.
Sidelamps only.
B. Stalk for switching headlamps: pull
to switch the lighting between dipped
headlamps/main beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl a s h " ) b y m a i n t a i n i n g a p u l l o n t h e
stalk. Dipped headlamps or main
beam headlamps.
Displays
Lighting of the corresponding indicator
l a m p o n t h e i n s t r u m e n t p a n e l c o n fi r m s
the switching on of the lighting selected.
Page 82 of 224
i
74
VISIBILITY

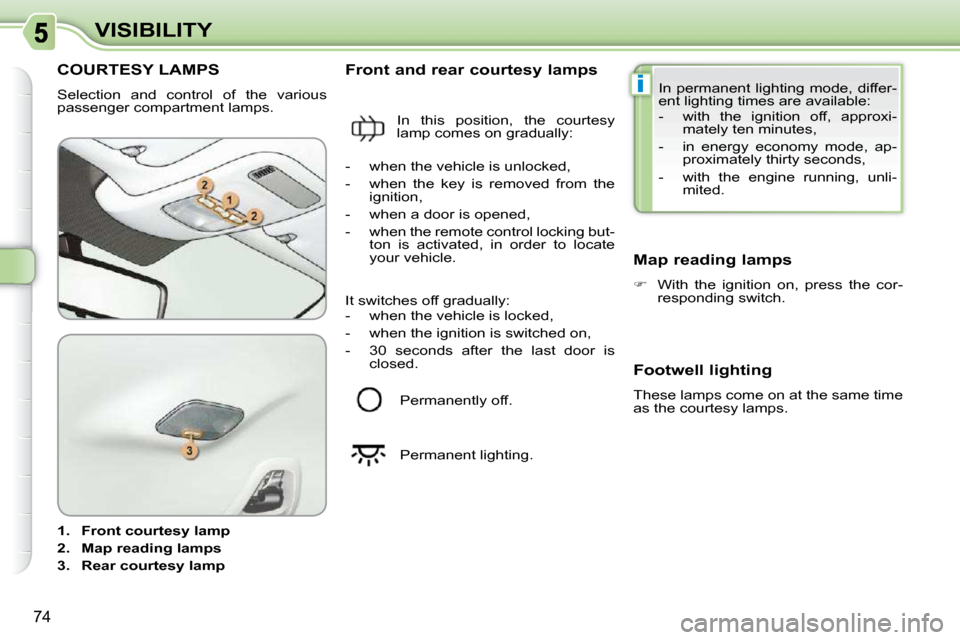

COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy lamp
2. Map reading lamps
3. Rear courtesy lamp Front and rear courtesy lamps
Map reading lamps
With the ignition on, press the cor-
responding switch. In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unli- mited.
In this position, the courtesy
lamp comes on gradually:
Permanently off.
Permanent lighting.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking but- ton is activated, in order to locate
your vehicle.
Footwell lighting
These lamps come on at the same time
as the courtesy lamps.
Page 108 of 224
i
i
94
DIRECTION INDICATORS
If you forget to cancel the direc-
tion indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).
HAZARD WARNING LAMPS
Press this button, the direction indi-
c a t o r s fl a s h .
They can operate with the ignition off.
Automatic operation of hazard warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
T h e y s w i t c h o f f a u t o m a t i c a l l y t h e fi r s t
time you accelerate.
You can also switch them off by
pressing the button.
HORN
Press one of the spokes of the steer-
ing wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
-
overtaking a cyclist or pedestrian,
- when approaching an area where there is no visibility.
Audible warning to alert other road us-
ers to an imminent danger.
"Motorway" function
M o v e t h e s t a l k b r i e fl y u p w a r d s o r d o w n -
wards, without going beyond the point
of resistance; the corresponding direc-
t i o n i n d i c a t o r s w i l l fl a s h 3 t i m e s . A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.
Lower the lighting control stalk fully
when moving to the left.
Raise the lighting control stalk fully
when moving to the right.
Page 110 of 224
!
96
The ESP/ASR systems offer excep-
tional safety in normal driving, but
this should not encourage the driver
to take extra risks or drive at high
speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
CITROËN assembly and operation
procedures.
After an impact, have these systems
checked by a CITROËN dealer.
Deactivation
In exceptional conditions (starting a vehi-
cle which is bogged down, stuck in snow,
on soft ground...), it may be advisable to
deactivate the ASR and ESP systems,
so that the wheels can move freely and
regain grip.
Press the "ESP OFF" button, locat-
ed in the centre of the dashboard. If this warning lamp comes on in the instru-
ment panel and the indicator lamp on the
button comes on, this indicates that the
ASR and ESP systems are deactivated.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
b a c k o n o r f r o m 3 0 m p h ( 5 0 k m / h ) .
Press the "ESP OFF" button again
to reactivate them manually. Operating fault
If this warning lamp comes on, ac-
companied by an audible signal and a
message on the multifunction screen,
this indicates a malfunction of these
systems.
Have the systems checked by a CITROËN dealer.
TRAJECTORY CONTROL SYSTEMS
The anti-skid regulation (also known as
Traction Control) optimises traction to
prevent skidding of the wheels, by act-
ing on the brakes of the driving wheels
and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver, within
the limits of the laws of physics.
Anti-skid regulation (ASR) and electronic stability programme (ESP)
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this warning lamp on the instru-
ment panel.
Activation
These systems are activated automati-
cally each time the vehicle is started.
They come into operation in the event
of a grip or trajectory problem.
Page 112 of 224
98
1. Front and/or rear seat belts not
fastened/unfastened warning lamp.
2. Front left seat belt warning lamp.
3. Front right seat belt warning lamp.
4. Rear right seat belt warning lamp.
5. Rear centre seat belt warning lamp.
6. Rear left seat belt warning lamp.
Seat belt not fastened/unfastened
warning lamp display
Rear seat belts
T h e r e a r s e a t s a r e e a c h fi t t e d w i t h a
three-point inertia reel seat belt with
force limiter (with the exception of the
rear centre seat).
Locking
When the rear side side belts are not being
used, you can lock them in place. To do so:
Raise the grip A to its maximum
height.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Seat belt unfastened warning lamp
display
When the ignition is switched on, the corre-
sponding warning lamps 4 , 5 and 6 come
o n i n r e d f o r a p p r o x i m a t e l y 3 0 s e c o n d s , i f
the seat belt is not fastened.
When the engine is running or the vehicle
is moving, the corresponding warning
lamp 4 , 5 or 6 comes on in red, accompa-
nied by an audible signal and a message
on the multifunction screen, if a rear pas-
senger has unfastened their seat belt.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it rolls up.
The corresponding warning lamp 2 or 3
comes on in red on the seat belt and
passenger's front airbag warning lamp
display if the seat belt is not fastened or
is unfastened. Seat belt unfastened warning lamp
This warning lamp comes on, either
on the instrument panel or on the
seat belt and passenger's front airbag
warning lamp display, when one or
more rear passengers unfasten their seat belt.
From approximately 12 mph (20 km/h),
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n u t e s
accompanied by an audible signal of in-
creasing volume. Once these two minutes
have elapsed, this warning lamp remains
on until the one or more rear passengers
fasten their seat belt.
Page 118 of 224
!
1 0 3
Lateral airbags
System which protects the driver and
front passenger in the event of a seri-
ous side impact in order to limit the risk
of injury to the chest, between the hip
and the shoulder.
E a c h l a t e r a l a i r b a g i s fi t t e d i n t h e s e a t
backrest frame, door side.
Deployment
The lateral airbags are deployed unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of injury to the side of the head.
Each curtain airbag is built into the pil-
lars and the upper passenger compart-
ment area. Operating fault
Deployment
The curtain airbag is deployed at the same
time as the corresponding lateral airbag in
the event of a serious side impact applied
to all or part of the side impact zone
B , per-
pendicular to the longitudinal centreline of
the vehicle on a horizontal plane and di-
rected from the outside towards the inside
of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be deployed.
In the event of a rear or front colli-
sion, the airbag is not deployed.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
If this warning lamp comes on in the
instrument panel, accompanied by
an audible signal and a message
in the multifunction screen, con-
tact a CITROËN dealer to have the system
checked. The airbags may no longer be de-
ployed in the event of a serious impact.
T h e l a t e r a l a i r b a g i n fl a t e s b e t w e e n t h e
hip and shoulder of the front occupant
of the vehicle and the corresponding
door trim panel.
Page 121 of 224
!

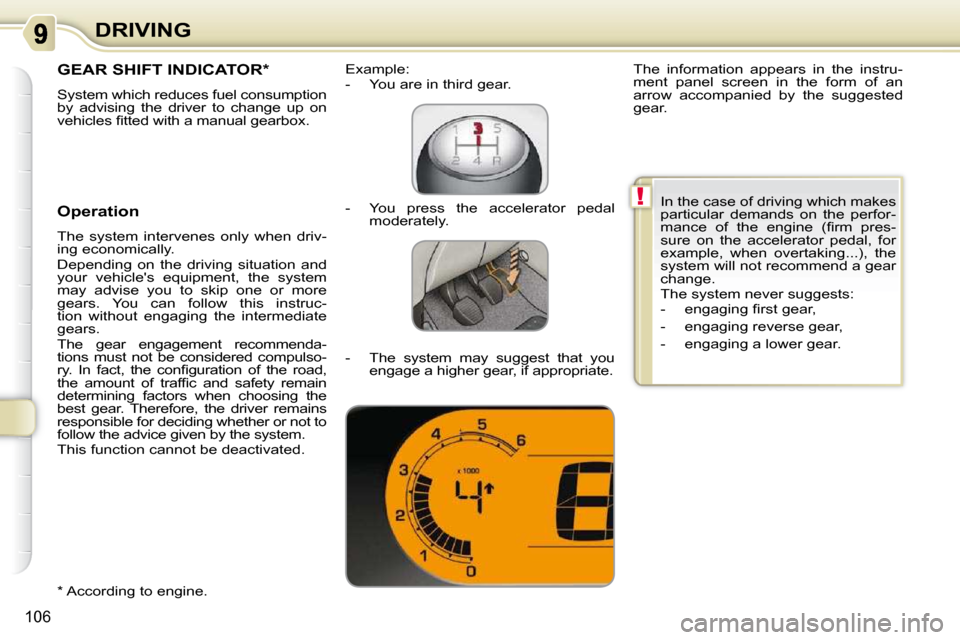

106
DRIVING
GEAR SHIFT INDICATOR *
System which reduces fuel consumption
by advising the driver to change up on
v e h i c l e s fi t t e d w i t h a m a n u a l g e a r b o x .
Operation
The system intervenes only when driv-
ing economically.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruc-
tion without engaging the intermediate
gears.
The gear engagement recommenda-
tions must not be considered compulso-
r y . I n f a c t , t h e c o n fi g u r a t i o n o f t h e r o a d ,
t h e a m o u n t o f t r a f fi c a n d s a f e t y r e m a i n
determining factors when choosing the
best gear. Therefore, the driver remains
responsible for deciding whether or not to
follow the advice given by the system.
This function cannot be deactivated. E x a m p l e :
- You are in third gear.
The information appears in the instru-
ment panel screen in the form of an
arrow accompanied by the suggested
gear.
In the case of driving which makes
particular demands on the perfor-
m a n c e o f t h e e n g i n e ( fi r m p r e s -
sure on the accelerator pedal, for
e x a m p l e , w h e n o v e r t a k i n g . . . ) , t h e
system will not recommend a gear
change.
T h e s y s t e m n e v e r s u g g e s t s :
- e n g a g i n g fi r s t g e a r ,
- engaging reverse gear,
- engaging a lower gear.
* According to engine. - You press the accelerator pedal
moderately.
- The system may suggest that you engage a higher gear, if appropriate.
Page 122 of 224
i
107
DRIVING
SPEED LIMITER
System which prevents the vehicle from
e x c e e d i n g t h e s p e e d p r o g r a m m e d b y
the driver.
When the programmed speed limit is
reached, pressing the accelerator pedal in
the normal manner no longer has any effect.
The controls of this system are grouped
together on stalk A .
1. Speed limiter mode selection thumb
wheel.
2. Value decrease button.
3. Value increase button.
4. Speed limiter on/off button. The programmed information is grouped
together on the instrument panel screen.
5. Speed limiter on/off indication.
6.
Speed limiter mode selection indication.
7. Programmed speed value.
Steering mounted controls Displays on the instrumen
t panel
The speed limiter cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
The speed limiter is
switched on man-
u a l l y : i t r e q u i r e s a p r o g r a m m e d s p e e d
o f a t l e a s t 2 0 m p h ( 3 0 k m / h ) .
The speed limiter is switched off by
manual operation of the control.
T h e p r o g r a m m e d s p e e d c a n b e e x -
ceeded temporarily by pressing the ac-
c e l e r a t o r fi r m l y .
To return to the programmed speed,
simply slow down to a speed below the
programmed speed.
The programmed speed remains in the
memory when the ignition is switched
off.
