84
FITTINGS
2-position adjustable boot
T h e t w o - p o s i t i o n a d j u s t a b l e b o o t fl o o r
allows you to:
- maximise the volume of the boot,
- partition the boot (stowing the rear shelf...),
- o b t a i n a fl a t fl o o r f r o m t h e b o o t o p e n - ing to the front seats, when the rear
bench seat is in the folded and fully
back position. P l a c i n g t h e a d j u s t a b l e b o o t fl o o r i n
the low position
L i f t t h e a d j u s t a b l e b o o t fl o o r b y p u l l -
ing on the strap.
M o v e t h e a d j u s t a b l e b o o t fl o o r r e a r -
wards and then down, following the
guides on the sides. P l a c i n g t h e a d j u s t a b l e b o o t fl o o r i n
the high position
L i f t t h e a d j u s t a b l e b o o t fl o o r b y p u l l -
ing the strap.
M o v e t h e a d j u s t a b l e b o o t fl o o r r e a r -
wards then up to its high position.
In the high position, the adjustable boot
fl o o r a l l o w s s t o w i n g o f t h e r e a r p a r c e l
shelf and fragile objects.
T h e a d j u s t a b l e b o o t fl o o r i s fi t t e d w i t h
four stowing rings to secure your loads
using the net available as an accessory.
Ensure that your boot is empty be-
fore handling the adjustable boot
fl o o r .
Page 108 of 224
i
i
94

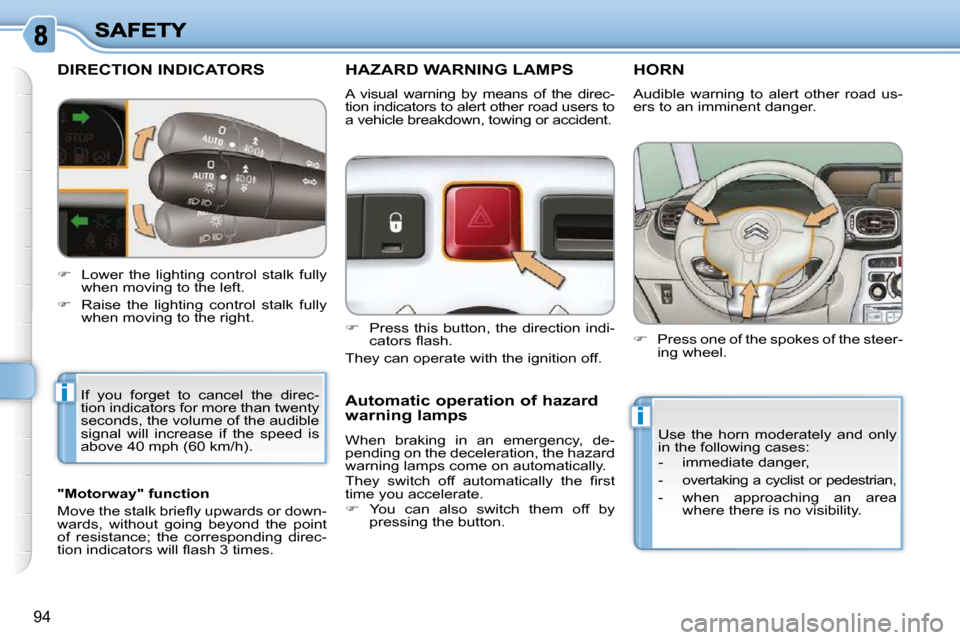

DIRECTION INDICATORS
If you forget to cancel the direc-
tion indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).
HAZARD WARNING LAMPS
Press this button, the direction indi-
c a t o r s fl a s h .
They can operate with the ignition off.
Automatic operation of hazard warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
T h e y s w i t c h o f f a u t o m a t i c a l l y t h e fi r s t
time you accelerate.
You can also switch them off by
pressing the button.
HORN
Press one of the spokes of the steer-
ing wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
-
overtaking a cyclist or pedestrian,
- when approaching an area where there is no visibility.
Audible warning to alert other road us-
ers to an imminent danger.
"Motorway" function
M o v e t h e s t a l k b r i e fl y u p w a r d s o r d o w n -
wards, without going beyond the point
of resistance; the corresponding direc-
t i o n i n d i c a t o r s w i l l fl a s h 3 t i m e s . A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.
Lower the lighting control stalk fully
when moving to the left.
Raise the lighting control stalk fully
when moving to the right.
Page 118 of 224
!
1 0 3

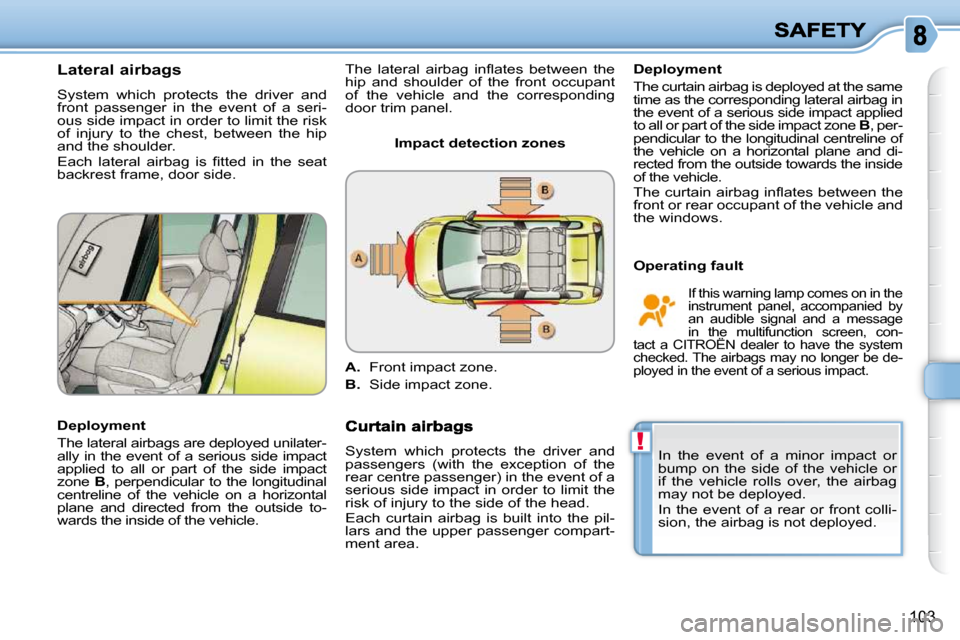

Lateral airbags
System which protects the driver and
front passenger in the event of a seri-
ous side impact in order to limit the risk
of injury to the chest, between the hip
and the shoulder.
E a c h l a t e r a l a i r b a g i s fi t t e d i n t h e s e a t
backrest frame, door side.
Deployment
The lateral airbags are deployed unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of injury to the side of the head.
Each curtain airbag is built into the pil-
lars and the upper passenger compart-
ment area. Operating fault
Deployment
The curtain airbag is deployed at the same
time as the corresponding lateral airbag in
the event of a serious side impact applied
to all or part of the side impact zone
B , per-
pendicular to the longitudinal centreline of
the vehicle on a horizontal plane and di-
rected from the outside towards the inside
of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be deployed.
In the event of a rear or front colli-
sion, the airbag is not deployed.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
If this warning lamp comes on in the
instrument panel, accompanied by
an audible signal and a message
in the multifunction screen, con-
tact a CITROËN dealer to have the system
checked. The airbags may no longer be de-
ployed in the event of a serious impact.
T h e l a t e r a l a i r b a g i n fl a t e s b e t w e e n t h e
hip and shoulder of the front occupant
of the vehicle and the corresponding
door trim panel.
Page 127 of 224
i
i
112
DRIVING
Deactivation
The system will be deactivated au-
tomatically when towing a trailer
o r w h e n a b i c y c l e c a r r i e r i s fi t t e d
( v e h i c l e fi t t e d w i t h a t o w b a r o r b i -
cycle carrier recommended by
C I T R O Ë N ) . Reactivation
Press button
A again to reactivate the
system. The indicator lamp in the but-
ton goes off.
If there is an operating fault, when re-
verse gear is engaged, the service
warning lamp comes on, accompanied
b y a n a u d i b l e s i g n a l ( s h o r t b e e p ) a n d a
message in the multifunction screen.
With the engine running, press button A to
deactivate the system permanently. The
indicator lamp in the button comes on. In bad or wintry weather, ensure
that the sensors are not covered
with mud, frost or snow.
Page 134 of 224
10
!
119
CHECKS
Only use products recommended
by CITROËN or products of equiv-
a l e n t q u a l i t y a n d s p e c i fi c a t i o n .
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and of-
f e r s v e r y s p e c i fi c p r o d u c t s .
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Brake disc wear
Brake pads Manual parking br ake
Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the system, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn. For information on checking
brake disc wear, contact a
CITROËN dealer.
If a loss of effectiveness of this
system is noticed, the parking
brake must be checked, even
between two services.
Checking this system must be
done by a CITROËN dealer.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Maintenance and
Warranty Guide for the details
of the level checking interval
for this component.
Page 138 of 224
!
123
PRACTICAL INFORMATION

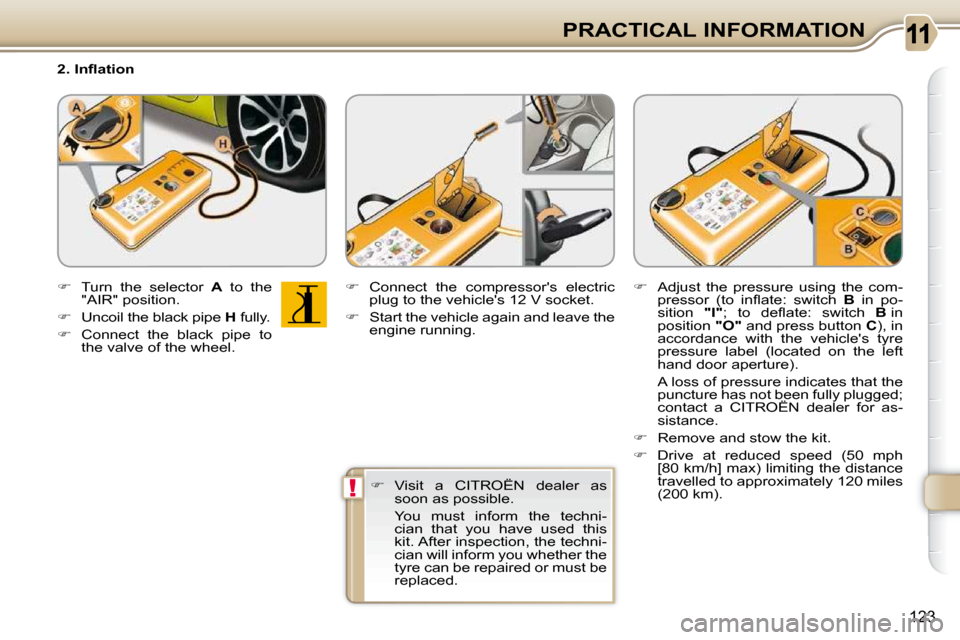

2 . I n fl a t i o n
Turn the selector A to the
"AIR" position.
Uncoil the black pipe H fully.
Connect the black pipe to
the valve of the wheel.
C o n n e c t t h e c o m p r e s s o r ' s e l e c t r i c
p l u g t o t h e v e h i c l e ' s 1 2 V s o c k e t .
Start the vehicle again and leave the
engine running.
Adjust the pressure using the com-
p r e s s o r ( t o i n fl a t e : s w i t c h B in po-
sition "I" ; t o d e fl a t e : s w i t c h B in
position "O" and press button C ), in
a c c o r d a n c e w i t h t h e v e h i c l e ' s t y r e
pressure label (located on the left
hand door aperture).
A loss of pressure indicates that the puncture has not been fully plugged;
contact a CITROËN dealer for as-
sistance.
Remove and stow the kit.
D r i v e a t r e d u c e d s p e e d ( 5 0 m p h
[ 8 0 k m / h ] m a x ) l i m i t i n g t h e d i s t a n c e
t r a v e l l e d t o a p p r o x i m a t e l y 1 2 0 m i l e s
(200 km).
Visit a CITROËN dealer as
soon as possible.
You must inform the techni- cian that you have used this
kit. After inspection, the techni-
cian will inform you whether the
tyre can be repaired or must be
replaced.
Page 139 of 224
!
124
PRACTICAL INFORMATION
Removing the cartridge
Stow the black pipe.
Detach the angled base from the
white pipe.
Support the compressor vertically.
Unscrew the cartridge from the bottom.
B e w a r e o f d i s c h a r g e s o f fl u i d .
T h e e x p i r y d a t e o f t h e fl u i d i s i n d i -
cated on the cartridge.
The sealant cartridge is designed
for single use; even if only partly
used, it must be replaced.
After use, do not discard the car-
tridge into the environment, take
it to an authorised waste disposal
site or a CITROËN dealer.
Do not forget to obtain a new
sealant cartridge, available from
CITROËN dealers. Checking tyre pressures/
inflating accessories
You can also use the compressor, with-
out injecting any product, to:
- check or adjust the pressure of your
tyres,
- i n fl a t e o t h e r a c c e s s o r i e s .
Turn the selector A to the
"Air" position.
Uncoil the black pipe H fully.
Connect the black pipe to
the valve of the wheel or accessory.
I f n e c e s s a r y , fi t o n e o f t h e a d a p t o r s s u p p l i e d w i t h t h e k i t fi r s t .
C o n n e c t t h e c o m p r e s s o r ' s e l e c t r i -
c a l c o n n e c t o r t o t h e v e h i c l e ' s 1 2 V
socket.
Start the vehicle and let the engine
run.
Adjust the pressure using the com-
p r e s s o r ( t o i n fl a t e : s w i t c h B in po-
sition "I" ; t o d e fl a t e : s w i t c h B in
position "O" and press button C ),
a c c o r d i n g t o t h e v e h i c l e ' s t y r e p r e s -
s u r e l a b e l o r t h e a c c e s s o r y ' s p r e s -
sure label.
Remove the kit then stow it.
Page 140 of 224
i
1 2 5
PRACTICAL INFORMATION

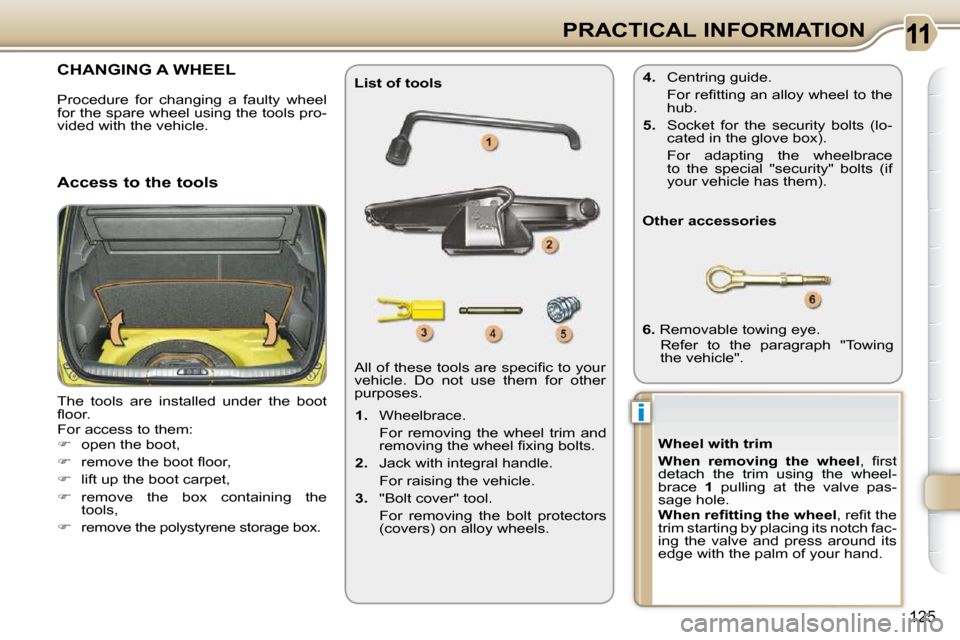

CHANGING A WHEEL
The tools are installed under the boot
fl o o r .
For access to them:
open the boot,
r e m o v e t h e b o o t fl o o r ,
lift up the boot carpet,
r e m o v e t h e b o x c o n t a i n i n g t h e
tools,
r e m o v e t h e p o l y s t y r e n e s t o r a g e b o x . A l l o f t h e s e t o o l s a r e s p e c i fi c t o y o u r
vehicle. Do not use them for other
purposes.
List of tools
Other accessories
6. Removable towing eye.
Refer to the paragraph "Towing the vehicle".
Access to the tools
Wheel with trim
When removing the wheel , fi r s t
detach the trim using the wheel-
brace 1 pulling at the valve pas-
sage hole.
W h e n r e fi t t i n g t h e w h e e l , r e fi t t h e
trim starting by placing its notch fac-
ing the valve and press around its
edge with the palm of your hand.
1. Wheelbrace.
For removing the wheel trim and r e m o v i n g t h e w h e e l fi x i n g b o l t s .
2. Jack with integral handle.
For raising the vehicle.
3. "Bolt cover" tool.
For removing the bolt protectors (covers) on alloy wheels.
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
4. Centring guide.
F o r r e fi t t i n g a n a l l o y w h e e l t o t h e hub.
5. Socket for the security bolts (lo-
c a t e d i n t h e g l o v e b o x ) .
For adapting the wheelbrace to the special "security" bolts (if
your vehicle has them).
Page 141 of 224
i
1 2 6
PRACTICAL INFORMATION
Fitting the steel or "space-
saver" type spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a l l o y
wheels, it is normal to notice, when
t i g h t e n i n g t h e b o l t s o n fi t t i n g , t h a t
the washers do not come into con-
tact with the steel or "space-saver"
type spare wheel. The wheel is
secured by the conical contact of
each bolt.

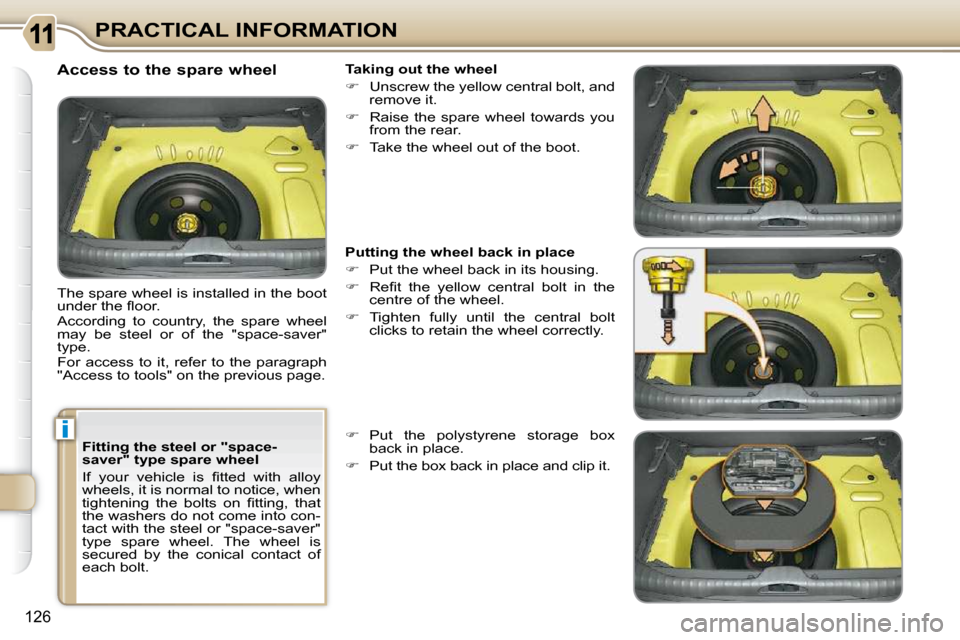

Access to the spare wheel
The spare wheel is installed in the boot
u n d e r t h e fl o o r .
According to country, the spare wheel
may be steel or of the "space-saver"
type.
For access to it, refer to the paragraph
"Access to tools" on the previous page.
Taking out the wheel
Unscrew the yellow central bolt, and
remove it.
Raise the spare wheel towards you
from the rear.
Take the wheel out of the boot.
Putting the wheel back in place
Put the wheel back in its housing.
R e fi t t h e y e l l o w c e n t r a l b o l t i n t h e
centre of the wheel.
Tighten fully until the central bolt
clicks to retain the wheel correctly.
P u t t h e p o l y s t y r e n e s t o r a g e b o x
back in place.
P u t t h e b o x b a c k i n p l a c e a n d c l i p i t .
Page 160 of 224
i
!
144
PRACTICAL INFORMATION
TOWING THE VEHICLE
Access to the tools Towing your vehicle
On the front bumper, unclip the cover
by pressing at the top left and pull-
ing at the bottom right of the cover.
Screw the towing eye in fully.
Install the towing bar.
S w i t c h o n t h e h a z a r d w a r n i n g l a m p s
on the towed vehicle.
Place the gear lever in neutral.
On the rear bumper, unclip the
cover by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
S w i t c h o n t h e h a z a r d w a r n i n g l a m p s
on the towed vehicle.
Towing another vehicle
The towing eye is installed under the
b o o t fl o o r .
To gain access to it:
open the boot,
r e m o v e t h e a d j u s t a b l e b o o t fl o o r ,
lift up the boot carpet,
remove the towing eye from the tool
holder. When towing with all four wheels
on the ground, always use a towing
bar.
When towing with only two wheels
on the ground, always use profes-
s i o n a l l i f t i n g e q u i p m e n t .
When towing with the engine off,
there is no longer any braking or
steering assistance.
Failure to observe this special con-
dition could result in damage to
certain braking components and
the absence of braking assistance
t h e n e x t t i m e t h e e n g i n e i s s t a r t e d .
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
