i
1 4 5
PRACTICAL INFORMATION
TOWING A TRAILER, A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
T h e m a x i m u m t o w e d l o a d o n a l o n g i n -
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the cool-
ant temperature.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the
towing vehicle and of the trailer,
observing the recommended pres-
sures.
Lighting
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will be
deactivated automatically if a gen-
uine CITROËN towbar is used.
If the warning lamp and the
STOP warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
a s p o s s i b l e t o t h e a x l e a n d t h e n o s e
w e i g h t a p p r o a c h e s t h e m a x i m u m
p e r m i t t e d w i t h o u t e x c e e d i n g i t .
Air density decreases with altitude, thus
reducing engine performance. Above
1 0 0 0 m e t r e s , t h e m a x i m u m t o w e d l o a d
must be reduced by 10 % for every
1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towed loads
which apply to your vehicle.
Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d
the driver must take particular care.
We recommend the use of genuine
CITROËN towbars and their har-
nesses that have been tested and
approved from the design stage
o f y o u r v e h i c l e , a n d t h a t t h e fi t -
ting of the towbar is entrusted to a
CITROËN dealer.
I f t h e t r a i l e r i s n o t fi t t e d b y a
CITROËN dealer, it is imperative
t h a t i t i s fi t t e d u s i n g t h e v e h i c l e ' s
e l e c t r i c a l p r e - e q u i p m e n t , i n a c c o r -
d a n c e w i t h t h e m a n u f a c t u r e r ' s i n -
structions.
Page 163 of 224
1 4 7
PRACTICAL INFORMATION
"Comfort":
front and rear parking sensors, insu-
lated module, reading lamp, sun blinds,
head restraint-mounted coat hanger,
c e n t r e a r m r e s t , a i r d e fl e c t o r , s c e n t e d a i r
freshener cartridges... "Protection":
m a t s * , s e a t c o v e r s , m u d fl a p s , b u m p e r
protectors...
"Transport solutions":
boot liner, boot carpet, towbar, towbar
wiring harness, transverse and longitu-
dinal roof bars, bicycle carrier, ski car-
r i e r , r o o f b o x , b o o t s p a c e r s , b o o t n e t ,
business/commercial vehicle conver-
sion kit...
"Safety and security":
anti-theft alarm, warning triangle, high
v i s i b i l i t y v e s t , b r e a t h a l y z e r , fi r s t a i d k i t ,
snow chains, non-skid covers, security
wheel bolts, vehicle tracking system,
c h i l d s e a t s , fi r e e x t i n g u i s h e r , c a r a v a n
mirror, foglamp kit...
"Style":
allow wheels, chromed mirror shells,
chromed grille embellisher, leather
steering wheel, gear lever knob, alu-
minium footrest...
ACCESSORIES
A wide range of accessories and genu-
ine parts is available from the CITROËN
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m C I T R O Ë N ' s r e c o m m e n d a -
tion and warranty.
* To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
Page 167 of 224
150
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* For Russia only.
** The weight of the braked trailer can be increased,
within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

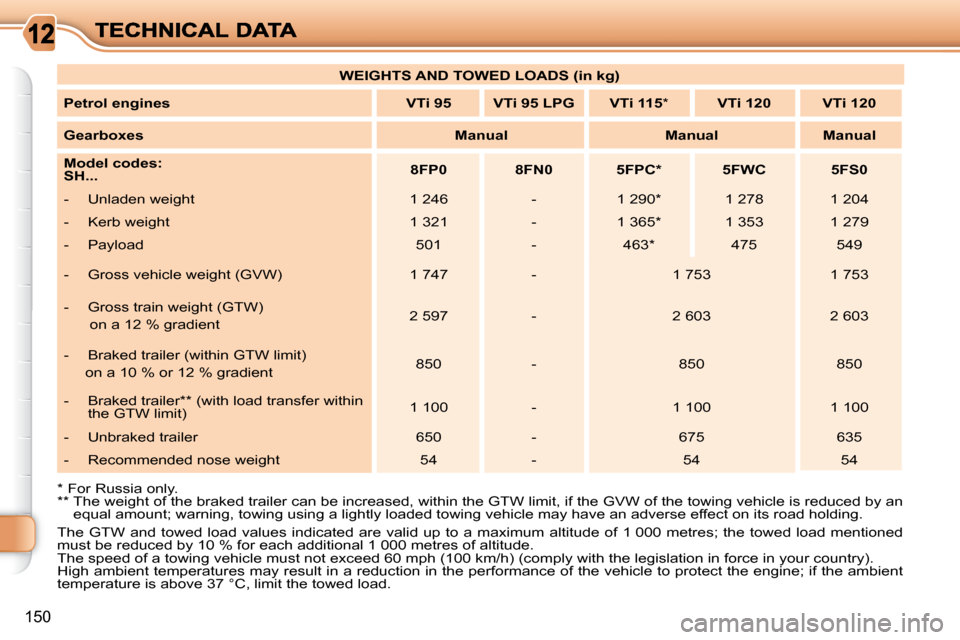

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines VTi 95 VTi 95 LPG VTi
115 * VTi 120 VTi 120
Gearboxes
Manual Manual Manual
Model codes:
SH...
8FP0 8FN0 5FPC * 5FWC 5FS0
- Unladen weight 1 246 - 1 290 * 1 2 78 1 204
- Kerb weight 1 321 - 1 365 * 1 353 1 279
- Payload 501 - 463 * 475 549
- Gross vehicle weight (GVW) 1 747 - 1 753 1 753
- Gross train weight (GTW) on a 12 % gradient 2 597 - 2 603 2 603
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 850 - 850 850
- Braked trailer ** (with load transfer within the GTW limit) 1 100 - 1 100 1 100
- Unbraked trailer 650 - 675 635
- Recommended nose weight 54 - 54 54
Page 168 of 224
152
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)

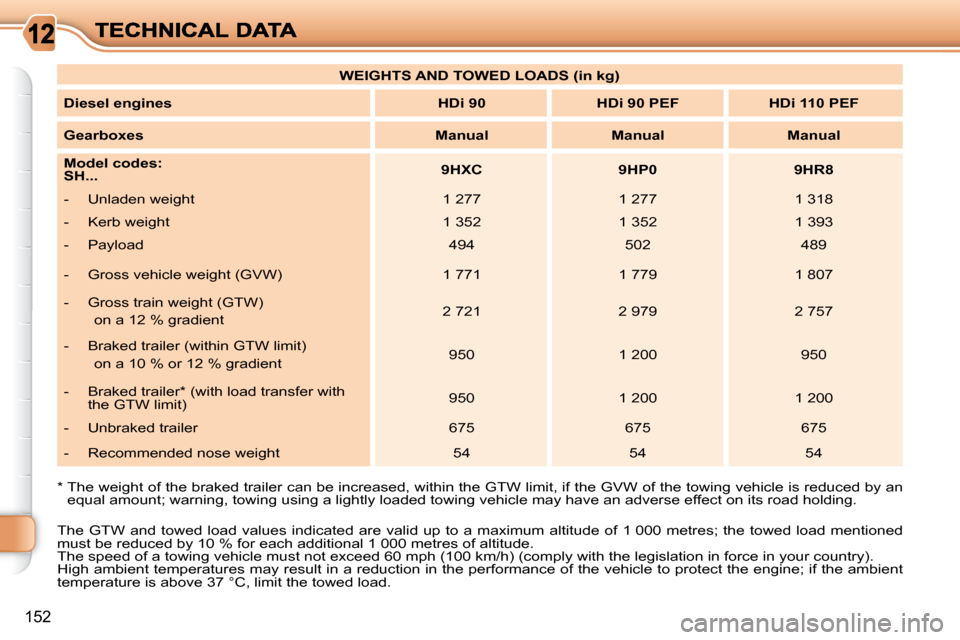

Diesel engines
HDi 90 HDi 90 PEF HDi 110 PEF
Gearboxes
Manual Manual Manual
Model codes:
SH...
9HXC 9HP0 9HR8
- Unladen weight 1 277 1 277 1 318
- Kerb weight 1 352 1 352 1 393
- Payload 494 502 489
- Gross vehicle weight (GVW) 1 771 1 779 1 807
- Gross train weight (GTW) on a 12 % gradient 2 721 2 979 2 757
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 950 1 200 950
- Braked trailer * (with load transfer with the GTW limit) 950 1 200 1 200
- Unbraked trailer 675 675 675
- Recommended nose weight 54 54 54
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
