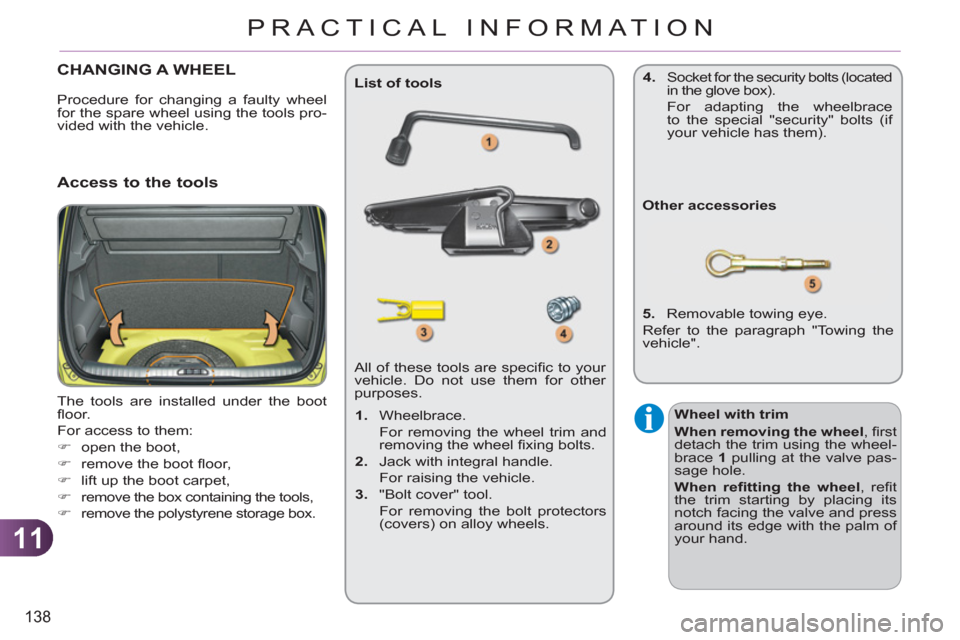

CHANGING A WHEEL
The tools are installed under the boot
fl oor.
For access to them:
)
open the boot,
)
remove the boot fl oor,
)
lift up the boot carpet,
)
remove the box containing the tools,
)
remove the polystyrene storage box. All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.
List of tools
Other accessories
5.
Removable towing eye.
Refer to the paragraph "Towing the
vehicle".
Access to the tools
Wheel with trim
When removing the wheel
, fi rst
detach the trim using the wheel-
brace 1
pulling at the valve pas-
sage hole.
When refi tting the wheel
, refi t
the trim starting by placing its
notch facing the valve and press
around its edge with the palm of
your hand.
1.
Wheelbrace.
For removing the wheel trim and
removing the wheel fi xing bolts.
2.
Jack with integral handle.
For raising the vehicle.
3.
"Bolt cover" tool.
For removing the bolt protectors
(covers) on alloy wheels. Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
4.
Socket for the security bolts (located
in the glove box).
For adapting the wheelbrace
to the special "security" bolts (if
your vehicle has them).
Page 141 of 244
11
PRACTICAL INFORMATION
Fitting the steel or "space-saver"
type spare wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice,
when tightening the bolts on fi t-
ting, that the washers do not
come into contact with the steel
or "space-saver" type spare
wheel. The wheel is secured by
the conical contact of each bolt.

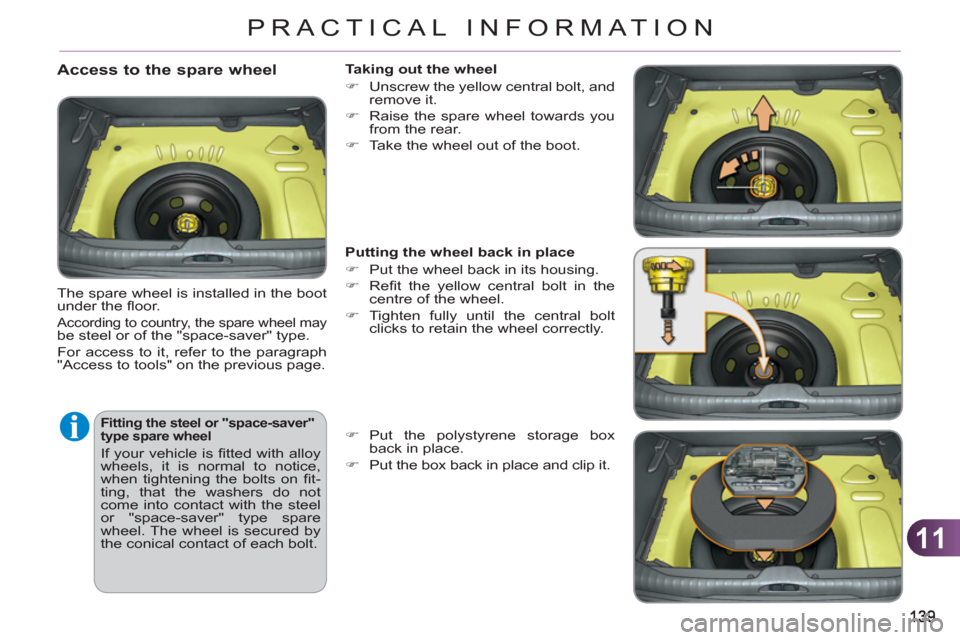

Access to the spare wheel
The spare wheel is installed in the boot
under the fl oor.
According to country, the spare wheel may be steel or of the "space-saver" type.
For access to it, refer to the paragraph
"Access to tools" on the previous page.
Taking out the wheel
)
Unscrew the yellow central bolt, and
remove it.
)
Raise the spare wheel towards you
from the rear.
)
Take the wheel out of the boot.
Putting the wheel back in place
)
Put the wheel back in its housing.
)
Refi t the yellow central bolt in the
centre of the wheel.
)
Tighten fully until the central bolt
clicks to retain the wheel correctly.
)
Put the polystyrene storage box
back in place.
)
Put the box back in place and clip it.
Page 144 of 244
11
142
PRACTICAL INFORMATION

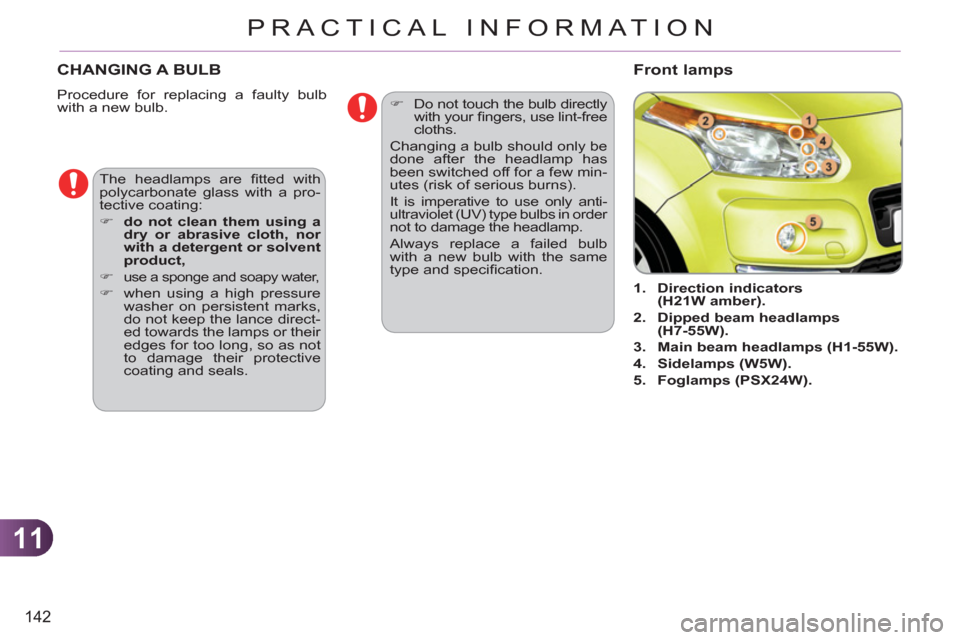

CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb.
1.
Direction indicators
(H21W amber).
2.
Dipped
beam
headlamps
(H7-55W).
3.
Main beam headlamps (H1-55W).
4.
Sidelamps
(W5W).
5.
Foglamps
(PSX24W).
The headlamps are fi tted with
polycarbonate glass with a pro-
tective coating:
)
do not clean them using a
dry or abrasive cloth, nor
with a detergent or solvent
product,
)
use a sponge and soapy water,
)
when using a high pressure
washer on persistent marks,
do not keep the lance direct-
ed towards the lamps or their
edges for too long, so as not
to damage their protective
coating and seals.
Front lamps
)
Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a bulb should only be
done after the headlamp has
been switched off for a few min-
utes (risk of serious burns).
It is imperative to use only anti-
ultraviolet (UV) type bulbs in order
not to damage the headlamp.
Always replace a failed bulb
with a new bulb with the same
type and specifi cation.
Page 160 of 244
11
158
PRACTICAL INFORMATION

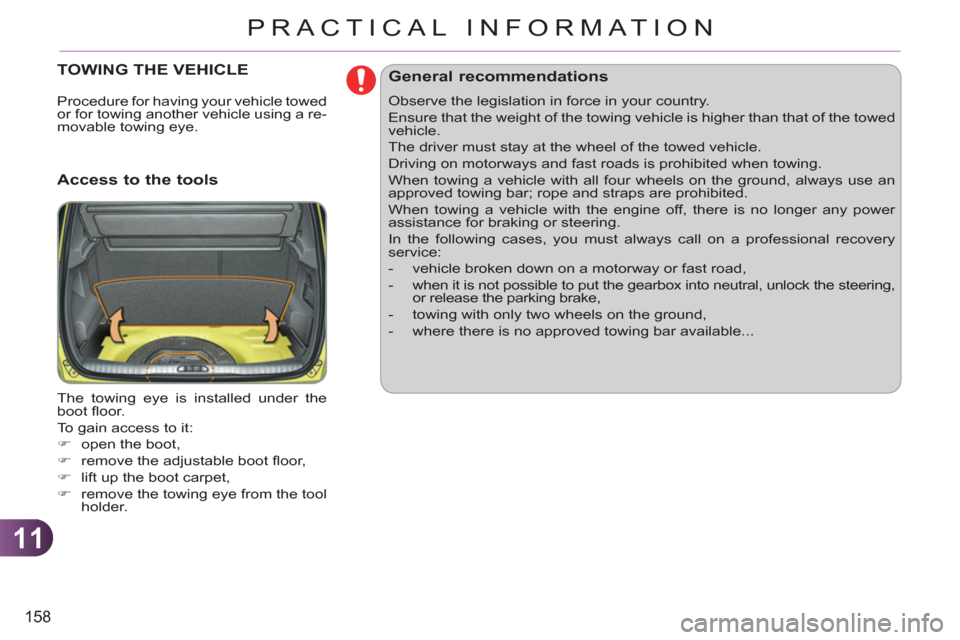

TOWING THE VEHICLE
Access to the tools
The towing eye is installed under the
boot fl oor.
To gain access to it:
)
open the boot,
)
remove the adjustable boot fl oor,
)
lift up the boot carpet,
)
remove the towing eye from the tool
holder.
General recommendations
Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed
vehicle.
The driver must stay at the wheel of the towed vehicle.
Driving on motorways and fast roads is prohibited when towing.
When towing a vehicle with all four wheels on the ground, always use an
approved towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always call on a professional recovery
service:
- vehicle broken down on a motorway or fast road,
- when it is not possible to put the gearbox into neutral, unlock the steering,
or release the parking brake,
- towing with only two wheels on the ground,
- where there is no approved towing bar available...
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Page 161 of 244
11
159
PRACTICAL INFORMATION

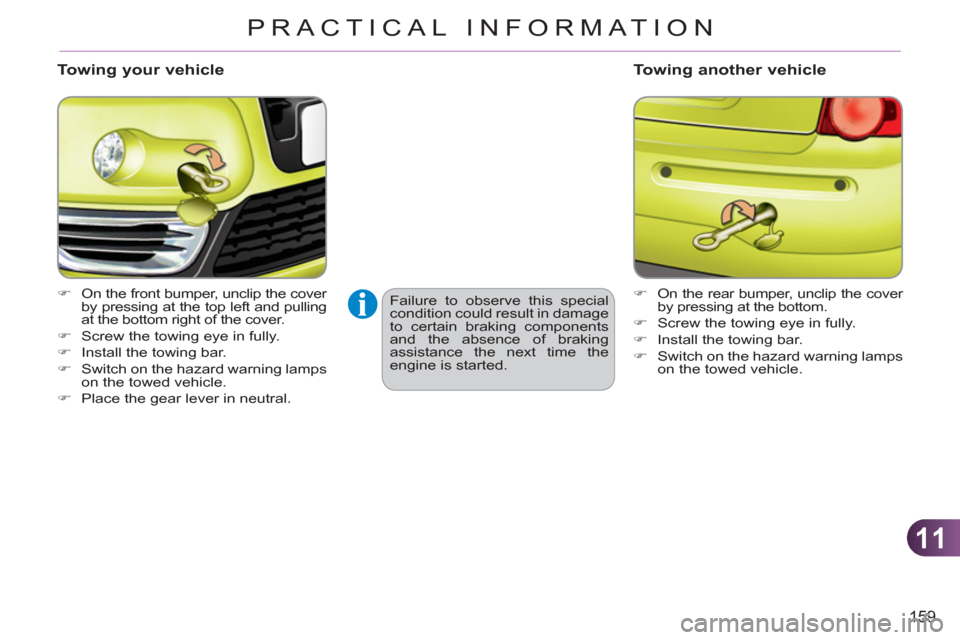

Towing your vehicle
)
On the front bumper, unclip the cover
by pressing at the top left and pulling
at the bottom right of the cover.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps
on the towed vehicle.
)
Place the gear lever in neutral.
)
On the rear bumper, unclip the cover
by pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
Failure to observe this special
condition could result in damage
to certain braking components
and the absence of braking
assistance the next time the
engine is started.
Page 162 of 244
11
160
PRACTICAL INFORMATION
TOWING A TRAILER, ...
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Driving advice
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the coolant
temperature.
Side wind
)
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
)
To lower the engine speed, reduce
your speed.
Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.
Tyres
)
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
)
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will
be deactivated automatically if
a genuine CITROËN towbar is
used.
)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suitable for the attachment of a
trailer with additional lighting and sig-
nalling.
Distribution of loads
)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towed loads
which apply to your vehicle. Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
We recommend the use of gen-
uine CITROËN towbars and
their harnesses that have been
tested and approved from the
design stage of your vehicle,
and that the fi tting of the tow-
bar is entrusted to a CITROËN
dealer or a qualifi ed workshop.
If the towbar is not fi tted by a
CITROËN dealer, it is impera-
tive that it is fi tted in accordance
with the vehicle manufacturer's
instructions.
Page 164 of 244
11
162
PRACTICAL INFORMATION
"Comfort":
front and rear parking sensors, insu-
lated module, reading lamp, sun blinds,
head restraint-mounted coat hanger,
centre armrest, air defl ector, scented air
freshener cartridges...
"Protection":
mats * , seat covers, mudfl aps, bumper
protectors...
"Transport solutions":
boot liner, boot carpet, towbar, towbar wir-
ing harness, transverse and longitudinal
roof bars, bicycle carrier, ski carrier, roof
box, boot spacers, boot net, business/
commercial vehicle conversion kit...
"Safety and security":
anti-theft alarm, warning triangle, high
visibility vest, breathalyzer, fi rst aid kit,
snow chains, non-skid covers, security
wheel bolts, vehicle tracking system,
child seats, fi re extinguisher, caravan
mirror, foglamp kit...
"Style":
allow wheels, chromed mirror shells,
chromed grille embellisher, leather steer-
ing wheel, gear lever knob, aluminium
footrest...
ACCESSORIES
A wide range of accessories and genu-
ine parts is available from the CITROËN
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from CITROËN's recommenda-
tion and warranty.
* To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
and secured correctly,
- never fi t one mat on top of another.
Page 167 of 244
12
165
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10% for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *
For Russia only.
**
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
VTi 95
VTi 115
*
VTi 120
VTi 115 *
VTi 120
Gearboxes
Manual
Manual
Electronic gearbox system
(6-speed)
Model codes:
SH...
8FP0
5FJ0 *
5FS0
5FJ8/P *
5FS8/P
- Unladen weight
1 201
1 204
1 205
- Kerb weight
1 276
1 279
1 280
- Payload
546
549
564
- Gross vehicle weight (GVW)
1 747
1 753
1 769
- Gross train weight (GTW)
on a 12 % gradient
2 597
2 603
2 619
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
850
850
850
- Braked trailer ** (with load transfer within
the GTW limit)
1 100
1 100
1 100
- Unbraked trailer
635
635
640
- Recommended nose weight
54
54
54
Page 169 of 244
12
167
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (in kg)
LPG engines
VTi 95
Gearbox
Manual
Model codes:
SH...
8FN0/GPL
- Unladen weight
1 301
- Kerb weight
1 376
- Payload
446
- Gross vehicle weight (GVW)
1 747
- Gross train weight (GTW)
on a 12 % slope
2 597
- Braked trailer (within GTW limit)
on a 12 % slope
850
- Braked trailer * (with load transfer within
the GTW limit)
1 100
- Unbraked trailer
650
- Recommended nose weight
54
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
Page 171 of 244
12
169
TECHNICAL DATA
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
HDi 90 PEF
e-HDi 90 PEF
HDi 110 PEF
Gearboxes
Manual
Electronic gearbox
system
Manual
Model codes:
SH...
9HP0
9HP8/P/S
9HR8
- Unladen weight
1 277
1 313
1 318
- Kerb weight
1 352
1 388
1 393
- Payload
502
498
489
- Gross vehicle weight (GVW)
1 779
1 811
1 807
- Gross train weight (GTW)
on a 12 % gradient
2 979
3 011
2 757
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 200
1 200
950
- Braked trailer * (with load transfer
with the GTW limit)
1 200
1 200
1 200
- Unbraked trailer
675
675
675
- Recommended nose weight
54
54
54
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
