6

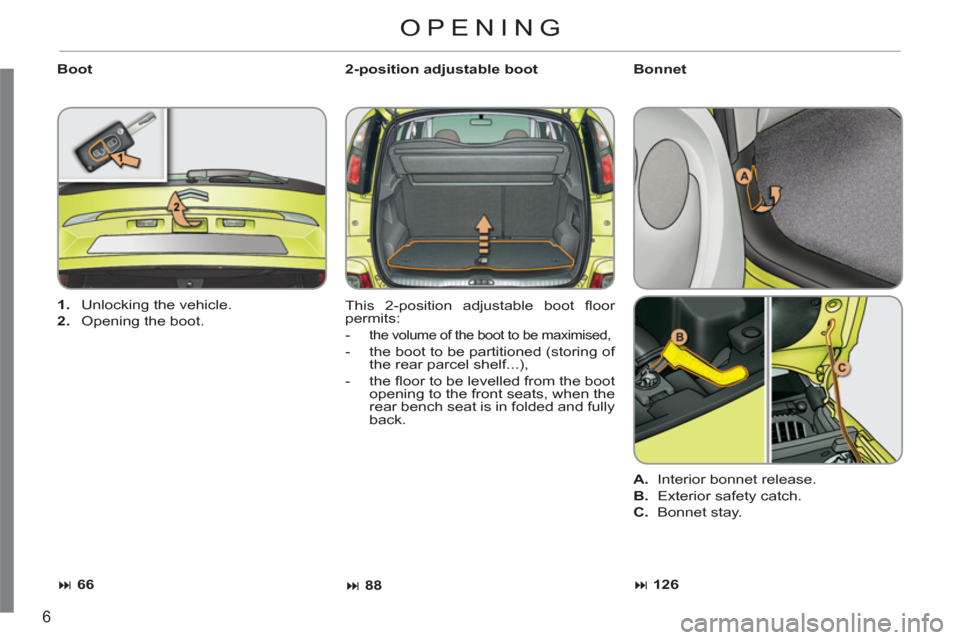

Boot

2-position adjustable boot
This 2-position adjustable boot fl oor
permits:


-
the volume of the boot to be maximised,

- the boot to be partitioned (storing of
the rear parcel shelf...),

- the fl oor to be levelled from the boot
opening to the front seats, when the
rear bench seat is in folded and fully
back.

1.
Unlocking the vehicle.

2.
Opening the boot.



66





88



A.
Interior bonnet release.

B.
Exterior safety catch.

C.
Bonnet stay.



126



Bonnet
OPENING

3
54

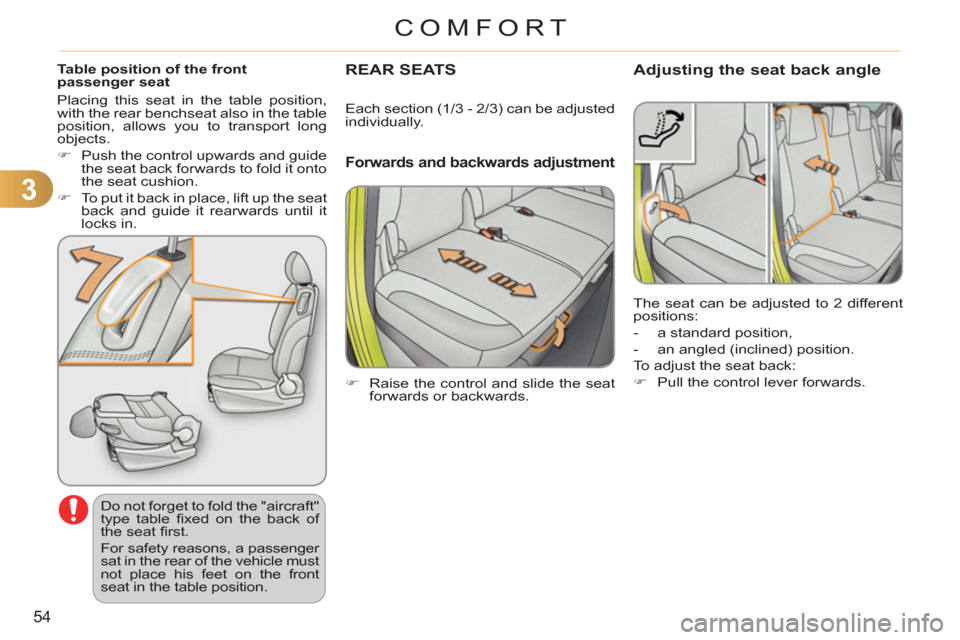

COMFORT
Table position of the frontpassenger seat
Do not forget to fold the "aircraft"
type table fi xed on the back of
the seat fi rst.
For safety reasons, a passenger
sat in the rear of the vehicle must
not place his feet on the front
seat in the table position.
Placing this seat in the table position,
with the rear benchseat also in the table
position, allows you to transport long
objects.


)
Push the control upwards and guide
the seat back forwards to fold it onto
the seat cushion.

)
To put it back in place, lift up the seat
back and guide it rearwards until it
locks in. REAR SEATS
Forwards and backwards adjustment

Adjusting the seat back angle



)
Raise the control and slide the seat
forwards or backwards.
Each section (1/3 - 2/3) can be adjusted
individually.
The seat can be adjusted to 2 different
positions:


- a standard position,

- an angled (inclined) position.
To adjust the seat back:


)
Pull the control lever forwards.

6
85

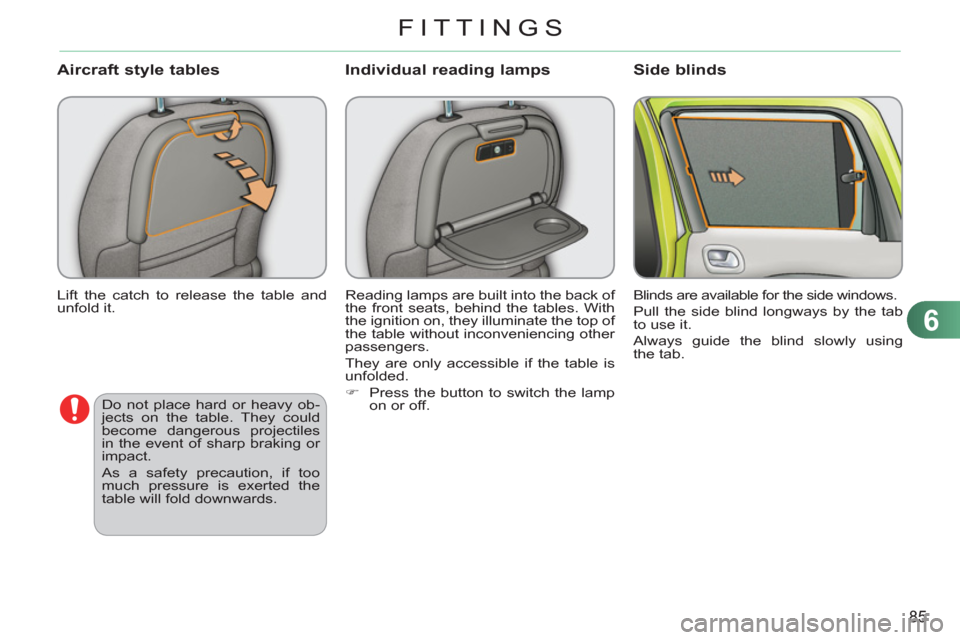

FITTINGS
Lift the catch to release the table and
unfold it.

Aircraft style tables

Reading lamps are built into the back of
the front seats, behind the tables. With
the ignition on, they illuminate the top of
the table without inconveniencing other
passengers.
They are only accessible if the table is
unfolded.


)
Press the button to switch the lamp
on or off.

Individual reading lamps

Do not place hard or heavy ob-
jects on the table. They could
become dangerous projectiles
in the event of sharp braking or
impact.
As a safety precaution, if too
much pressure is exerted the
table will fold downwards.

Side blinds

Blinds are available for the side windows.
Pull the side blind longways by the tab
to use it.
Always guide the blind slowly using
the tab.

6
88
FITTINGS
2-position adjustable boot
The two-position adjustable boot fl oor
allows you to:


- maximise the volume of the boot,

- partition the boot (stowing the rear
shelf...),

- obtain a fl at fl oor from the boot open-
ing to the front seats, when the rear
bench seat is in the folded and fully
back position.
Placing the adjustable boot fl oor in
the low position


)
Lift the adjustable boot fl oor by pull-
ing on the strap.

)
Move the adjustable boot fl oor rear-
wards and then down, following the
guides on the sides.

Placing the adjustable boot fl oor in
the high position


)
Lift the adjustable boot fl oor by pull-
ing the strap.

)
Move the adjustable boot fl oor rear-
wards then up to its high position.
In the high position, the adjustable boot
fl oor allows stowing of the rear parcel
shelf and fragile objects.
The adjustable boot fl oor is fi tted with
four stowing rings to secure your loads
using the net available as an accessory.
Ensure that your boot is empty
before handling the adjustable
boot fl oor.
