Guide-me-home lighting
After switching off the ignition, the headlamps remain
on briefl y to make your exit from the vehicle easier
when the light is poor.



73, 74



ASR and ESP systems
These systems are linked to assure the
directional stability of the vehicle within
the limits of the laws of physics.



101


Panoramic glass sunroof
This roof provides incomparable visibility
and light in the passenger compartment.



67


Rear parking sensors
This system warns you if an obstacle is
detected behind the vehicle when re-
versing.



123


EXTERIOR
Stop & Start
This system puts the
engine temporarily into
standby during stops
in the traffi c (red lights,
traffi c jams, etc...). The
engine restarts auto-
matically as soon as you
want to move off. The
Stop & Start system re-
duces fuel consumption,
exhaust emissions and
the noise level when sta-
tionary.



11 6

8


1.
Steering lock and ignition.

2.
Audio system steering mounted
controls.

3.
Wipers/screenwash/trip computer
control stalk.

4.
Instrument panel.

5.
Driver’s airbag.
Horn.

6.
Gear lever.

7.
Open storage compartment.

8.
Door mirror controls.
Electric window controls.
Rear electric windows and doors
deactivation control.

9.
Passenger’s airbag deactivation.

10.
Manual headlamp height
adjustment.

11 .
Front side window demisting vent.

12.
Windscreen demisting vent.



INSTRUMENTS AND CONTROLS

13
FAMILIARI
S
AT I
ON

Lighting

Ring A


Ring B
Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will fl ash for as long
as the stalk remains in this position.
Direction indicators

Switching on "AUTO"



)
Press the stalk down and release it.

Ring B: rear wiper




71





76


Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps.
Park.
Intermittent wipe.
Wash-wipe.
Stalk A: windscreen wipers




75

Wipers

Switching off "AUTO"



)
Push the stalk up and return it to po-
sition "0"
.



77




99


"Motorway" function

Push the lighting stalk up or down, with-
out passing the point of resistance; the
corresponding direction indicators will
fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads.

20
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox


With a manual gearbox, move off gently,
change up without waiting and drive
by changing up quite soon. If your
vehicle has the system, the gear effi -
ciency indicator invites you to change
up; it is displayed in the instrument panel,
follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.



Maintain a safe distance between vehi-
cles, use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contrib-
ute towards a reduction in fuel consump-
tion and CO
2 emissions and also helps
reduce the background traffi c noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.

Control the use of your electrical equipment


Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sun roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is
attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front fo-
glamps when the level of light does not
require their use.

Avoid running the engine before moving
off, particularly in winter; your vehicle
will warm up much faster while driving.

As a passenger, if you avoid connecting
your multimedia devices (fi lm, music,
video game...), you will contribute to-
wards limiting the consumption of elec-
trical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

1
23
MONITORING
Certain warning lamps may
come on in two different modes.
Only by relating the type of illu-
mination to the operating status
of the vehicle can it be ascer-
tained whether the situation is
normal or whether a fault has
occurred.
Indicator and warning lamps

Visual indicators informing the driver that a system is in operation (operation or deactivation indicator lamps) or of the occur-
rence of a fault (warning lamp).

Associated warnings
The illumination of certain warning lamps may be accompanied by an audible
signal and a message in the multifunction screen.
The warning lamps may come on continuously (fi xed) or fl ash.

Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding
system has come into operation.

When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehicle's ignition is switched on.
When the engine is started, these same warning lamps should go off.

If they remain on, before moving off, refer to the information on the warning lamp concerned.



Warning lamp



is on



Cause



Action/Observations






Left-hand
direction
indicato

r


fl ashing with
buzzer. The lighting stalk is pushed
down.




Right-hand
direction
indicator


fl ashing with
buzzer. The lighting stalk is pushed
up.





Sidelamps


fi xed. The lighting stalk is in the
"Sidelamps" position.




Dipped beam
headlamps


fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position.




Main beam
headlamps


fi xed. The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam headlamps.

2
41
MULTIFUNCTION SCREENS

Display confi guration
Once this menu has been selected, you
can gain access to the following settings:


- brightness-video setting,

- date and time setting,

- selection of the units. Example: setting of the duration of the
"guide-me-home" lighting


)
Press the "
" or "
" buttons, then
the "OK"
button to select the menu
required.

)
Press the "
" or "
" buttons,
then the "OK"
button to select the
"Guide-me-home headlamps" line.

)
Press the "
" or "
" buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK"
button
to confi rm.
)
Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"

box and confi rm or press the "ESC"

button to cancel.

For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.
Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Portugues, Türkçe, Portugues-Brasil). Once the fuel consumption unit
has been changed to l/100 km
or km/l, the information relat-
ing to speed and distance also
changes to kilometres.
Telephone menu
With the Audio system on, with this
menu selected, you can confi gure
your Bluetooth hands-free kit (pairing),
view the various telephone directories
(call log, services...) and manage your
calls (call, hang up, double call, secret
mode...).
For more information on the "Telephone"
application, refer to the Audio system
section in "Audio and Telematics".

5
71
VISIBILITY
LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Main lighting

The various front and rear lamps of the
vehicle are designed to adapt the driver's
visibility progressively according to cli-
matic conditions:


- sidelamps, to be seen,

- dipped beam headlamps to see
without dazzling other drivers,

- main beam headlamps to see clearly
when the road is clear.



Additional lighting

Other lamps are installed to fulfi l the
requirements of particular conditions of
visibility:


- a rear foglamp to be seen from afar,

- front foglamps for even better for-
ward vision.



Programming

Various automatic lighting control modes
are also available according to the fol-
lowing options:


- guide-me-home lighting,

- automatic illumination of headlamps.


Model without AUTO lighting



Model with AUTO lighting





Automatic illumination of
headlamps.

Manual controls

The lighting is controlled directly by the
driver by means of the ring A
and the
stalk B
.

A.
Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Lamps off.
Sidelamps.

B.
Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main
beam headlamps.
In the lamps off and sidelamps modes, the
driver can switch on the main beam head-
lamps temporarily ("headlamp fl ash") by
maintaining a pull on the stalk. Dipped headlamps or main
beam headlamps.

Displays

Illumination of the corresponding indica-
tor lamp in the instrument panel confi rms
that the lighting selected is on.

5
VISIBILITY

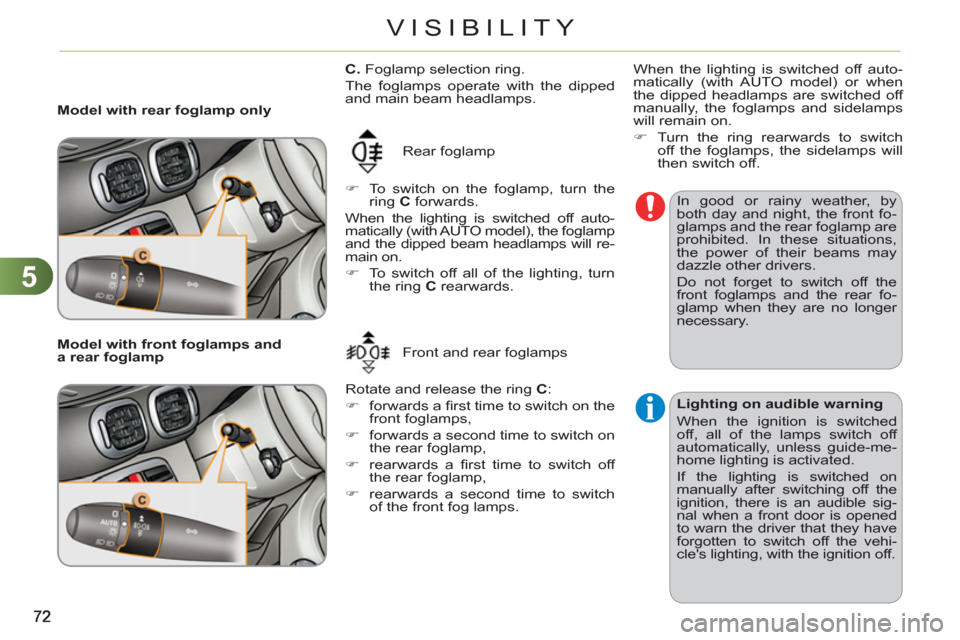

Model with rear foglamp only
Rear foglamp


)
To switch on the foglamp, turn the
ring C
forwards.
When the lighting is switched off auto-
matically (with AUTO model), the foglamp
and the dipped beam headlamps will re-
main on.


)
To switch off all of the lighting, turn
the ring C
rearwards.

In good or rainy weather, by
both day and night, the front fo-
glamps and the rear foglamp are
prohibited. In these situations,
the power of their beams may
dazzle other drivers.
Do not forget to switch off the
front foglamps and the rear fo-
glamp when they are no longer
necessary.

Lighting on audible warning
When the ignition is switched
off, all of the lamps switch off
automatically, unless guide-me-
home lighting is activated.
If the lighting is switched on
manually after switching off the
ignition, there is an audible sig-
nal when a front door is opened
to warn the driver that they have
forgotten to switch off the vehi-
cle's lighting, with the ignition off.


Model with front foglamps and
a rear foglamp Front and rear foglamps
Rotate and release the ring C
:


)
forwards a fi rst time to switch on the
front foglamps,

)
forwards a second time to switch on
the rear foglamp,

)
rearwards a fi rst time to switch off
the rear foglamp,

)
rearwards a second time to switch
of the front fog lamps.








C.
Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps. When the lighting is switched off auto-
matically (with AUTO model) or when
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.


)
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.

5
73
VISIBILITY
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.

Switching on


)
With the ignition off, "fl ash" the
headlamps using the lighting stalk.

)
A further "headlamp fl ash" switches
the function off.


Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.


On vehicles fi tted with daytime run-
ning lamps, the dipped beams come on
when the vehicle is started.

* According to country. This warning lamp comes on in
the instrument panel.
Automatic illumination of
headlamps
The sidelamps and dipped beam headlamps
are switched on automatically, without any ac-
tion on the part of the driver, when a low level
of external light is detected or in certain cases
of activation of the windscreen wipers.
As soon as the brightness returns to a suffi -
cient level or after the windscreen wipers are
switched off, the lamps are switched off auto-
matically.

Activation


)
Turn ring A
to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the multifunction screen.


Deactivation


)
Turn ring A
to a position other than
"AUTO"
. Deactivation is accompa-
nied by a message in the multifunc-
tion screen.
The instruments and controls (instru-
ment panel, multifunction screen, air
conditioning control panel, etc.) are not
illuminated, except on switching to the
automatic lighting mode or when the
lighting is switched on manually.
This function can be activated/deactivat-
ed by a CITROËN dealer or a qualifi ed
workshop. In some weather conditions (e.g.
low temperature or humidity),
the presence of misting on the
internal surface of the glass of
the headlamps and rear lamps
is normal; it disappears after
the lamps have been on for a
few minutes.
