headlamp Citroen C3 PICASSO RHD 2011.5 1.G User Guide

5
74
VISIBILITY
In fog or snow, the sunshine
sensor may detect suffi cient
light. Therefore, the lamps will
not come on automatically.
Do not cover the sunshine sen-
sor, linked with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.

Linked with the Guide-me-home
lighting
Association with the automatic illumina-
tion of headlamps provides the guide-me-
home lighting with the following additional
options:


- automatic activation of guide-me-
home lighting when automatic illu-
mination of headlamps is switched
on (in the vehicle parameters of the
multifunction screen confi guration
menu),

-
selection of the duration of maintaining
of the lighting for 15, 30 or 60 seconds
in the vehicle parameters of the mul-
tifunction screen confi guration menu
(except for monochrome screen A

where this is preset).



Operating fault
In the event of a malfunction
of the sunshine sensor, the
lamps come on, this warn-
ing lamp is displayed in the
instrument panel and/or a message ap-
pears in the multifunction screen, ac-
companied by an audible signal.
Contact a CITROËN dealer or a quali-
fi ed workshop.
HEADLAMP ADJUSTMENT

The initial setting is position "0"
. To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing the load in the vehicle.

0.
1 or 2 people in the front seats.

-.
Less than 5 people.

1.
5 people.

-.
5 people + maximum authorised load.

2 - 3.
Driver + maximum authorised load.

11
142
PRACTICAL INFORMATION
CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb.








1.
Direction indicators
(H21W amber).


2.
Dipped

beam

headlamps
(H7-55W).


3.
Main beam headlamps (H1-55W).


4.
Sidelamps

(W5W).


5.
Foglamps

(PSX24W).


The headlamps are fi tted with
polycarbonate glass with a pro-
tective coating:


)
do not clean them using a
dry or abrasive cloth, nor
with a detergent or solvent
product,


)

use a sponge and soapy water,


)
when using a high pressure
washer on persistent marks,
do not keep the lance direct-
ed towards the lamps or their
edges for too long, so as not
to damage their protective
coating and seals.


Front lamps




)
Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a bulb should only be
done after the headlamp has
been switched off for a few min-
utes (risk of serious burns).
It is imperative to use only anti-
ultraviolet (UV) type bulbs in order
not to damage the headlamp.
Always replace a failed bulb
with a new bulb with the same
type and specifi cation.

11
143
PRACTICAL INFORMATION

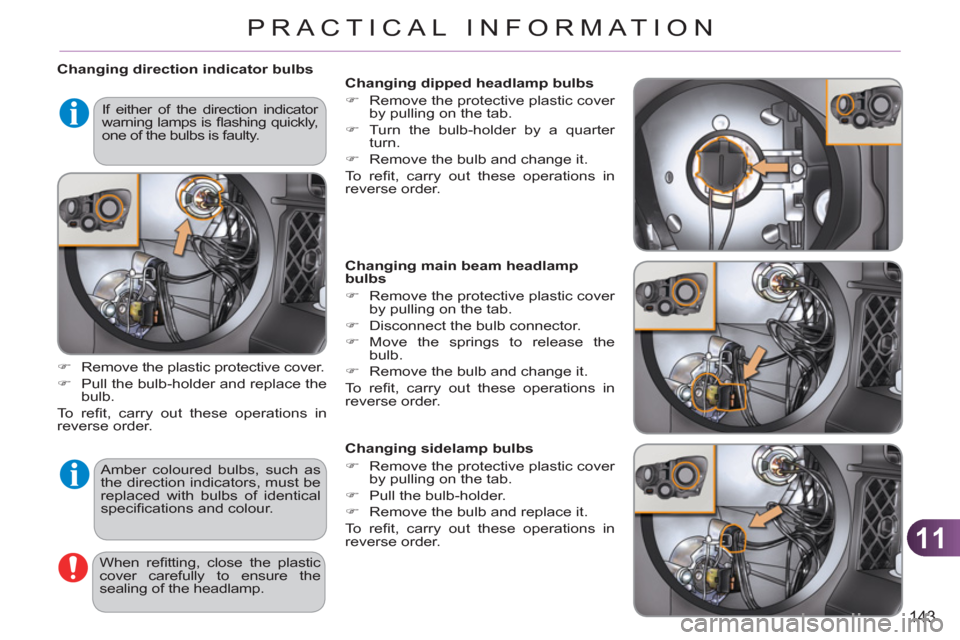

Changing direction indicator bulbs
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cations and colour.

)
Remove the plastic protective cover.

)
Pull the bulb-holder and replace the
bulb.
To r efi t, carry out these operations in
reverse order.
When refi tting, close the plastic
cover carefully to ensure the
sealing of the headlamp.
If either of the direction indicator
warning lamps is fl ashing quickly,
one of the bulbs is faulty.













Changing main beam headlamp
bulbs


)
Remove the protective plastic cover
by pulling on the tab.

)
Disconnect the bulb connector.

)
Move the springs to release the
bulb.

)
Remove the bulb and change it.
To r efi t, carry out these operations in
reverse order.

Changing sidelamp bulbs


)
Remove the protective plastic cover
by pulling on the tab.

)
Pull the bulb-holder.

)
Remove the bulb and replace it.
To r efi t, carry out these operations in
reverse order.






Changing dipped headlamp bulbs


)
Remove the protective plastic cover
by pulling on the tab.

)
Turn the bulb-holder by a quarter
turn.

)
Remove the bulb and change it.
To r efi t, carry out these operations in
reverse order.

11
PRACTICAL INFORMATION


Fuse N°



Rating


Functions



F12



30 A

Windscreen wipers slow/fast speed.


F13



40 A

Built-in systems interface supply (ignition positive).


F14



30 A

Valvetronic supply (petrol).


F15



10 A

Right-hand main beam headlamp.


F16



10 A

Left-hand main beam headlamp.


F17



15 A

Left-hand dipped headlamp.


F18



15 A

Right-hand dipped headlamp.


F19



15 A

Multifunction engine control supply (petrol engine),
air cooling electrovalves (Diesel).


F20



10 A

Multifunction engine control supply (petrol engine),
Turbo pressure regulation valve (Diesel), engine
coolant level detector (Diesel).


F21



5 A

Fan assembly control supply, APC, ABS ESP
relays.

11
157
PRACTICAL INFORMATION
A fl at battery prevents the en-
gine from starting (refer to the
corresponding paragraph).
If the telephone is being used
at the same time on the MyWay
audio navigation system, it will
be interrupted after 10 minutes.
ENERGY ECONOMY MODE

System which manages the period of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
for a maximum combined period of
thirty minutes.
This period may be greatly reduced if
the battery is not fully charged.
Exiting economy mode
These functions are reactivated auto-
matically the next time the vehicle is
driven.


)
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be dou-
ble the period for which the engine is left
running. However, this period will always
be between fi ve and thirty minutes.


Switching to economy mode

Once this period has elapsed, a mes-
sage appears on the multifunction
screen indicating that the vehicle has
switched to economy mode and the
active functions are put on standby.
CHANGING A FRONT OR REARWIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removal



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.



Fitting



)
At the front, check the size of the
wiper blade as the shorter blade is
fi tted to the passenger side of the
vehicle.

)
Put the corresponding new wiper
blade in place and clip it.

)
Fold down the wiper arm carefully.



Before removing a front wiper blade



)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades in the
vertical position.
This position must be used in order to
avoid damaging the wiper blade and the
bonnet.


After fitting a front wiper blade



)
Switch on the ignition.

)
Operate the wiper stalk again to
park the wiper blades.
