Citroen C3 PICASSO RHD 2012.5 1.G Owner's Manual

9
Driving
129
) Select position M.
To engage reverse gear R
, the vehicle must be
immobilised with your foot on the brake pedal.
) Select position R.

At very low speed, if reverse gear is requested,
this will only be acted on when the vehicle is
immobilised.
At high speed, if reverse gear is requested,
the N indicator flashes and the gearbox goes into neutral. To engage a gear again, put thegear lever in position A
or M.


Te m p o r a ry control of gear changing

You can temporarily take over control of gear changing using the "+"and "-"
steering mounted paddles: if the engine speed allows,
the request to change gear is acted on.
This function allows you to anticipate cer tain situations such as over taking a vehicle or the
approach to a corner.

After a few moments without any action on
the control paddles, the gearbox resumes
automatic control of the gears. The
gears engaged appear in
succession in the instrument panelscreen.
The
gear change requests are only acted on if
the engine speed permits.It is not necessary to release the accelerator
during gear changes.
When brakin
g or slowing down, the gearbox changes down automatically to allow the
vehicle to accelerate in the correct gear. On sharp acceleration, the gearbox will notchange up unless the driver acts on the gear lever or the steering mounted paddles.
Never select neutral Nwhile the vehicle is moving.
You can change mode at any time, bemoving the gear lever from M to A
or the other way round.

Engagement of reverse gear isaccompanied by an audible signal.
Manual mode
Reverse

Driving
130
Stopping the vehicle
Operating fault

With the ignition on, the flashing of AUTO ,
accompanied by an audible signal and a
message in the screen, indicates a malfunction
of the gearbox.
Have it checked by a CITROËN dealer or aqualified workshop.

In all cases when parking, you must apply the parking braketo immobilise the vehicle.


When immobilising the vehicle, with theengine running, you must place the gear lever in neutral N.


Before carrying out any work in the
engine compartment, ensure that the gear lever is in neutral N
and that theparking brake is applied. Be
fore switching off the engine, you can:
- move to position Nto engage neutral,
or
- leave the gear engaged; in this case, it will not be possible to move the vehicle.

9
Driving
131





Hill start assist
(with the 6-speed
electronic gearbox
system)
System which holds your vehicle temporarily (approximately 2 seconds) when star ting on a slope, the time it takes to move your foot from
the brake pedal to the accelerator pedal.
This function is onl
y active when:


- the vehicle is completely stationary, with your foot on the brake pedal,

- certain conditions on a slope are met,

- with the driver’s door closed.
The hill start assist function cannot bedeactivated.On an ascendin
g slope, with the vehicle
stationar y, the vehicle is held momentarily
when
you release the brake pedal:- provided you are in automated mode(position A) or in manual mode (position AM )
on an electronic gearbox.On a descendin
g slope, with the vehicle
stationar y and reverse gear engaged, the
vehicle is held momentarily when you
release the brake pedal.

Operating fault

If a malfunction of the system occurs, these
warning lamps come on. Contact a CITROËN
dealer or a qualified workshop to have the system checked.
Do not leave the vehicle while it is being held in the hill star t assist phase. If you need to leave the vehicle withthe engine running, manually applythe parking brake then ensure that the parking brake warning lamp is on (not flashing) in the instrument panel.
Operation

Driving
132








Stop & Start The Stop & Star t system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...). The engine restar ts automatically - START mode - as soon as you want to move off. The restart takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Star t system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
Operation
Going into engine STOP mode
The "ECO"warning lamp comes
on in the instrument panel and the
engine goes into standby:
- with the 6-speed electronic
gearbox
system, at speeds below 5 mph (8 km/h),
when you press the brake pedal or put thegear lever in position N.
A time counter calculates thesum of the periods in STOP
mode during a journey. It rests
itself to zero every time the
ignition is switched on with thekey.

Special cases: STOP mode not available
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph(10 km/h) since the last engine start usingthe key,

- the engine is needed to maintain acomfortable temperature in the passenger compartment,

- demisting is active,

- some special conditions (battery charge,
engine temperature, braking assistance,ambient temperature...) where the engine isneeded to assure control of a system.

The "ECO"warning lamp flashes for
a few seconds then goes off.
This operation is per fectly normal.
Never refuel with the engine in STOPmode; you must switch off the ignition with the key.
For your comfor t, during parkingmanoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear.STOP mode does not affect the functionality of the vehicle, such as for example, braking, power steering...

9
Driving
133

Going into engine START mode
The "ECO"warning lamp goes
off and the engine starts with theelectronic gearboxsystem:


- gear lever in position Aor M
, when yourelease the brake pedal,

- or gear lever in position N
and the brake pedal released, when you move the gear lever to position A
or M,

- or when you engage reverse gear.

Special cases: START invoked automatically
For reasons of safety and for your comfort,START mode is invoked automatically when:
- you open the driver's door,
- you unfasten the driver's seat belt,
- the speed of the vehicle exceeds 7 mph(11 k m/h) with the electronic gearbox system,
- some special conditions (battery charge,engine temperature, braking assistance,
ambient temperature...) where the engine is
needed for control of a system.
Th
e "ECO"
warning lamp flashes for
a
few seconds, then goes off.
This operation is per fectly normal.

Deactivation
At any time, press the "ECO OFF"
switch todeactivate the system.
This is confirmed by the switch warning lamp coming on accompanied by a message in the screen.


If the system has been deactivatedin STOP mode, the engine restar ts immediately.

Driving
134

Operating fault

In the event of a fault with the system, the
"ECO OFF"
switch warning lamp flashes thencomes on continuously.
Have it checked by a CITROËN dealer or aqualified workshop.
In the event o
f a fault in STOP mode, the
vehicle may stall. All of the warning lamps in the instrument panel come on. It is then
necessary to switch off the ignition and star t
the engine again using the key.

Maintenance
This system requires a battery with a specialspecification and technology (reference numbers available from a CITROËN dealer or a qualified workshop).
Fitting a battery not listed by CITROËN introduces the risk of malfunction of
the system.

Before doing anything under the bonnet,deactivate the Stop & Start system toavoid any risk of injury resulting from automatic operation of STA R T m o d e .


The Stop & Star t system makes use of advanced technology. All workon this type of battery must be doneby a CITROËN dealer or a qualifiedworkshop.
Press the "ECO OFF"switch again.
The system is active again; this is con
firmed
by the switch warning lamp going off,accompanied by a message in the screen.
The system is reactivated automaticallyat every new star t using the key.
Reactivation

9
Driving
135





Speed limiter

The controls of this system are grouped
together on stalk A . 1. Speed limiter mode selection thumb wheel. 2.Value decrease button. 3.Value increase button. 4.
Speed limiter on / off button.
The pro
grammed information is grouped
together in the instrument panel screen.
5. Speed limiter on / off indication.6.
Speed limiter mode selection indication.7.
Programmed speed value.


Steering mounted controls Displays in the instrument panel

The speed limiter is switched onmanually:
it requires a programmed speed of at least
20 mph (30 km/h).

The speed limiter is switched offby manual foperation of the control.

The programmed speed can be exceeded
temporarily by pressing the accelerator firmly.
To return to the programmed speed, simply slow down to a speed below the programmed speed.
The pro
grammed speed remains in the memory
when the ignition is switched off.
The speed limiter cannot, in any circumstances,
replace the need to respect speed limits, nor can it replace the need for vigilance andresponsibility on the par t of the driver.



System which prevents the vehicle fromexceeding the speed programmed by the driver.
When the programmed speed limit is reached, pressing the accelerator pedal in the normalmanner no longer has any effect.

Driving
136
Programming
) Turn thumb wheel 1to the "LIMIT"position: the speed limiter mode is selected but is not switched on(PAUSE).
You do not have to switch the s
peed limiter
on in order to set the speed.
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have
an
y effect unless you press the pedal firmlypast the ypoint of resistance.eThe speed limiter is deactivated temporarily and the programmed speed, which
is still displayed, flashes.
Returning to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the
programmed speed.
Leaving limiter mode
)Turn thumb wheel 1
to the "0"position: the speed limiter mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a speed limiter fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a qualified workshop.
)Set the speed value by pressing button 2or 3(e.g.: 55 mph (90 km/h)).
You can then change the programmed speed using buttons 2 and 3 :
- by + or - 1 mph (km/h) = shor t press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press. )Switch the speed limiter on by pressing button 4.)Switch the speed limiter off by pressing button 4: the display confirms that it has been switched off (PAUSE).)Switch the speed limiter back on by pressing button 4
again.

On a steep descent or in the event of sharp acceleration, the speed limiter willnot be able to prevent the vehicle from exceeding the programmed speed.
To a v o i d a ny risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- do not fit one mat on top of another.

9
Driving
137

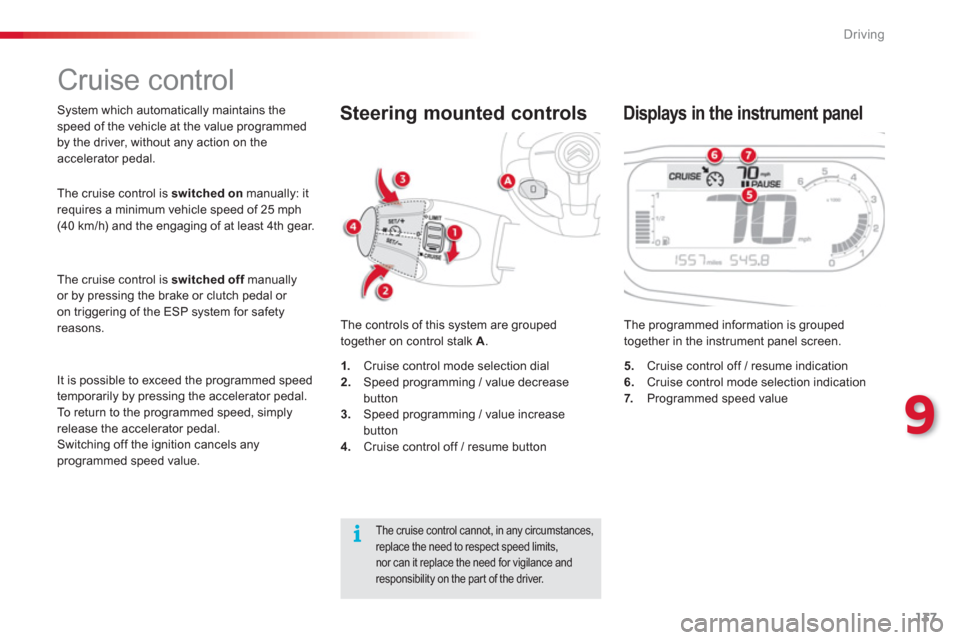

System which automatically maintains thespeed of the vehicle at the value programmed
by the driver, without any action on the
accelerator pedal.
The controls of this s
ystem are grouped
together on control stalk A. The programmed information is grouped
together in the instrument panel screen.

Steering mounted controls Displays in the instrument panel

The cruise control is switched on
manually: it
requires a minimum vehicle speed of 25 mph
(40 km/h) and the engaging of at least 4th gear.
Th
e cruise control is switched off
manually for by pressing the brake or clutch pedal or
on triggering of the ESP system for safety
reasons.
It is possible to exceed the programmed speed
temporaril
y by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal.
Switchin
g off the ignition cancels any programmed speed value. 1
.Cruise control mode selection dial
2. Speed programming / value decreasebutton 3.
Speed programming / value increasebutton 4.
Cruise control off / resume button5
. Cruise control off / resume indication
6. Cruise control mode selection indication
7. Programmed speed value
The cruise control cannot, in any circumstances, replace the need to respect speed limits, nor can it replace the need for vigilance and responsibility on the par t of the driver.






Cruise control

Driving
138
Programming
) Turn dial 1
to the "CRUISE"position:
the cruise control mode is selectedbut is not switched on (PAUSE).
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed speed results in
flashing of this speed in the screen.
Return to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the speed.
Return to normal driving
)Turn dial 1 to the "0"
position: the cruise control mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a cruise control malfunction,
the speed is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a
qualified workshop. )
Set the programmed speed by
accelerating to the required speed,
then press button 2or 3(e.g.: 70 mph (11 0 k m/h)).
)Switch off the cruise control by pressing button 4 : this is confirmed in the screen (PAUSE).
)Switch the cruise control back on by pressing button 4
again.
You can then change the programmed speed using buttons 2
and 3:- by + or - 1 mph (km/h) = shor t press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.

When the cruise control is switched on, be careful if you maintain the pressure on one of the programmed speed changing buttons: this may result in a very rapid change in the speed of your vehicle. Do not use the cruise control on slippery roads or in heavy traffic. On a steep descent, the cruise control will not be able to prevent the vehiclefrom exceeding the programmed speed.
To a v o i d a ny risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- never fit one mat on top of another.
