1. Steering wheel adjustment control. 2.Cruise control / speed limiter switches.3.Lighting and direction indicator controlstalk.4.
Central adjustable air vents.
5. Storage tray.
Scented air freshener.
6.Sunshine sensor.
7
. Passenger's airbag.8.Side adjustable air vent.9.
Glove box.
Fusebox.10.Bonnet release. 11. Dynamic stability control (ESP/ASR) switch.
Parking sensors switch.
Central locking switch.
Hazard warning lamps switch.
Electric child lock switch.
Stop & Star t switch.
12. Heating / air conditioning controls.13.Audio system. 14 .Emergency or assistance call. 15.12 V socket (100 W max).16.
USB por t / auxiliary socket.17.Cup holder. 18.Parking brake.

Instruments and controls

.Familiarisation
11

Steering wheel adjustment
1.
Release the adjustment mechanism. 2.Adjust for height and reach.3.Lock the adjustment mechanism.


Front seat additional
adjustments
Head restraint height
Armrest
A.
Release the armrest.
B. Adjust the armrest.


Sitting comfortably
63

3
Comfort
63

Adjustment
)Adjust the mirror so that the glass is
directed correctly in the "day" position.




Manual day/night model

Da
y / night position
)Pull the lever to change to the "night" anti-dazzle position. )Push the lever to change to the normal"day" position.






Rear view mirror
Adjustable mirror providing a central rearward view.
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...








Steering wheel adjustment
)When stationary, pull the control lever to yrelease the adjustment mechanism.)
Adjust the height and reach to suit your
driving position.) Push the control lever to lock theadjustment mechanism.


As a safety measure, the mirrors should be adjusted to reduce the "blind spot".


As a safety precaution, these operations should only be carried out while the vehicle is stationary.
Automatic day/night model
By means of a sensor, which measures the light from the rear of the vehicle, this system automatically and progressively changes
between the day and night uses.
In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.

Visibility
84








Cornering lighting
With dipped or main beams, this function makes use of the beam from a front foglamp to
illuminate the inside of a bend, when the vehicle speed is below 25 mph (approximately 40 km/h)(urban driving, winding road, intersections, parking manouevres...).
with cornerin
g lighting
without cornering lighting

Switching on

This function starts:


- when the corresponding direction indicator
is switched on,
or

- from a cer tain angle of rotation of the steering wheel.


Switching off

The system does not operate:


- below a cer tain angle of rotation of thesteering wheel,

- above 25 mph (40 km/h),

- when reverse gear is engaged.

8
Safety
113

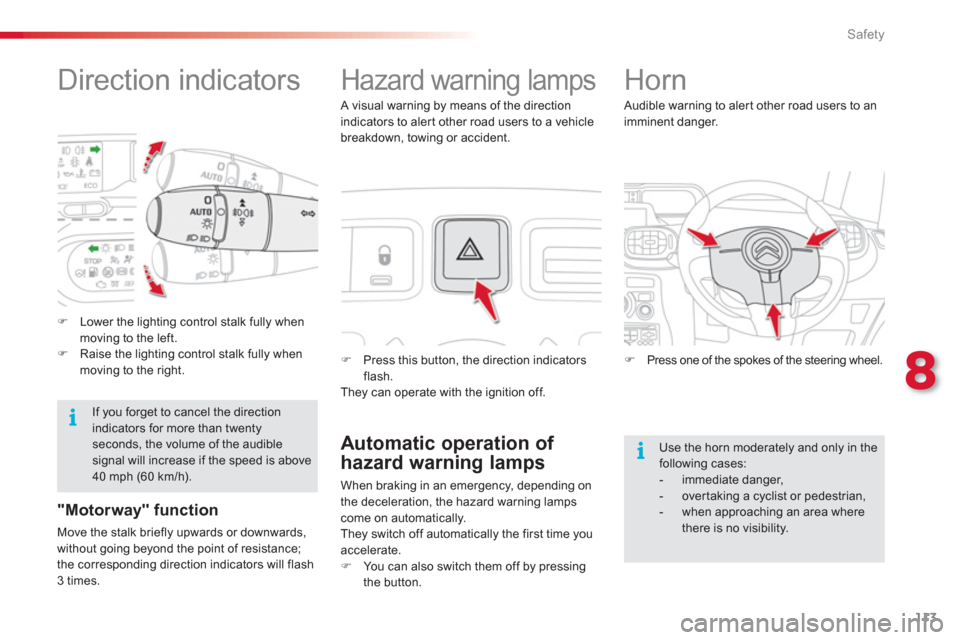

Direction indicators






Hazard warning lamps
)
Press this button, the direction indicators flash.
They can operate with the ignition off.
Automatic operation of
hazard warnin
g lamps
When braking in an emergency, depending on
the deceleration, the hazard warning lampscome on automatically.
They switch off automatically the first time youaccelerate. ) You can also switch them off by pressing
the button.










Horn
)
Press one of the spokes of the steering wheel.
Audible warning to aler t other road users to an
imminent danger.

"Motorway" function

Move the stalk briefly upwards or downwards,
without going beyond the point of resistance;
the corresponding direction indicators will flash 3 times. A visual warnin
g by means of the directionindicators to alert other road users to a vehiclebreakdown, towing or accident.
)Lower the lighting control stalk fully when moving to the left. )Raise the lighting control stalk fully when moving to the right.

If you forget to cancel the direction indicators for more than twenty seconds, the volume of the audible signal will increase if the speed is above40 mph (60 km/h).

Use the horn moderately and only in thefollowing cases:


- immediate danger,

- over taking a cyclist or pedestrian,

- when approaching an area wherethere is no visibility.

8
Safety
121
Airbags
Front airbags

System which protects the driver and front
passenger in the event of a serious front impact
in order to limit the risk of injury to the head andchest.
The driver's airbag is fitted in the centre of the steering wheel; the front passenger's airbag isfitted in the dashboard above the glove box.

Deployment

The airbags are deployed, except for the
passenger's front airbag if it is deactivated,
in the event of a serious front impact applied
to all or par t of the front impact zone A
, in
the longitudinal centreline of the vehicle on a
horizontal plane and directed from the front to
th
e rear of the vehicle.
The front airbag inflates between the frontoccupant of the vehicle and the dashboard to cushion their forward movement.
Impact detection zones
A.
Front impact zone.B.
Side impact zone.
S
ystem designed to maximise the safety of the
occupants (with the exception of the rear centrepassenger) in the event of violent collisions.
The airbags supplement the action of the force-
limitin
g seat belts (with the exception of the rear centre passenger).
If a collision occurs, the electronic detectors
record and analyse the front and side impacts sustained in the impact detection zones:


- in the case of a serious impact, the airbagsare deployed instantly and contribute
towards better protection of the occupants
o
f the vehicle (with the exception of the rear centre passenger); immediately after the
impact, the airbags deflate rapidly so that
they do not hinder visibility or the exit of the
occupants,

- in the case of a minor or rear impact
or in cer tain roll-over conditions, the
airbags will not be deployed; the seat beltalone contributes towards ensuring your protection in these situations.
The airbags do not operate when the ignition is switched off.
This equipment will only deploy once. If a second impact occurs (during thesame or a subsequent accident), the airbag will not be deployed again.
Deployment of the airbag(s) is accompanied by a slight emission of smoke and a noise, due to theactivation of the pyrotechnic cartridgeincorporated in the system.This smoke is not harmful, but sensitiveindividuals may experience slight irritation. The noise of the detonation may resultin a slight loss of hearing for a shorttime.

Safety
124
Front airbags
Do not drive holding the steering wheel by its spokes or resting your hands on the centre partof the wheel.Passengers must not place their feet on the dashboard.If possible, do not smoke as deployment of the airbags can cause burns or the risk of injuryfrom a cigarette or pipe. Never remove or pierce the steering wheel or hit it violently.

Lateral airbags
Use only approved covers on the seats, compatible with the deployment the lateral airbags. For information on the range of seat covers suitable for your vehicle, you can contact aCITROËN dealer.Refer to the "Accessories" section. Do not fix or attach anything to the seat backs (clothing...). This could cause injury to the chestor arms if the lateral airbag is deployed.Do not sit with the upper par t of the body any nearer to the door than necessary.

Curtain airbags
Do not fix or attach anything to the roof. This could cause injury to the head if the cur tainairbag is deployed.If fitted on your vehicle, do not remove the grab handles installed on the roof, they play a par t in securing the curtain airbags.

Do not leave anything between theoccupants and the airbags (a child, pet,object...). This could hamper the operation of the airbags or injure the occupants. After an accident or if the vehicle has beenstolen or broken into, have the airbagsystems checked. All work on the airbag system must be carried out by a CITROËN dealer or a qualified workshop.

Even if all of the precautions mentioned are obser ved, a risk of injury or of minor burns to the head, chest or arms when an airbag is deployed cannot be ruled out. Thebag inflates almost instantly (within a few milliseconds) then deflates within the sametime discharging the hot gas via openings provided for this purpose.
For the airbags to be fully effective, observe the followingsafety rules:

Sit in a normal upright position. Wear a correctly adjusted seat belt.

9
Driving
127














6-speed electronic gearbox system


Six-speed electronic gearbox system which
offers a choice between the comfor t of fullyautomatic operation or the pleasure of manual gear changing.
There are two driving modes: -automatedmode for automatic control
of the gears by the gearbox, without anyaction on the par t of the driver

-
manualmode for sequential gear changing
by the driver using the gear lever or the steering mounted paddles.
In automated mode, you can temporarily take
over control of gear changing.
Gear lever
R.
Reverse )
With your foot on the brake, move the gear lever forwards to select this position.
N. Neutral.) With your foot on the brake, select this
position to start.
A.
Automated mode.)
Move the lever backwards to select this
m
ode. M + /.
Manual mode with sequential gear changing. )
Move the lever backwards then to the left
to select this mode, then:


●

give a push for wards to change up,

●
or give a push rear wards to changedown.
+. Paddle to the right of the steering wheel for changing up. )
Press the back of the "+"
steering mounted paddle to change up a gear. -.
Paddle to the left of the steering wheel for changing down.)
Press the back of the "-"
steering mounted paddle to change down a gear.


Steering mounted control paddles


The steering mounted paddles cannotbe used to select neutral or to engage or disengage reverse gear.

9
Driving
135





Speed limiter

The controls of this system are grouped
together on stalk A . 1. Speed limiter mode selection thumb wheel. 2.Value decrease button. 3.Value increase button. 4.
Speed limiter on / off button.
The pro
grammed information is grouped
together in the instrument panel screen.
5. Speed limiter on / off indication.6.
Speed limiter mode selection indication.7.
Programmed speed value.


Steering mounted controls Displays in the instrument panel

The speed limiter is switched onmanually:
it requires a programmed speed of at least
20 mph (30 km/h).

The speed limiter is switched offby manual foperation of the control.

The programmed speed can be exceeded
temporarily by pressing the accelerator firmly.
To return to the programmed speed, simply slow down to a speed below the programmed speed.
The pro
grammed speed remains in the memory
when the ignition is switched off.
The speed limiter cannot, in any circumstances,
replace the need to respect speed limits, nor can it replace the need for vigilance andresponsibility on the par t of the driver.



System which prevents the vehicle fromexceeding the speed programmed by the driver.
When the programmed speed limit is reached, pressing the accelerator pedal in the normalmanner no longer has any effect.
