Driving
136

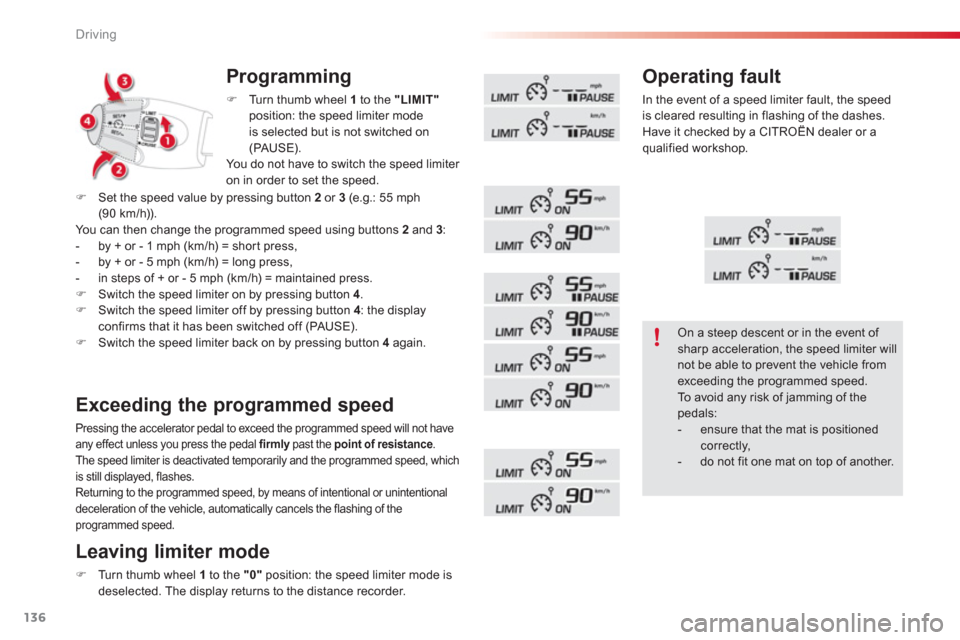

Programming
) Turn thumb wheel 1to the "LIMIT"position: the speed limiter mode is selected but is not switched on(PAUSE).
You do not have to switch the s
peed limiter
on in order to set the speed.
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have
an
y effect unless you press the pedal firmlypast the ypoint of resistance.eThe speed limiter is deactivated temporarily and the programmed speed, which
is still displayed, flashes.
Returning to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the
programmed speed.
Leaving limiter mode
)Turn thumb wheel 1
to the "0"position: the speed limiter mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a speed limiter fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a qualified workshop.
)Set the speed value by pressing button 2or 3(e.g.: 55 mph (90 km/h)).
You can then change the programmed speed using buttons 2 and 3 :
- by + or - 1 mph (km/h) = shor t press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press. )Switch the speed limiter on by pressing button 4.)Switch the speed limiter off by pressing button 4: the display confirms that it has been switched off (PAUSE).)Switch the speed limiter back on by pressing button 4
again.

On a steep descent or in the event of sharp acceleration, the speed limiter willnot be able to prevent the vehicle from exceeding the programmed speed.
To a v o i d a ny risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- do not fit one mat on top of another.

Driving
138

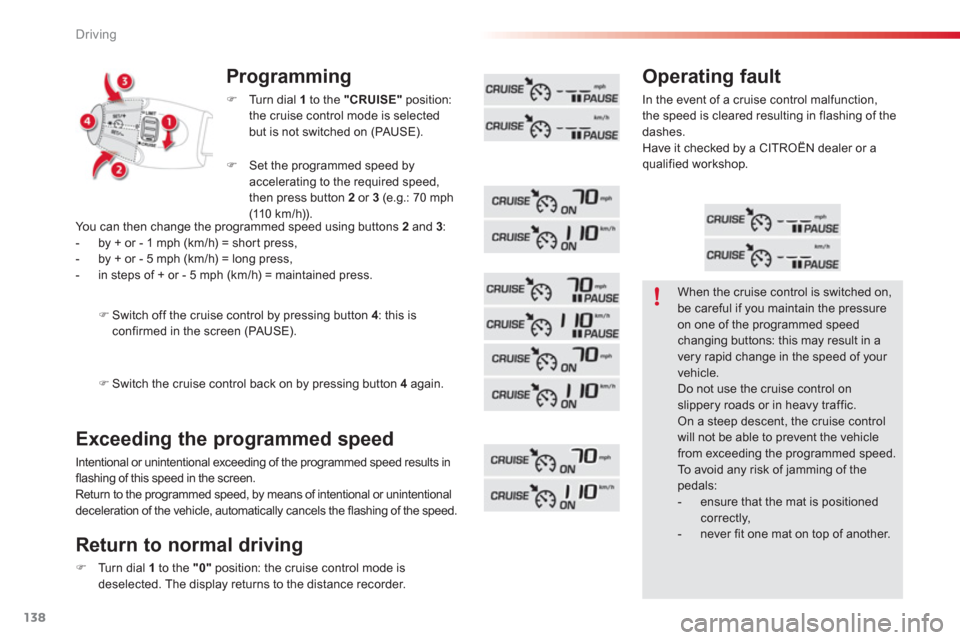

Programming
) Turn dial 1
to the "CRUISE"position:
the cruise control mode is selectedbut is not switched on (PAUSE).
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed speed results in
flashing of this speed in the screen.
Return to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the speed.
Return to normal driving
)Turn dial 1 to the "0"
position: the cruise control mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a cruise control malfunction,
the speed is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a
qualified workshop. )
Set the programmed speed by
accelerating to the required speed,
then press button 2or 3(e.g.: 70 mph (11 0 k m/h)).
)Switch off the cruise control by pressing button 4 : this is confirmed in the screen (PAUSE).
)Switch the cruise control back on by pressing button 4
again.
You can then change the programmed speed using buttons 2
and 3:- by + or - 1 mph (km/h) = shor t press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.

When the cruise control is switched on, be careful if you maintain the pressure on one of the programmed speed changing buttons: this may result in a very rapid change in the speed of your vehicle. Do not use the cruise control on slippery roads or in heavy traffic. On a steep descent, the cruise control will not be able to prevent the vehiclefrom exceeding the programmed speed.
To a v o i d a ny risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- never fit one mat on top of another.

11
Practical information
181








Energy economy mode

These functions are reactivated automatically
the next time the vehicle is driven. ) In order to resume the use of thesefunctions immediately, star t the engine and
let it run for a few minutes.
The time available to you will then be double
the period for which the engine is left running. However, this period will always be between five and thir ty minutes.
Switching to economy mode
Once this period has elapsed, a message appears on the multifunction screen indicating
that the vehicle has switched to economy mode and the active functions are put on standby.
A flat battery prevents the engine from starting (refer to the correspondingparagraph).
If the telephone is being used at thesame time on the eMyWay audionavigation system, it will be interrupted after 10 minutes. S
ystem which manages the period of use of certain functions to conserve a sufficient level
of charge in the battery.
After the engine has stopped, you can still use functions such as the audioequipment, windscreen wipers, dipped
beam headlamps, cour tesy lamps, etc. for a maximum combined period of thirty minutes.
This period may be greatly reduced if the
battery is not fully charged.

12
Technical data
191
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
* For Russia only.
**

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
PETROL ENGINESVTi 95VTi 115*VTi 120VTi 115 *VTi 120
GearboxesManualManualElectronic gearbox system (6-speed)
Model codes:SH ...8FP05FJ0 *5FS05FJ8/P *5FS8/P


- Unladen wei
ght 1 201
1 2041 205


- Kerb wei
ght
1 276
1 279

1 280



- Payload
546549
564
-
Gross vehicle weight (GVW)1747

1 7531 769

-
Gross train weight (GTW)on a 12% gradient
2 597
2 603

2 619
- Braked trailer (within GTW limit)

on a 10% or 12% gradient 850850
850

- Braked trailer **
(with load transfer within the
GTW limit)
1 1001 100
1 100



-
Unbraked trailer 635635
640



- Recommended nose wei
ght
54 54 54

Weights and towed loads (kg)

12
Technical data
193
LPG ENGINEVTi 95
GearboxManual
Model codes:SH...8FN0/GPL


- Unladen wei
ght
1 301



- Kerb wei
ght

1 376



- Payload

446
- Gross vehicle weight (GVW)1747
- Gross train weight (GTW)on a 12 % slope2 597
- Braked trailer
(within GTW limit)

on a 12 % slope 850
- Braked trailer * (with load transfer within the
GTW limit)
1 100



- Unbraked trailer 650



- Recommended nose wei
ght
54

*

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding..
The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load..

Weights and towed loads (kg)

12
Technical data
195

*
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
DIESEL ENGINESHDi 90 PEFe-HDi 90 PEFHDi 115 PEF
GearboxesManualElectronic gearbox systemManual
Model codes:SH ...9HP09HP8/P/S9HD8


- Unladen weight 1 277 1 313
1 318



- Kerb wei
ght
1 352
1 388
1 393



-
Payload502498
489

-
Gross vehicle weight (GVW)

1 779

1 811
1 807
-
Gross train weight (GTW)
on a 12% gradient2 979 3 011
2 757
- Braked trailer
(within GTW limit)

on a 10% or 12% gradient 1 2001 200
950

- Braked trailer *
(with load transfer with the
GTW limit)
1 2001 200

1 200



- Unbraked trailer 675
675675



- Recommended nose wei
ght 54
54 54
The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit th
e towed load.
Weights and towed loads (kg)

201

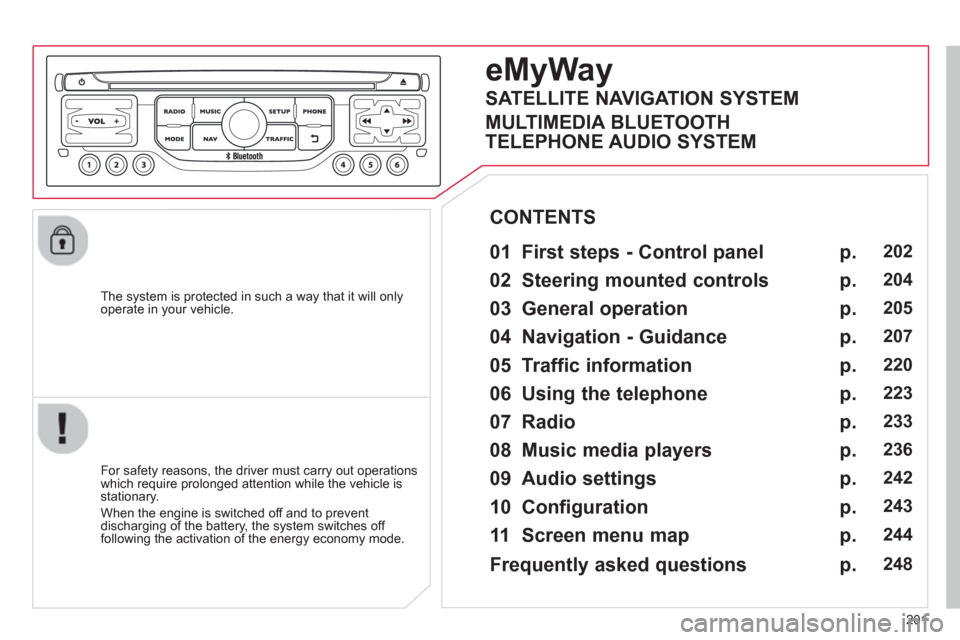

The system is protected in such a way that it will onlyoperate in your vehicle.
eMyWay


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 Steerin
g mounted controls

03 General o
peration

04 Navi
gation - Guidance

05 Traffic information

06 Usin
g the telephone

07 Radio

08 Music media pla
yers

09 Audio settin
gs

10 Confi
guration

11 Screen menu ma
p
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
202
204
205
207
220
223
233
236
242
243
244
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH
TELEPHONE AUDIO SYSTEM

Frequentl
y asked questions p. 248

205
03

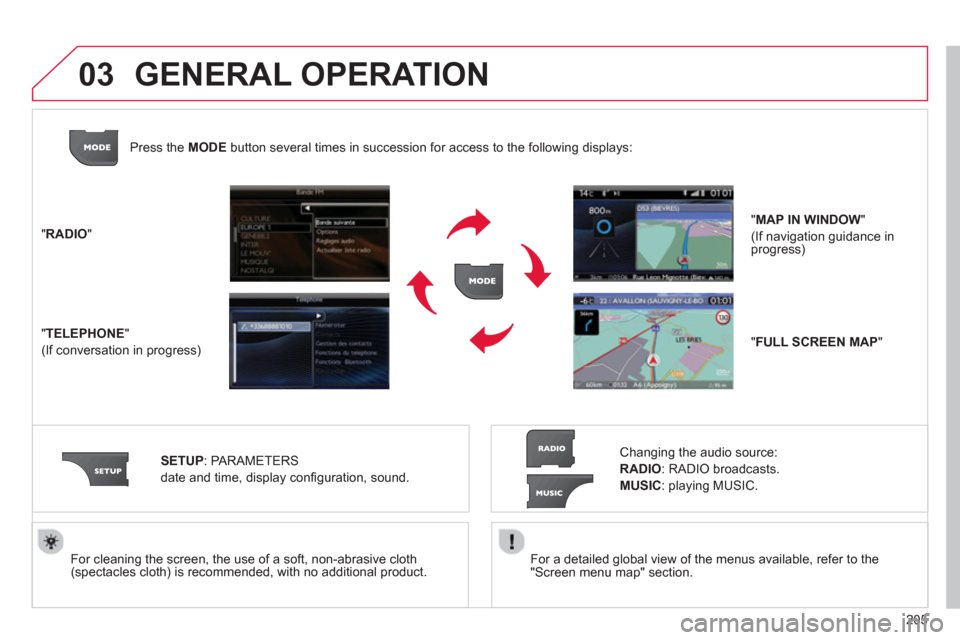

For a detailed global view of the menus available, refer to the
"Screen menu map" section.

For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product. "RADIO
"
"
TELEPHONE"
(If conversation in progress)
SETUP:
PARAMETER
S

date and time, display con
fi guration, sound.
Changing the audio source:
RADIO:
RADIO broadcasts.
MUSIC: playing MUSIC. Pr
ess the MODE button several times in succession for access to the following displays:

GENERAL OPERATION
"FULL SCREEN MAP"
"MAP IN WINDOW"

(If navigation guidance in progress)

225
06

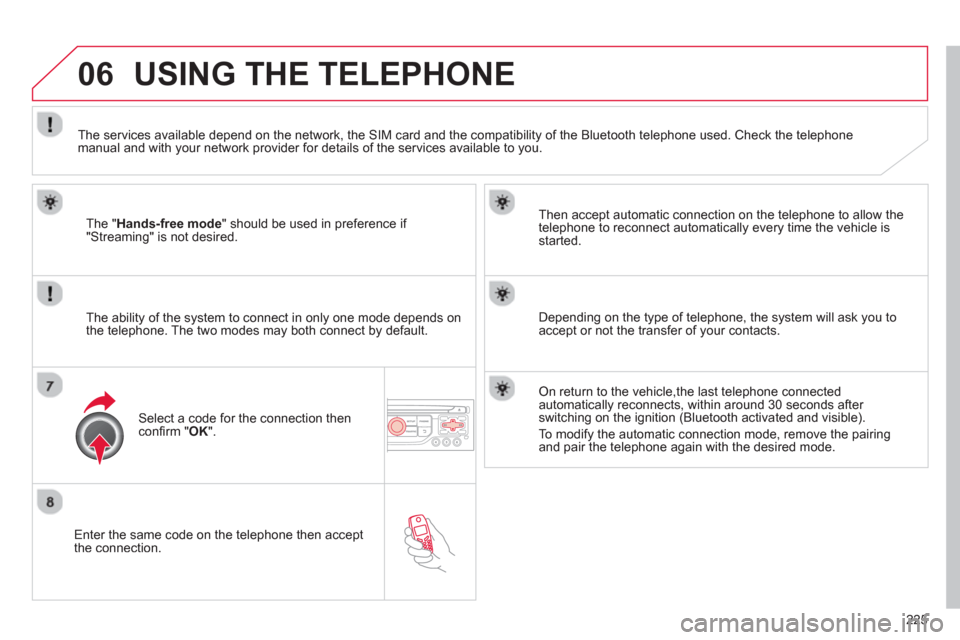

Enter the same code on the telephone then accept
the connection.
Then accept automatic connection on the telephone to allow the
te
lephone to reconnect automatically every time the vehicle is started.

The abilit
y of the system to connect in only one mode depends on
the telephone. The two modes may both connect by default.
USING THE TELEPHONE

The "Hands-free mode
" should be used in preference if "Streaming" is not desired.
The services available depend on the network, the
SIM card and the compatibility of the Bluetooth telephone used. Check the telephone manual and with your network provider for details of the services available to you.
Select a code for the connection thenconfi rm "OK".


Depending on the type of telephone, the system will ask you to
accept or not the transfer of your contacts.

On return to the vehicle,the last telephone connected
automatically reconnects, within around 30 seconds after switching on the ignition (Bluetooth activated and visible).
To modi
fy the automatic connection mode, remove the pairingand pair the telephone again with the desired mode.

237
08

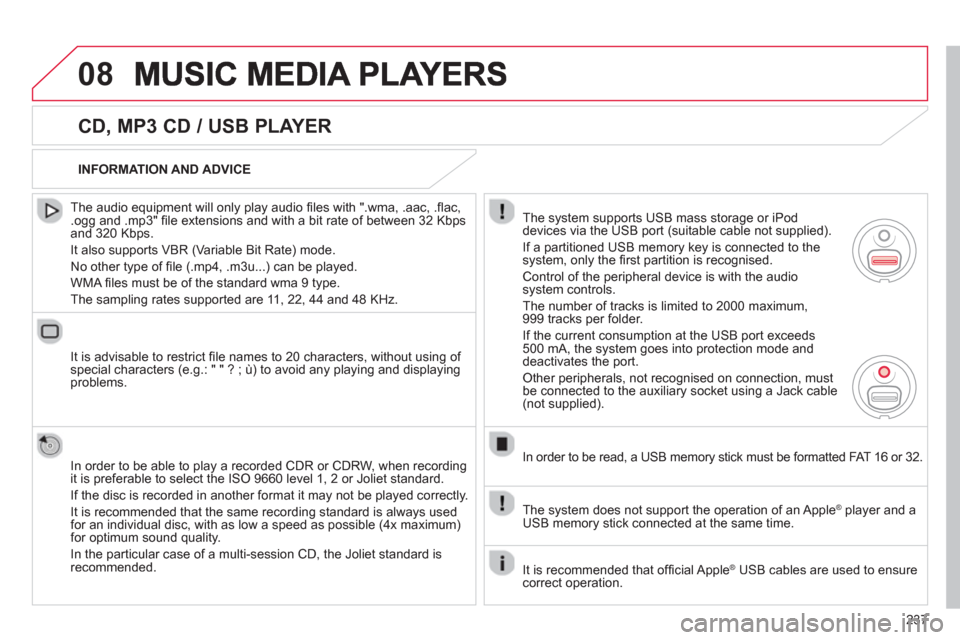

CD, MP3 CD / USB PLAYER


The audio equipment will only play audio fi les with ".wma, .aac, .fl ac, .ogg and .mp3" fi le extensions and with a bit rate of between 32 Kbps
and 320 Kbps.
It also supports VBR
(Variable Bit Rate) mode.
No other t
ype of fi le (.mp4, .m3u...) can be played.
WMA
fi les must be of the standard wma 9 type.
The samplin
g rates supported are 11, 22, 44 and 48 KHz.

It is advisable to restrict fi le names to 20 characters, without usin
g of special characters (e.g.: " " ? ; ù) to avoid any playing and displayingproblems.

In order to be able to pla
y a recorded CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format it ma
y not be played correctly.
It is recommended that the same recordin
g standard is always used
for an individual disc, with as low a speed as possible (4x maximum)for optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet standard isrecommended.
INFORMATION AND ADVICE
The s
ystem supports USB mass storage or iPod
devices via the USB port (suitable cable not supplied).
I
f a partitioned USB memory key is connected to the system, only the fi rst partition is recognised.

Control of the peripheral device is with the audiosystem controls.
The number of tracks is limited to 2000 maximum,
999 tracks per folder.
I
f the current consumption at the USB port exceeds 500 mA, the system goes into protection mode and
deactivates the port.

Other peripherals, not recognised on connection, must
be connected to the auxiliary socket using a Jack cable (not supplied).
In order to be read, a USB memor
y stick must be formatted FAT 16 or 32.

The s
ystem does not support the operation of an AppleÆplayer and a USB memory stick connected at the same time.
It is recommended that o
ffi cial Apple Æ USB cables are used to ensure Æ
correct operation.
