child lock Citroen C3 PICASSO RHD 2012.5 1.G Owner's Manual

.
.
Contents
Conventional child seats 103
ISOFIX child seats 109
Child lock 112
Child safety
Instrument panel 22
Indicator and warning lamps 23
Indicators 31
Adjustment buttons 34
Monitoring Familiarisation
Screens with audio equipment 35
Tr i p c o m p u t e r 45
Multifunction screens
Ventilation 48
Rear screen demist/defrost 50
Heating 51
Manual air conditioning 51
Dual-zone digital air conditioning 53
Scented air freshener 56
Front seats 57
Rear seats 60
Mirrors 62
Steering wheel adjustment 63
Comfort
Remote control key 64
Window controls
69
Doors 71
Boot 74
Panoramic sunroof 75
Fuel tank 76
Misfuel prevention (Diesel) 78
Access
Lighting controls 79
LED lamps 83
Cornering lighting 84
Headlamp adjustment 85
Wiper controls 86
Courtesy lamps 89
Boot lamp 91
Visibility
Front fi ttings 92
Rear fi ttings 96
Boot fi ttings 99
Fittings Eco-driving

.Familiarisation
9
1. Steering wheel adjustment control. 2.Cruise control / speed limiter switches.3.Lighting and direction indicator controlstalk.4.
Central adjustable air vents.
5. Storage tray.
Scented air freshener.
6.Sunshine sensor.
7
. Passenger's airbag.8.Side adjustable air vent.9.
Glove box.
Fusebox.10.Bonnet release. 11. Dynamic stability control (ESP/ASR) switch.
Parking sensors switch.
Central locking switch.
Hazard warning lamps switch.
Electric child lock switch.
Stop & Star t switch.
12. Heating / air conditioning controls.13.Audio system. 14 .Emergency or assistance call. 15.12 V socket (100 W max).16.
USB por t / auxiliary socket.17.Cup holder. 18.Parking brake.

Instruments and controls

Familiarisation
16

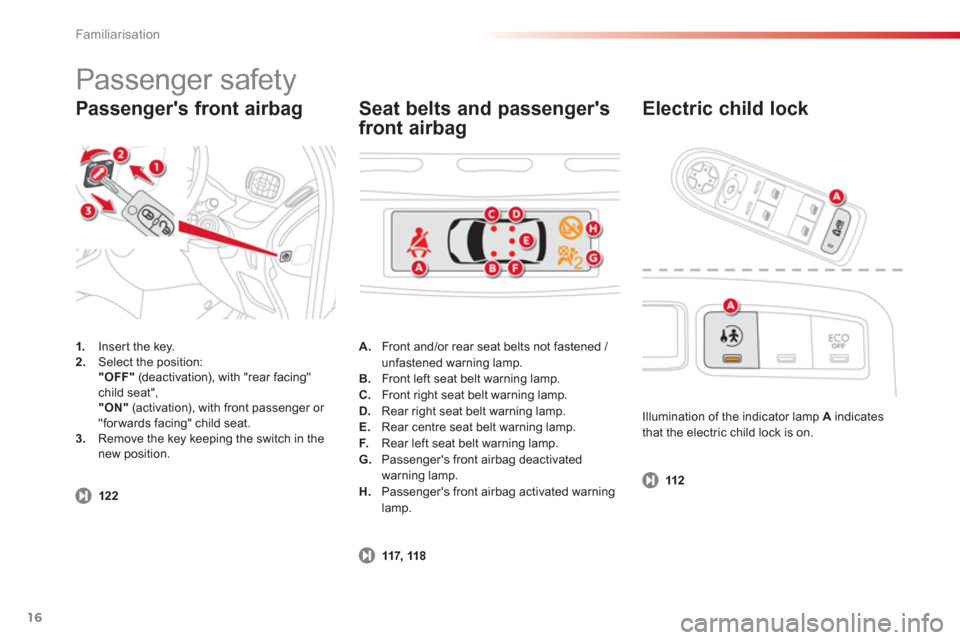

Passenger's front airbag
Electric child lock
1.
Inser t the key.2.
Select the position:
"OFF"
(deactivation), with "rear facing" child seat",
"ON"
(activation), with front passenger or "forwards facing" child seat.3.
Remove the key keeping the switch in the new position. Illumination of the indicator lamp
A
indicatesthat the electric child lock is on. A
. Front and/or rear seat belts not fastened / unfastened warning lamp.B.
Front left seat belt warning lamp.C.
Front right seat belt warning lamp.D.Rear right seat belt warning lamp.
E.Rear centre seat belt warning lamp.
F. Rear left seat belt warning lamp.
G.Passenger's front airbag deactivated
warning lamp.
H.Passenger's front airbag activated warning lamp.


Seat belts and passenger's
front airba
g
Passenger safety
122
117, 118
112

Monitoring
22

















Petrol - Diesel instrument panel
Panel grouping together the digital indicator, the multifunction screen and the vehicle operation
indicator lamps.
1.Rev counter.Indicates the speed of rotation of the
engine (x 1000 rpm). 2. Rev counter zone indicating that you must change up a gear. 3.Speed limiteror

Cruise control.(mph or km/h)
4.Electric child lock indicator lamp.Indicates, for a few seconds, the activation
of the electric child lock (deactivation of the rear windows and doors).
Tr a n s l u c e n t d igital instrument panel
This screen groups together the warning and
information messages.

Multifunction screen

Indicator lamps display zone
This zone groups together the vehicle operation indicator lamps.


Display zero reset button

This permits resetting of the function selected
to zero (trip distance recorder or ser vice
indicator).

Instrument panel lighting button

This adjusts the brightness of the lighting of theinstruments and controls. 5
.Fuel level. Indicates the quantity of fuel remaining in
the tank.
6.Vehicle speed. Indicates the current speed of the moving
vehicle (mph or km/h).
7.Trip distance recorder. (miles or km) 8. Ser vice indicator.
(miles or km) then, Distance recorder. (miles or km) 9.Engine oil level indicator.


For more information, refer to the paragraph relating to the button or function and its associated display.

1
Monitoring
25


airbag system fixed. The control switch, located at the driver's end of the dashboard, is in the "ON"position.
The passenger's front airbag is activated.
In this case, do not install a rear-facing child seat.
Turn the control switch to the "OFF" position to
deactivate the front passenger's airbag.
In this case you can install a rear-facing child seat.
Warning lampis onCauseAction / Observations
Electric child
lock

temporarily. The electric child lock is activated. Displayed for a few seconds after activating the
function and every time the ignition is switched on.
For more information, refer to the "Child safety"section.

Comfort
56








Scented air freshener System permitting the diffusion of a fragrance in the passenger compar tment in accordance with your requirements, by means of the adjustment dial and the various fragrance car tridges available.

Fitting the cartridge
)Remove the cartridge from the sealing case. )Install the car tridge (flower at top right).
)Press the dial and turn it a quarter of a turnclockwise.

Thi
s dial is located on the dashboard or in the
upper glove box.
It allows you to adjust the intensity of diffusion
of the fragrance.)Turn the dial to the right to permit diffusion
of the fragrance.)Turn the dial to the left to stop diffusion of
the
fragrance.

Fragrance cartridge


Removing the cartridge
)Press the dial and turn it a quarter of a turnanti-clockwise. )Remove the cartridge.)Refit its sealing case.

As a safety precaution, do not carry out any action on the car tridge whiledriving. Do not dismantle the car tridges.Do not attempt to refill the fragrancediffuser or the cartridges.
Avoid all contact with the skin and eyes.Keep out of reach of children and animals.
Do not discard the original cartridge as this ser ves as a plug when no fragrance car tridge is in use. In order to preser ve the ser vice life of thecartridge, turn the dial to the left when you no longer wish to diffuse the fragrance in the passenger compartment.

Leave the central vents open.
The intensity of diffusion of the fragrance may depend on the ventilationor air conditioning settings.
Adjustment dial
This car tridge can be removed easily.
You can change it at any time and store it in the
sealed case which keeps it closed once it has been opened.
You can obtain different fragrance car tridges
from a CITROËN dealer or a qualified
workshop.

Access
68

Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would haveto be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition is switched off, except for reinitialisation.


Locking the vehicle

Driving with the doors locked may make access to the passenger compar tment by theemergency services more difficult in an emergency.
However, the vehicle unlocks automatically in the event of a serious impact causing airbag deployment. As a safety precaution, never leave children alone in the vehicle, except for a very shor t period.
In all cases, it is essential to remove the key from the ignition switch when leaving the vehicle.


Anti-theft protection

Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.


When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a CITROËN dealer, to ensure that only your keys can be used to open and start the vehicle.
Lost keys

Visit a CITROËN dealer with the vehicle's registration document, your personal identification documents and if possible the key code label.
The CITROËN dealer will be able to look up the key code and the transponder coderequired to order a new key.
Do not throw the remote controlbatteries away, they contain metals which are harmful to the environment.
Take them to an approved collectionpoint.

Access
70

Reinitialisation

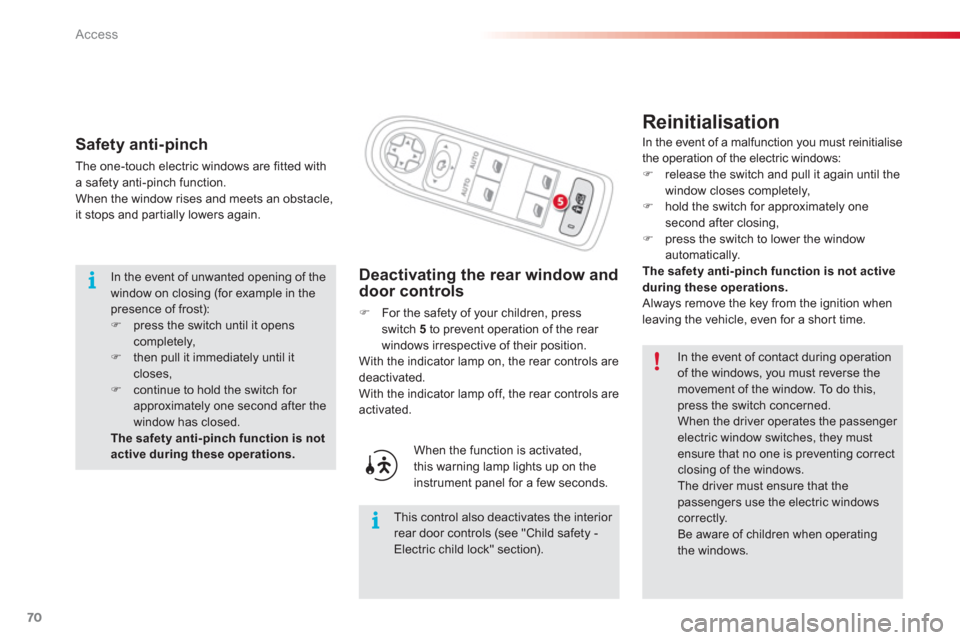

Deactivating the rear window and door controls
)
For the safety of your children, press switch 5to prevent operation of the rear
windows irrespective of their position.
With the indicator lamp on, the rear controls aredeactivated.
With the indicator lamp off, the rear controls are
activated.
When the
function is activated,
this warning lamp lights up on the
instrument panel for a few seconds.
This control also deactivates the interior rear door controls (see "Child safety -Electric child lock" section).
In the event of contact during operationof the windows, you must reverse the movement of the window. To do this,press the switch concerned.
When the driver operates the passenger
electric window switches, they mustensure that no one is preventing correct closing of the windows.
The driver must ensure that the passengers use the electric windowscorrectly.
Be aware of children when operating the windows.
Safety anti-pinch
The one-touch electric windows are fitted with a safety anti-pinch function.When the window rises and meets an obstacle, it stops and partially lowers again.

In the event of unwanted opening of thewindow on closing (for example in the presence of frost): )press the switch until it opens completely, )then pull it immediately until itcloses,)continue to hold the switch for approximately one second after thewindow has closed.
The safety anti-pinch function is not active during these operations.

In the event of a malfunction you must reinitialise
the o
peration of the electric windows: )release the switch and pull it again until the
window closes completely, )hold the switch for approximately onesecond after closing,
)press the switch to lower the window automatically. The safety anti-pinch function is not active
during these operations. Always remove the key from the ignition when
leaving the vehicle, even for a shor t time.

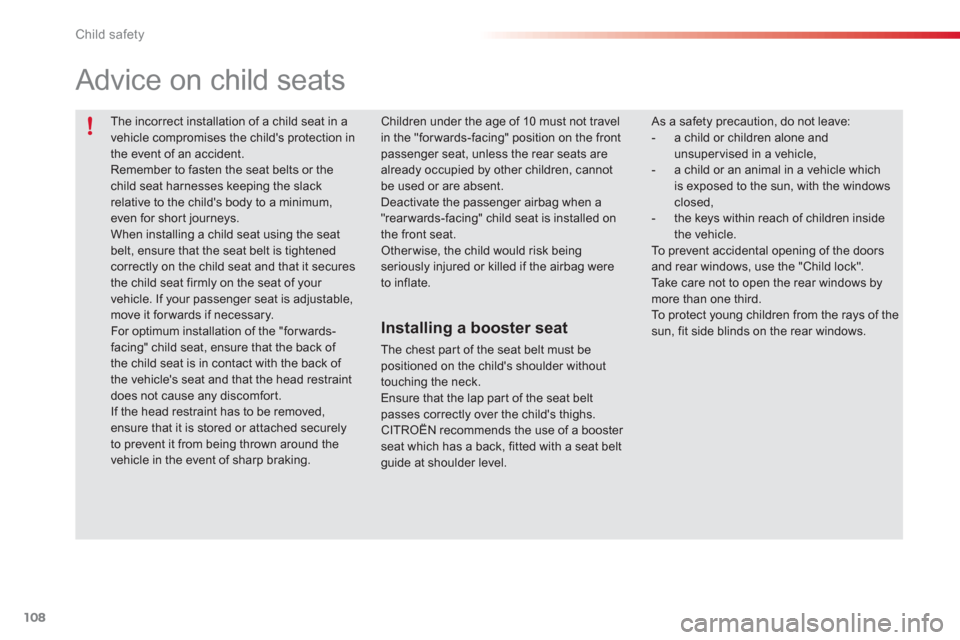

Child safety
108
The incorrect installation of a child seat in a vehicle compromises the child's protection inthe event of an accident.

Remember to fasten the seat belts or the child seat harnesses keeping the slackrelative to the child's body to a minimum,even for shor t journeys.
When installing a child seat using the seat belt, ensure that the seat belt is tightenedcorrectly on the child seat and that it securesthe child seat firmly on the seat of your vehicle. If your passenger seat is adjustable,move it for wards if necessary.
For optimum installation of the "forwards-facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfor t.
If the head restraint has to be removed,ensure that it is stored or attached securelyto prevent it from being thrown around the vehicle in the event of sharp braking.
Children under the age of 10 must not travel in the "forwards-facing" position on the frontpassenger seat, unless the rear seats are
already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag when a "rearwards-facing" child seat is installed on the front seat.
Other wise, the child would risk being seriously injured or killed if the airbag were to inflate.
As a safety precaution, do not leave:- a child or children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle whichis exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To prevent accidental opening of the doors and rear windows, use the "Child lock".Take care not to open the rear windows by more than one third. To protect young children from the rays of thesun, fit side blinds on the rear windows.





Advice on child seats


Installing a booster seat

The chest par t of the seat belt must be positioned on the child's shoulder withouttouching the neck.
Ensure that the lap part of the seat belt passes correctly over the child's thighs.
CITROËN recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.

Child safety
112

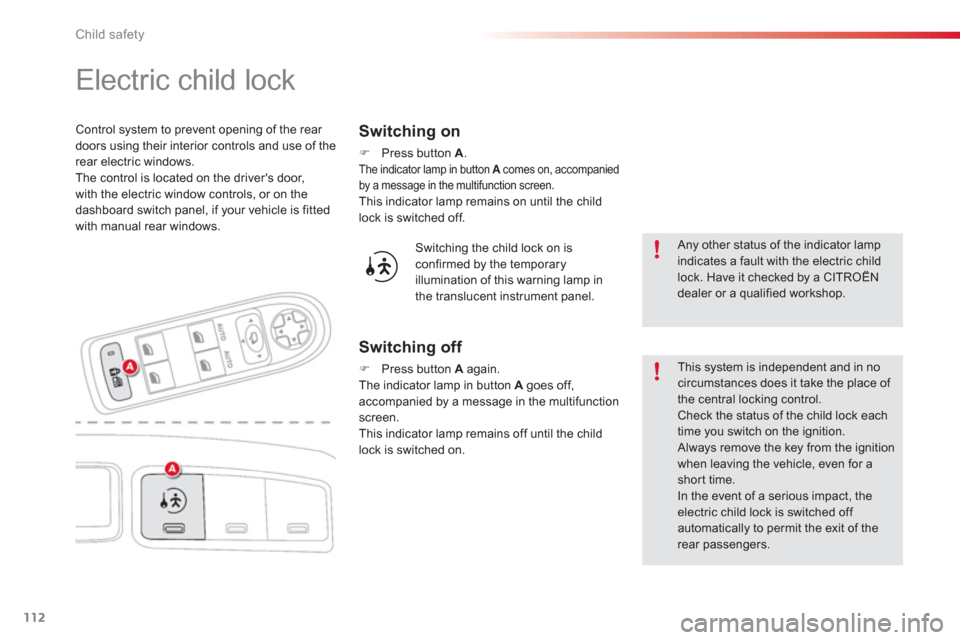

Electric child lock


Switching on
)
Press button A
.
The indicator lamp in button Acomes on, accompaniedAby a message in the multifunction screen.
This indicator lamp remains on until the childlock is switched off.


Switching off
)
Press button A
again.
The indicator lamp in button A
goes off,
accompanied by a message in the multifunction screen.
This indicator lamp remains off until the child
lock is switched on. Switchin
g the child lock on isconfirmed by the temporary
illumination of this warning lamp in
the translucent instrument panel.

Any other status of the indicator lampindicates a fault with the electric child lock. Have it checked by a CITROËN dealer or a qualified workshop.

This system is independent and in nocircumstances does it take the place of the central locking control. Check the status of the child lock eachtime you switch on the ignition.
Always remove the key from the ignition when leaving the vehicle, even for a short time.
In the event of a serious impact, the electric child lock is switched off automatically to permit the exit of therear passengers.
Control system to prevent opening of the rear
doors using their interior controls and use of the rear electric windows.
The control is located on the driver's door,
with the electric window controls, or on the
dashboard switch panel, if
your vehicle is fitted
with m
anual rear windows.
