Changing a bulbProcedure for replacing a faulty bulb with a new bulb.1.
D
irection indicators (H21W amber).
2.
D

ipped beam headlamps (H7-55W).
3.
M

ain beam headlamps (H1-55W).
4.
S

idelamps (W5W).
5.
F

oglamps (PSX24W).
6.
L

ED daytime running lamps.
Front lampsThe headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u
se a sponge and soapy water or a
pH neutral product,
F

w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals. Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
11
Practical information

170

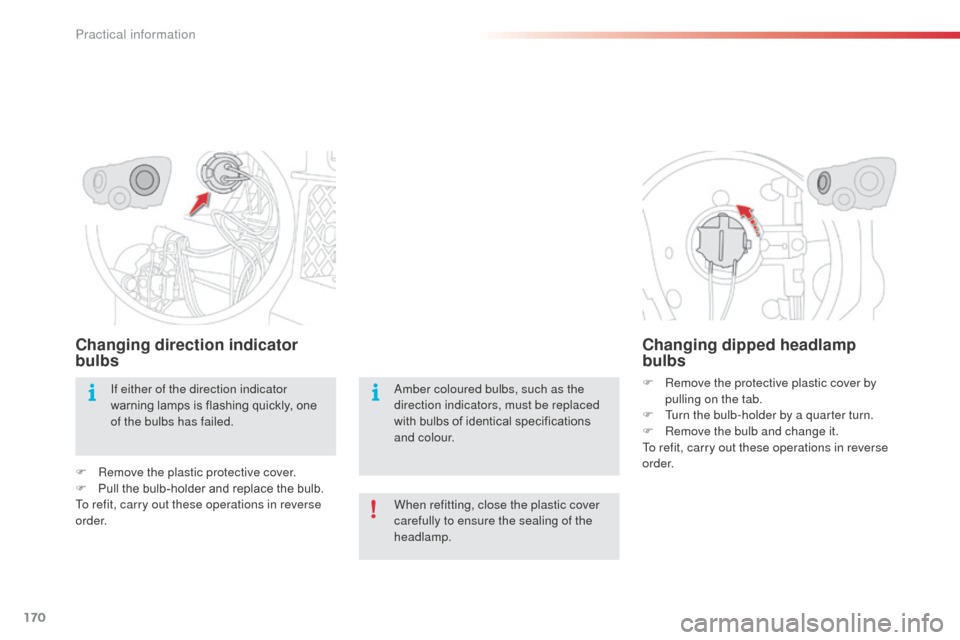

Changing direction indicator
bulbs
F Remove the plastic protective cover.
F P ull the bulb-holder and replace the bulb.
To refit, carry out these operations in reverse
o r d e r.
Changing dipped headlamp
bulbs
F Remove the protective plastic cover by pulling on the tab.
F

T
urn the bulb-holder by a quarter turn.
F

R
emove the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
If either of the direction indicator
warning lamps is flashing quickly, one
of the bulbs has failed.
When refitting, close the plastic cover
carefully to ensure the sealing of the
headlamp. Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
Practical information

171

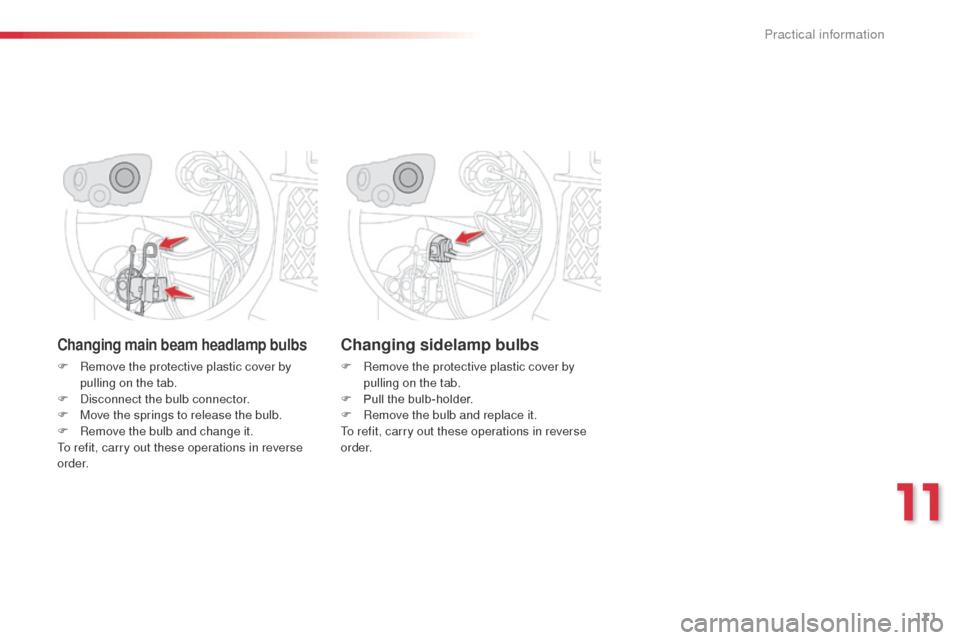

Changing main beam headlamp bulbs
F Remove the protective plastic cover by pulling on the tab.
F

D
isconnect the bulb connector.
F

M
ove the springs to release the bulb.
F

R
emove the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
Changing sidelamp bulbs
F Remove the protective plastic cover by pulling on the tab.
F

P
ull the bulb-holder.
F

R
emove the bulb and replace it.
To refit, carry out these operations in reverse
o r d e r.
11
Practical information

172

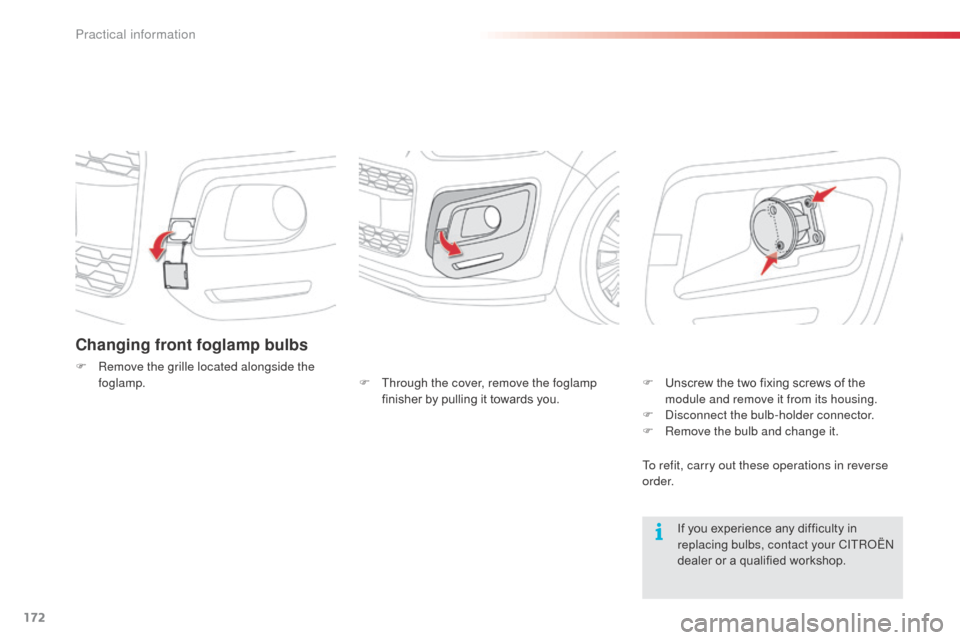

Changing front foglamp bulbs
F Remove the grille located alongside the foglamp.
If you experience any difficulty in
replacing bulbs, contact your CITROËN
dealer or a qualified workshop.
F

T
hrough the cover, remove the foglamp
finisher by pulling it towards you. F

U
nscrew the two fixing screws of the
module and remove it from its housing.
F

D
isconnect the bulb-holder connector.
F

R
emove the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
Practical information

173
Changing the LED lamps
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.

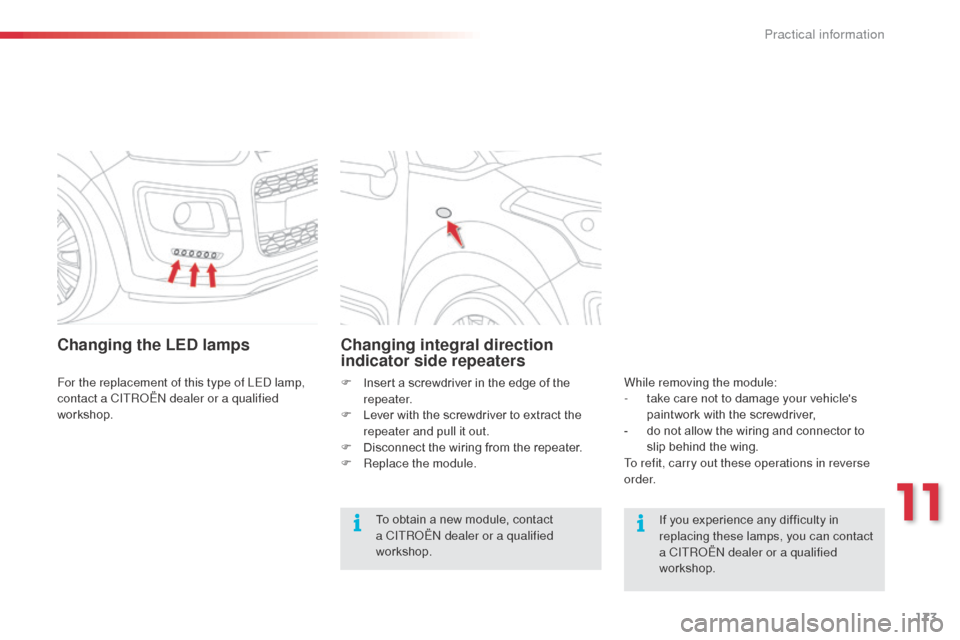

Changing integral direction
indicator side repeaters
To obtain a new module, contact
a CITROËN dealer or a qualified
workshop.If you experience any difficulty in
replacing these lamps, you can contact
a CITROËN dealer or a qualified
workshop.
While removing the module:
-

t
ake care not to damage your vehicle's
paintwork with the screwdriver,
-
d
o not allow the wiring and connector to
slip behind the wing.
To refit, carry out these operations in reverse
o r d e r.
F

I

nsert a screwdriver in the edge of the
repeater.
F

L

ever with the screwdriver to extract the
repeater and pull it out.
F

D

isconnect the wiring from the repeater.
F

R

eplace the module.
11
Practical information

174

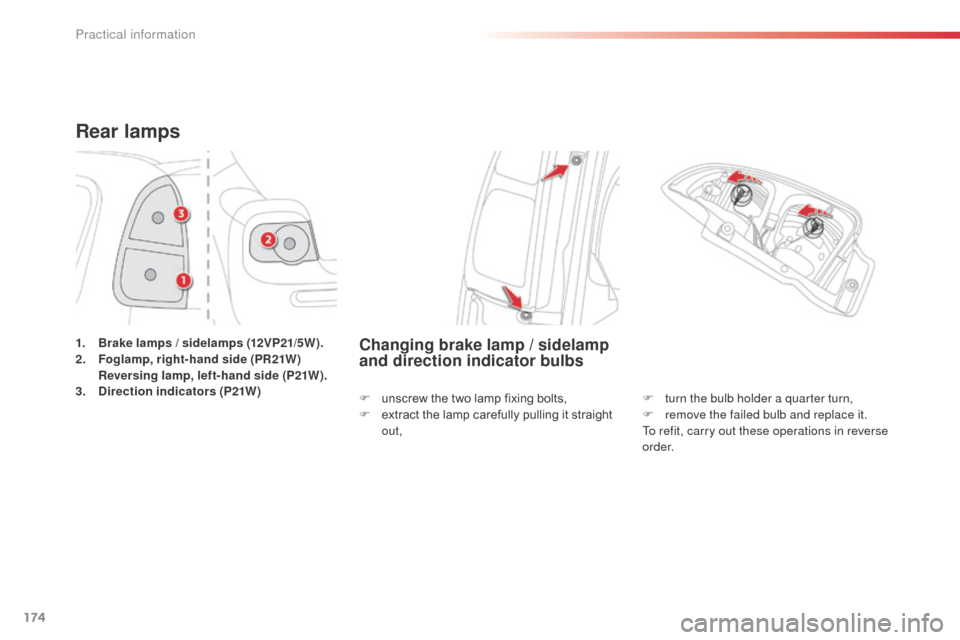

Rear lamps
1. Brake lamps / sidelamps (12VP21/5W).
2. Foglamp, right-hand side (PR21W)
R

eversing lamp, left-hand side (P21W).
3.
D

irection indicators (P21W)Changing brake lamp / sidelamp
and direction indicator bulbs
F turn the bulb holder a quarter turn,
F r emove the failed bulb and replace it.
To refit, carry out these operations in reverse
o r d e r.
F
u
nscrew the two lamp fixing bolts,
F
e
xtract the lamp carefully pulling it straight
out,
Practical information

175
Changing foglamp / reversing
lamp bulbs
F open the boot,
F p ress on the tabs using 2 screwdrivers,
F

d
isconnect the lamp connector,
F

t
urn the bulb holder by a quarter turn,
F

r
emove the bulb and replace it.
To refit, carry out these operations in reverse
o r d e r.
Changing the third brake lamp
bulbs (4 W5W bulbs)
F open the boot,
F r emove the two plugs located on the boot
inner panel,
F

p
ress on the body of the lamp with
2
screwdrivers to remove it from its housing,
F

t
urn the corresponding bulb-holder a
quarter turn,
F

p
ull the bulb out and replace it.
To refit, carry out these operations in reverse
o r d e r.
Changing the number plate lamp
bulbs (W5W)
F insert a thin screwdriver into one of the lens' exterior holes,
F

p
ush it outwards to unclip.
F

r
emove the lens.
F

p
ull the bulb out and replace it.
To refit, carry out these operations in reverse
o r d e r.
11
Practical information

176

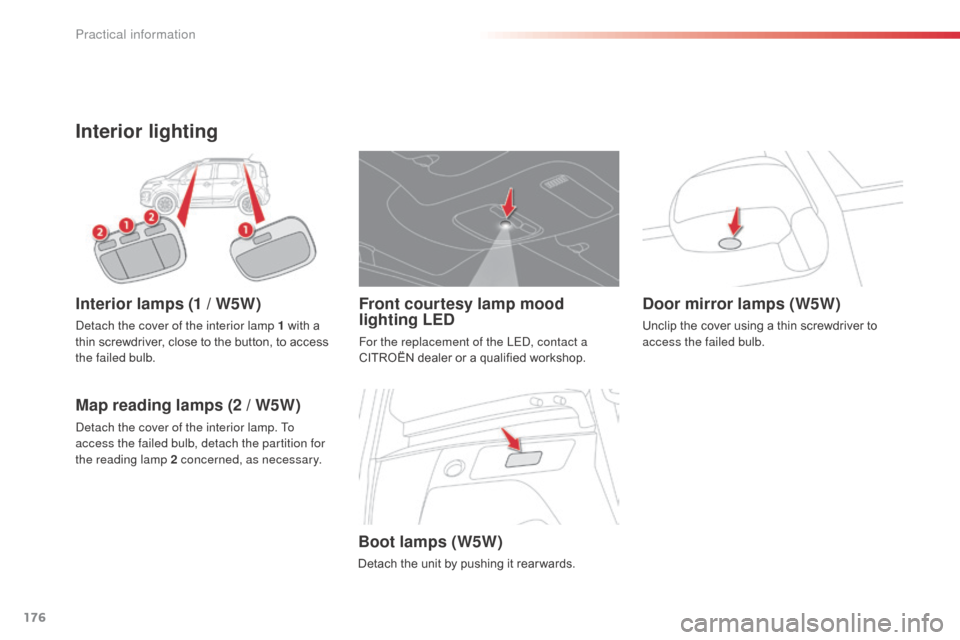

Interior lighting
Interior lamps (1 / W5W)
Detach the cover of the interior lamp 1 with a
thin screwdriver, close to the button, to access
the failed bulb.
Map reading lamps (2 / W5W)
Detach the cover of the interior lamp. To
access the failed bulb, detach the partition for
the reading lamp 2 concerned, as necessary.
Boot lamps (W5W)
Detach the unit by pushing it rear wards.
Front courtesy lamp mood
lighting LED
For the replacement of the LED, contact a
CITROËN dealer or a qualified workshop.
Door mirror lamps (W5W)
Unclip the cover using a thin screwdriver to
access the failed bulb.
Practical information

177
Changing a fuseProcedure for replacing a failed fuse with a new fuse to rectify a failure of the corresponding function.
The extraction tweezer and the spare fuse
storage compartment are installed on the back
of the dashboard fusebox cover.
For access to them:
F
O
pen the glove box,
F

u
nclip the fuse access cover by pulling on
the side,
F

r
emove the cover completely,
F

r
emove the tweezer.
Changing a fuse
Before changing a fuse, the cause of the failure
must be identified and rectified.
F
I
dentify the failed fuse by checking the
condition of its filament.
F

U
se the special tweezer to extract the fuse
from its housing.
F

A
lways replace the faulty fuse with a fuse
of the same rating.
F

C
heck that the number marked on the
fusebox, the rating marked on the fuse and
the following tables all agree. Good
FailedCITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer or a
qualified workshop.
Access to the tooling
11
Practical information

178
Dashboard fuses
The fusebox is located in the glove box.
Access to the fuses
F refer to the paragraph "Access to the tooling".
Fuse tables
Fuse N° Rating Functions
FH36 5 ATrailer relay unit.
FH37 15 ATrailer accessories socket supply.
FH38 20 ANavigation.
FH39 -Not used.
FH40 30 ATrailer relay unit.
Fuse N° Rating Functions
F1 15 ARear wiper.
F2 -Not used.
F3 5 AAirbags and pretensioners control unit.
F4 10 ASteering wheel angle sensor, air conditioning, clutch switch,
particle filter pump, diagnostic socket, air flow meter.
F5 30 AElectric windows panel, passenger's electric window control,
front electric windows motor.
F6 30 ARear electric windows motor and driver's electric window motor.
F7 5 ACourtesy and front map reading lamps, rear reading lamps.
