service indicator Citroen C3 PICASSO RHD 2016 1.G User Guide

144

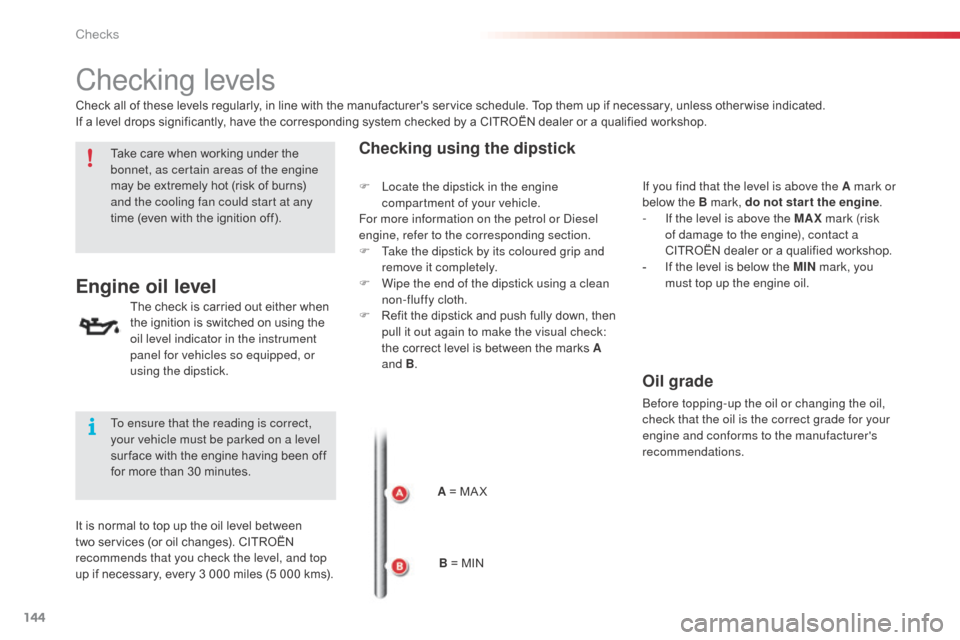

Checking levels
Engine oil level
The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles so equipped, or
using the dipstick.
Checking using the dipstick
A = MA X
Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.
Take care when working under the
bonnet, as certain areas of the engine
may be extremely hot (risk of burns)
and the cooling fan could start at any
time (even with the ignition off).
To ensure that the reading is correct,
your vehicle must be parked on a level
sur face with the engine having been off
for more than 30 minutes.
It is normal to top up the oil level between
two services (or oil changes). CITROËN
recommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms). B = MINIf you find that the level is above the A mark or
below the B mark, do not star t the engine
.
-
I
f the level is above the MAX
mark (risk
of damage to the engine), contact a
CITROËN dealer or a qualified workshop.
-
I
f the level is below the MIN
mark, you
must top up the engine oil.
Oil grade
Before topping-up the oil or changing the oil,
check that the oil is the correct grade for your
engine and conforms to the manufacturer's
recommendations.
F

L

ocate the dipstick in the engine
compartment of your vehicle.
For more information on the petrol or Diesel
engine, refer to the corresponding section.
F

T

ake the dipstick by its coloured grip and
remove it completely.
F

W

ipe the end of the dipstick using a clean
non-fluffy cloth.
F

R

efit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between the marks A
and B .
Checks

145
Brake fluid level
The brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.
Changing the fluid
Refer to the manufacturer's service schedule
for details of the interval for this operation.
Fluid specification
The brake fluid must conform to the
manufacturer's recommendations.
Topping-up the engine oil level
F Locate the oil filler cap in the engine compartment of your vehicle.
For more information on the petrol or Diesel
engine, refer to the corresponding section.
F

U
nscrew the oil filler cap to reveal the filler
aperture.
F

A
dd oil in small quantities, avoiding any
spills on engine components (risk of fire).
F

W
ait a few minutes before checking the
level again using the dipstick.
F

A
dd more oil if necessary.
F

A
fter checking the level, carefully refit the
oil filler cap and the dipstick in its tube.
After topping-up the oil, the check when
switching on the ignition with the oil level
indicator in the instrument panel is not valid
during the 30 minutes after topping up.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, never use
additives in the engine oil.
10
Checks

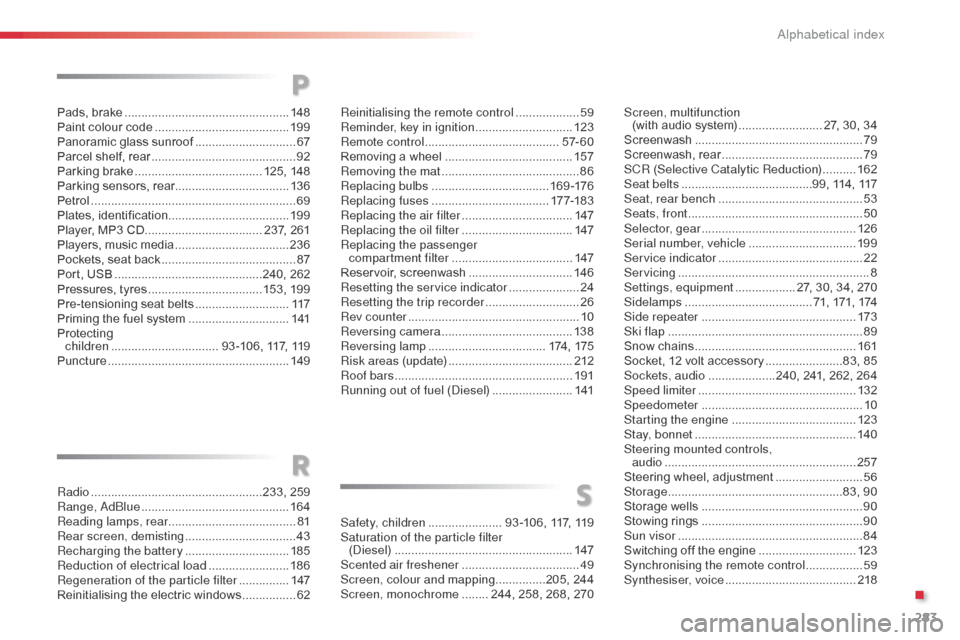

283
Pads, brake ................................................. 148
Paint colour code ........................................ 19 9
Panoramic glass sunroof
..............................67
Parcel shelf, rear

........................................... 92
P

arking brake ...................................... 125, 148
Parking sensors, rear ..................................13 6
Petrol
............................................................. 69
Plates, identification .................................... 19 9
Player, MP3 CD
................................... 237, 261
Players, music media
..................................236
Pockets, seat back
........................................ 87
Port, USB

............................................ 2

40, 262
Pressures, tyres


.................................. 153, 199
Pre-tensioning seat belts
............................117
Priming the fuel system
..............................141
Protecting
children


................................ 93 -106, 117, 119
Puncture


...................................................... 149
Radio


................................................... 233, 259
Range, AdBlue


............................................ 16 4
Reading lamps, rear


...................................... 81
Rear screen, demisting


.................................43
Recharging the battery
............................... 18

5
Reduction of electrical load


........................18 6
Regeneration of the particle filter

...............14

7
Reinitialising the electric windows
................62
P
R
Reinitialising the remote control ................... 59
R eminder, key in ignition .............................123
Remote control
........................................ 5

7- 6 0
Removing a wheel
...................................... 157
Removing the mat


......................................... 86
Replacing bulbs


................................... 16 9 -176
Replacing fuses
..............................

.....17 7-18 3
Replacing the air filter


.................................147
Replacing the oil filter
................................. 14

7
Replacing the passenger compartment filter


.................................... 147
Reservoir, screenwash
............................... 14

6
Resetting the service indicator


.....................24
Resetting the trip recorder


............................26
Rev counter


................................................... 10
Reversing camera


....................................... 13 8
Reversing lamp
................................... 17

4, 175
Risk areas (update)
..................................... 212
Roof bars
..................................................... 19

1
Running out of fuel (Diesel)

........................1

41
Safety, children
...................... 9

3 -106, 117, 119
Saturation of the particle filter (Diesel)
..................................................... 14

7
Scented air freshener
................................... 49
S

creen, colour and mapping ...............205, 244
Screen, monochrome


........244, 258, 268, 270
S
Screen, multifunction
(with audio system) .........................27, 30, 34
Screenwash


.................................................. 79
Screenwash, rear
.......................................... 79
SCR (Selective Catalytic Reduction)


..........162
Seat belts
....................................... 9

9, 114, 117
Seat, rear bench


........................................... 53
Seats, front
...............................

.....................50
Selector, gear


.............................................. 126
Serial number, vehicle
................................ 19

9
Service indicator


........................................... 22
Servicing
...............................

..........................8
Settings, equipment


..................27, 30, 34, 270
Sidelamps


...................................... 71, 171, 174
Side repeater
..............................

................173
Ski flap
..............................

............................89
Snow chains

................................................ 16

1
Socket, 12 volt accessory
.......................83, 85
Sockets, audio


....................240, 241, 262, 264
Speed limiter


............................................... 132
Speedometer


................................................ 10
Starting the engine


..................................... 123
Stay, bonnet


................................................ 140
Steering mounted controls, audio


......................................................... 257
Steering wheel, adjustment
..........................56
Storage


.................................................... 83, 90
Storage wells


................................................ 90
Stowing rings


................................................ 90
Sun visor


....................................................... 84
Switching off the engine

.............................12

3
Synchronising the remote control


.................59
Synthesiser, voice
....................................... 2

18
.
Alphabetical index
