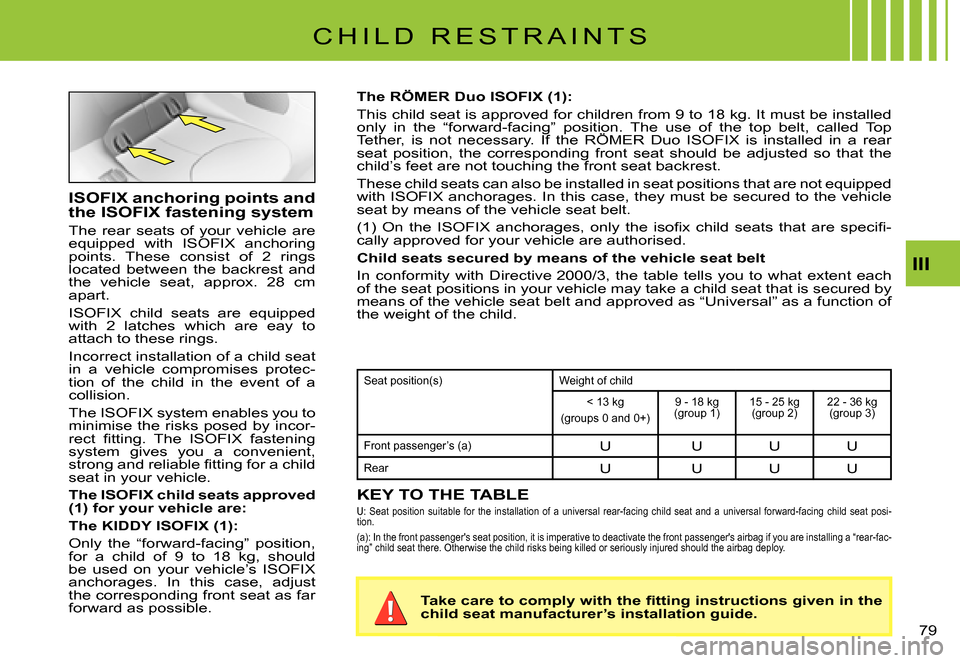

Page 79 of 144
III
7 9
C H I L D R E S T R A I N T S
The RÖMER Duo ISOFIX (1):
T h i s c h i l d s e a t i s a p p r o v e d f o r c h i l d r e n f r o m 9 t o 1 8 k g . I t m u s t b e i n s t a l l e d only in the “forward-facing” position. The use of the top belt, called Top Tether, is not necessary. If the RÖMER Duo ISOFIX is installed in a rear only in the “forward-facing” position. The use of the top belt, called Top position.
seat position, the corresponding front seat should be adjuste d so that the child’s feet are not touching the front seat backrest.
These child seats can also be installed in seat positions that are not equipped with ISOFIX anchorages. In this case, they must be secured to the vehicle seat by means of the vehicle seat belt.
( 1 ) O n t h e I S O F I X a n c h o r a g e s , o n l y t h e i s o fi x c h i l d s e a t s t h a t a r e s p e c i fi -cally approved for your vehicle are authorised.
Child seats secured by means of the vehicle seat belt
I n c o n f o r m i t y w i t h D i r e c t i v e 2 0 0 0 / 3 , t h e t a b l e t e l l s y o u t o w h a t e x t e n t e a c h of the seat positions in your vehicle may take a child seat tha t is secured by means of the vehicle seat belt and approved as “Universal” as a f unction of the weight of the child.
Seat position(s)Weight of child
< 1 3 k g ( g r o u p s 0 a n d 0 + ) 9 - 1 8 k g (group 1) 1 5 - 2 5 k g ( g r o u p 2 ) 2 2 - 3 6 k g ( g r o u p 3 )
Front passenger’s (a)UUUU
RearUUUU
KEY TO THE TABLEU: Seat position suitable for the installation of a universal rear-facing child seat and a universal forward-facing child sea t posi-tion.(a): In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a “rear-fac-ing” child seat there. Otherwise the child risks being killed o r seriously injured should the airbag deploy.
T a k e c a r e t o c o m p l y w i t h t h e fi t t i n g i n s t r u c t i o n s g i v e n i n t h e child seat manufacturer’s installation guide.
ISOFIX anchoring points and the ISOFIX fastening system
The rear seats of your vehicle are equipped with ISOFIX anchoring p o i n t s . T h e s e c o n s i s t o f 2 r i n g s located between the backrest and t h e v e h i c l e s e a t , a p p r o x . 2 8 c m apart.
ISOFIX child seats are equipped w i t h 2 l a t c h e s w h i c h a r e e a y t o attach to these rings.
Incorrect installation of a child seat in a vehicle compromises protec-tion of the child in the event of a collision.
The ISOFIX system enables you to minimise the risks posed by incor- r e c t fi t t i n g . T h e I S O F I X f a s t e n i n g system gives you a convenient, s t r o n g a n d r e l i a b l e fi t t i n g f o r a c h i l d seat in your vehicle.
The ISOFIX child seats approved (1) for your vehicle are:
The KIDDY ISOFIX (1):
Only the “forward-facing” position, f o r a c h i l d o f 9 t o 1 8 k g , s h o u l d be used on your vehicle’s ISOFIX anchorages. In this case, adjust the corresponding front seat as far forward as possible.
