Citroen C3 RHD 2011.5 2.G User Guide

9
FAMILIARI
S
AT I
ON


1.
Steering wheel adjustment control.

2.
Headlamp height adjustment.

3.
Cruise control/speed limiter
controls.

4.
Lighting and direction indicator
control stalk.

5.
Microphone.

6.
Central locking button.

7.
Multifunction screen.

8.
Hazard warning lamps button.

9.
Central adjustable air vents.

10.
Sunshine sensor
Hi-Fi audio system central speaker.

11 .
Passenger’s airbag.

12.
Glove box/Passenger’s airbag
deactivation/Fusebox.

13.
Bonnet release lever.

14.
12 V accessory socket
USB port/auxiliary socket.

15.
Upper and lower storage.

16.
MyWay or Audio system.

17.
Heating/air conditioning controls.

INSTRUMENTS AND CONTROLS

10

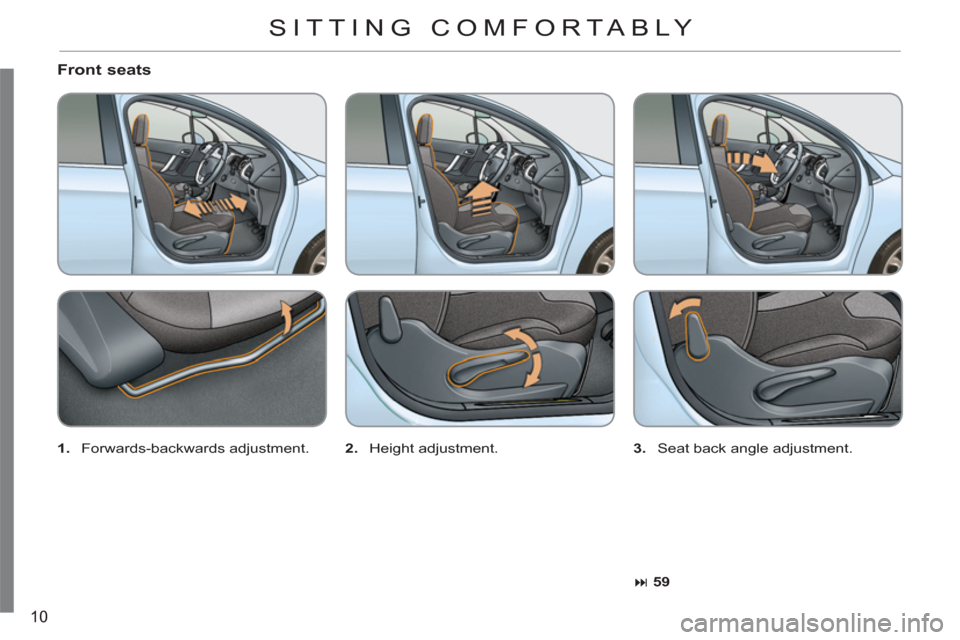

Front seats


1.
Forwards-backwards adjustment.
2.
Height adjustment.
3.
Seat back angle adjustment.



59


SITTING COMFORTABLY

FAMILIARI
S
AT I
ON

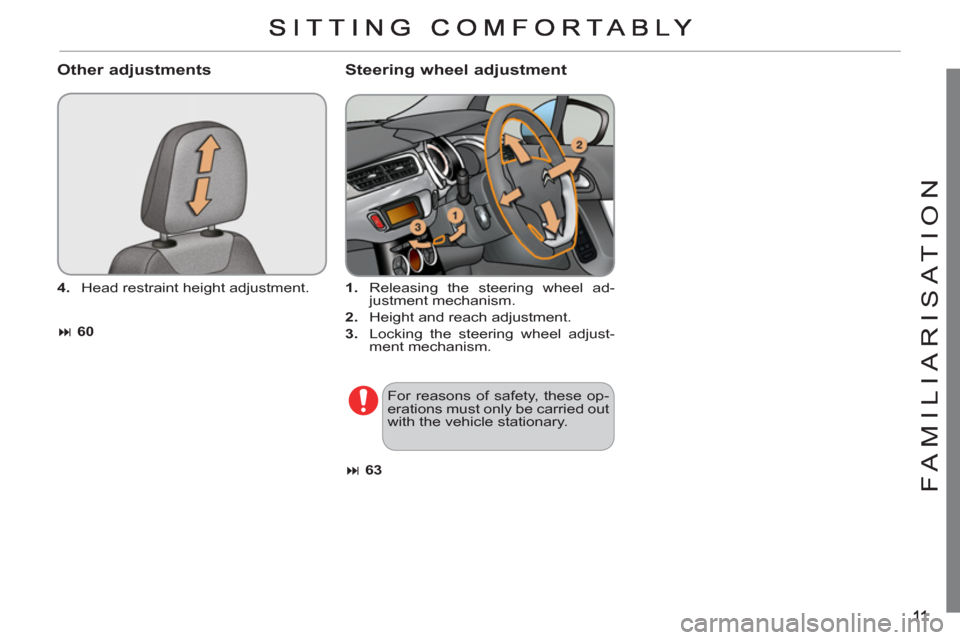

Other adjustments


4.
Head restraint height adjustment.



60


Steering wheel adjustment



1.
Releasing the steering wheel ad-
justment mechanism.

2.
Height and reach adjustment.

3.
Locking the steering wheel adjust-
ment mechanism.



63

For reasons of safety, these op-
erations must only be carried out
with the vehicle stationary.

12
Door mirrors


Adjustment

A.
Selecting the mirror.

B.
Adjusting the position of the mirror.

C.
De-selecting the mirror.
Rear view mirror


Manual day/night type


1.
Selecting the "day" position of the
mirror.

2.
Adjusting the mirror.



63




62

Automatic day/night type



A.
Fitting the belt.

B.
Fastening.

C.
Check that the belt is correctly fas-
tened by pulling on the belt webbing.



106




1.
Automatic detection of day/night
mode.

2.
Adjusting the mirror.
Other functions...

Folding/Unfolding.
SITTING COMFORTABLY




63

13
FAMILIARI
S
AT I
ON

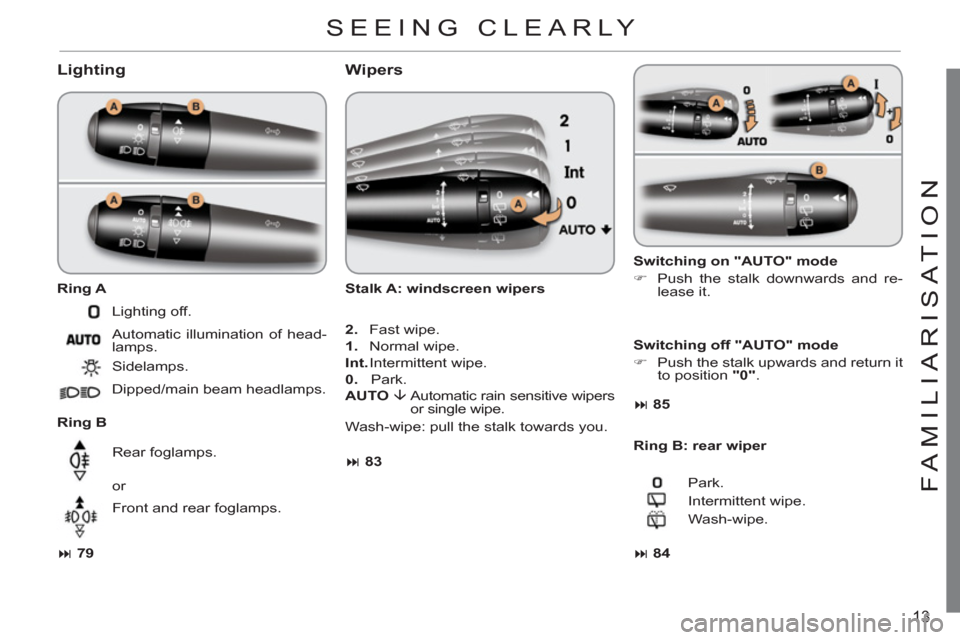

Lighting


Ring A

Ring B



79


Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Rear foglamps.
or
Front and rear foglamps.
Wipers


2.
Fast wipe.

1.
Normal wipe.

Int.
Intermittent wipe.

0.
Park.

AUTO È

Automatic rain sensitive wipers
or single wipe.



83





84


Park.
Intermittent wipe.
Wash-wipe.
Stalk A: windscreen wipers
Wash-wipe: pull the stalk towards you.
Switching on "AUTO" mode


)
Push the stalk downwards and re-
lease it.


Switching off "AUTO" mode


)
Push the stalk upwards and return it
to position "0"
.

Ring B: rear wiper


85


SEEING CLEARLY

14

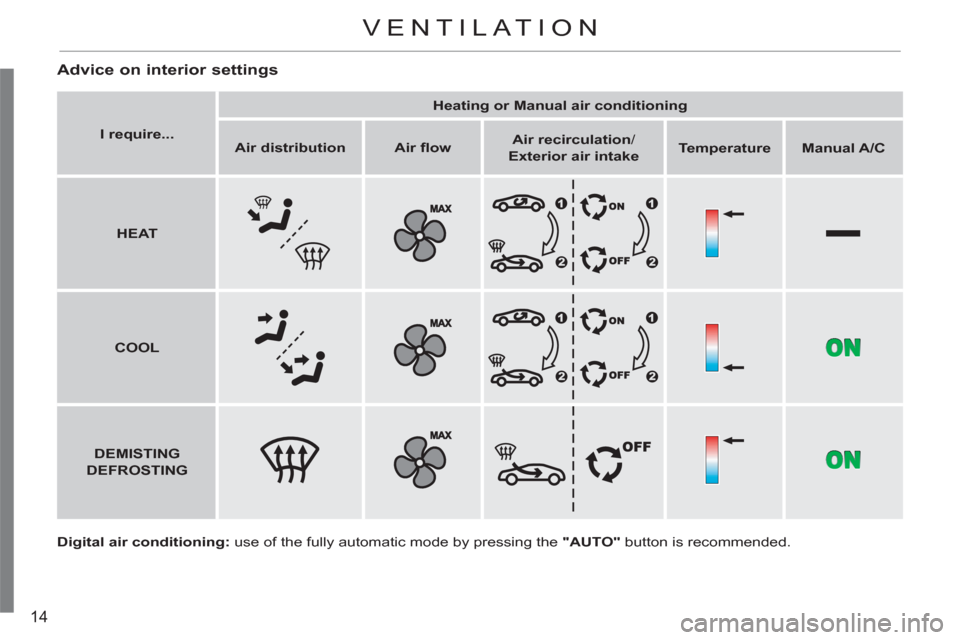

Advice on interior settings


Digital air conditioning:
use of the fully automatic mode by pressing the "AUTO"
button is recommended.

I require...



Heating or Manual air conditioning




Air distribution



Air fl ow



Air recirculation
/
Exterior air intake



Temperature



Manual A/C




HEAT




COOL




DEMISTING

DEFROSTING



VENTILATION

15
FAMILIARI
S
AT I
ON

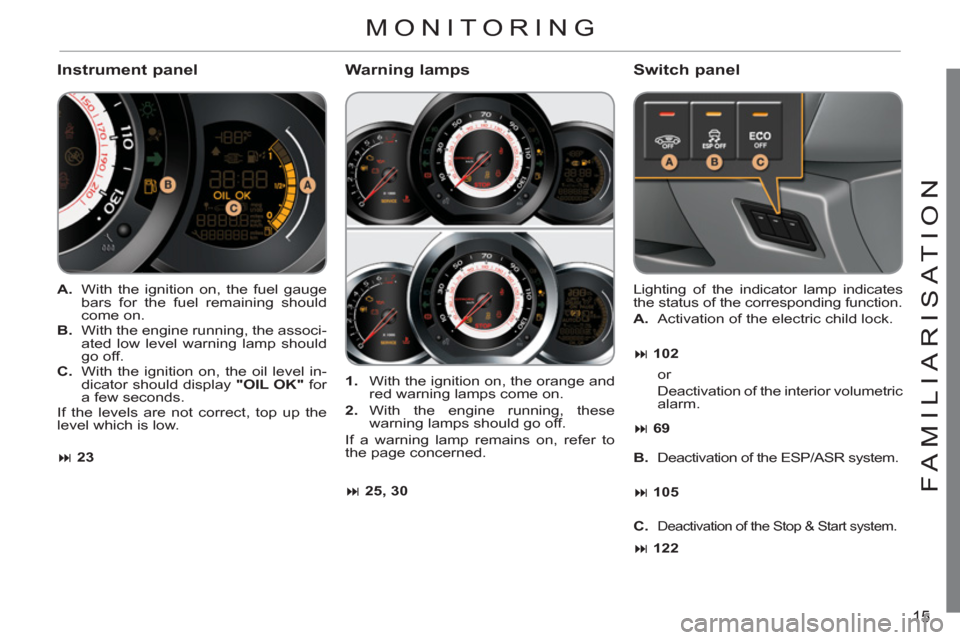

Instrument panel



A.
With the ignition on, the fuel gauge
bars for the fuel remaining should
come on.

B.
With the engine running, the associ-
ated low level warning lamp should
go off.

C.
With the ignition on, the oil level in-
dicator should display "OIL OK"
for
a few seconds.
If the levels are not correct, top up the
level which is low.



23


Warning lamps



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If a warning lamp remains on, refer to
the page concerned.



25, 30




Switch panel

Lighting of the indicator lamp indicates
the status of the corresponding function.


A.
Activation of the electric child lock.
or

Deactivation of the interior volumetric
alarm.

69

MONITORING



105


102

B.
Deactivation of the ESP/ASR system.

C.

Deactivation of the Stop & Start system.



122

16

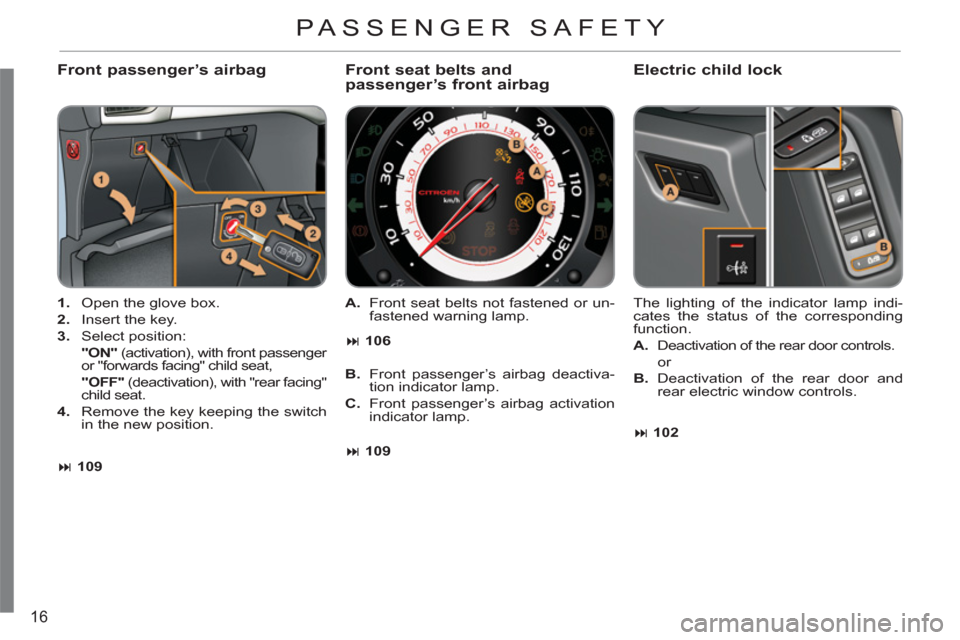

Front passenger’s airbag



1.
Open the glove box.

2.
Insert the key.

3.
Select position:
"ON"
(activation), with front passenger
or "forwards facing" child seat,

"OFF"
(deactivation), with "rear facing"
child seat.

4.
Remove the key keeping the switch
in the new position.



109


Front seat belts and
passenger’s front airbag


A.
Front seat belts not fastened or un-
fastened warning lamp.



109




Electric child lock

The lighting of the indicator lamp indi-
cates the status of the corresponding
function.


A.
Deactivation of the rear door controls.
or

B.
Deactivation of the rear door and
rear electric window controls.



102


B.
Front passenger’s airbag deactiva-
tion indicator lamp.

C.
Front passenger’s airbag activation
indicator lamp.


106


PASSENGER SAFETY

17
FAMILIARI
S
AT I
ON

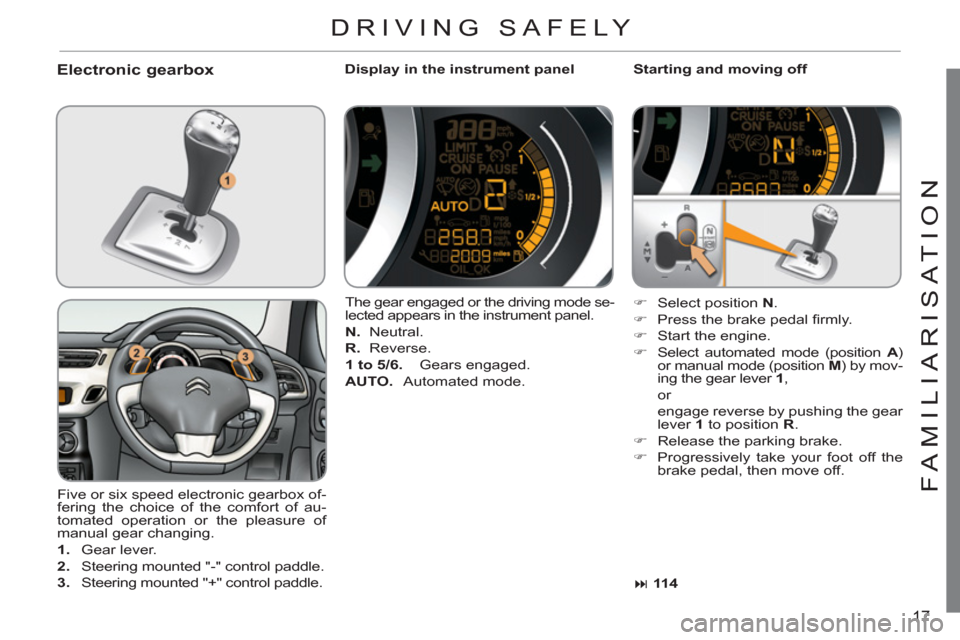

Electronic gearbox
Display in the instrument panel
Starting and moving off
Five or six speed electronic gearbox of-
fering the choice of the comfort of au-
tomated operation or the pleasure of
manual gear changing.


1.
Gear lever.

2.
Steering mounted "-" control paddle.

3.
Steering mounted "+" control paddle. The gear engaged or the driving mode se-
lected appears in the instrument panel.

N.
Neutral.

R.
Reverse.

1 to 5/6.
Gears engaged.

AUTO.
Automated mode.

)
Select position N
.

)
Press the brake pedal fi rmly.

)
Start the engine.

)
Select automated mode (position A
)
or manual mode (position M
) by mov-
ing the gear lever 1
,
or
engage reverse by pushing the gear
lever 1
to position R
.

)
Release the parking brake.

)
Progressively take your foot off the
brake pedal, then move off.



11 4



DRIVING SAFELY

18

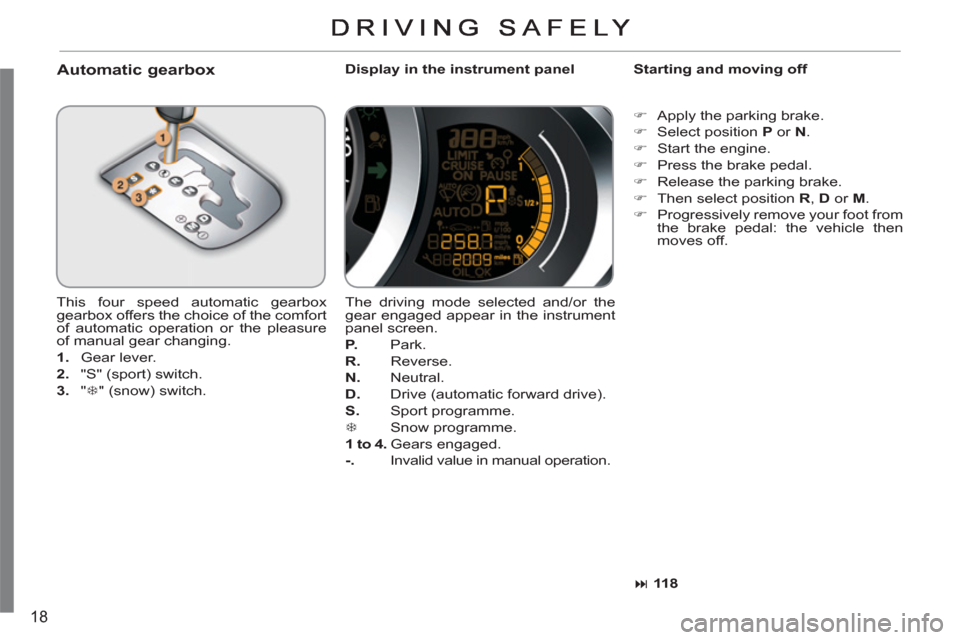

Automatic gearbox

Display in the instrument panel
Starting and moving off
This four speed automatic gearbox
gearbox offers the choice of the comfort
of automatic operation or the pleasure
of manual gear changing.


1.
Gear lever.

2.
"S" (sport) switch.

3.
" 7
" (snow) switch. The driving mode selected and/or the
gear engaged appear in the instrument
panel screen.

P.
Park.

R.
Reverse.

N.
Neutral.

D.
Drive (automatic forward drive).

S.
Sport programme.

7
Snow programme.

1 to 4.
Gears engaged.

-.
Invalid value in manual operation.

)
Apply the parking brake.

)
Select position P
or N
.

)
Start the engine.

)
Press the brake pedal.

)
Release the parking brake.

)
Then select position R
, D
or M
.

)
Progressively remove your foot from
the brake pedal: the vehicle then
moves off.



11 8
