Page 41 of 252
1
39
MONITORING
The instrument panel remains illumi-
nated with only the vehicle speed and
cruise control or speed limiter informa-
tion, if in use.
If there is an alert or a change in a func-
tion or to a setting, the black panel mode
is interrupted.
Activation
)
With the lighting on, press the left
hand button of the instrument panel
several times to progressively re-
duce the dashboard lighting level.
)
Press the button again to reduce the
lighting to the minimum level and
switch off the interior mood lighting.
)
Press the button again to activate
the black panel.

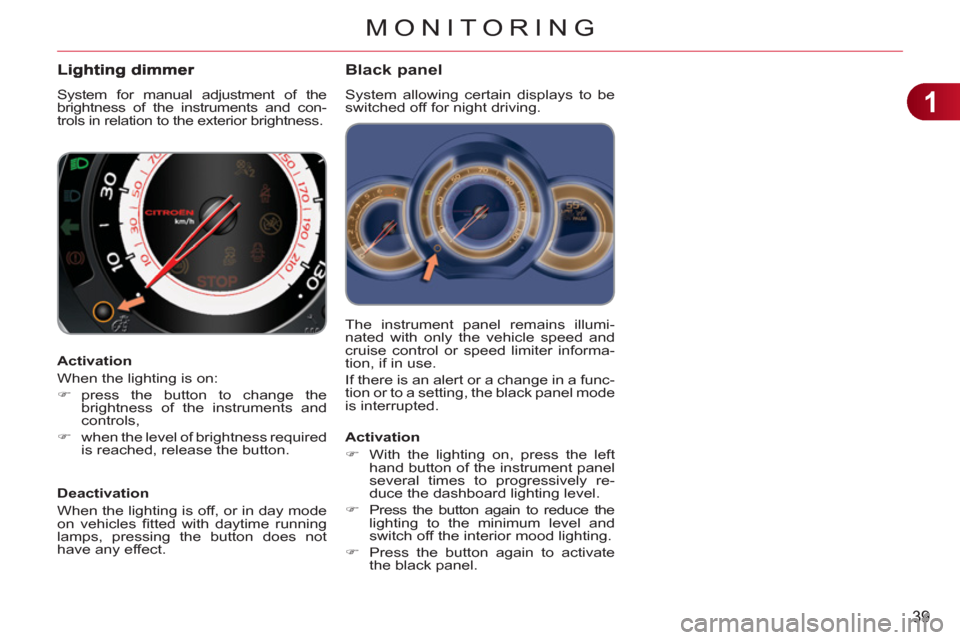

Black panel
System allowing certain displays to be
switched off for night driving.
Activation
When the lighting is on:
)
press the button to change the
brightness of the instruments and
controls,
)
when the level of brightness required
is reached, release the button.
Deactivation
When the lighting is off, or in day mode
on vehicles fi tted with daytime running
lamps, pressing the button does not
have any effect.
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior brightness.
Page 42 of 252
1
40
MONITORING

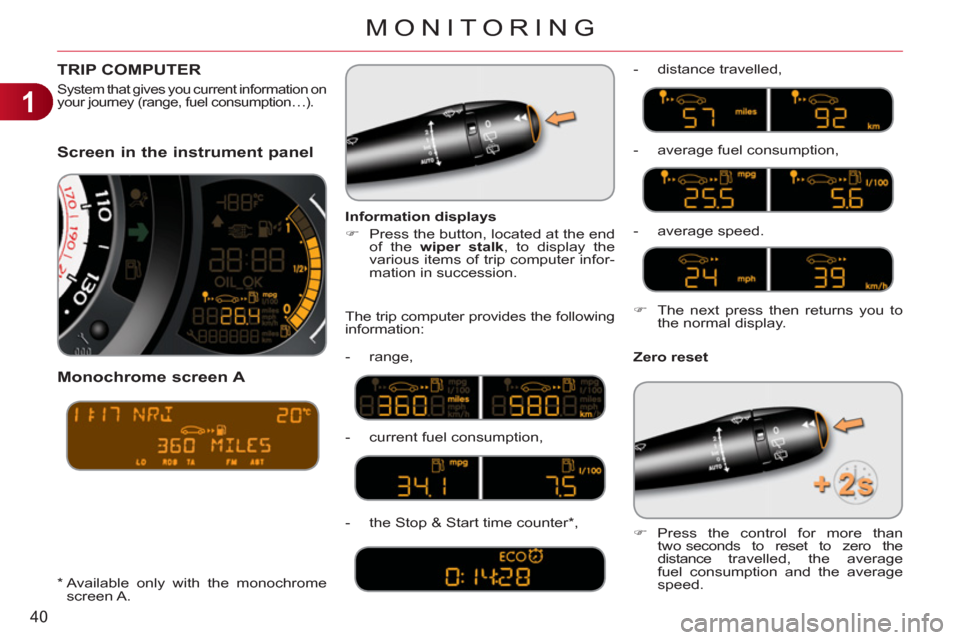

Screen in the instrument panel
Monochrome screen
A
Zero reset
Information displays
)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer infor-
mation in succession.
)
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.
The trip computer provides the following
information:
- range,
- current fuel consumption,
- the Stop & Start time counter * ,
- distance travelled,
- average fuel consumption,
)
The next press then returns you to
the normal display.
TRIP COMPUTER
System that gives you current information on
your journey (range, fuel consumption…).
- average speed.
*
Available only with the monochrome
screen A.
Page 43 of 252
1
41
MONITORING

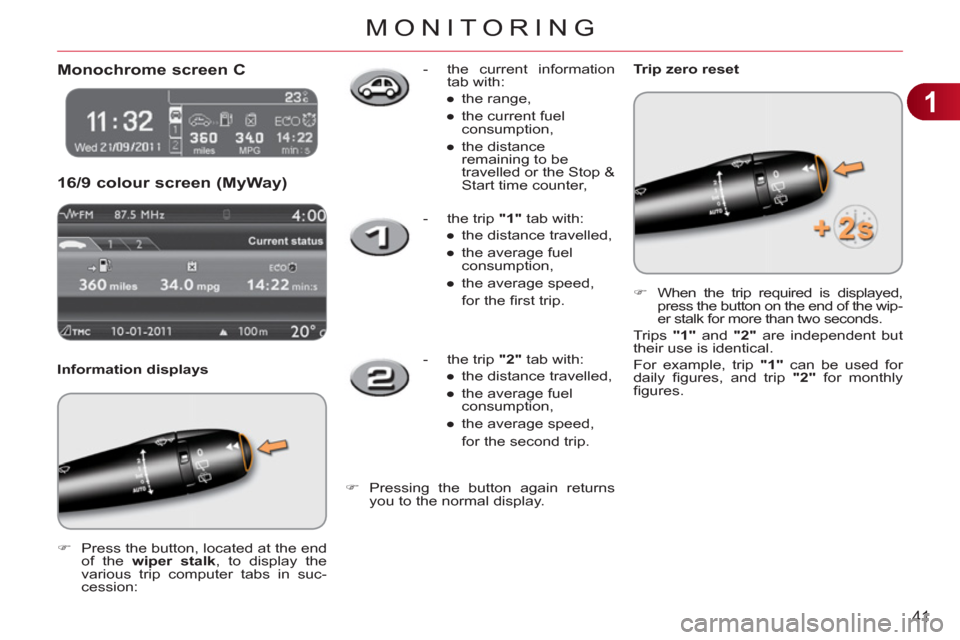

Monochrome screen C
16
/9 colour screen (MyWay)
Information displays
)
Press the button, located at the end
of the wiper stalk
, to display the
various trip computer tabs in suc-
cession:
- the current information
tab with:
●
the range,
●
the current fuel
consumption,
●
the distance
remaining to be
travelled or the Stop &
Start time counter,
- the trip "1"
tab with:
●
the distance travelled,
●
the average fuel
consumption,
●
the average speed,
for the fi rst trip.
- the trip "2"
tab with:
●
the distance travelled,
●
the average fuel
consumption,
●
the average speed,
for the second trip.
)
Pressing the button again returns
you to the normal display.
)
When the trip required is displayed,
press the button on the end of the wip-
er stalk for more than two seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures, and trip "2"
for monthly
fi gures.
Trip zero reset
Page 44 of 252
1
42
MONITORING

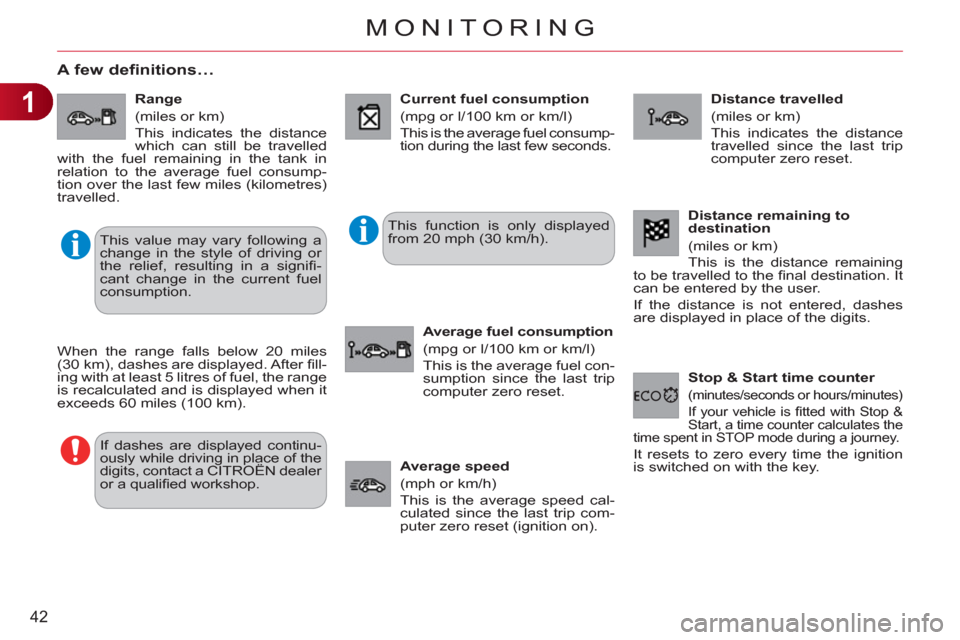

A few definitions…
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consump-
tion during the last few seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on).
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi -
cant change in the current fuel
consumption.
If dashes are displayed continu-
ously while driving in place of the
digits, contact a CITROËN dealer
or a qualifi ed workshop. This function is only displayed
from 20 mph (30 km/h).
When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
can be entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Stop & Start time counter
(minutes/seconds or hours/minutes)
If your vehicle is fi tted with Stop &
Start, a time counter calculates the
time spent in STOP mode during a journey.
It resets to zero every time the ignition
is switched on with the key.
Page 45 of 252
2
43
MULTIFUNCTION SCREENS

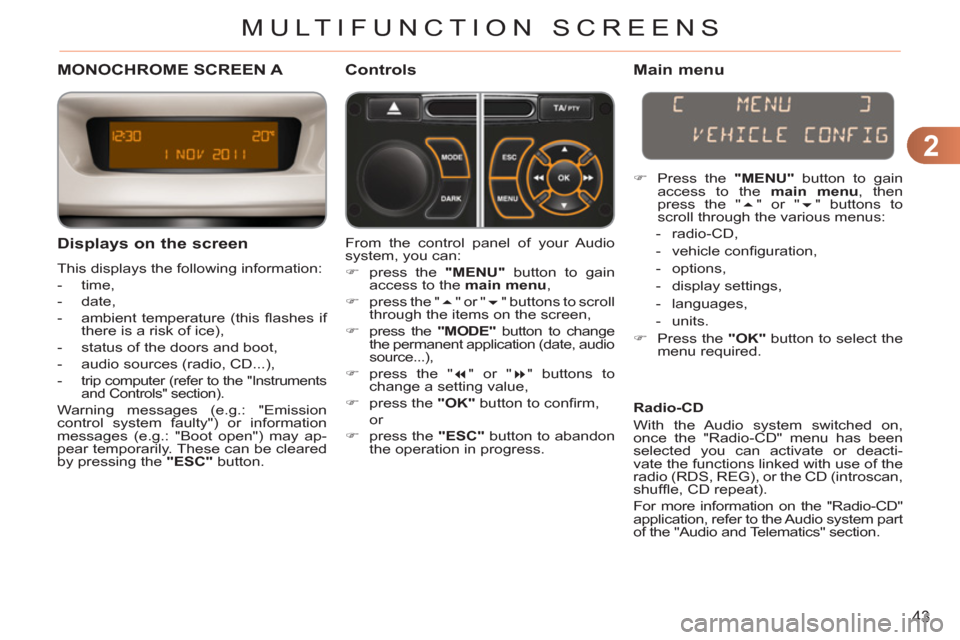

MONOCHROME SCREEN A
Displa
ys on the screen
This displays the following information:
- time,
- date,
- ambient temperature (this fl ashes if
there is a risk of ice),
- status of the doors and boot,
- audio sources (radio, CD...),
-
trip computer (refer to the "Instruments
and Controls" section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC"
button.
Controls
From the control panel of your Audio
system, you can:
)
press the "MENU"
button to gain
access to the main menu
,
)
press the "
" or "
" buttons to scroll
through the items on the screen,
)
press the "MODE"
button to change
the permanent application (date, audio
source...),
)
press the "
" or "
" buttons to
change a setting value,
)
press the "OK"
button to confi rm,
or
)
press the "ESC"
button to abandon
the operation in progress.
Main menu
)
Press the "MENU"
button to gain
access to the main menu
, then
press the "
" or "
" buttons to
scroll through the various menus:
- radio-CD,
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.
)
Press the "OK"
button to select the
menu required.
Radio-CD
With the Audio system switched on,
once the "Radio-CD" menu has been
selected you can activate or deacti-
vate the functions linked with use of the
radio (RDS, REG), or the CD (introscan,
shuffl e, CD repeat).
For more information on the "Radio-CD"
application, refer to the Audio system part
of the "Audio and Telematics" section.
Page 46 of 252
2
44
MULTIFUNCTION SCREENS
Vehicle confi guration
Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- guide-me-home lighting (refer to the
"Visibility" section),
- parking sensors (refer to the
"Driving" section).
Options
Once the "Options" menu has been
selected, you can start diagnostics
of the status of the equipment (active,
not active, faulty).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
)
Once you have selected a setting,
press the "
" or "
" buttons to
change its value.
)
Press the "
" or "
" buttons to
switch respectively to the previous
or next setting.
)
Press the "OK"
button to save the
change and return to the normal
display or press the "ESC"
button
to cancel.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).

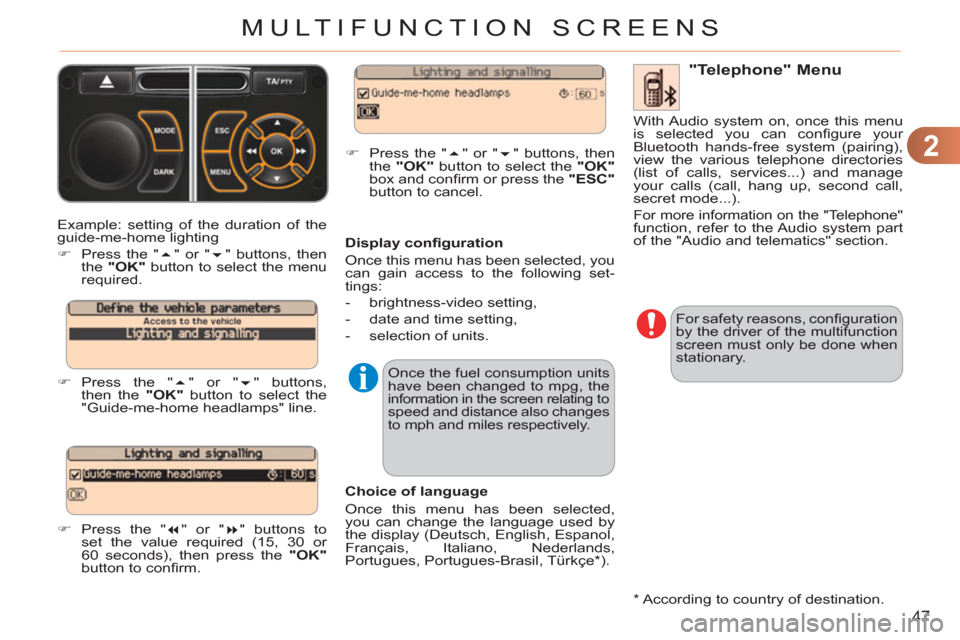

Once the fuel consumption units
have been set to mpg, the infor-
mation in the instrument panel
screen on speed and distance
will also be in mph and miles.
For safety reasons, confi guration
by the driver of the multifunction
screen must only be done when
stationary.
Page 47 of 252
2
45
MULTIFUNCTION SCREENS

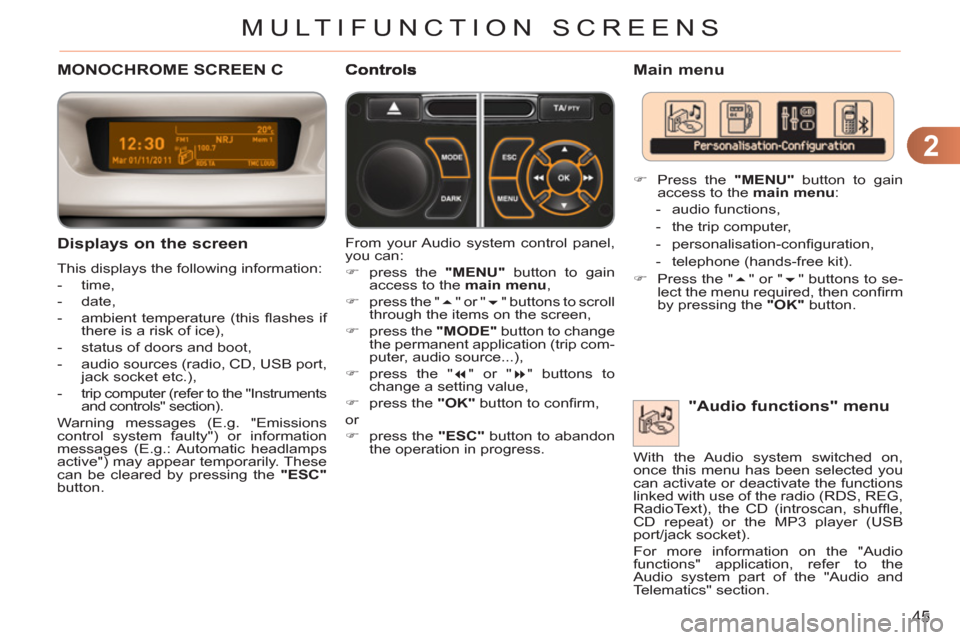

MONOCHROME SCREEN C
Displa
ys on the screen
This displays the following information:
- time,
- date,
- ambient temperature (this fl ashes if
there is a risk of ice),
- status of doors and boot,
- audio sources (radio, CD, USB port,
jack socket etc.),
- trip computer (refer to the "Instruments
and controls" section).
Warning messages (E.g. "Emissions
control system faulty") or information
messages (E.g.: Automatic headlamps
active") may appear temporarily. These
can be cleared by pressing the "ESC"
button.
From your Audio system control panel,
you can:
)
press the "MENU"
button to gain
access to the main menu
,
)
press the "
" or "
" buttons to scroll
through the items on the screen,
)
press the "MODE"
button to change
the permanent application (trip com-
puter, audio source...),
)
press the "
" or "
" buttons to
change a setting value,
)
press the "OK"
button to confi rm,
or
)
press the "ESC"
button to abandon
the operation in progress.
Main menu
)
Press the "MENU"
button to gain
access to the main menu
:
- audio functions,
- the trip computer,
- personalisation-confi guration,
- telephone (hands-free kit).
)
Press the "
" or "
" buttons to se-
lect the menu required, then confi rm
by pressing the "OK"
button.
"Audio functions" menu
With the Audio system switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText), the CD (introscan, shuffl e,
CD repeat) or the MP3 player (USB
port/jack socket).
For more information on the "Audio
functions" application, refer to the
Audio system part of the "Audio and
Telematics" section.
Page 48 of 252
2
46
MULTIFUNCTION SCREENS
"Trip computer" menu
Once this menu has been selected, you
can consult information concerning the
status of the vehicle (warnings log, sta-
tus of functions, etc.)
Alert log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction screen.
"Personalisation-Configuration" menu
Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- wiper linked to reverse gear (refer to
the "Visibility" section),
- guide-me-home lighting and dura-
tion (see "Visibility" section),
- parking sensors (refer to the "Driving"
section).
)
In the "
Trip computer
"
menu, select
one of the following applications:
)
Press the "MENU"
button to gain
access to the general menu.
)
Press the arrows, then the "OK"
but-
ton to select the "
Trip computer
"
menu.
Once this menu has been selected, you
can gain access to the following func-
tions:
- defi ne the vehicle parameters,
- display confi guration,
- choice of language.
Status of functions
This summarises the status (active or
inactive) of the vehicle's functions.
Enter distance to destination
This allows you to enter an approximate
distance until your fi nal destination.
Page 49 of 252
2
47
MULTIFUNCTION SCREENS
Example: setting of the duration of the
guide-me-home lighting
)
Press the "
" or "
" buttons, then
the "OK"
button to select the menu
required.
)
Press the "
" or "
" buttons,
then the "OK"
button to select the
"Guide-me-home headlamps" line.
)
Press the "
" or "
" buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"
button to confi rm.
)
Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"
box and confi rm or press the "ESC"
button to cancel.
Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Türkçe * ).
"Telephone" Menu
For safety reasons, confi guration
by the driver of the multifunction
screen must only be done when
stationary.
Display confi guration
Once this menu has been selected, you
can gain access to the following set-
tings:
- brightness-video setting,
- date and time setting,
- selection of units.
Once the fuel consumption units
have been changed to mpg, the
information in the screen relating to
speed and distance also changes
to mph and miles respectively. With Audio system on, once this menu
is selected you can confi gure your
Bluetooth hands-free system (pairing),
view the various telephone directories
(list of calls, services...) and manage
your calls (call, hang up, second call,
secret mode...).
For more information on the "Telephone" function, refer to the Audio system part
of the "Audio and telematics" section.
*
According to country of destination.
Page 50 of 252
2
48
MULTIFUNCTION SCREENS

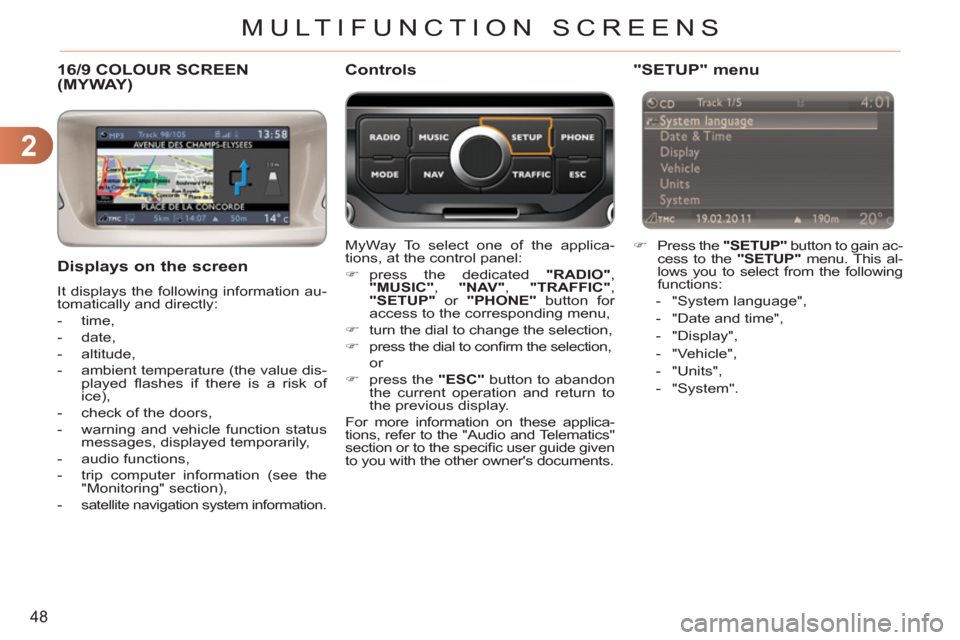

16/9 COLOUR SCREEN (MYWAY)
Displays on the screen
It displays the following information au-
tomatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis-
played fl ashes if there is a risk of
ice),
- check of the doors,
- warning and vehicle function status
messages, displayed temporarily,
- audio functions,
- trip computer information (see the
"Monitoring" section),
-
satellite navigation system information.
Controls
MyWay To select one of the applica-
tions, at the control panel:
)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"SETUP"
or "PHONE"
button for
access to the corresponding menu,
)
turn the dial to change the selection,
)
press the dial to confi rm the selection,
or
)
press the "ESC"
button to abandon
the current operation and return to
the previous display.
For more information on these applica-
tions, refer to the "Audio and Telematics"
section or to the specifi c user guide given
to you with the other owner's documents.
"SETUP" menu
)
Press the "SETUP"
button to gain ac-
cess to the "SETUP"
menu. This al-
lows you to select from the following
functions:
- "System language",
- "Date and time",
- "Display",
- "Vehicle",
- "Units",
- "System".
