3
59
COMFORT

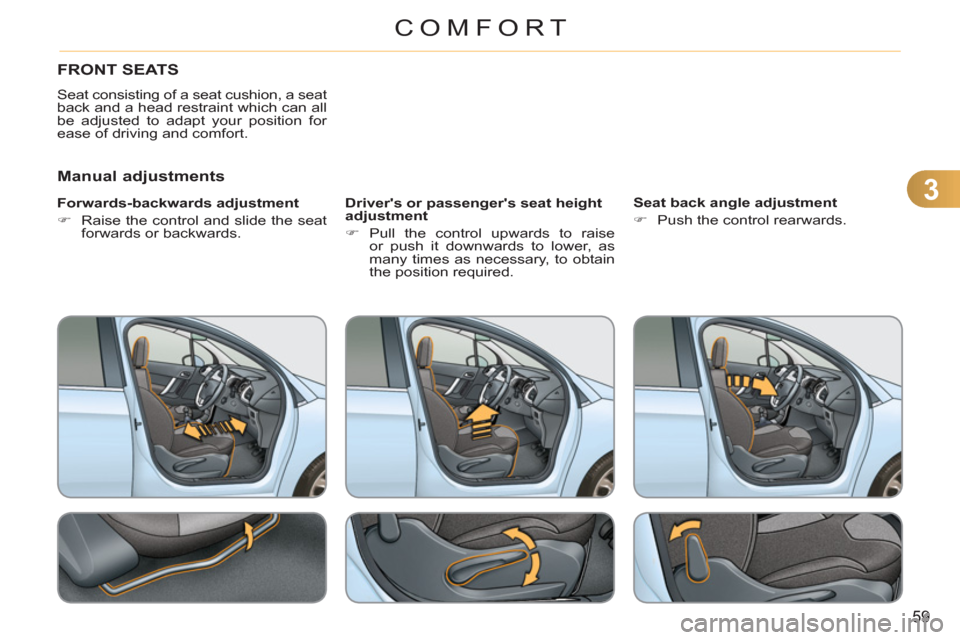

FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Manual adjustments
Forwards-backwards adjustment
)
Raise the control and slide the seat
forwards or backwards.
Driver's or passenger's seat height
adjustment
)
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required.
Seat back angle adjustment
)
Push the control rearwards.
Page 62 of 252
3
60
COMFORT

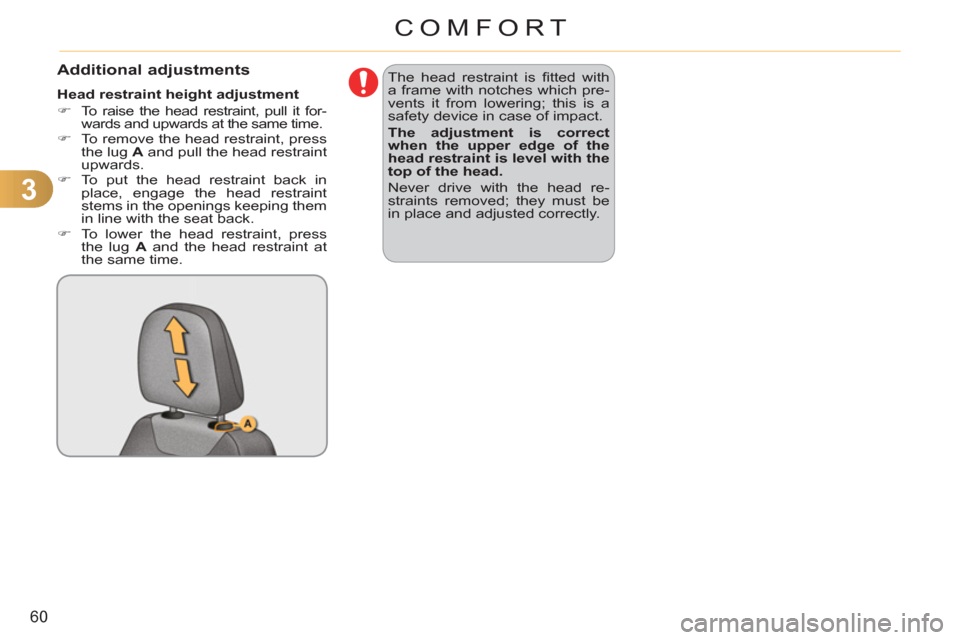

Additional adjustments
Head restraint height adjustment
)
To raise the head restraint, pull it for-
wards and upwards at the same time.
)
To remove the head restraint, press
the lug A
and pull the head restraint
upwards.
)
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.
)
To lower the head restraint, press
the lug A
and the head restraint at
the same time. The head restraint is fi tted with
a frame with notches which pre-
vents it from lowering; this is a
safety device in case of impact.
The adjustment is correct
when the upper edge of the
head restraint is level with the
top of the head.
Never drive with the head re-
straints removed; they must be
in place and adjusted correctly.
Page 63 of 252
3
COMFORT

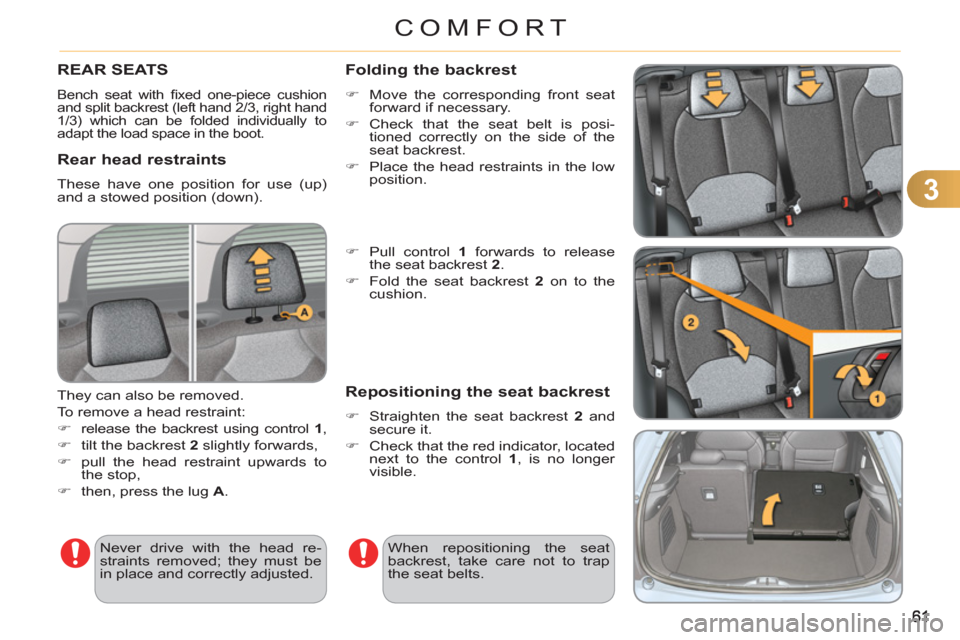

REAR SEATS
Bench seat with fi xed one-piece cushion
and split backrest (left hand 2/3, right hand
1/3) which can be folded individually to
adapt the load space in the boot.
Rear head restraints
These have one position for use (up)
and a stowed position (down).
Folding the backrest
)
Move the corresponding front seat
forward if necessary.
)
Check that the seat belt is posi-
tioned correctly on the side of the
seat backrest.
)
Place the head restraints in the low
position.
Repositioning the seat backrest
)
Straighten the seat backrest 2
and
secure it.
)
Check that the red indicator, located
next to the control 1
, is no longer
visible. They can also be removed.
To remove a head restraint:
)
release the backrest using control 1
,
)
tilt the backrest 2
slightly forwards,
)
pull the head restraint upwards to
the stop,
)
then, press the lug A
.
When repositioning the seat
backrest, take care not to trap
the seat belts. Never drive with the head re-
straints removed; they must be
in place and correctly adjusted.
)
Pull control 1
forwards to release
the seat backrest 2
.
)
Fold the seat backrest 2
on to the
cushion.
Page 64 of 252
3
62
COMFORT

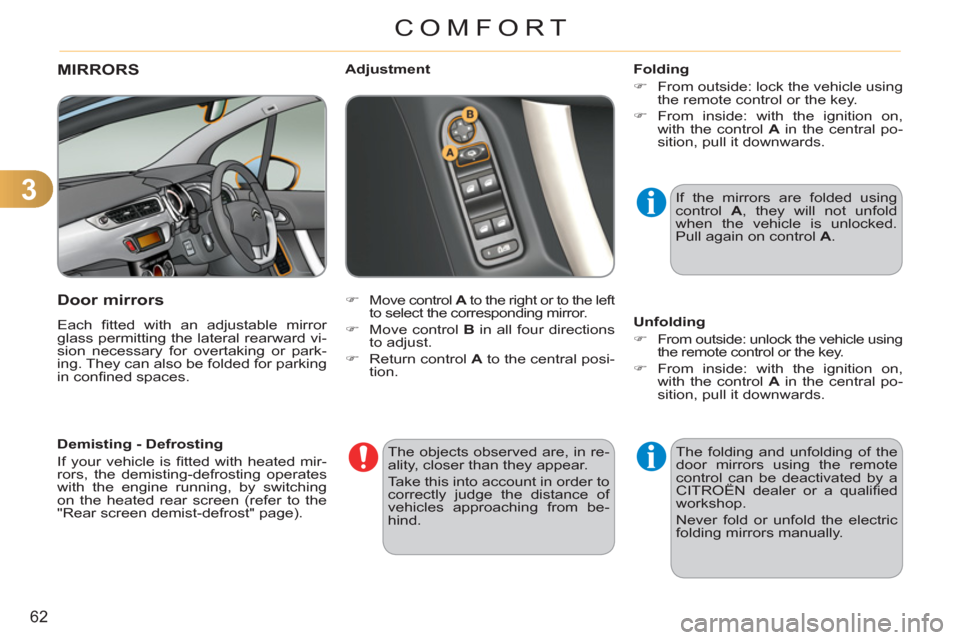

MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or park-
ing. They can also be folded for parking
in confi ned spaces.
)
Move control A
to the right or to the left
to select the corresponding mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central posi-
tion.
Adjustment
Folding
)
From outside: lock the vehicle using
the remote control or the key.
)
From inside: with the ignition on,
with the control A
in the central po-
sition, pull it downwards.
Unfolding
)
From outside: unlock the vehicle using
the remote control or the key.
)
From inside: with the ignition on,
with the control A
in the central po-
sition, pull it downwards. If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer or a qualifi ed
workshop.
Never fold or unfold the electric
folding mirrors manually.
The objects observed are, in re-
ality, closer than they appear.
Take this into account in order to
correctly judge the distance of
vehicles approaching from be-
hind.
Demisting - Defrosting
If your vehicle is fi tted with heated mir-
rors, the demisting-defrosting operates
with the engine running, by switching
on the heated rear screen (refer to the
"Rear screen demist-defrost" page).
Page 65 of 252
3
63
COMFORT
STEERING WHEEL ADJUSTMENT
)
When stationary
, pull the con-
trol lever to release the adjustment
mechanism.
)
Adjust the height and reach to suit
your driving position.
)
Push the control lever to lock the
adjustment mechanism.
As a safety precaution, these
operations should only be car-
ried out while the vehicle is sta-
tionary.
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehi-
cles, low sun...
Adjustment
)
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.
Day/night position
)
Pull the lever to change to the "night"
anti-dazzle position.
)
Push the lever to change to the normal
"day" position.
Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
In order to ensure optimum vis-
ibility during your manoeuvres,
the mirror lightens automatically
when reverse gear is engaged.
As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".
Manual day/night model
Page 66 of 252
4
64
ACCESS
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unlocking the vehicle
Unfolding the key
)
First press this button to unfold the
key.
Unlocking using the remote control
)
Press the open padlock to
unlock the vehicle.
Unlocking using the key
)
Turn the key to the right in the driver’s
door lock to unlock the vehicle.
Locking the vehicle
Locking using the remote control
)
Press the closed padlock
to lock the vehicle.
Locking using the key
)
Turn the key to the left in the driver’s
door lock to lock the vehicle completely.
If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if it
is unlocked inadvertently, it will
relock automatically after thirty
seconds unless a door or the
boot is open.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer or a qualifi ed
workshop.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time. Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Page 67 of 252
4
65
ACCESS
Folding the key
)
First press this button to fold the
key.
If you do not press the button when folding
the key, there is a risk of damage to the
mechanism.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible. In the event of a fault, you
are informed by illumina-
tion of this warning lamp,
an audible signal and a message in the
screen.
In this case, your vehicle will not start;
contact a CITROËN dealer as soon as
possible.
Keep safely the label attached to the
keys given to you on acquisition of the
vehicle.
Ignition switch
- Position 1: Stop
- Position 2: Ignition
- Position 3: Starting
Locating your vehicle
)
Press the closed pad-
lock to locate your locked
vehicle in a car park.
This is indicated by lighting of the cour-
tesy lamps and fl ashing of the direction
indicators for a few seconds. This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Deadlocking using the remote
control
)
Press the closed padlock
to lock the vehicle com-
pletely.
)
Press the closed padlock again
within fi ve seconds to deadlock the
vehicle.
Deadlocking using the key
)
Turn the key to the left in the driver’s
door lock to lock the vehicle com-
pletely.
)
Turn the key to the left again within
fi ve seconds to deadlock the vehicle.
Deadlocking is confi rmed by fi xed light-
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.
Deadlocking renders the exte-
rior and interior door controls
inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone
inside the vehicle when it is
deadlocked.
Page 68 of 252
4
66
ACCESS
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
)
First of all, use the key in the lock to
unlock or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition
on)
.
)
Press the closed padlock immediately
for a few seconds.
)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
Changing the battery
Battery ref.: CR1620/3 volts.
If the battery is fl at, you are
informed by illumination of
this warning lamp, an audi-
ble signal and a message in the multi-
function screen.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its loca-
tion.
)
Slide the new battery into its loca-
tion observing the original direction.
)
Clip the casing.
)
Reinitialise the remote control.
Switching the vehicle off
)
Immobilise the vehicle.
)
Turn the key fully towards you to po-
sition 1 (Stop)
.
)
Remove the key from the ignition
switch.
Do not attach any heavy objects
to the key as this could weigh
down on it when in the ignition
switch and cause a fault.
Key reminder
If the key is left in the igni-
tion switch, an audible signal
sounds when the driver's door is
opened.
Starting the vehicle
)
Insert the key in the ignition switch.
The system recognises the starting
code.
)
Turn the key fully towards the dash-
board to position 3 (Starting)
.
)
When the engine starts, release
the key.
Page 69 of 252
4
67
ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle's registration document, your per-
sonal identifi cation documents and if possible the key code label.
The CITROËN dealer will be able to fi nd the key code and the transponder
code required to order a new key.
Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved col-
lection point.
Remote control
The high frequency remote control is a sensitive system; do not operate it
while it is in your pocket as there is a possibility that it may unlock the ve-
hicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition switch,
even when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition switch when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a
CITROËN dealer, to ensure that only your keys can be used to open and
start the vehicle.
Page 70 of 252
4
68
ACCESS
ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as a self-
protection function.
Exterior perimeter protection
The system detects opening of the ve-
hicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Self-protection function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Do not make any modifi cations
to the alarm system, this could
cause malfunctions.
Locking the vehicle with full alarm
Activation
)
Switch off the ignition and get out of
the vehicle.
)
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator lamp
in button A
fl ashes once per second.
The exterior perimeter protection is ac-
tivated, 5 seconds after the locking but-
ton on the remote control is pressed.
The interior volumetric protection is acti-
vated, 45 seconds after the locking button
on the remote control is pressed. If an opening - door or boot - is
not closed fully, the vehicle is not
locked, but the exterior perim-
eter protection will be activated
after 45 seconds at the same
time as the interior volumetric
protection.
Deactivation
)
Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
lamp in button A
goes off.
