Citroen C3 RHD 2012 2.G Owner's Guide

19
FAMILIARI
S
AT I
ON

Stop & Start


Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and
the engine goes into standby:


- with a manual gearbox;
at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral and
you release the clutch pedal.

- with a 5 or 6 speed electronic
gearbox
: at speeds below 5 mph
(8 km/h), when you press the brake
pedal or when you put the gear lever
into position N
.
In certain circumstances, STOP may
not be available; the "ECO"
warning
lamp fl ashes for a few seconds, then
goes off.
Going into engine START mode
The "ECO"
warning lamp goes
off and the engine restarts:


- with a manual gearbox
: when you
depress the clutch pedal.

- with a 5 or 6 speed electronic
gearbox
:


●
gear lever in position A
or M
, when
you release the brake pedal,

●
or gear lever in position N
and
brake pedal released, when you
select position A
or M
,

●
or when you engage reverse.

In certain circumstances, START mode
may be invoked automatically; the
"ECO"
warning lamp fl ashes for a few
seconds, then goes off.
Deactivation/Reactivation
You can deactivate the system at any
time by pressing the "ECO OFF"
but-
ton; the warning lamp in the button
comes on.
The system is reactivated auto-
matically every time the engine
is started with with the key.
Before refuelling or doing any-
thing under the bonnet, you
must switch off the ignition with
the key.




122







121





122

20

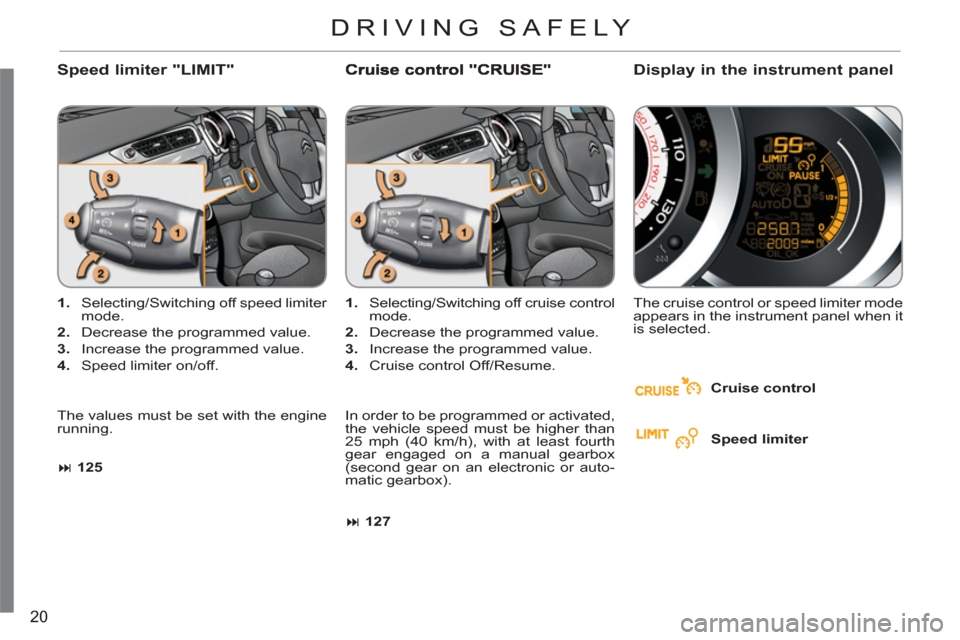

Speed limiter "LIMIT"



1.
Selecting/Switching off speed limiter
mode.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Speed limiter on/off.



125




1.
Selecting/Switching off cruise control
mode.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Cruise control Off/Resume.



127

The values must be set with the engine
running.

Display in the instrument panel

The cruise control or speed limiter mode
appears in the instrument panel when it
is selected.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on a manual gearbox
(second gear on an electronic or auto-
matic gearbox).
Cruise control

Speed limiter

DRIVING SAFELY

21

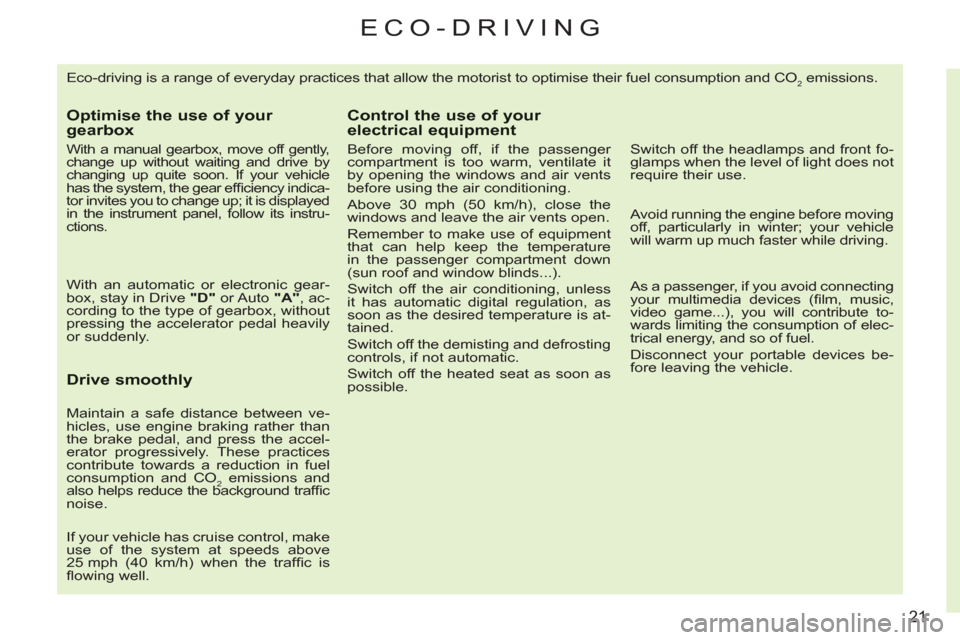

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox


With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle
has the system, the gear effi ciency indica-
tor invites you to change up; it is displayed
in the instrument panel, follow its instru-
ctions.


With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.

Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traffi c
noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.

Control the use of your electrical equipment


Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sun roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front fo-
glamps when the level of light does not
require their use.

Avoid running the engine before moving
off, particularly in winter; your vehicle
will warm up much faster while driving.

As a passenger, if you avoid connecting
your multimedia devices (fi lm, music,
video game...), you will contribute to-
wards limiting the consumption of elec-
trical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

22
Limit the causes of excessconsumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow tyres
and refi t your summer tyres.

Observe the recommendations on maintenance


Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.
Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and
observe the schedule of operations
recommended by the manufacturer.



When refuelling, do not continue after
the 3
rd cut-off of the nozzle to avoid
any overfl ow.


At the wheel of your new vehicle, it is only
after the fi rst 1 800 miles (3 000 kilometres)
that you will see the fuel consumption settle
down to a consistent average.

1
MONITORING
Panel grouping together the vehicle operation indication dials and warning lamps.

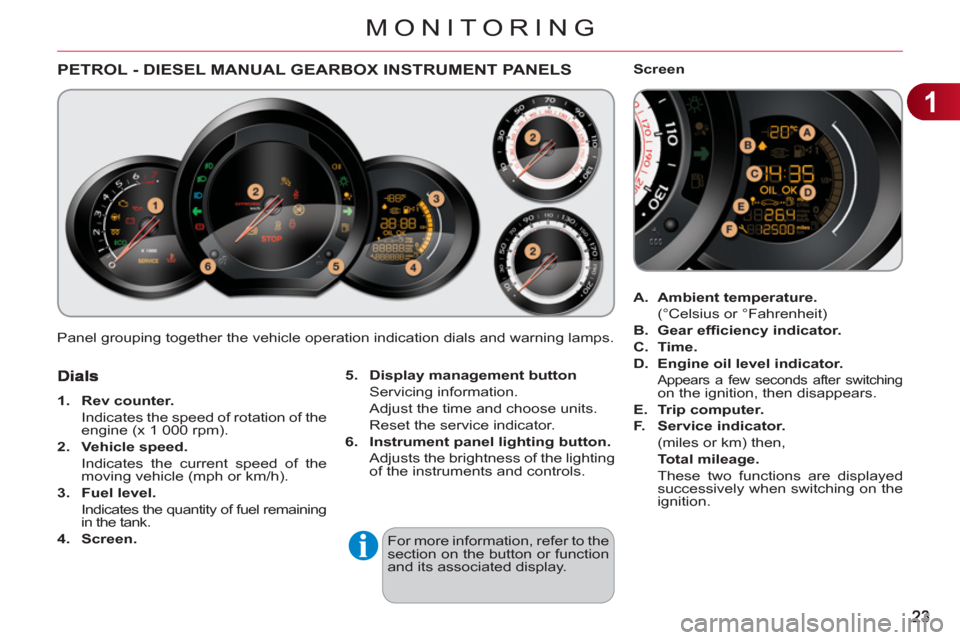

PETROL - DIESEL MANUAL GEARBOX INSTRUMENT PANELS


5.
Display management button


Servicing information.
Adjust the time and choose units.
Reset the service indicator.

6.
Instrument panel lighting button.


Adjusts the brightness of the lighting
of the instruments and controls.
For more information, refer to the
section on the button or function
and its associated display.


1.
Rev counter.

Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

3.
Fuel level.


Indicates the quantity of fuel remaining
in the tank.

4.
Screen.


A.
Ambient temperature.


(°Celsius or °Fahrenheit)

B.
Gear
effi ciency indicator.


C.
Time.


D.
Engine oil level indicator.



Appears a few seconds after switching
on the ignition, then disappears.

E.
Trip computer.


F.
Service indicato

r.


(miles or km) then,
Total mileage.


These two functions are displayed
successively when switching on the
ignition.


Screen

1
24
MONITORING

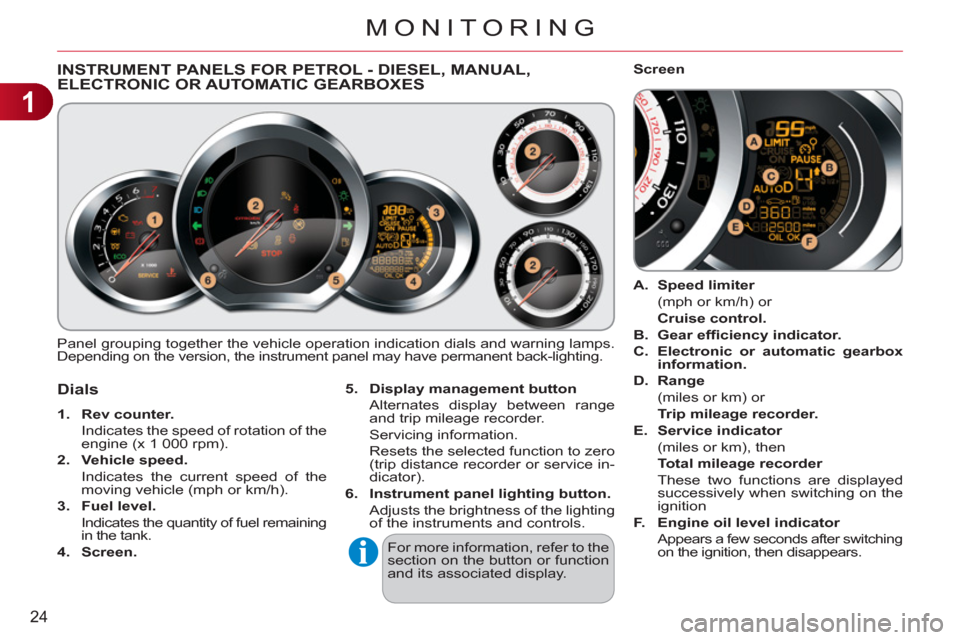

INSTRUMENT PANELS FOR PETROL - DIESEL, MANUAL, ELECTRONIC OR AUTOMATIC GEARBOXES
Panel grouping together the vehicle operation indication dials and warning lamps.
Depending on the version, the instrument panel may have permanent back-lighting.

Dials



1.
Rev counter.

Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Vehicle speed.

Indicates the current speed of the
moving vehicle (mph or km/h).

3.
Fuel level.

Indicates the quantity of fuel remaining
in the tank.

4.
Screen.

5.
Display management button

Alternates display between range
and trip mileage recorder.
Servicing information.
Resets the selected function to zero
(trip distance recorder or service in-
dicator).

6.
Instrument panel lighting button.

Adjusts the brightness of the lighting
of the instruments and controls.
For more information, refer to the
section on the button or function
and its associated display.

A.
Speed limiter

(mph or km/h) or
Cruise control.


B.
Gear effi ciency indicator.


C.
Electronic
or
automatic gearbox
information.


D.
Range

(miles or km) or
Trip mileage recorder.


E.
Service indicator

(miles or km), then

Total mileage recorder

These two functions are displayed
successively when switching on the
ignition

F.
Engine oil level indicator

Appears a few seconds after switching
on the ignition, then disappears.


Screen

1
25
MONITORING

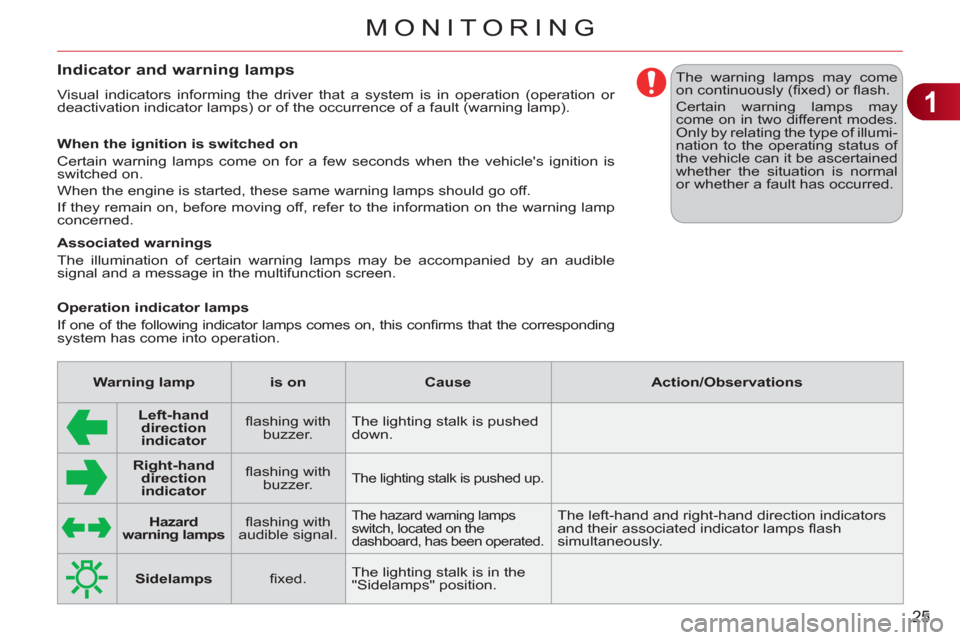

Indicator and warning lamps
Visual indicators informing the driver that a system is in operation (operation or
deactivation indicator lamps) or of the occurrence of a fault (warning lamp).

When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehicle's ignition is
switched on.
When the engine is started, these same warning lamps should go off.
If they remain on, before moving off, refer to the information on the warning lamp
concerned.

Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding
system has come into operation.
The warning lamps may come
on continuously (fi xed) or fl ash.
Certain warning lamps may
come on in two different modes.
Only by relating the type of illumi-
nation to the operating status of
the vehicle can it be ascertained
whether the situation is normal
or whether a fault has occurred.

Associated warnings
The illumination of certain warning lamps may be accompanied by an audible
signal and a message in the multifunction screen.


Warning lamp



is on



Cause



Action/Observations






Left-hand
direction
indicato

r


fl ashing with
buzzer. The lighting stalk is pushed
down.




Right-hand
direction
indicator


fl ashing with
buzzer.

The lighting stalk is pushed up.






Sidelamps


fi xed. The lighting stalk is in the
"Sidelamps" position.



Hazard
warning lamps

fl ashing with
audible signal.

The hazard warning lamps
switch, located on the
dashboard, has been operated. The left-hand and right-hand direction indicators
and their associated indicator lamps fl ash
simultaneously.

1
MONITORING

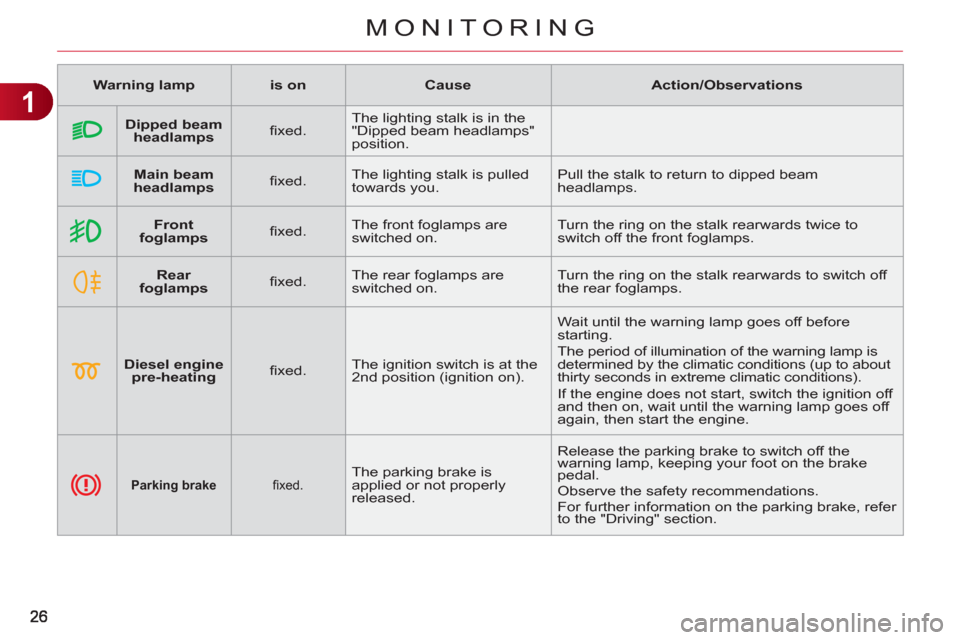

Front
foglamps


fi xed. The front foglamps are
switched on. Turn the ring on the stalk rearwards twice to
switch off the front foglamps.




Rear
foglamps


fi xed. The rear foglamps are
switched on. Turn the ring on the stalk rearwards to switch off
the rear foglamps.




Diesel engine
pre-heating


fi xed. The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp goes off before
starting.
The period of illumination of the warning lamp is
determined by the climatic conditions (up to about
thirty seconds in extreme climatic conditions).
If the engine does not start, switch the ignition off
and then on, wait until the warning lamp goes off
again, then start the engine.






Parking brake


fi xed.
The parking brake is
applied or not properly
released. Release the parking brake to switch off the
warning lamp, keeping your foot on the brake
pedal.
Observe the safety recommendations.
For further information on the parking brake, refer
to the "Driving" section.

Warning lamp



is on



Cause



Action/Observations






Dipped beam
headlamps


fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position.




Main beam
headlamps


fi xed. The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam
headlamps.

1
27

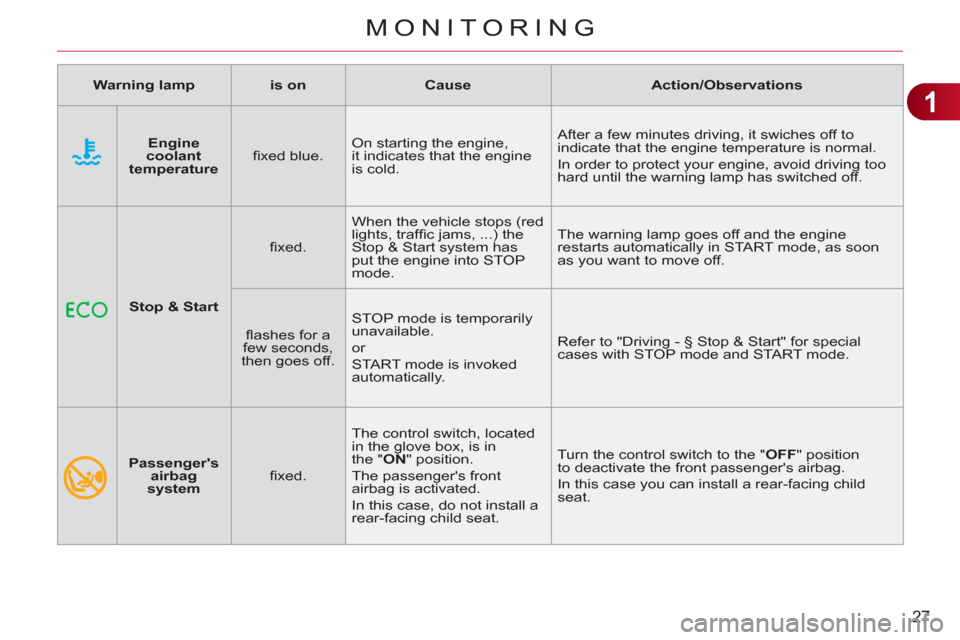

MONITORING


Warning lamp



is on



Cause



Action/Observations





Stop & Start


fi xed. When the vehicle stops (red
lights, traffi c jams, ...) the
Stop & Start system has
put the engine into STOP
mode. The warning lamp goes off and the engine
restarts automatically in START mode, as soon
as you want to move off.

fl ashes for a
few seconds,
then goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. Refer to "Driving - § Stop & Start" for special
cases with STOP mode and START mode.



Passenger's
airbag
system
fi xed. The control switch, located
in the glove box, is in
the " ON
" position.
The passenger's front
airbag is activated.
In this case, do not install a
rear-facing child seat. Turn the control switch to the " OFF
" position
to deactivate the front passenger's airbag.
In this case you can install a rear-facing child
seat.



Engine
coolant
temperature


fi xed blue
. On starting the engine,
it indicates that the engine
is cold. After a few minutes driving, it swiches off to
indicate that the engine temperature is normal.
In order to protect your engine, avoid driving too
hard until the warning lamp has switched off.

1
28

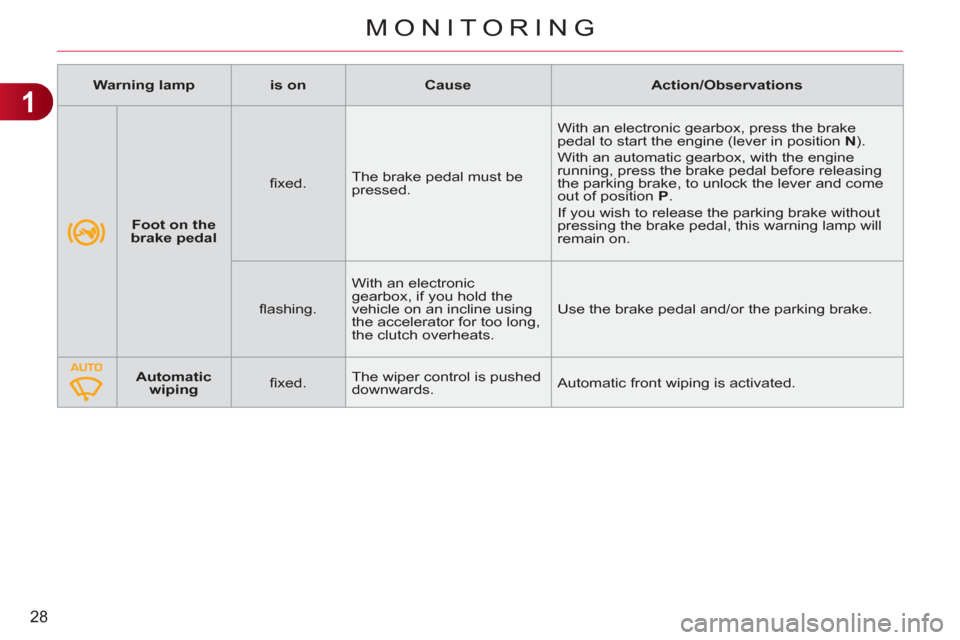

MONITORING




Foot on the
brake pedal


fi xed. The brake pedal must be
pressed. With an electronic gearbox, press the brake
pedal to start the engine (lever in position N
).
With an automatic gearbox, with the engine
running, press the brake pedal before releasing
the parking brake, to unlock the lever and come
out of position P
.
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.

fl ashing. With an electronic
gearbox, if you hold the
vehicle on an incline using
the accelerator for too long,
the clutch overheats. Use the brake pedal and/or the parking brake.




Automatic
wiping


fi xed. The wiper control is pushed
downwards. Automatic front wiping is activated.

Warning lamp



is on



Cause



Action/Observations
