4

Rear parking sensors
This system provides a warning when
reversing by detecting obstacles located
behind the vehicle.



129


Stop & Start
This system puts the engine temporarily
into standby during stops in the traffi c (red
lights, traffi c jams, etc...). The engine re-
starts as soon as you want to move off.
The Stop & Start system reduces fuel
consumption, exhaust emissions and the
noise level when stationary.



121


Temporary puncture repair kit
This kit is a complete system consisting
of a compressor and a sealant cartridge,
for the temporary repair of a tyre.



138



Zenith windscreen
This large windscreen provides incompa-
rable visibility and light in the passenger
compartment.



6


EXTERIOR

9
FAMILIARI
S
AT I
ON


1.
Steering wheel adjustment control.

2.
Headlamp height adjustment.

3.
Cruise control/speed limiter
controls.

4.
Lighting and direction indicator
control stalk.

5.
Microphone.

6.
Central locking button.

7.
Multifunction screen.

8.
Hazard warning lamps button.

9.
Central adjustable air vents.

10.
Sunshine sensor
Hi-Fi audio system central speaker.

11 .
Passenger’s airbag.

12.
Glove box/Passenger’s airbag
deactivation/Fusebox.

13.
Bonnet release lever.

14.
12 V accessory socket
USB port/auxiliary socket.

15.
Upper and lower storage.

16.
MyWay or Audio system.

17.
Heating/air conditioning controls.

INSTRUMENTS AND CONTROLS

2
44
MULTIFUNCTION SCREENS

Vehicle confi guration
Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment:


- wiper linked with reverse gear (refer
to the "Visibility" section),

- guide-me-home lighting (refer to the
"Visibility" section),

- parking sensors (refer to the
"Driving" section).


Options
Once the "Options" menu has been
selected, you can start diagnostics
of the status of the equipment (active,
not active, faulty).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:


- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.


)
Once you have selected a setting,
press the "
" or "
" buttons to
change its value.

)
Press the "
" or "
" buttons to
switch respectively to the previous
or next setting.

)
Press the "OK"
button to save the
change and return to the normal
display or press the "ESC"
button
to cancel.

Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).

Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or
km/l).
Once the fuel consumption units
have been set to mpg, the infor-
mation in the instrument panel
screen on speed and distance
will also be in mph and miles.
For safety reasons, confi guration
by the driver of the multifunction
screen must only be done when
stationary.

2
46
MULTIFUNCTION SCREENS

"Trip computer" menu

Once this menu has been selected, you
can consult information concerning the
status of the vehicle (warnings log, sta-
tus of functions, etc.)

Alert log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction screen.


"Personalisation-Configuration" menu


Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:


- wiper linked to reverse gear (refer to
the "Visibility" section),

- guide-me-home lighting and dura-
tion (see "Visibility" section),

- parking sensors (refer to the "Driving"
section).
)
In the "

Trip computer

"
menu, select
one of the following applications:




)
Press the "MENU"
button to gain
access to the general menu.

)
Press the arrows, then the "OK"
but-
ton to select the "

Trip computer

"

menu.
Once this menu has been selected, you
can gain access to the following func-
tions:


- defi ne the vehicle parameters,

- display confi guration,

- choice of language.


Status of functions
This summarises the status (active or
inactive) of the vehicle's functions.

Enter distance to destination
This allows you to enter an approximate
distance until your fi nal destination.

2
MULTIFUNCTION SCREENS

*
According to country.
System language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .

Date and time
This menu allows you to set the date and
time, the format of the date and the for-
mat of the time (refer to the "Audio and
Telematics" section or to the specifi c
user guide given to you with the other
owner's documents).

Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle
This menu allows you to activate or
deactivate certain driving and comfort
equipment:


- wiper linked with reverse gear (refer
to the "Visibility" section),

- guide-me-home lighting and dura-
tion (refer to the "Visibility" section),

- parking sensors (refer to the "Driving"
section).


Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).

System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text. For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.

3
51
COMFORT
RECOMMENDATIONS FOR VENTILATION AND AIR CONDITIONING
In order for these systems to be fully effective, follow the operation and
maintenance guidelines below:


)
To obtain an even air distribution, take care not to obstruct the exterior
air intake grilles located at the base of the windscreen, the nozzles,
the vents and the air outlets, as well as the air extractor located in the
boot.

)
Do not cover the sunshine sensor, located on the dashboard; this is
used for regulation of the digital air conditioning system.

)
Operate the air conditioning system for at least 5 to 10 minutes, once or
twice a month to keep it in perfect working order.

)
Ensure that the passenger compartment fi lter is in good condition and have
the fi lter elements replaced regularly (refer to the "Checks" section).
We recommend the use of a combined passenger compartment fi lter.
Thanks to its special active additive, it contributes to the purifi cation of
the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).

)
To ensure correct operation of the air conditioning system, you are also
advised to have it checked regularly as recommended in the servicing
booklet.

)
If the system does not produce cold air, switch it off and contact a
CITROËN dealer or a qualifi ed workshop.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning increases the available engine power and
so improves the towing ability.
If after an extended stop in sun-
shine, the interior temperature
is very high, fi rst ventilate the
passenger compartment for a
few moments.
Put the air fl ow control at a set-
ting high enough to quickly
change the air in the passenger
compartment.
The air conditioning system
does not contain chlorine and
does not present any danger to
the ozone layer.

The condensation created by
the air conditioning results in a
discharge of water under the ve-
hicle which is perfectly normal.

3
63
COMFORT
STEERING WHEEL ADJUSTMENT



)
When stationary
, pull the con-
trol lever to release the adjustment
mechanism.

)
Adjust the height and reach to suit
your driving position.

)
Push the control lever to lock the
adjustment mechanism.
As a safety precaution, these
operations should only be car-
ried out while the vehicle is sta-
tionary.

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehi-
cles, low sun...

Adjustment


)
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.


Day/night position


)
Pull the lever to change to the "night"
anti-dazzle position.

)
Push the lever to change to the normal
"day" position.








Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.

In order to ensure optimum vis-
ibility during your manoeuvres,
the mirror lightens automatically
when reverse gear is engaged.


As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".


Manual day/night model

5
82
VISIBILITY
To avoid causing a nuisance to other
road users, the height of the headlam-
ps should be adjusted in relation to the
load in the vehicle.

0

.

Driver only or driver + front passenger.


-
. Intermediate setting

1.
5 people.

-
. 5 people + load in the boot.

2.
Driver only + maximum authorised
load in the boot.
This position is suffi cient to avoid causing
dazzle.
Higher settings may limit the spread of
light from the headlamps.
The initial setting is position "0"
.
HEADLAMP ADJUSTMENT

Association with the automatic
"Guide-me-home" lighting
Association with the automatic illumination of headlamps provides "guide-me-home"
lighting with the following additional op-
tions:


- selection of the lighting duration to 15,
30 or 60 seconds in the functions that
can be set in the vehicle confi gura-
tion menu (except in the case of the
monochrome screen A, for which the
duration is set: 60 seconds),

- automatic activation of "guide-me-
home" lighting when automatic illumi-
nation of headlamps is in operation.


Operating fault In fog or snow, the sunshine sen-
sor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.

In the event of a fault with the
sunshine sensor, the lighting
come on, this warning lamp
is displayed in the instrument panel and/
or a message appears in the screen,
accompanied by an audible signal.
Contact a CITROËN dealer or a qualifi ed
workshop.

5
85
VISIBILITY

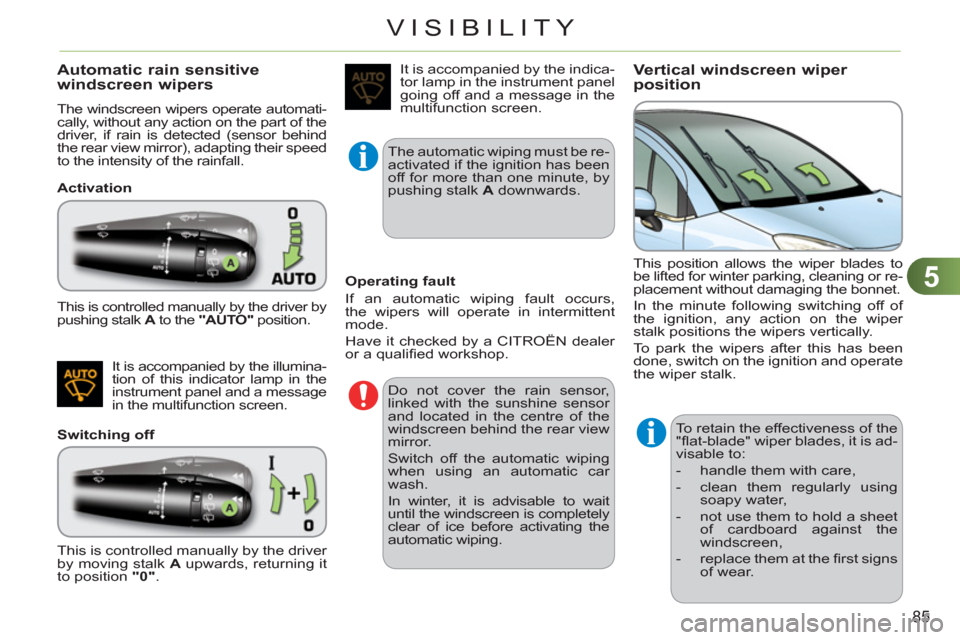

Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
the rear view mirror), adapting their speed
to the intensity of the rainfall.

Activation

Switching off
Operating fault
If an automatic wiping fault occurs,
the wipers will operate in intermittent
mode.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
Vertical windscreen wiper position

To retain the effectiveness of the
"fl at-blade" wiper blades, it is ad-
visable to:


- handle them with care,

- clean them regularly using
soapy water,

- not use them to hold a sheet
of cardboard against the
windscreen,

- replace them at the fi rst signs
of wear.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic wiping
when using an automatic car
wash.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic wiping.
The automatic wiping must be re-
activated if the ignition has been
off for more than one minute, by
pushing stalk A
downwards.
This position allows the wiper blades to
be lifted for winter parking, cleaning or re-
placement without damaging the bonnet.
In the minute following switching off of
the ignition, any action on the wiper
stalk positions the wipers vertically.
To park the wipers after this has been
done, switch on the ignition and operate
the wiper stalk.
This is controlled manually by the driver by
pushing stalk A
to the "AUTO"
position.

This is controlled manually by the driver
by moving stalk A
upwards, returning it
to position "0"
. It is accompanied by the indica-
tor lamp in the instrument panel
going off and a message in the
multifunction screen.
It is accompanied by the illumina-
tion of this indicator lamp in the
instrument panel and a message
in the multifunction screen.
