change time Citroen C3 RHD 2013 2.G Owner's Manual

.
21















































Eco-driving Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently, change up without waiting and drive by changing up quite soon. If your vehicle has the system, the gear efficiency indicator invites you to change up; it is displayed in theinstrument panel, follow its instructions.
With an automatic or electronic gearbox, stay in Drive "D"
or Auto "A",according to the type of gearbox, without pressing the accelerator pedal heavily or suddenly.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather than the brake pedal, and press the accelerator progressively. Thesepractices contribute towards a reduction in fuel consumption and CO2emissions and also helps reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffic is flowing well.


Control the use of your electrical
equipment


Before moving off, if the passenger compartment is too warm, ventilate it by opening the windows and air vents before using the air conditioning.

Above 30 mph (50 km/h), close the windows and leave the air vents open.
Remember to make use of equipment that can help keep the temperaturein the passenger compar tment down (sunroof and window blinds...). Switch off the air conditioning, unless it has automatic digital regulation, as soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light does not require their use.


Avoid running the engine before moving off, par ticularly in winter; your vehicle will warm up much faster while driving.


As a passenger, if you avoid connecting your multimedia devices (film, music, video game...), you will contribute towards limiting theconsumption of electrical energy, and so of fuel.
Disconnect your por table devices before leaving the vehicle.

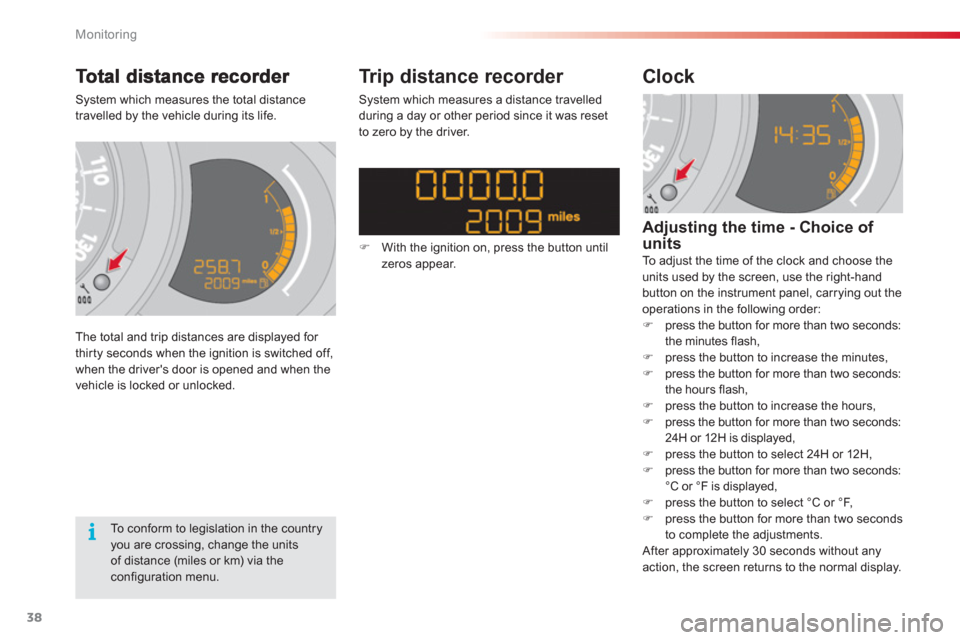

Monitoring
38
System which measures the total distance
travelled by the vehicle during its life.
The total and trip distances are displa
yed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
v
ehicle is locked or unlocked.
) With the ignition on, press the button until
zeros appear.



Tr ip distance recorder
System which measures a distance travelledduring a day or other period since it was reset
to zero by the driver.
Clock

Adjusting the time - Choice of units
To a djust the time of the clock and choose the
units used by the screen, use the right-hand
button on the instrument panel, carrying out the
operations in the following order: )press the button for more than two seconds:
the minutes flash, )press the button to increase the minutes, )press the button for more than two seconds:
the hours flash, )press the button to increase the hours,)press the button for more than two seconds:
24H or 12H is displayed,)press the button to select 24H or 12H, )press the button for more than two seconds: °C or °F is displayed,)press the button to select °C or °F,)press the button for more than two seconds
to complete the adjustments.
After approximately 30 seconds without anyaction, the screen returns to the normal display.


To c o nform to legislation in the country you are crossing, change the units of distance (miles or km) via theconfiguration menu.

1
Monitoring
39
The instrument panel remains illuminated with
only the vehicle speed and cruise control or
speed limiter information, if in use.
If there is an aler t or a change in a function
or to a setting, the black panel mode is
interrupted.
Activation
) With the lighting on, press the left handbutton of the instrument panel several
times to progressively reduce the
dashboard lighting level.
) Press the button again to reduce the lighting to the minimum level and switch off
the interior mood lighting.) Press the button again to activate the black
panel.


Black panel
System allowing cer tain displays to be switched
off for night driving.

Activation
When the lighting is on:)press the button to change the brightness
of the instruments and controls, )when the level of brightness required isreached, release the button.
Deactivation

When the lighting is off, or in day mode on
vehicles
fitted with daytime running lamps,pressing the button does not have any effect.

Lighting dimmer
System for manual adjustment of the brightness of the instruments and controls in relation to theexterior brightness.

Monitoring
42
Tr ip computer, a few definitions
Range
(miles or km)The distance which can still be
travelled with the fuel remainingin the tank. Related to theaverage fuel consumption over
the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l) Calculated over the last few seconds.


Average fuel consumption
(mpg or l/100 km or km/l)
Calculated since the last trip
computer reset.
Average speed
(mph or km/h)Calculated since the last trip computer reset.

Distance travelled
(miles or km)
Calculated since the last tripcomputer reset.

When the ran
ge falls below 20 miles (30 km),
dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (10 0 km).


Distance remaining to destination
(miles or km)
This is the distance remaining to be
travelled to the final destination. Itcan be entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

Stop & Start time counter
(minutes / seconds or hours /
minutes) If your vehicle is fitted with Stop &Start, a time counter calculates the
time spent in STOP mode during ajourney. It resets to zero every time the
ignition is switched on with the key.



If dashes are displayed continuously while driving in place of the digits, contact a CITROËN dealer or a qualified workshop.


This value may vary following a changein the style of driving or the relief,resulting in a significant change in thecurrent fuel consumption.
This function is only displayed from 20 mph (30 km/h).

2
Multifunction screens
43







Monochrome screen A

This displays the following information:


- time,

- date,

- ambient temperature
(this flashes if there isa risk of ice),

- status of the doors and boot,

- audio sources
(radio, CD...),

- trip computer (refer to the "Instruments andControls" section).
Warning messages (e.g.: "Emission control system faulty") or information messages (e.g.:
"Boot open") may appear temporarily. Thesecan be cleared by pressing the "Back"button.
Controls
From the control panel of your Audio system,you can:)
press the "MENU"
button to gain access to
the main menu,)
press the "
" or " " buttons to scroll
through the items in the screen,) press the "MODE"
button to change
the permanent application (date, audio source...),) press the "  " or " " buttons to change asetting value,)
press the "OK"button to confirm,or )
press the "Back"button to abandon the
operation in progress.



Main menu
)
Press the "MENU"
button to gain access to
the main menu
, then press the " "or " " buttons to scroll through the variousmenus:
- radio-CD,
- vehicle configuration,
- options,
- displa
y settings,
- languages,
- units.)
Press the "OK"button to select the menurequired.


Radio-CD

With the Audio system switched on, once the
"Radio- CD" menu has been selected you canactivate or deactivate the functions linked
with use of the radio (RDS, REG), or the CD(introscan, shuffle, CD repeat).
For more information on the "Radio-CD"
application, refer to the Audio system par t of
the "Audio and Telematics" section.


Displays in the screen

Multifunction screens
44
Vehicle confi guration
Once the "Vehicle Configuration" menu has
been selected, you can activate or deactivate
the following equipment:
- wiper linked with reverse gear (refer to the"Visibility" section),
- guide-me-home lighting (refer to the"Visibility" section),
- parking sensors (refer to the "Driving"
section).
Options
Once the "Options" menu has been selected,
you can start diagnostics of the status of the
equipment (active, not active, faulty).
Display settings

Once the "Display settings" menu has been selected, you can gain access to the following settings:


- year,

- month,

- day,

- hour,

- minutes,

-
12 or 24 hour mode.
)
Once you have selected a setting, press
the "  " or "
" buttons to change its value.
)
Press the "
" or "
" buttons to switch
respectively to the previous or next setting.) Press the "OK"
button to save the change
and return to the normal displa
y or press
the "Back"button to cancel.
Setting the date and time)Press the MENUbutton.
)Select "Display settings" using the "
" or "
" button.)Press "OK"
to confirm the selection. )Select the "Year" function using the " "or " " button.)Press "OK"
to confirm the selection. )Choose the desired value, using the " " or "
" button.)Press "OK"
to confirm the selection. )Repeat the procedure to set the "Month",
"Day", " H our s", and " M inute s".

Multifunction screens
46










Monochrome screen C
This displays the following information:
- time,
- date,
- ambient temperature (this flashes if there isa risk of ice),
- status of doors and boot,
- audio sources (radio, CD, USB por t / auxiliary socket etc.),
- trip computer (refer to the "Instruments andcontrols" section).
Warning messages (E.g. "Emissions controlsystem faulty") or information messages (E.g.: Automatic headlamps active") may appear temporarily. These can be cleared bypressing the "Back"
button.


Controls

From your Audio system control panel, you can: )
press the "MENU"
button to gain access to
the main menu,)
press the " " or " " buttons to scroll
through the items in the screen,
) press the "MODE"button to change the
permanent application (trip computer, audiosource...), ) press the "
" or "
" buttons to change a setting value, )
press the "OK"button to confirm,
or ) press the "Back"button to abandon theoperation in progress.

Main menu
)
Press the "MENU"button to gain access to
the main menu
:


- audio functions,

- the trip computer,

- personalisation-confi
guration,

- telephone (hands-free kit). )
Press the "  " or " " buttons to select the
menu required, then confirm by pressingthe "OK"button.



"Au d i o f u n c t i o n s"
menu

With the Audio system switched on, once this menu has been selected you can activateor deactivate the functions linked with use
of the radio (RDS, REG, RadioText), the CD (introscan, shuffle, CD repeat) or the MP3 player (USB por t / auxiliary socket).
For more information on the "Audio functions"
application, refer to the Audio system part of
the "Audio and Telematics" section.
Displays in the screen

2
Multifunction screens
49

"Telephone" Menu
With Audio system on, once this menu is selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)and manage your calls (call, hang up, secondcall, secret mode...).
For more information on the "Telephone"
function, refer to the Audio system par t of the"Audio and telematics" section.
Choice of language
Once this menu has been selected, you canchange the language used by the display
(Deutsch, English, Espanol, Français, Italiano,
Nederlands, Portu
gues, Portugues-Brasil,
Türkçe * ).

For safety reasons, configuration by the
driver of the multifunction screen mustonly be done when stationary.



Display confi guration

Once this menu has been selected, you can gain access to the following settings:


- brightness-video setting,

-
date and time setting,

- selection of units.
Once the fuel consumption units havebeen changed to mpg, the informationin the screen relating to speed and distance also changes to mph and miles respectively.
*
Accordin
g to country of destination. Settin
g the date and time)Select the " Set date and time" function
using the " " or " " button. )Press "OK"
to confirm the selection. )Adjust the settings one by one using the " " or "
" button then confirm with "OK".)Then select the "OK"
box in the screenand confirm.

Multifunction screens
50













16/9 colour screen (eMyWay)
It displays the following information automatically and directly:
- time,
- date,
- altitude,
- ambient temperature
(the value displayed
flashes if there is a risk of ice),
- check of the doors,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- trip computer information (see the "Monitoring" section),
- satellite navigation system information.


Controls

To select one of the applications, from theeMyWay control panel:)
press the dedicated "RADIO"
, "MUSIC","NAV"
, "TRAFFIC", "SETUP"
or "PHONE"
button for access to thecorresponding menu, )
turn the knob to change the selection, )
press the knob to confirm the selection,
or ) press the "Back"button to abandon thecurrent operation and return to the previous
display.
For more in
formation on these applications, refer to the "Audio and Telematics" section or
to the specific user guide given to you with the other owner's documents.


"SETUP" menu
)Press the "SETUP"button to gain access
to the "SETUP"
menu. This allows you to select from the following functions:
- "System language",
- "Date and time",
- "Displa
y",
- "Vehicle",
- "Units",
- "S
ystem".


Displays in the screen

Comfort
60








Scented air freshener System permitting the diffusion of a fragrance in the passenger compar tment in accordance with your requirements, by means of the adjustment dial and the various fragrance car tridges available.
Thi
s dial is located on the dashboard.
It allows you to adjust the intensity of diffusion
of the fragrance.)Turn the dial to the right to permit diffusion
of the fragrance.)Turn the dial to the left to stop diffusion of
the
fragrance.
Leave the central vents open.

Fragrance cartridge


Removing the cartridge
)Press the dial and turn it a quarter of a turnanti-clockwise. )Remove the cartridge.
)Refit its sealing case.
Fitting the cartridge
)
Remove the cartridge from the sealingcase.)
Install the car tridge (flower at top left). )
Press the dial and turn it a quar ter of a turnclockwise.

As a safety precaution, do not carry out any action on the car tridge whiledriving. Do not dismantle the car tridges.Do not attempt to refill the fragrancediffuser or the cartridges.
Avoid all contact with the skin and eyes.Keep out of reach of children and
animals.
Do not discard the original cartridge as this ser ves as a plug when no fragrance cartridge is in use. In order to preser ve the ser vice life of the cartridge, turn the dial fully to the leftwhen you no longer wish to diffuse the fragrance in the passenger compartment.

The intensity of diffusion of the fragrance may depend on the ventilationor air conditioning settings.
Adjustment dial
This car tridge can be removed easily. Thefirst time it is used, replace the plug with a real cartridge.
You can change it at any time and store it in the
sealed case which keeps it closed once it has
been opened.
You can obtain different fragrance car tridges
from a CITROËN dealer or a qualified
wor
kshop.
