headlamp Citroen C3 RHD 2013 2.G Owner's Manual

.
.
Contents
Child seats 98
ISOFIX child seats 104
Electric child lock 107
Child safety
Instrument panels 23
Indicator and warning lamps 25
Indicators 35
Adjustment buttons 38
Trip computer 40
Monitoring Familiarisation
Monochrome screen A 43
Monochrome screen C 46
16/9 colour screen (eMyWay) 50
Multifunction screens
Ventilation 52
Heating 54
Manual air conditioning 54
Digital air conditioning 57
Rear screen demist - defrost 59
Scented air freshener 60
Front seats 61
Rear seats 63
Mirrors 64
Steering wheel adjustment 65
Comfort
Remote control key 66
Alarm 71
Window controls 73
Doors 75
Boot 78
Fuel tank 79
Misfuel prevention (Diesel) 81
Access
Lighting controls 82
LED lamps 86
Headlamp adjustment 86
Wiper controls 87
Courtesy lamps 90
Interior mood lighting 91
Boot lamp 91
Visibility
Interior fi ttings 92
Boot fi ttings 96
Fittings Eco-driving

.Familiarisation
9
1. Steering wheel adjustment control.2.Headlamp height adjustment. 3.Cruise control / speed limiter controls. 4.
Lighting and direction indicator control stalk.
5. Microphone.
6
.Central locking button.
7. Multifunction screen.8.Hazard warning lamps button.9.
Central adjustable air vents.10.Sunshine sensor
Hi-Fi audio system central speaker.11. Passenger's airbag.12.
Glove box / Passenger's airbag
deactivation / Fusebox.13.Bonnet release lever.14.12 V accessory socket
USB por t / auxiliary socket.15.Upper and lower storage.16. Audio system or eMyWay. 17.Heating / air conditioning controls.

Instruments and controls

.Familiarisation
13

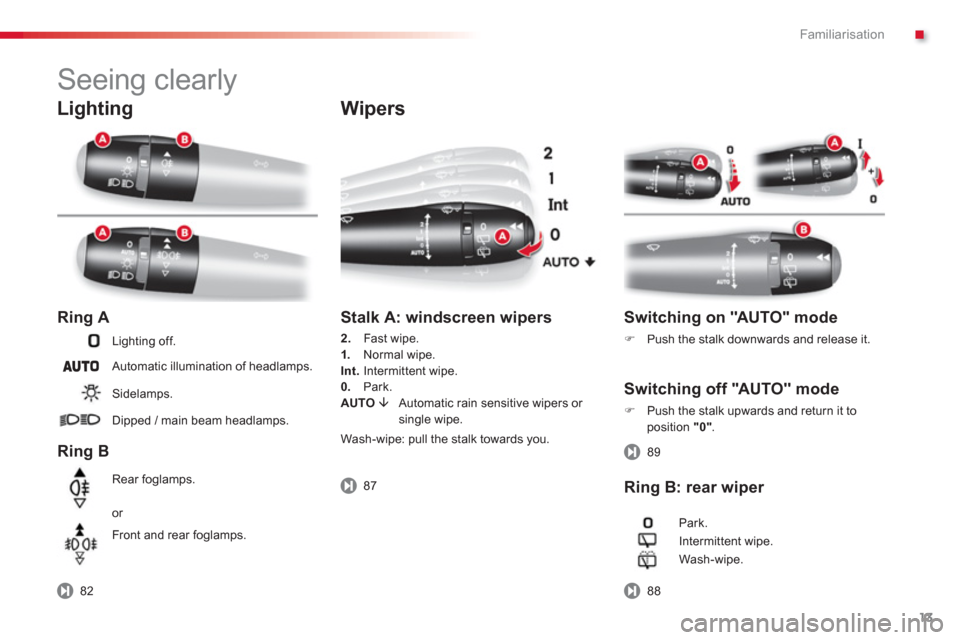

Lighting

Ring A


Ring B
Lighting off.
Automatic illumination o
f headlamps.
Sidelamps.
Dipped
/ main beam headlamps.
Rear
foglamps.
or
Front and rear
foglamps.
Wipers
2. Fast wipe.
1.Normal wipe.
Int.Intermittent wipe.0.Park. AUTO È Automatic rain sensitive wipers or
single wipe.
Park.
Intermittent wipe.
Wash-wipe.
Stalk A: windscreen wipers
Wash-wipe: pull the stalk towards you.

Switching on "AUTO" mode
)
Push the stalk downwards and release it.



Switching off "AUTO" mode
)
Push the stalk upwards and return it toposition "0".


Ring B: rear wiper

Seeing clearly
82

87
89

88

.
21















































Eco-driving Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently, change up without waiting and drive by changing up quite soon. If your vehicle has the system, the gear efficiency indicator invites you to change up; it is displayed in theinstrument panel, follow its instructions.
With an automatic or electronic gearbox, stay in Drive "D"
or Auto "A",according to the type of gearbox, without pressing the accelerator pedal heavily or suddenly.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather than the brake pedal, and press the accelerator progressively. Thesepractices contribute towards a reduction in fuel consumption and CO2emissions and also helps reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffic is flowing well.


Control the use of your electrical
equipment


Before moving off, if the passenger compartment is too warm, ventilate it by opening the windows and air vents before using the air conditioning.

Above 30 mph (50 km/h), close the windows and leave the air vents open.
Remember to make use of equipment that can help keep the temperaturein the passenger compar tment down (sunroof and window blinds...). Switch off the air conditioning, unless it has automatic digital regulation, as soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light does not require their use.


Avoid running the engine before moving off, par ticularly in winter; your vehicle will warm up much faster while driving.


As a passenger, if you avoid connecting your multimedia devices (film, music, video game...), you will contribute towards limiting theconsumption of electrical energy, and so of fuel.
Disconnect your por table devices before leaving the vehicle.

Monitoring
26
Front foglampsfixed.The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.
Rear foglampsfixed.The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamps.
Diesel engine pre-heatingfixed.The ignition switch is at the
2nd position (ignition on).Wait until the warning lamp goes off before star ting.
The period of illumination of the warning lamp is
determined by the climatic conditions (up to about
thirty seconds in extreme climatic conditions).
If the engine does not star t, switch the ignition off and
then on, wait until the warning lamp goes off again,
then star t the engine.
Parking brakefixed.The parking brake is applied or not properly released.Release the parking brake to switch off the warninglamp, keeping your foot on the brake pedal.Observe the safety recommendations.
For fur ther information on the parking brake, refer to
the "Parking brake" section.
Warning lampis onCauseAction / Observations
Dipped beamheadlampsfixed.The lighting stalk is in the "Dipped
beam headlamps" position.
Main beam headlampsfixed.The lighting stalk is pulled towardsyou. Pull the stalk to return to dipped beam headlamps.

Multifunction screens
46










Monochrome screen C
This displays the following information:
- time,
- date,
- ambient temperature (this flashes if there isa risk of ice),
- status of doors and boot,
- audio sources (radio, CD, USB por t / auxiliary socket etc.),
- trip computer (refer to the "Instruments andcontrols" section).
Warning messages (E.g. "Emissions controlsystem faulty") or information messages (E.g.: Automatic headlamps active") may appear temporarily. These can be cleared bypressing the "Back"
button.


Controls

From your Audio system control panel, you can: )
press the "MENU"
button to gain access to
the main menu,)
press the " " or " " buttons to scroll
through the items in the screen,
) press the "MODE"button to change the
permanent application (trip computer, audiosource...), ) press the "
" or "
" buttons to change a setting value, )
press the "OK"button to confirm,
or ) press the "Back"button to abandon theoperation in progress.

Main menu
)
Press the "MENU"button to gain access to
the main menu
:


- audio functions,

- the trip computer,

- personalisation-confi
guration,

- telephone (hands-free kit). )
Press the "  " or " " buttons to select the
menu required, then confirm by pressingthe "OK"button.



"Au d i o f u n c t i o n s"
menu

With the Audio system switched on, once this menu has been selected you can activateor deactivate the functions linked with use
of the radio (RDS, REG, RadioText), the CD (introscan, shuffle, CD repeat) or the MP3 player (USB por t / auxiliary socket).
For more information on the "Audio functions"
application, refer to the Audio system part of
the "Audio and Telematics" section.
Displays in the screen

Multifunction screens
48
Example: setting of the duration of the guide-
me-home lighting) Press the "
" or "
" buttons, then
the "OK"button to select the menurequired.
) Press the "
" or "
" buttons, then
the "OK"button to select the "Guide-
me-home headlamps" line.
) Press the " " or " " buttons to set thevalue required (15, 30 or 60 seconds), then
press the "OK"button to confirm.
)Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"boxand confirm or press the "Back"button to cancel.

"Personalisation-
Confi
guration" menu
Defi ne the vehicle parameters
Once this menu has been selected, you can activate or deactivate the following equipment:
- wiper linked to reverse gear (refer to the "Visibility" section),
- guide-me-home lighting and duration (see "Visibility" section),
- parking sensors (refer to the "Driving" section).
Once this menu has been selected, you can gain access to the following functions:
- define the vehicle parameters,
- display configuration,
- choice of language.

3
Comfort
65








Steering wheel adjustment
)
When stationary, pull the control lever to yrelease the adjustment mechanism.)
Adjust the height and reach to suit your driving position.)
Push the control lever to lock theadjustment mechanism.






Rear view mirror
Adjustable mirror providing a central rear ward
view.
Equipped with an anti-dazzle system, whichdarkens the mirror glass and reduces thenuisance to the driver caused by the sun, headlamps from other vehicles...


Adjustment
)Adjust the mirror so that the glass is
directed correctly in the "day" position.



Day / night position
)Pull the lever to change to the "night" anti-
dazzle position.
)Push the lever to change to the normal
"day" position.
Automatic day/night model
By means of a sensor, which measures the light from the rear of the vehicle, this system automatically and progressively changes
between the day and night uses.


Manual day/night model

As a safety measure, the mirrors should be adjusted to reduce the "blind spot".

In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.


As a safety precaution, these
operations should only be carried out while the vehicle is stationary.

Visibility
82














Lighting controls
Main lighting
The various front and rear lamps of the vehicleare designed to adapt the driver's visibility progressively according to climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without
dazzlin
g other drivers,
- main beam headlamps to see clearly when
the road is clear.

Additional lighting
Other lamps are installed to fulfil therequirements of par ticular conditions of
visibility:
- a rear foglamp to be seen from afar,
- front fo
glamps for even better forward
vision.
Programming
Various automatic lighting control modes are also available according to the following
options:
-
guide-me-home lighting,
- automatic illumination of headlamps.




Model without AUTO lighting




Model with AUTO li
ghting



Lighting off / daytime runninglamps.
Automatic illumination of headlamps.
Sidelamps only.
Di
pped or main beam headlamps.
B. Stalk for switching the headlamp beam: pull the stalk to switch between dipped and main beam headlamps.
In the lamps off and sidelamps modes,
th
e driver can switch on the main beamheadlamps temporarily ("headlamp flash") by maintaining a pull on the stalk.

Displays

Lighting of the corresponding indicator lamp on
the instrument panel confirms the switching on
of the lighting selected.

Depending on version, the instrument panelmay have permanent back-lighting. Illumination
of the instrument panel is therefore not linked to
the exterior lighting.

Manual controls

The lighting is controlled directly by the driver by means of the ring A
and the stalk B
.
A. Main lighting mode selection ring: turn it
to position the s
ymbol required facing themark. S
ystem for selection and control of the various front and rear lamps providing the vehicle's lighting.

5
Visibility
83
C. Foglamp selection ring.
The
foglamps operate with the dipped and main
beam headlamps.
Rear fo
glamp
Rotate and release the rin
g C:)
forwards a first time to switch on the front
foglamps,) forwards a second time to switch on the rear foglamp,)
rearwards a first time to switch off the rear foglamp,)
rearwards a second time to switch of thefront fog lamps.



Model with rear foglamp only
)
To switch on the foglamp, turn the ring Cforwards.
When the lighting is switched off automatically(with AUTO model), the foglamp and the dipped
beam headlamps will remain on. ) To switch off all of the lighting, turn thering C
rearwards.





Model with front foglamps and a
rear foglamp Front and rear foglamps When the lighting is switched o
ff automatically
(with AUTO model) or when the dipped
headlamps are switched off manually, thefoglamps and sidelamps will remain on. ) Turn the ring rear wards to switch off the
foglamps, the sidelamps will then switch
off.



In good or rainy weather, by both dayand night, the front foglamps and the rear foglamp are prohibited. In thesesituations, the power of their beamsmay dazzle other drivers.
Do not forget to switch off the front foglamps and the rear foglamp whenthey are no longer necessary.
