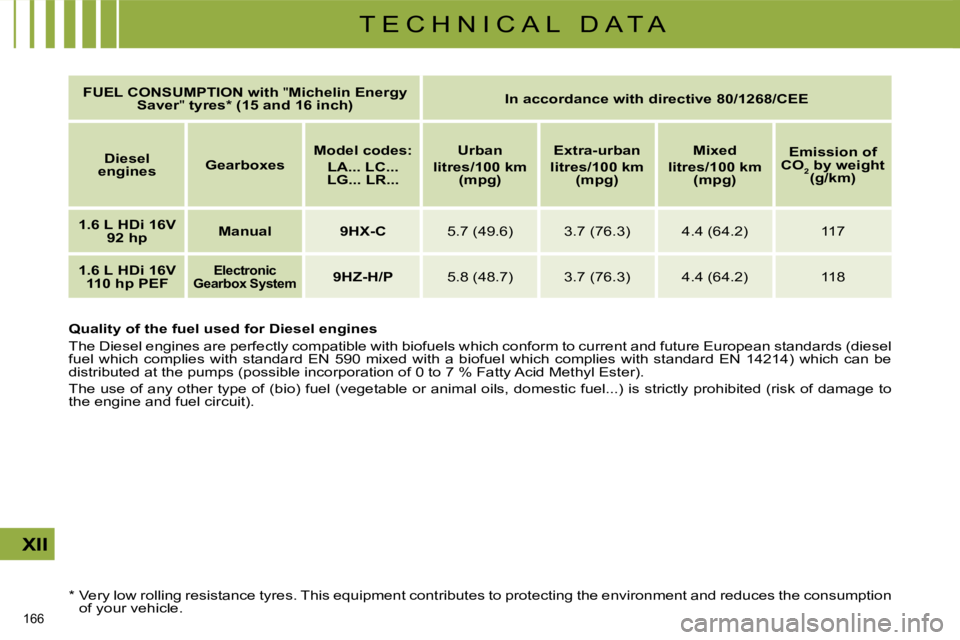

T E C H N I C A L D A T A
* Very low rolling resistance tyres. This equipment contribu tes to protecting the environment and reduces the consumption
of your vehicle.
FUEL
CONSUMPTION with "Michelin Energy
Saver " tyres * (15 and 16 inch)
In accordance with directive 80/1268/CEE

Diesel
engines
Gearboxes
Model codes:
LA... LC...
LG... LR...
Urban
litres/100 km (mpg)
Extra-urban
litres/100 km (mpg)
Mixed
litres/100 km (mpg)
Emission of
CO 2 by weight
(g/km)

1.6
L
HDi 16V
92 hp
Manual 9HX-C 5.7 (49.6) 3.7 (76.3) 4.4 (64.2) 117

1.6
L
HDi 16V
110 hp PEF

Electronic
Gearbox System
9HZ-H/P 5.8 (48.7) 3.7 (76.3) 4.4 (64.2) 118
Quality of the fuel used for Diesel engines
The Diesel engines are perfectly compatible with biofuels w hich conform to current and future European standards (diesel
fuel which complies with standard EN 590 mixed with a biofue l which complies with standard EN 14214) which can be
distributed at the pumps (possible incorporation of 0 to 7 % Fatty Acid Methyl Ester).
The use of any other type of (bio) fuel (vegetable or animal oils, domestic fuel...) is strictly prohibited (risk of damage to
the engine and fuel circuit).

162
XII
T E C H N I C A L D A T A

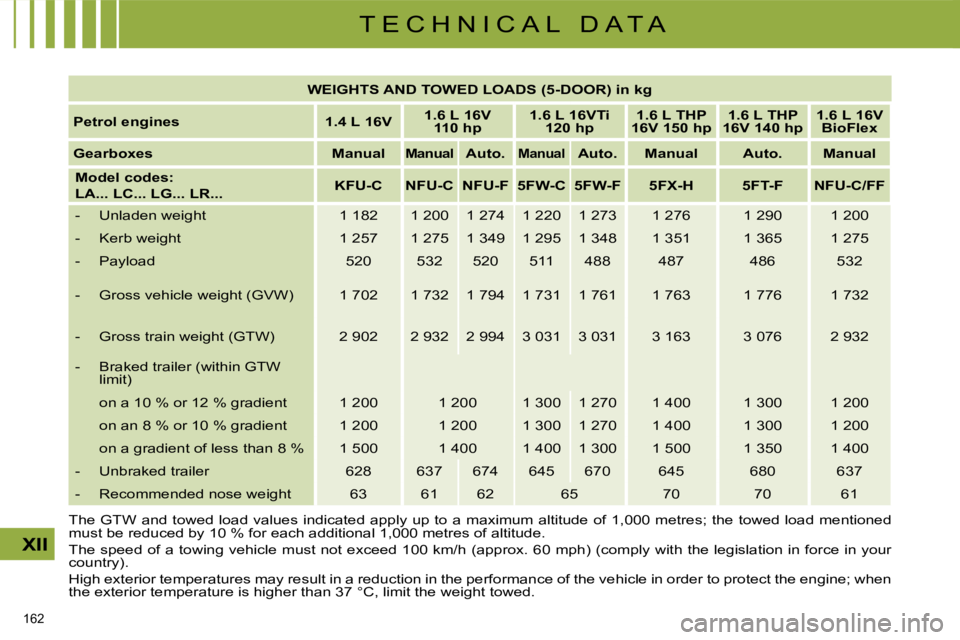

WEIGHTS AND TOWED LOADS (5-DOOR) in kg

Petrol engines 1.4
L
16V
1.6
L
16V
110 hp
1.6
L
16VTi
120 hp
1.6
L
THP
16V 150 hp
1.6
L
THP
16V 140 hp
1.6
L
16V
BioFlex

Gearboxes Manual

Manual
Auto.
Manual
Auto. Manual Auto. Manual

Model codes:
LA... LC... LG... LR...
KFU-C NFU-C NFU-F 5FW-C 5FW-F 5FX-H 5FT-F NFU-C/FF
- Unladen weight 1 182 1 200 1 274 1 220 1 273 1 276 1 290 1 200
- Kerb weight 1 257 1 275 1 349 1 295 1 348 1 351 1 365 1 275
- Payload 520 532 520 511 488 48 7 486 532
- Gross vehicle weight (GVW) 1 702 1 732 1 794 1 731 1 761 1 763 1 776 1 732
- Gross train weight (GTW) 2 902 2 932 2 994 3 031 3 031 3 163 3 076 2 932
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 200 1 30 0 1 270 1 400 1 300 1 200
on an 8 % or 10 % gradient 1 200 1 200 1 30 0 1 270 1 400 1 300 1 200
on a gradient of less than 8 % 1 500 1 400 1 400 1 300 1 500 1 350 1 400
- Unbraked trailer 628 637 674 645 67 0 645 680 637
- Recommended nose weight 63 61 62 65 70 70 61
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

163
XII
T E C H N I C A L D A T A

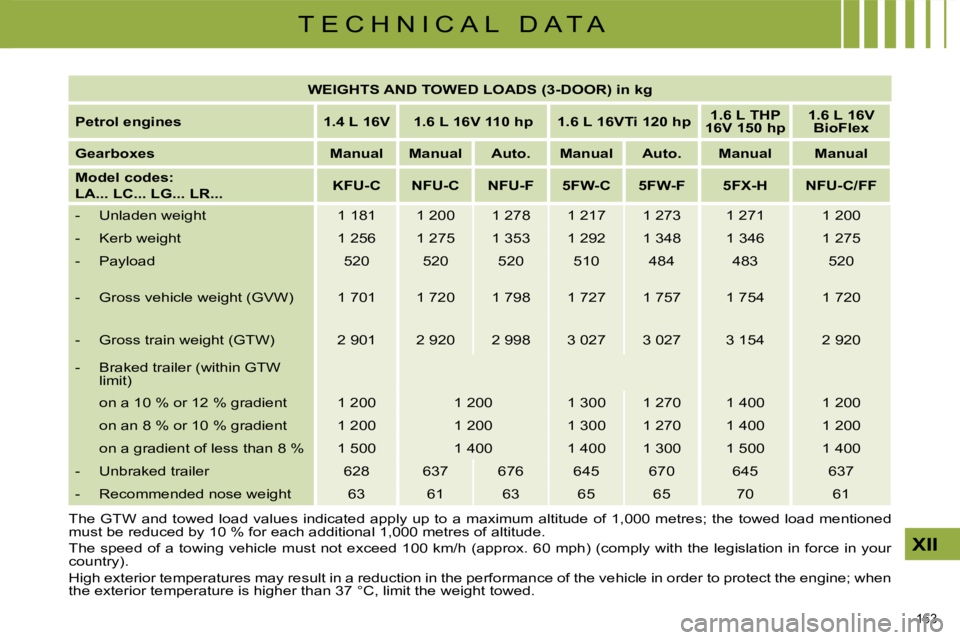

WEIGHTS AND TOWED LOADS (3-DOOR) in kg

Petrol engines 1.4
L
16V 1.6
L
16V 110 hp 1.6
L
16VTi 120 hp
1.6
L
THP
16V 150 hp
1.6
L
16V
BioFlex

Gearboxes Manual Manual Auto. Manual Auto. Manual Manual

Model codes:
LA... LC... LG... LR...
KFU-C NFU-C NFU-F 5FW-C 5FW-F 5FX-H NFU-C/FF
- Unladen weight 1 181 1 200 1 278 1 217 1 273 1 271 1 200
- Kerb weight 1 256 1 275 1 353 1 292 1 348 1 346 1 275
- Payload 520 520 520 510 484 48 3 520
- Gross vehicle weight (GVW) 1 701 1 720 1 798 1 727 1 757 1 754 1 720
- Gross train weight (GTW) 2 901 2 920 2 998 3 027 3 027 3 154 2 920
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 200 1 30 0 1 270 1 400 1 200
on an 8 % or 10 % gradient 1 200 1 200 1 30 0 1 270 1 400 1 200
on a gradient of less than 8 % 1 500 1 400 1 400 1 300 1 500 1 400
- Unbraked trailer 628 637 676 645 67 0 645 637
- Recommended nose weight 63 61 63 65 65 70 61
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

167
XII
T E C H N I C A L D A T A

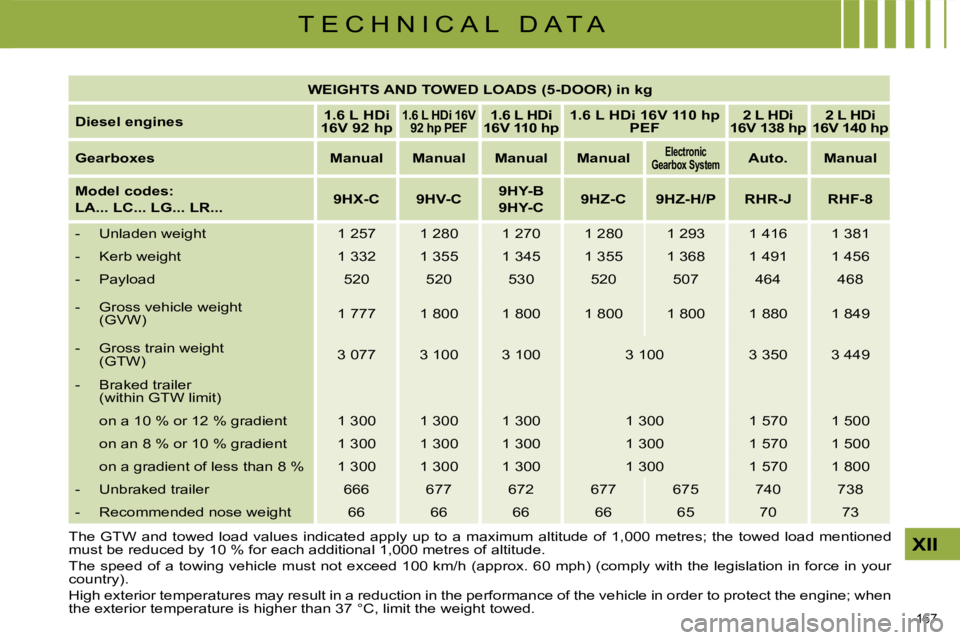

WEIGHTS AND TOWED LOADS (5-DOOR) in kg

Diesel engines
1.6
L
HDi
16V 92 hp

1.6
L
HDi 16V
92 hp PEF
1.6
L
HDi
16V 110 hp
1.6
L
HDi 16V 110 hp
PEF
2
L
HDi
16V 138 hp
2
L
HDi
16V 140 hp

Gearboxes Manual Manual Manual Manual

Electronic
Gearbox System
Auto. Manual

Model codes:
LA... LC... LG... LR...
9HX-C 9HV-C
9HY-B

9HY-C
9HZ-C 9HZ-H/P RHR-J RHF-8
- Unladen weight 1 257 1 280 1 270 1 280 1 293 1 416 1 381
- Kerb weight 1 332 1 355 1 345 1 355 1 368 1 491 1 456
- Payload 520 520 530 520 507 46 4 468
- Gross vehicle weight (GVW) 1 777 1 800 1 800 1 800 1 800 1 88
0 1 849
- Gross train weight (GTW) 3 077 3 100 3 100 3 100 3 350 3 44
9
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 300 1 300 1 30 0 1 300 1 570 1 500
on an 8 % or 10 % gradient 1 300 1 300 1 30 0 1 300 1 570 1 500
on a gradient of less than 8 % 1 300 1 300 1 300 1 300 1 570 1 800
- Unbraked trailer 666 677 672 677 67 5 740 738
- Recommended nose weight 66 66 66 66 65 70 73
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

168
XII
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

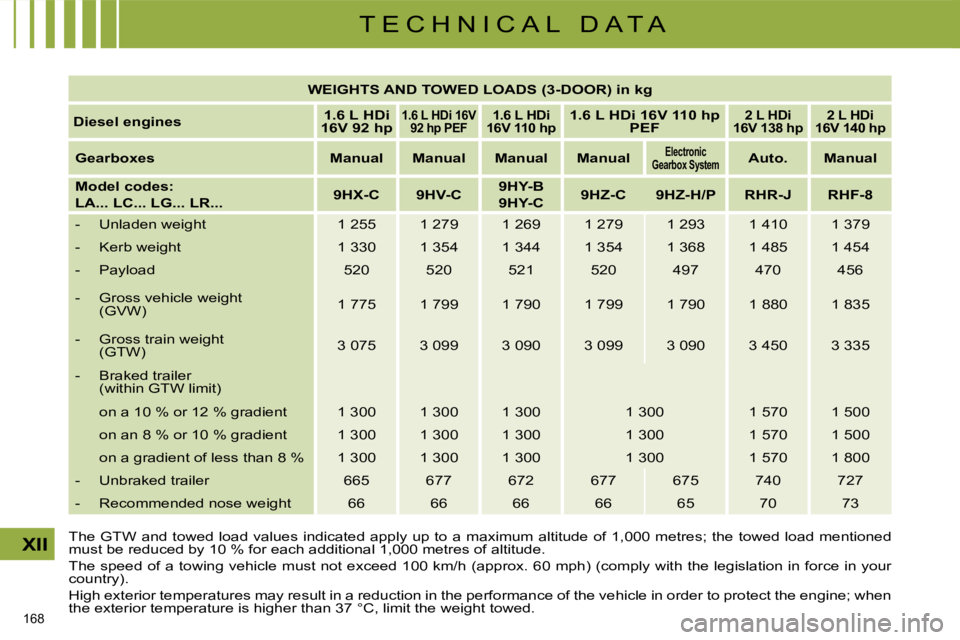

WEIGHTS AND TOWED LOADS (3-DOOR) in kg

Diesel engines
1.6
L
HDi
16V 92 hp

1.6
L
HDi 16V
92 hp PEF
1.6
L
HDi
16V 110 hp
1.6
L
HDi 16V 110 hp
PEF
2
L
HDi
16V 138 hp
2
L
HDi
16V 140 hp

Gearboxes Manual Manual Manual Manual
Electronic
Gearbox System
Auto. Manual

Model codes:
LA... LC... LG... LR...
9HX-C 9HV-C
9HY-B

9HY-C
9HZ-C 9HZ-H/P RHR-J RHF-8
- Unladen weight 1 255 1 279 1 269 1 279 1 293 1 410 1 379
- Kerb weight 1 330 1 354 1 344 1 354 1 368 1 485 1 454
- Payload 520 520 521 520 497 47 0 456
- Gross vehicle weight (GVW) 1 775 1 799 1 790 1 799 1 790 1 88
0 1 835
- Gross train weight (GTW) 3 075 3 099 3 090 3 099 3 090 3 45
0 3 335
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 300 1 300 1 30 0 1 300 1 570 1 500
on an 8 % or 10 % gradient 1 300 1 300 1 30 0 1 300 1 570 1 500
on a gradient of less than 8 % 1 300 1 300 1 300 1 300 1 570 1 800
- Unbraked trailer 665 677 672 677 67 5 740 727
- Recommended nose weight 66 66 66 66 65 70 73

169
XII
T E C H N I C A L D A T A

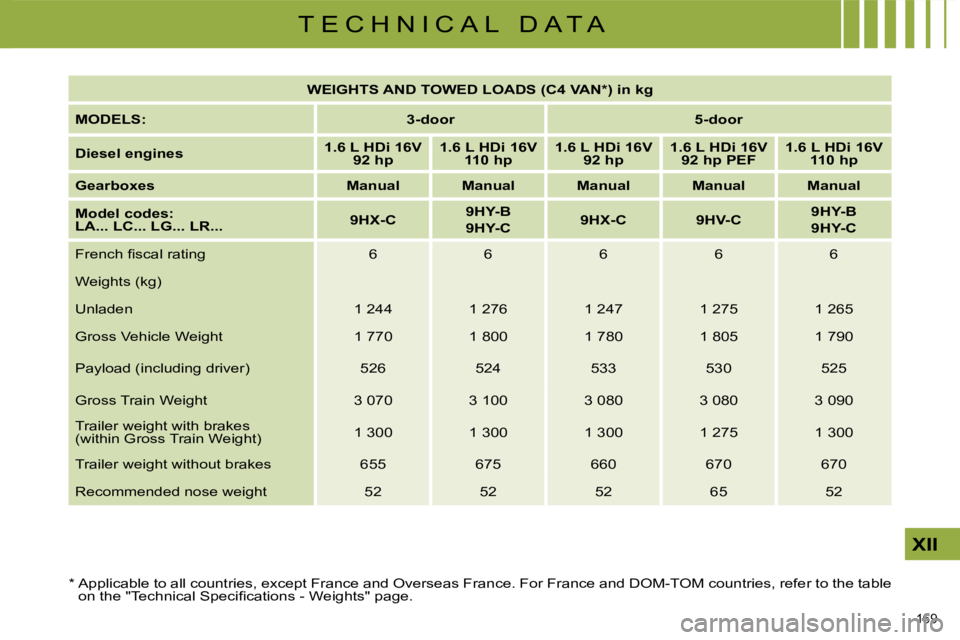

WEIGHTS AND TOWED LOADS (C4 VAN * ) in kg

MODELS:
3-door 5-door

Diesel engines
1.6 L HDi 16V
92
hp
1.6 L HDi 16V
110
hp
1.6 L HDi 16V
92
hp
1.6 L HDi 16V
92
hp
PEF
1.6 L HDi 16V
110
hp

Gearboxes Manual Manual Manual Manual Manual

Model codes:
LA... LC... LG... LR...
9HX-C
9HY-B

9HY-C
9HX-C 9HV-C
9HY-B

9HY-C
French fi scal rating 6 6 6 6 6
Weights (kg)
Unladen 1 244 1 276 1 247 1 275 1 26 5
Gross Vehicle Weight 1 770 1 800 1 780 1 80 5 1 790
Payload (including driver) 526 524 533 530 5 25
Gross Train Weight 3 070 3 100 3 080 3 080 3 090
Trailer weight with brakes
(within Gross Train Weight) 1 300 1 300 1 300 1 275 1 300
Trailer weight without brakes 655 675 660 67 0 670
Recommended nose weight 52 52 52 65 52
* Applicable to all countries, except France and Overseas F rance. For France and DOM-TOM countries, refer to the table
on the "Technical Specifi cations - Weights" page.

170
XII
T E C H N I C A L D A T A

3-door model 5-door model

A 2.608

B 4.288 4.275

C 0.950

D 0.730 0.717

E 1.502/1.510

F 1.497/1.505

G 1.769 1.773

H 1.456/1.496

I 1.964
1.989 *

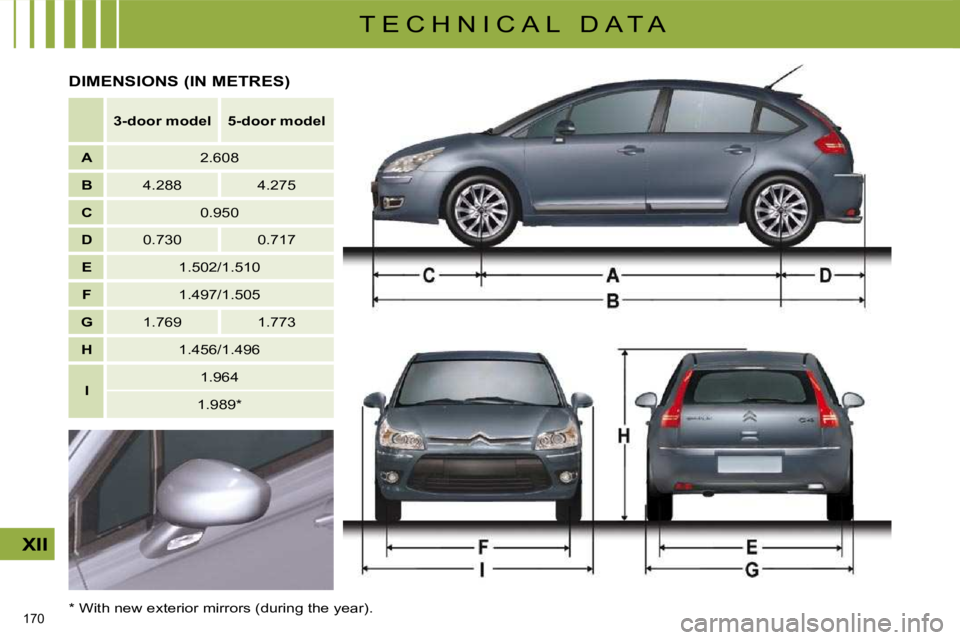

DIMENSIONS (IN METRES)
* With new exterior mirrors (during the year).

171
XII
T E C H N I C A L D A T A

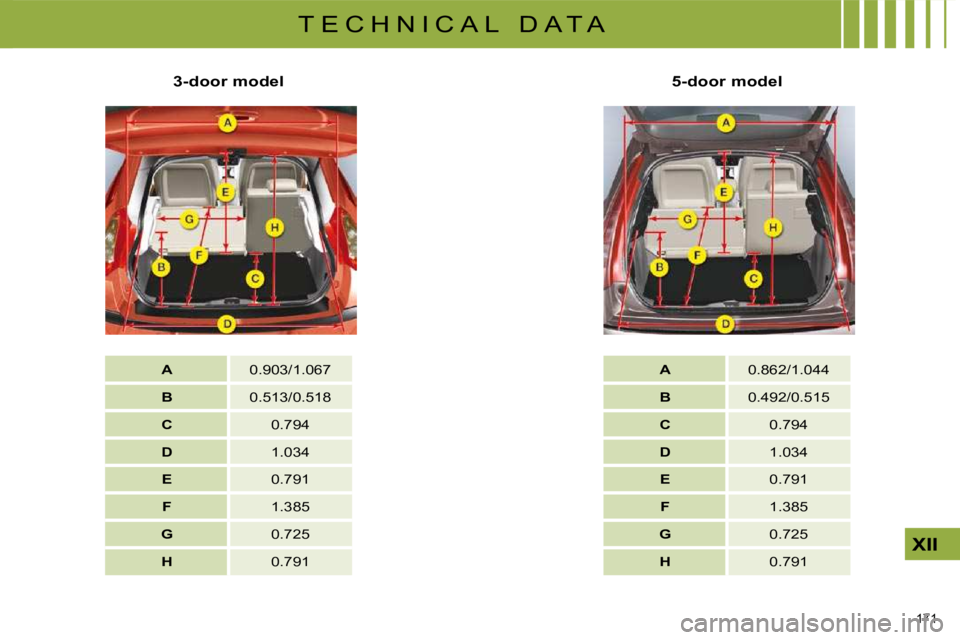

3-door model

A 0.903/1.067

B 0.513/0.518

C 0.794

D 1.034

E 0.791

F 1.385

G 0.725

H 0.791 5-door model

A 0.862/1.044

B 0.492/0.515

C 0.794

D 1.034

E 0.791

F 1.385

G 0.725

H 0.791

172
T E C H N I C A L D A T A
IDENTIFICATION MARKINGS
Various visible marking components
for vehicle identifi cation and searches.
The vehicle type identifi cation
number is also indicated on the reg-
istration document.
All CITROËN genuine replacement
parts are available exclusively within
the dealer network.
For your safety and in order to remain
within the terms of the guarantee, you
are advised to use only CITROËN re-
placement parts A. Manufacturer’s label

1. EU type approval number.

2. Vehicle identifi cation No. (VIN).

3. Gross vehicle weight.

4. Gross train weight.

5. Maximum weight on front axle.

6. Maximum weight on rear axle. B. Vehicle identification No. (VIN)
Located on bodywork and behind
windscreen.
C. Paint colour code
Tyre reference
Tyre pressures
Located on the driver's door interior
pillar.
Use the tyre pressures recom-
mended by CITROËN.
Check the tyre pressures when the
tyres are cold, on a frequent basis.
Never reduce the pressure of a hot
tyre.
If replacing your tyres, it is essen-
tial to use the tyre sizes that are
recommended for your vehicle.

173
