lock CITROEN C4 2007 Owners Manual

25
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" The fl ashing of this warning
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automatic
gearbox.
It may also fl ash to prompt you to
brake when engaging reverse gear.
In the case of the Electronic Gearbox
System, this warning lamp fl ashes to
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is activa ted.
This warning lamp is displayed
a few seconds after the func-
tion is activated. Deactivation warning lamps
If one of the following warning lamps
comes on, this confi rms that the
corresponding system has been
switched off intentionally.
Passenger's air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A specifi c button, located on the
dashboard, permits deactivation of
the system. This is confi rmed by
continuous lighting of this warning
lamp and of the indicator lamp on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this has gone out
before operating the starter.
The passenger's air bag system is put into service automatically
when the vehicle is started.
A specifi c control, located in the glove
box, permits deactivation of the system.
This is confi rmed by continuous lighting
of this warning lamp on the instrument
panel or a message on the NaviDrive
multifunction screen.
When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying of
a warning lamp must be investigated
further by reading the associated mes-
sage on the multifunction screen.
Should you encounter any problems,
do not hesitate to contact a CITROËN
dealer.

26
I
I N S T R U M E N T S a n d C O N T R O L S Maximum coolant temperature If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle as soon as
it is safe to do so.
Low fuel level When the tank is full, all the
bars are lit.
If the fuel low warning lamp
comes on accompanied by
an audible signal and a message on
the multifunction screen, there are
approximately 7 litres of fuel remain-
ing in the tank and the 2 or 3 bars
fl ash on the instrument panel.
When the last bar goes out, there
are approximately 2 litres of fuel re-
maining in the tank.
Lighting is associated
with the lighting of an-
other warning lamp:
Service If this comes on, it indi-
cates the occurrence
of a problem in one
of the systems which
does not have a spe-
cifi c warning lamp.
It is accompanied by a message on
the multifunction screen.
The warning lamp comes on tempo-
rarily in the case of minor faults.
In the case of major faults, the warning
lamp remains on until the operating
fault is rectifi ed. Contact a CITROËN
dealer as soon as possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- signifi cant drop in the fl uid level in the circuit,
-
electronic brake force distribution
(EBFD) faulty (simultaneous lighting
of the ABS warning lamp),
Stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Dynamic stability control
(ESP/ASR)
The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been de-
activated, if this warning lamp and
the indicator lamp on the button
come on continuously, this indi-
cates the occurrence of a fault in the
ESP/ASR system or in the hill start
assistance. Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
If it fl ashes, it indicates the occur-
rence of a fault in the emission control
system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
Stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not prevent op-
eration of the vehicle’s servo-assisted
braking system.

25
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" The fl ashing of this warning
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automatic
gearbox.
It may also fl ash to prompt you to
brake when engaging reverse gear.
In the case of the Electronic Gearbox
System, this warning lamp fl ashes to
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is activa ted.
This warning lamp is displayed
a few seconds after the func-
tion is activated. Deactivation warning lamps
If one of the following warning lamps
comes on, this confi rms that the
corresponding system has been
switched off intentionally.
Passenger's air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A specifi c button, located on the
dashboard, permits deactivation of
the system. This is confi rmed by
continuous lighting of this warning
lamp and of the indicator lamp on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this has gone out
before operating the starter.
The passenger's air bag system is put into service automatically
when the vehicle is started.
A specifi c control, located in the glove
box, permits deactivation of the system.
This is confi rmed by continuous lighting
of this warning lamp on the instrument
panel or a message on the NaviDrive
multifunction screen.
When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying of
a warning lamp must be investigated
further by reading the associated mes-
sage on the multifunction screen.
Should you encounter any problems,
do not hesitate to contact a CITROËN
dealer.

25
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" The fl ashing of this warning
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automatic
gearbox.
It may also fl ash to prompt you to
brake when engaging reverse gear.
In the case of the Electronic Gearbox
System, this warning lamp fl ashes to
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is activa ted.
This warning lamp is displayed
a few seconds after the func-
tion is activated. Deactivation warning lamps
If one of the following warning lamps
comes on, this confi rms that the
corresponding system has been
switched off intentionally.
Passenger's air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A specifi c button, located on the
dashboard, permits deactivation of
the system. This is confi rmed by
continuous lighting of this warning
lamp and of the indicator lamp on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this has gone out
before operating the starter.
The passenger's air bag system is put into service automatically
when the vehicle is started.
A specifi c control, located in the glove
box, permits deactivation of the system.
This is confi rmed by continuous lighting
of this warning lamp on the instrument
panel or a message on the NaviDrive
multifunction screen.
When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying of
a warning lamp must be investigated
further by reading the associated mes-
sage on the multifunction screen.
Should you encounter any problems,
do not hesitate to contact a CITROËN
dealer.

26
I
I N S T R U M E N T S a n d C O N T R O L S Maximum coolant temperature If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle as soon as
it is safe to do so.
Low fuel level When the tank is full, all the
bars are lit.
If the fuel low warning lamp
comes on accompanied by
an audible signal and a message on
the multifunction screen, there are
approximately 7 litres of fuel remain-
ing in the tank and the 2 or 3 bars
fl ash on the instrument panel.
When the last bar goes out, there
are approximately 2 litres of fuel re-
maining in the tank.
Lighting is associated
with the lighting of an-
other warning lamp:
Service If this comes on, it indi-
cates the occurrence
of a problem in one
of the systems which
does not have a spe-
cifi c warning lamp.
It is accompanied by a message on
the multifunction screen.
The warning lamp comes on tempo-
rarily in the case of minor faults.
In the case of major faults, the warning
lamp remains on until the operating
fault is rectifi ed. Contact a CITROËN
dealer as soon as possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- signifi cant drop in the fl uid level in the circuit,
-
electronic brake force distribution
(EBFD) faulty (simultaneous lighting
of the ABS warning lamp),
Stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Dynamic stability control
(ESP/ASR)
The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been de-
activated, if this warning lamp and
the indicator lamp on the button
come on continuously, this indi-
cates the occurrence of a fault in the
ESP/ASR system or in the hill start
assistance. Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
If it fl ashes, it indicates the occur-
rence of a fault in the emission control
system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
Stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not prevent op-
eration of the vehicle’s servo-assisted
braking system.

29
I
I N S T R U M E N T S a n d C O N T R O L S

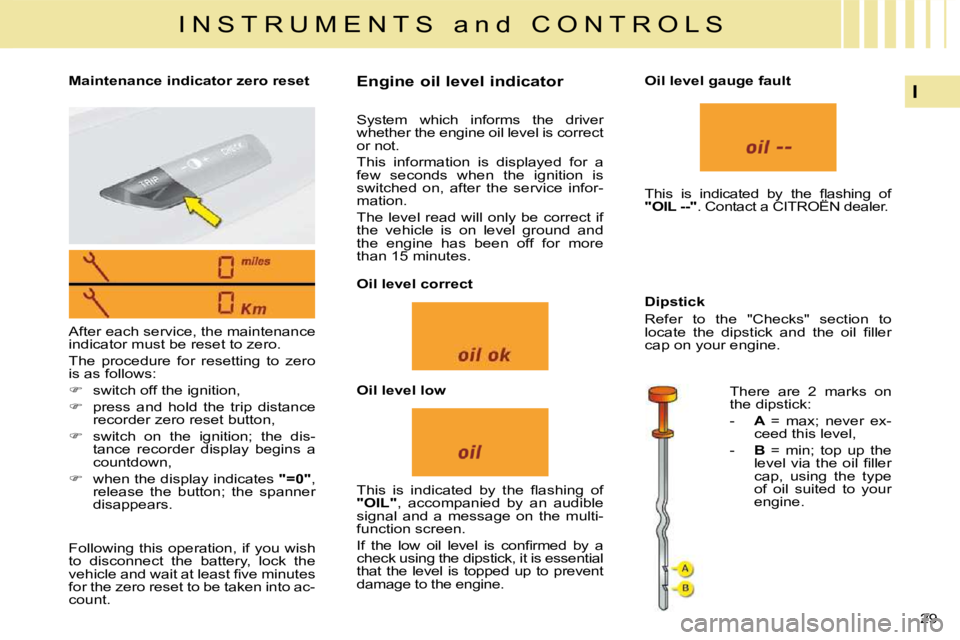

Maintenance indicator zero reset Engine oil level indicator
After each service, the maintenance
indicator must be reset to zero.
The procedure for resetting to zero
is as follows:

 switch off the ignition,

 press and hold the trip distance
recorder zero reset button,

 switch on the ignition; the dis-
tance recorder display begins a
countdown,

 when the display indicates "=0" ,
release the button; the spanner
disappears. System which informs the driver
whether the engine oil level is correct
or not.
This information is displayed for a
few seconds when the ignition is
switched on, after the service infor-
mation.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Oil level correct
Oil level low
This is indicated by the fl ashing of

"OIL" , accompanied by an audible
signal and a message on the multi-
function screen.
If the low oil level is confi rmed by a
check using the dipstick, it is essential
that the level is topped up to prevent
damage to the engine. Oil level gauge fault
This is indicated by the fl ashing of

"OIL --" . Contact a CITROËN dealer.
Dipstick
Refer to the "Checks" section to
locate the dipstick and the oil fi ller
cap on your engine. There are 2 marks on
the dipstick:
- A = max; never ex-
ceed this level,
- B = min; top up the
level via the oil fi ller
cap, using the type
of oil suited to your
engine.
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be taken into ac-
count.

30
I
I N S T R U M E N T S a n d C O N T R O L S
Total distance recorder
System which measures the total
distance travelled by the vehicle
during its life.
The total and trip distances are dis-
played for thirty seconds when the
ignition is switched off, when the
driver's door is opened and when
the vehicle is locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other pe-
riod since it was reset to zero by the
driver.

 With the ignition on, press the

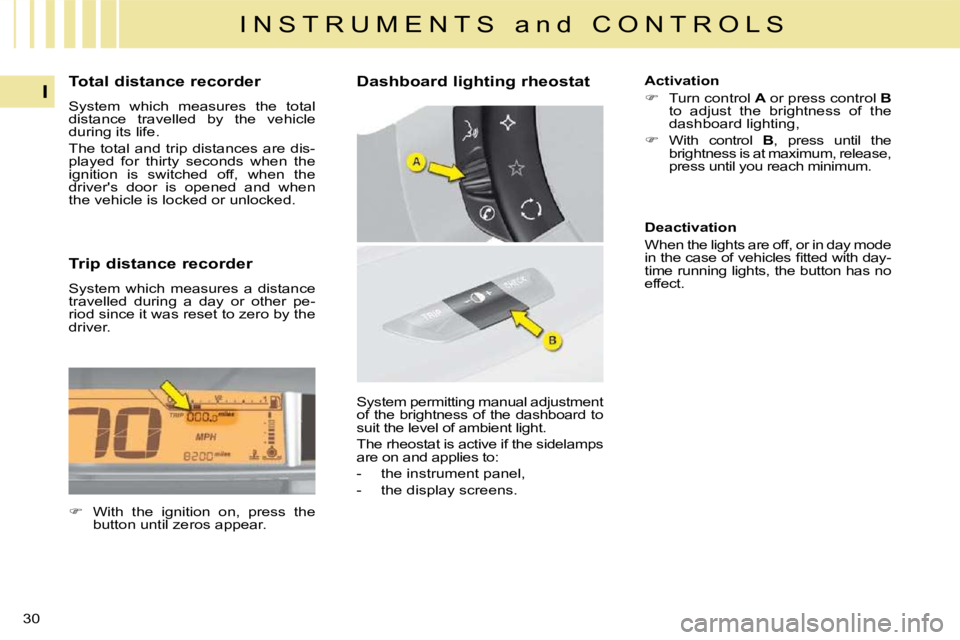

button until zeros appear. Dashboard lighting rheostat
Activation

 Turn control A or press control B
to adjust the brightness of the
dashboard lighting,

 With control B , press until the
brightness is at maximum, release,
press until you reach minimum.
Deactivation
When the lights are off, or in day mode
in the case of vehicles fi tted with day-
time running lights, the button has no
effect.
System permitting manual adjustment
of the brightness of the dashboard to
suit the level of ambient light.
The rheostat is active if the sidelamps
are on and applies to:
- the instrument panel,
- the display screens.

46
III
C O M F O R T

 When you enter the vehicle, the
temperature inside the vehicle may
be much colder (or warmer) than a
comfortable temperature. There is
no point in modifying the displayed
temperature to try to attain the de-
sired level of comfort. The system
operates automatically to compen-
sate this temperature discrepancy
as rapidly as possible.

 When starting the engine from
cold, in order to avoid distributing
too much cold air, the blower will
attain its optimum level gradually.

Manual operation of one or more
functions
Each of the functions 4 , 6 and 7 can
be adjusted manually.
Display of the "AUTO" function then
disappears.

Central and lateral air
vents.

Central and lateral air
vents and passenger
footwells.

Passenger footwells.

The windscreen, front
side windows and
passenger footwells.

The windscreen and
front side windows.
4 - Air conditioning
6 - Adjustment of the air
distribution
5 - Air recirculation To stop the air conditioning,
press on the control
4 . The
symbol "A/C" disappears. To
restart it, press again on the
control 4 . The symbol "A/C"
displays.
When you press on control 5 ,
the entry of air from outside is
blocked off and the associated
symbol is displayed.
This function can also be accessed
by pressing the appropriate button
on the steering wheel.
While retaining the other settings,
this position excludes disagreeable
odours or emissions coming from
outside. It should be cancelled as
soon as possible to prevent misting
and to allow fresh air into the cabin.
To deactivate the air recirculation,
press again on control 5 . Press the button
6 succes-
sively so that the multifunction
screen shows, in turn, the air
fl ow to:

49
III
C O M F O R T
FRONT SEATS
MANUAL ADJUSTMENTS

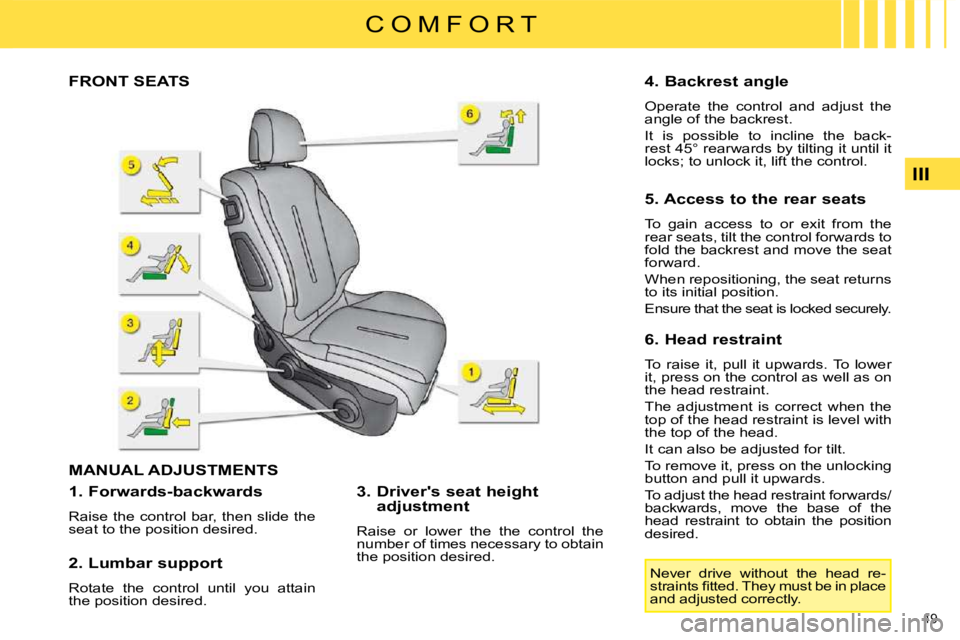

1. Forwards-backwards
Raise the control bar, then slide the
seat to the position desired.
2. Lumbar support
Rotate the control until you attain
the position desired. 3. Driver's seat height
adjustment
Raise or lower the the control the
number of times necessary to obtain
the position desired. 4. Backrest angle
Operate the control and adjust the
angle of the backrest.
It is possible to incline the back-
rest 45° rearwards by tilting it until it
locks; to unlock it, lift the control.
5. Access to the rear seats
To gain access to or exit from the
rear seats, tilt the control forwards to
fold the backrest and move the seat
forward.
When repositioning, the seat returns
to its initial position.
Ensure that the seat is locked securely.
Never drive without the head re-
straints fi tted. They must be in place
and adjusted correctly.
6. Head restraint
To raise it, pull it upwards. To lower
it, press on the control as well as on
the head restraint.
The adjustment is correct when the
top of the head restraint is level with
the top of the head.
It can also be adjusted for tilt.
To remove it, press on the unlocking
button and pull it upwards.
To adjust the head restraint forwards/
backwards, move the base of the
head restraint to obtain the position
desired.

53
III
C O M F O R T

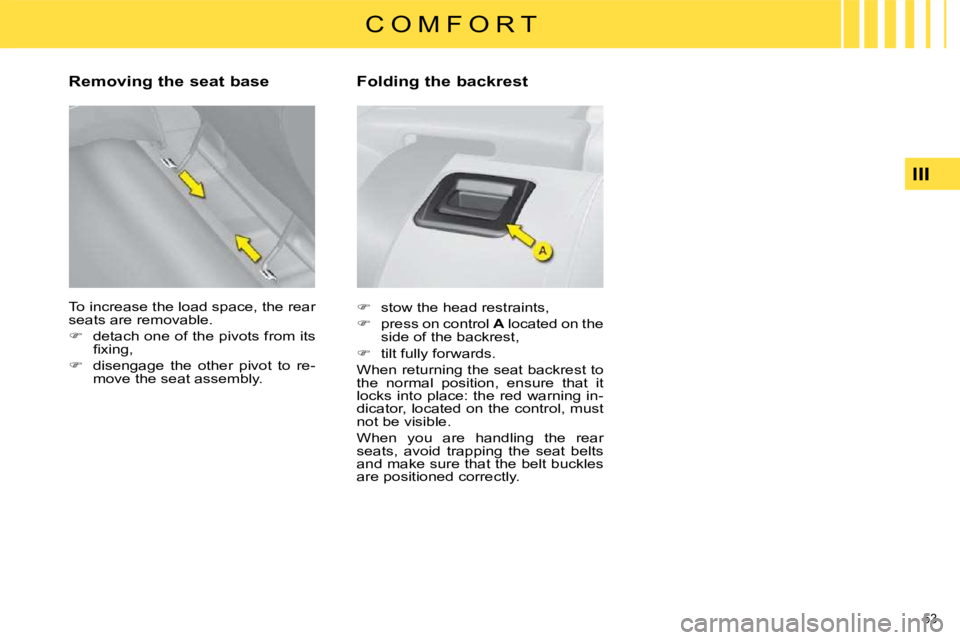

Removing the seat base
To increase the load space, the rear
seats are removable.

 detach one of the pivots from its
fi xing,

 disengage the other pivot to re-
move the seat assembly. Folding the backrest

 stow the head restraints,

 press on control A located on the
side of the backrest,

 tilt fully forwards.
When returning the seat backrest to
the normal position, ensure that it
locks into place: the red warning in-
dicator, located on the control, must
not be visible.
When you are handling the rear
seats, avoid trapping the seat belts
and make sure that the belt buckles
are positioned correctly.
