key Citroen C4 2008 1.G Owner's Guide

146
XI
P R A C T I C A L A D V I C E
Towing with all wheels on the ground
Towing ring fi xings are placed at the front and at the rear of the vehicle.
To access them:
- at the front: push on the left to tilt the cover, then remove it.
- at the rear: push at bottom, then pull on top.
The cover remains attached to the bumper by means of a tab, so t hat it cannot become lost.
The ignition key should be in position "M" so as to retain steering.
Use a bar with hooks to attach on the towing rings.
Vehicles with manual transmission
For vehicles with manual transmission, the gear lever must be in n eutral. Fail-ure to observe this requirement can lead to the failure of certain braking com-ponents and a lack of braking assistance on restarting the engi ne.
If the engine is not running, the steering and braking systems will not be power-assisted.
If towing another vehicle, the latter should be free-wheeling (that is, gearbox in neutral).

166
XIII
A U D I O
AUDIO SETTINGS
On/Off
With the key in Drive position M, press on control A to switch the radio on or off.
Note:
- If the radio was on the last time you switched off the ignition, it will resume automatically when you switch on the ignition again. You will not have to press on control A.
- After switching off the ignition, you can still operate the audio system even without the ignition key being present. Simply press on button A. The system will turn itself off after approx. 30 minutes.
Anti-theft system
This radio is coded in such a way as to function only on your particular vehicle. It would be unusable if installed on any other vehicle.
Note:
The anti-theft system is automatic and requires no action on your part.
Selection of source
To select either Radio, CD (CD already inserted and Radio source activated), or CD changer source, press on control D.
When you insert a CD it automatically starts being read.
Note:
When the radio is switched off, the source selected is memorised.
Volume adjustment
Rotate control A to increase or decrease the sound volume.
You can also increase or decrease the volume using buttons 1 and 4 at the steering wheel.
Note:
- The sound volume when you switch off the radio will be the same when you switch it on again.
- The radio sound volume automatically adjusts to the vehicle speed, provided the "volume adjustment" function is activated.
Temporary sound pause
Press on control 5 at the steering wheel to activate this function.
The sound will be paused, regardless of the source selected.
To restore the audio output, press one of the controls at the steering wheel.
Sound adjustments
Each press on button F brings up the parameter to be adjusted: choice of predefi ned sound ambiances, bass, treble, loudness, fade (front/rear sound distribution), balance (left/right sound distribution) and volume adjusted to vehicle speed.
Press buttons K or N to modify the values for the function displayed.
Note:
- The selection of a sound ambiance automatically adjusts bass and treble. These can be modifi ed.
To restore the original adjustments for the musical ambiances, reset bass and treble to zero.
- Adjustment of loudness, as well as bass and treble when they are available, are specifi c to each sound source and to each musical ambiance.
- If you leave the audio system un-actioned for a few seconds, it will revert to the normal display.

168
XIII
A U D I O
Manual pre-setting
Select the waveband and memory bank required using button E.Select a station using either automatic or manual search.Keep pressing for more than two seconds on one of the pre-selection buttons 1 to 6 on the keypad P.The sound momentarily cuts off, then returns to its previous level to confi rm that it has memorised the station.
Automatic memorisation of transmitters (Autostore function)
In FM, if you hold down button Efor more than two seconds, your radio will automatically memorise the 6 strongest stations on the FM3 memory bank.The display shows "FM AST".The radio memorises the 6 strongest transmitters, deleting the 6 previously memorised.After the memorisation, the radio goes directly to memory 1 of memory bank FM3.
Note:
- If the traffi c information function has been activated (see RDS SYSTEM), the stations offering this facility will be memorised as priority.
If it is unable to memorise any new stations, the system will retain the previously memorised stations.
- If the system is unable to fi nd 6 stations, the unfi lled memory slots will remain free.
Recall of pre-set stations
Press button E briefl y to select the required waveband and memory bank.A short press on one the pre-selection buttons 1 to 6 on the keypad P recalls the corresponding memorised station. You can also do this using the control 3 at the steering wheel.If it is a RDS station, the frequency appears some seconds before the name appears.For RDS stations, recall of a station may prompt a search for a frequency corresponding to the region where you happen to be (see RDS system).

173
XIII
A U D I O
CD CHANGER SOURCE
CD Changer
This unit (if fi tted) is located under the front centre armrest and can receive 6 CDs.
Inserting CDs into the magazine
- To insert a CD, press the LOAD button, then the one for the slot in question. When the indicator lamp for the slot fl ashes, insert the CD.
- To insert CDs in all of the slots, press the LOAD button for 2 seconds. Insert each CD in turn after its slot indicator lamp fl ashes.
Note:
- Each compartment takes one disc only.
- The CD changer will not operate if discs are inserted the wrong way up.
Removing discs
- To eject a CD, press the EJECT button then the button for the corresponding slot.
- To eject all the CDs, press the EJECT button for 2 seconds.
Removing discs
To remove a CD, give a long press on the corresponding button.Play starts with the fi rst track on the fi rst CD.
Selecting a CD
To select a CD, press one of the pre-select buttons 1 to 6 on the keypad P, or scroll through them using J or M
The CD will start to play automatically.You can also do this by means of control 3 at the steering wheel.After each change of source, on return to CD changer source, playback will resume at the same point where it had been interrupted.
Selecting a track
Press button K once to play the next track.Press button N once to return to the beginning of the track currently being played, press a second time to go back to the start of the previous track.Press the buttons successively to skip several tracks at a time.You can also do this by means of the controls 2 and 3 at the steering wheel.
Fast forward and rewind with accelerated sound
Press and keep pressed one of the buttons K or N respectively for fast forward or rewind with accelerated sound. Play resumes as normal when the button is released.
Menu
This menu is for activation/deactivation of three options:- Playback of the fi rst 7 seconds (approx.) of each track of the CD.
- Repetition of the current CD.
- Random playback of tracks, CD by CD.
This can be accessed in two ways:- Either by pressing button O and proceeding as for Search of Stations RDS – for screen C, the sub-menu corresponds to the Audio Preferences.
- Or if you are in CD changer source by pressing button L. You then have access to the AUDIO menu (for screen C only).
Note:
If one of these options is active, it remains active for CD source.

174
XIII
A U D I O
HANDS-FREE TELEPHONE
Your audio system may be Bluetooth®
compatible. It allows you to connect a mobile telephone for "hands free" use and even to use its directory.
It permits you to twin up to four telephones, to be able then to connect whichever one you choose.The Bluetooth® functions available and the content of the display are dependent on the type of mobile telephone, its settings and the type of contract you have. For this reason it is advisable to make enquiries with your telephone provider.Prior to any operation:- Your display should be lit up (key in position M).
- Your telephone’s Bluetooth®
system must be activated.
Twinning a telephone
Twinning a telephone consists of having it recognised by the Bluetooth® system on your vehicle. This then permits an instantaneous connection.Twinning can only be performed with ignition switched on, display illuminated, engine stopped. No other telephone should be connected.- The twinning must be performed with the telephone and its Bluetooth® system activated.®
Note:
Refer to the user instructions to familiarise yourself with the features of twinning.- The telephone detects the Bluetooth® system on your vehicle. ®
"C4" displays on your telephone.
You should then select "C4" on your telephone controls. Next you must choose whether or not to accept this twinning then select, on screen Cusing J, M or 8, one of the 4memories. Validate with a press on button L or 7.
Note:
You can select a memory already attributed, although the telephone twinned to this location will no longer be.- Next the telephone asks you to enter an identifi cation code: 1234.
- Validate.
Note:
This entry may be demanded earlier in the twinning sequence.The telephone is now twinned to your Bluetooth® system. For ®
immediate access to the Bluetooth®
functions, it may be necessary to make a connection (see following page "Confi guration: Connecting a twinned mobile telephone").Once the twinning is fi nished, you will be able to connect your telephone via the "Main menu".
Connecting a twinned telephone
Each time you enter the vehicle, after switching on the audio system, your telephone is detected automatically. If more than one telephone is present, the last telephone to have been connected is the fi rst to be recognised.Note:Disconnections may occur. You may have to make a new connection (see following page, "Confi guration: Connecting a twinned mobile telephone").Remarks:- In the event of a problem, it is recommended to switch your telephone off and then on again.- If you switch off your telephone within the fi eld of reception of the Bluetooth® system on your vehicle, the next connection will not be automatic. To restore automatic connection, you will have to connect your telephone manually (see following page, "Confi guration: Connecting a twinned mobile telephone").- If you are already in telephone communication when the audio system is turned on, the latter detects the telephone.- To avoid interference, you are advised not to place your mobile telephone close to your radio.
To accept an incoming call
Using button L or control 7 at the steering wheel.

5
03
1
2
3
6
5
4
NAVIGATION - GUIDANCE
SELECTING A DESTINATION
Press the NAV button again or select
the NAVIGATION MENU function and
press the dial to conirm.
Select the DESTINATION INPUT
function and press the dial to conirm.
Press the NAV button.
Select the letters of the town one by
one conirming each time by pressing
the dial.
Once the country has been selected,
turn the dial and select the town
function. Press the dial to conirm.
NAVIGATION MENU
DESTINATION INPUT
Insert the SD card in the front panel reader and le
ave it there to use the Navigation functions.
The navigation SD card data must not be changed.
The map data updates are available from CITROËN dea lers.
A pre-set list (by entering the irst few letters) o f the towns in the
country selected can be accessed via the LIST butto n on the virtual
keypad. Select the NEW DESTINATION
INPUT function and press the dial to
conirm.
NEW DESTINATION INPUT
The list of the last 20 destinations appears under
the NAVIGATION
MENU function.

9
03
1
2
3
4
7
85
6
NAVIGATION - GUIDANCE
SEARCHING FOR POINTS OF INTEREST
Press the NAV button.
Press the NAV button again or select
the NAVIGATION MENU function and
press the dial to conirm.
Select the POI NEARBY function to
search for POIs around the vehicle.
Select the SEARCH POINTS OF
INTEREST function and press the
dial to conirm.
NAVIGATION MENU
SEARCH POINTS OF INTEREST
POI NEARBY
Select the POI IN CITY function to
search for POIs in the city required.
Select the country then enter the
name of the city using the virtual
keypad.
Select the POI NEAR ROUTE
function to search for POIs near the
route.
Select the POI IN COUNTRY function
to search for POIs in the country
required.
Select the POI NEAR DESTINATION
function to search for POIs near the
point of arrival of the route.
POI NEAR DESTINATION
POI IN COUNTRY
POI NEAR ROUTE
A list of cities present in the country selected ca n be accessed via
the LIST button on the virtual keypad.
POI IN CITY
The points of interest (POIs) indicate all of the s ervice locations in the vicinity (hotels, various
businesses, airports...).

16
1
2
3
4
1
4
06
2
3
5
Connect the portable equipment (MP3/WMA player…) to the audio
sockets (white and red, RCA type) in the glove box using a
JACK/RCA audio cable.
Press the MUSIC button then press
it again or select the MUSIC MENU
function and press the dial to conirm.
Select the AUX music source and
press the dial to conirm. Play begins
automatically.
Select the EXTERNAL DEVICE
function and press the dial to activate it.
EXTERNAL DEVICE
Insert one or more CDs in the
changer. Press the MUSIC button.
Press one of the buttons on the
numeric keypad to select the
corresponding CD.
Select the CD CHANGER music
source and press the dial to conirm.
The displaying and management of the controls are o perated via the
portable equipment.
CD CHANGER
Select the SELECT MUSIC function
and press the dial to conirm.
USING THE EXTERNAL DEVICE (AUX)
AUDIO/RCA CABLE NOT SUPPLIED
CD CHANGER
PLAYING A CD (NOT MP3/WMA COMPATIBLE)
SELECT MUSIC
Press the MUSIC button again or
select the MUSIC MENU function and
press the dial to conirm.
MUSIC MENU
MUSIC MEDIA PLAYERS

18
2
3
11
2
3

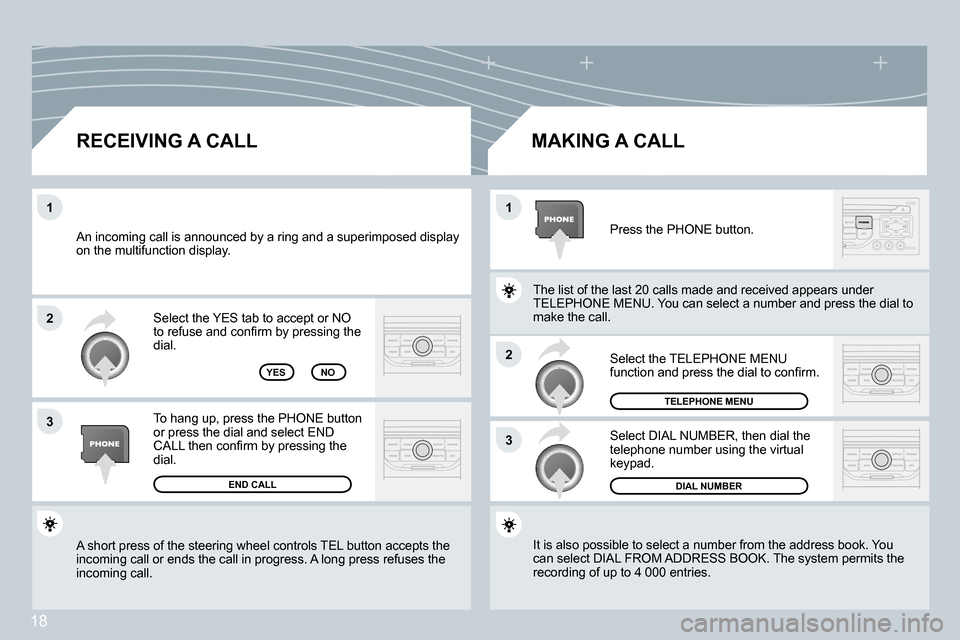

A short press of the steering wheel controls TEL button accepts the
incoming call or ends the call in progress. A long press refuses the
incoming call. Select the YES tab to accept or NO
to refuse and conirm by pressing the
dial.
RECEIVING A CALL MAKING A CALL
An incoming call is announced by a ring and a super
imposed display
on the multifunction display.
YES
To hang up, press the PHONE button
or press the dial and select END
CALL then conirm by pressing the
dial.
END CALL
Press the PHONE button.
It is also possible to select a number from the add ress book. You
can select DIAL FROM ADDRESS BOOK. The system permi ts the
recording of up to 4 000 entries. Select DIAL NUMBER, then dial the
telephone number using the virtual
keypad.
Select the TELEPHONE MENU
function and press the dial to conirm.
DIAL NUMBER
TELEPHONE MENU
The list of the last 20 calls made and received app
ears under
TELEPHONE MENU. You can select a number and press t he dial to
make the call.
NO

6
9
11 12
13
15
10

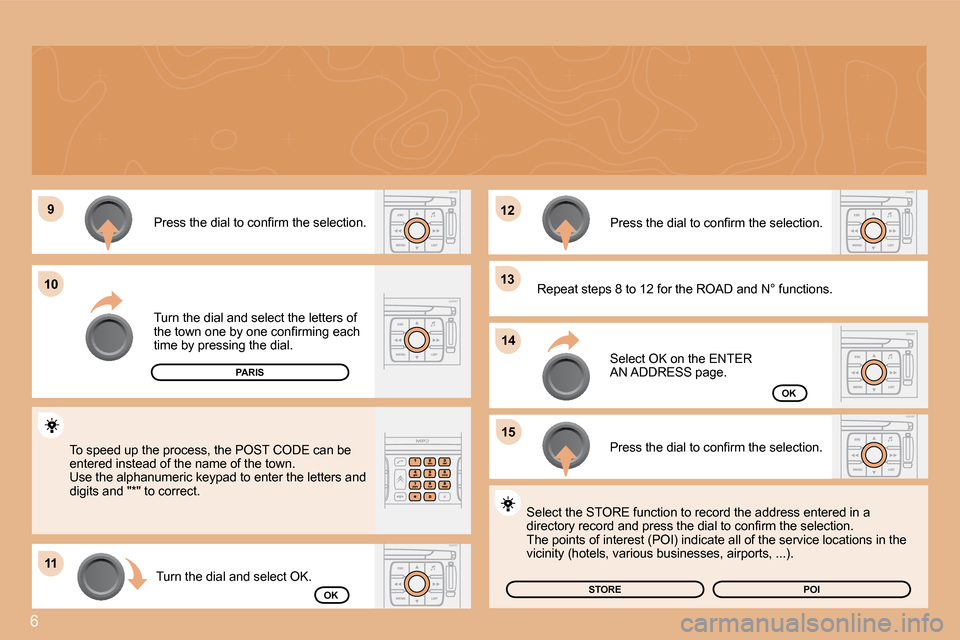

14Press the dial to conirm the selection.
Turn the dial and select the letters of
the town one by one conirming each
time by pressing the dial.
Turn the dial and select OK. Press the dial to conirm the selection.
To speed up the process, the POST CODE can be
entered instead of the name of the town.
Use the alphanumeric keypad to enter the letters an d
digits and "*" to correct. Press the dial to conirm the selection.Select OK on the ENTER
AN ADDRESS page.
Repeat steps 8 to 12 for the ROAD and N° functions.
OK
OK
Select the STORE function to record the address ent
ered in a
directory record and press the dial to conirm the s election.
The points of interest (POI) indicate all of the se rvice locations in the
vicinity (hotels, various businesses, airports, ... ).STORE
PARIS
POI
