Automatic Citroen C4 2008 1.G Workshop Manual

169
XIII
A U D I O
RDS SYTEM
Using the RDS (radio data system) function on FM
The majority of FM radio stations use the RDS system. The radio in your vehicle has this system.The RDS system enables these stations to transmit non-audible data in addition to the broadcasting of their programmes. The data provides access to various functions described in this chapter, such as: display of the station name, intermittent traffi c information fl ashes or automatic scanning of stations. This enables you to continue listening to your chosen radio station, regardless of the different frequencies it uses in the regions through which you are travelling.
Scanning of RDS stations
Your radio keeps the best possible reception by continuously looking for any other frequencies on which the selected radio station is broadcast, automatically choosing the frequency offering the best reception (if the station broadcasts on more than one transmitter or frequency).
Activation/deactivation of the RDS functions
The RDS functions can be accessed via the following two menus:- Main menu (press button O).
- AUDIO menu (press button L).
To activate/deactivate the RDS functions on the display C:
1. Press button O.
2. Select the AUDIO icon using buttons J or M.
3. Confi rm your choice with a press on button L.
4. Select the sub-menu for the FM waveband, via buttons J or M. Confi rm your choice with a press on button L.
5. Select scanning for RDS stations, via buttons J or M.
6. Validate your choice with a press on button L.
7. Using control L, select/deselect to activate/deactivate the function.
8. Validate your choice by selecting "OK" on the display.
To activate/deactivate the RDS functions on the display A:
1. Press button O.
2. Select the AUDIO-CD icon via buttons J or M.
3. Select scanning for RDS stations, via buttons J or M. The system tells you the status (active or inactive) of the function.
4. Modify this status via buttons Kor N.
5. Then please wait for the display to disappear.
Note:
If the RDS function is active:- The "RDS" on the display will light up provided the station being received uses the RDS system with scanning of frequencies.
- The "RDS" on the display is barred if the station received uses the RDS system without frequency search.
If your RDS function is deactivated, the "RDS" on the display will be absent in all cases.The display will indicate the "NAME" for the stations that use the RDS system and the frequency for stations that do not use it.

170
XIII
A U D I O
Regional search mode
Some stations, when they are organised in networks, broadcast regional programmes at certain times of day, and national programmes at other times.It is possible to search:- Either for a regional station only.
- Or across the whole network in order to fi nd a different programme.
To activate/deactivate this function, proceed as for Scanning of RDS stations.
Note:
When this mode is activated, the system will remain tuned to one specifi c regional station.
TA traffi c information (traffi c announcements)
Some stations allow broadcasting, only in FM, of these messages thanks to the "TA" function.You can activate the "TA" function by pressing on button I. This allows you, even though you are listening to another audio source or to a radio programme not itself providing traffi c messages, to receive traffi c information fl ashes from an FM station which broadcasts them.
While the messages are being broadcast the original source is paused and when the messages have ended your radio will automatically revert to the music programme you were listening to.Note:- You have to be in FM wave band.
- The station being listened to should indicate via the RDS system that it broadcasts traffi c information.
- Stations organised in a network (EON) have regional transmitters that send their own programmes: while you are listening to one of these stations the system will switch automatically to a station on the network that is broadcasting traffi c information.
- You can stop listening to a message by pressing button I.
Sound volume adjustment for traffi c information
The sound volume for traffi c information operates separately from that for the rest of the system, and can be adjusted independently.Rotate button A while a traffi c information message is being broadcast.This volume adjustment is memorised.
Selecting a programme type
Certain stations offer the possibility of listening to a particular programme type, selected from a list (PTY).press for more than two seconds on button I.Press on buttons J or M to scroll through and select the programme type you prefer, then press on button L to validate your choice.
Searching for a station broadcasting this programme type
When you have chosen a programme type, the list of corresponding stations appears on the display, press on buttons J or M to scroll down and select the station you want, then press on button L to validate your choice.
Quitting pty mode
To quit "PTY" mode, select the function to deactivate "PTY" in the list of the different programme types.
Radio text via contextual menu
This function allows you to view the information broadcast by the station, concerning the programme you are currently listening to.To activate/deactivate this function, proceed as for Scanning of RDS stations.

171
XIII
A U D I O
CD SOURCE
Selecting CD source
After inserting a CD, with the printed side facing upwards, the player will start playing the CD automatically.To change manually to CD source (CD already inserted), press button D until you obtain the source you require.
Ejecting a CD
Press button B to eject the CD, the audio system will automatically switch to radio source.If the CD is not removed within 10 to 15 seconds of being ejected, it will automatically be taken back into the CD player, although it will not be played.
Selecting a track
Press button K once to play the next track.Press button N once to return to the beginning of the track currently being played, press a second time to go back to the start of the previous track.Press the buttons successively to skip several tracks at a time.This can also be done via the control G. As the list of tracks is displayed on the screen, select the desired track using buttons J or M, then validate using button L.You can also do this by means of control 2 at the steering wheel.
Fast forward and rewind with accelerated sound
To move swiftly through the CD, press and keep pressed button Kor N, respectively for fast forward or rewind with accelerated sound.Play resumes as normal when the button is released.
Menu
This menu allows activation/deactivation of two options:- Playback of the fi rst 7 seconds (approx.) of each track of the CD.
- Random playback of the CD tracks.
This can be accessed in two ways:
- Either by pressing button O and proceeding as for Search of Stations RDS – for screen C, the sub-menu corresponds to the Audio Preferences.
- Or, provided you are in CD source, by pressing on button L. You can then access the Audio menu (for screen C only).
Note:
If one of these options is active, it remains active for CD changer source.
Safety precautions
For safety, do not use a CD player if the cabin temperature is higher than +60 °C or lower than -10° C.If the temperature becomes too high, an automatic safety device will prevent the CD player from working until an acceptable temperature is restored.
Handling compact discs
Do not drop them. Store the CDs so that they are kept of dust. Avoid touching the disc surface as any scratches may adversely affect the sound quality. Do not attach any stickers to the discs. Do not use damaged or deformed discs. Do not expose them to heat or direct sunlight.If the surface of the compact disc is dirty, it can be wiped with a soft, clean cloth. Always wipe from the centre of the disc outwards.

173
XIII
A U D I O
CD CHANGER SOURCE
CD Changer
This unit (if fi tted) is located under the front centre armrest and can receive 6 CDs.
Inserting CDs into the magazine
- To insert a CD, press the LOAD button, then the one for the slot in question. When the indicator lamp for the slot fl ashes, insert the CD.
- To insert CDs in all of the slots, press the LOAD button for 2 seconds. Insert each CD in turn after its slot indicator lamp fl ashes.
Note:
- Each compartment takes one disc only.
- The CD changer will not operate if discs are inserted the wrong way up.
Removing discs
- To eject a CD, press the EJECT button then the button for the corresponding slot.
- To eject all the CDs, press the EJECT button for 2 seconds.
Removing discs
To remove a CD, give a long press on the corresponding button.Play starts with the fi rst track on the fi rst CD.
Selecting a CD
To select a CD, press one of the pre-select buttons 1 to 6 on the keypad P, or scroll through them using J or M
The CD will start to play automatically.You can also do this by means of control 3 at the steering wheel.After each change of source, on return to CD changer source, playback will resume at the same point where it had been interrupted.
Selecting a track
Press button K once to play the next track.Press button N once to return to the beginning of the track currently being played, press a second time to go back to the start of the previous track.Press the buttons successively to skip several tracks at a time.You can also do this by means of the controls 2 and 3 at the steering wheel.
Fast forward and rewind with accelerated sound
Press and keep pressed one of the buttons K or N respectively for fast forward or rewind with accelerated sound. Play resumes as normal when the button is released.
Menu
This menu is for activation/deactivation of three options:- Playback of the fi rst 7 seconds (approx.) of each track of the CD.
- Repetition of the current CD.
- Random playback of tracks, CD by CD.
This can be accessed in two ways:- Either by pressing button O and proceeding as for Search of Stations RDS – for screen C, the sub-menu corresponds to the Audio Preferences.
- Or if you are in CD changer source by pressing button L. You then have access to the AUDIO menu (for screen C only).
Note:
If one of these options is active, it remains active for CD source.

174
XIII
A U D I O
HANDS-FREE TELEPHONE
Your audio system may be Bluetooth®
compatible. It allows you to connect a mobile telephone for "hands free" use and even to use its directory.
It permits you to twin up to four telephones, to be able then to connect whichever one you choose.The Bluetooth® functions available and the content of the display are dependent on the type of mobile telephone, its settings and the type of contract you have. For this reason it is advisable to make enquiries with your telephone provider.Prior to any operation:- Your display should be lit up (key in position M).
- Your telephone’s Bluetooth®
system must be activated.
Twinning a telephone
Twinning a telephone consists of having it recognised by the Bluetooth® system on your vehicle. This then permits an instantaneous connection.Twinning can only be performed with ignition switched on, display illuminated, engine stopped. No other telephone should be connected.- The twinning must be performed with the telephone and its Bluetooth® system activated.®
Note:
Refer to the user instructions to familiarise yourself with the features of twinning.- The telephone detects the Bluetooth® system on your vehicle. ®
"C4" displays on your telephone.
You should then select "C4" on your telephone controls. Next you must choose whether or not to accept this twinning then select, on screen Cusing J, M or 8, one of the 4memories. Validate with a press on button L or 7.
Note:
You can select a memory already attributed, although the telephone twinned to this location will no longer be.- Next the telephone asks you to enter an identifi cation code: 1234.
- Validate.
Note:
This entry may be demanded earlier in the twinning sequence.The telephone is now twinned to your Bluetooth® system. For ®
immediate access to the Bluetooth®
functions, it may be necessary to make a connection (see following page "Confi guration: Connecting a twinned mobile telephone").Once the twinning is fi nished, you will be able to connect your telephone via the "Main menu".
Connecting a twinned telephone
Each time you enter the vehicle, after switching on the audio system, your telephone is detected automatically. If more than one telephone is present, the last telephone to have been connected is the fi rst to be recognised.Note:Disconnections may occur. You may have to make a new connection (see following page, "Confi guration: Connecting a twinned mobile telephone").Remarks:- In the event of a problem, it is recommended to switch your telephone off and then on again.- If you switch off your telephone within the fi eld of reception of the Bluetooth® system on your vehicle, the next connection will not be automatic. To restore automatic connection, you will have to connect your telephone manually (see following page, "Confi guration: Connecting a twinned mobile telephone").- If you are already in telephone communication when the audio system is turned on, the latter detects the telephone.- To avoid interference, you are advised not to place your mobile telephone close to your radio.
To accept an incoming call
Using button L or control 7 at the steering wheel.

175
XIII
A U D I O
Main Menu
Press on the Menu control Oto access the Main Menu, then select the "Telephone" icon via buttons J, M or 8 and then validate the selection via button L or 7.You have access:- To the Directory.
- To Confi guration.
- To Communication Management.
You access your choices using J, Mor 8 then you validate them with a press on L or 7.This main menu can also be accessed by pressing button E then button L.
Directory
This menu lets you open:- The telephone Directory of the telephone that is connected.
- The Calls List.
This menu can also be accessed with a press on control 11.
Telephone directory
The starting of a telephone call can be done independently of the telephone or of the audio system, thanks to the directory.The directory is displayed. Select the number via J, M or 8, then validate with a press on L or 7.
Remarks:
- The directory displayed updates itself automatically.
- If the person to be called does not fi gure in the directory, the call can only be made starting from the telephone.
- If you have information recorded in the Vcard format, you must select the person you wish to call, then validate. A list of 4 numbers maximum can be displayed with the following labels: "Home", "Offi ce", "Mobile" and "Car".
Calls list
After selecting this component and then validating, the calls list is displayed with a maximum of: 10 calls made (arrow pointing upward), 10 calls received (arrow pointing downward) and 10 calls not connected.It is possible to make a call starting from this list: Select the number via J, M or 8, then validate with a press on L or 7.
Confi guration
This menu allows you to:- Deleting a twinning.
Using J, M or 8, select this choice then validate via L or 7. Select in the list the telephone that you no longer wish to have twinned. Validate.
- Consulting the list of twinnings.
The list of telephones twinned is displayed.
- Connecting a mobile telephone that is twinned.
Select the telephone that you wish to connect. This access allows you to make a connection manually.
Call management
This menu is accessible during your calls, permitting you to:- Swap a call if there is another call incoming.
- End a call.
- Be in Secret mode.
Remark:
If you are in telephone conversation, you have access to this "Confi guration" menu by means of a press on L or 7.

179
XIII
A U D I O
QUESTIONANSWERSOLUTION
The pre-set stations do not work (no sound, 87.5 Mhz is displayed, etc.).
The waveband selected is not the correct one.Press on the button BAND AST to retrieve the wave band (AM, FM1, FM2, FMAST) where the stations have been memorised.
Traffi c Announcements (TA) is displayed, but I do not receive any road information.
The particular radio station is not in the regional traffi c information network.Change to a radio station which does broadcast traffi c information.
The reception quality of the radio station being listened to gradually deteriorates or the pre-set stations do not work (no sound, 87.5 Mhz displayed, etc.).
The vehicle is too distant from the transmitter of the station being listened to, or no transmitter is present in the geographical area you are passing through.
Activate the RDS function to allow the system to check whether a more powerful transmitter is to be found in the geographical area.
The environment (hills, high buildings, tunnels, underground car parks, etc.) is blocking reception, even in RDS mode.
This phenomenon is normal and does not imply anything wrong with the radio.
The aerial is absent or has been damaged (for example after going through a car wash or in an underground car park).
Have the aerial checked by a CITROËN dealer.Have the aerial checked by a Have the aerial checked by a
Cutting of sound for 1 or 2 seconds in radio mode.
The RDS system during this brief sound cut-off is searching for a better frequency that might offer improved reception of the station.
Deactivate the RDS function if the phenomenon occurs too frequently and always on the same journey.
When the engine is not running, the radio stops after a few minutes.
When the engine is switched off, the working time for the radio depends on the vehicle n the engine is switched off, the working n the engine is switched of
battery charge.
The interruption is normal: the radio goes into economy mode, cutting off in order to save the erruption is normal: the radio goes into erruption is normal: the radio goes into
vehicle’s battery.
You have to start the engine so as to increase the battery charge.
The message "the audio system is overheating" appears on the screen.
In order to protect the audio equipment in excessive ambient temperatures, the radio goes into an automatic thermic protection mode which results in a reduction in sound volume or stopping of the CD player.
Switch off the audio system for a few minutes in order to allow the system to cool down.

10

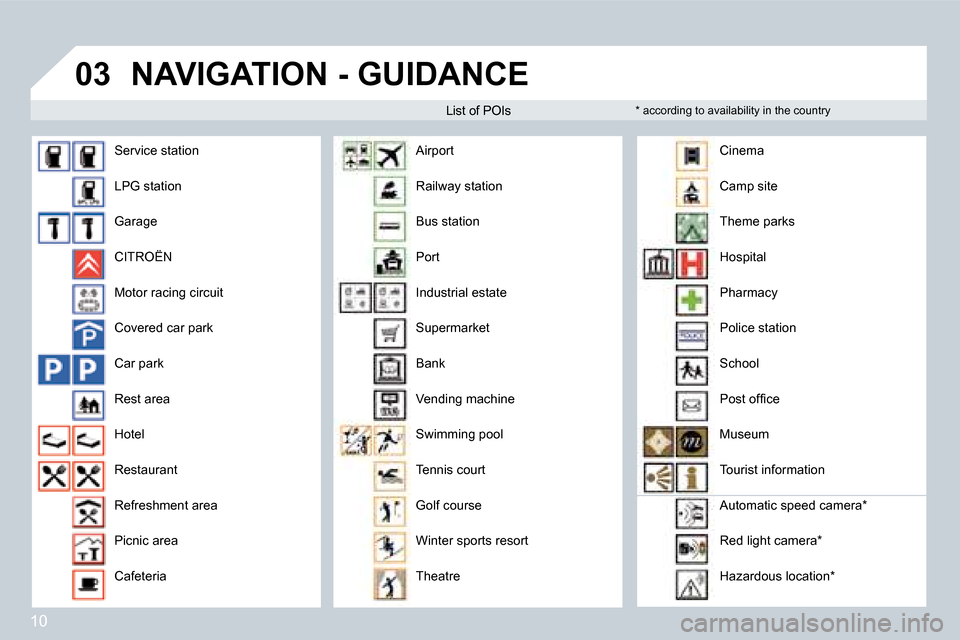

03NAVIGATION - GUIDANCE
Service station
LPG station
Garage
CITROËN
Motor racing circuit
Covered car park
Car park
Rest area
Hotel
Restaurant
Refreshment area
Picnic area
Cafeteria Airport
Railway station
Bus station
Port
Industrial estate
Supermarket
Bank
Vending machine
Swimming pool
Tennis court
Golf course
Winter sports resort
Theatre Cinema
Camp site
Theme parks
Hospital
Pharmacy
Police station
School
Post ofice
Museum
Tourist information
Automatic speed camera*
Red light camera*
Hazardous location*
List of POIs
* according to availability in the country

13
11
2
3
05
SELECTING A STATIONWhen the current radio station is
displayed on the screen, press the
dial.
The radio source short-cuts menu appears and provid es access to
the following short-cuts:
Select the function required and press
the dial to conirm to gain access to
the corresponding settings.
TRAFFIC INFO (TA)
The RDS, if displayed, allows you to continue liste ning to the same
station by means of the frequency following. Howeve r, in certain
conditions, this RDS station cannot be followed thr oughout the entire
country as radio stations do not cover 100 % of the territory. This
explains the loss of reception of the station durin g a journey.
The external environment (hill, building, tunnel, u
nderground car park...) may interfere with
the reception, including in RDS following mode. Thi s phenomenon is a normal result of the
way in which radio waves are transmitted and does n ot in any way indicate a failure of the
audio equipment.
RDS - REGIONAL MODE - TRAFFIC INFO
Press the RADIO button to display
the list of stations received locally
sorted in alphabetical order.
Select the station required by turning
the dial and press to conirm.
While listening to the radio, press one of the
buttons to select the previous or next station on
the list.
Press one of the buttons on the numeric keypad for more than
2 seconds to store the current station.
Press the button on the numeric keypad to recall th e stored radio
station.
RDS
RADIOTEXT
REGIONAL PROG. (REG)
WAVEBAND
RADIO
A long press of one of the buttons starts the
automatic search for a station with a lower or
higher frequency.

16
1
2
3
4
1
4
06
2
3
5

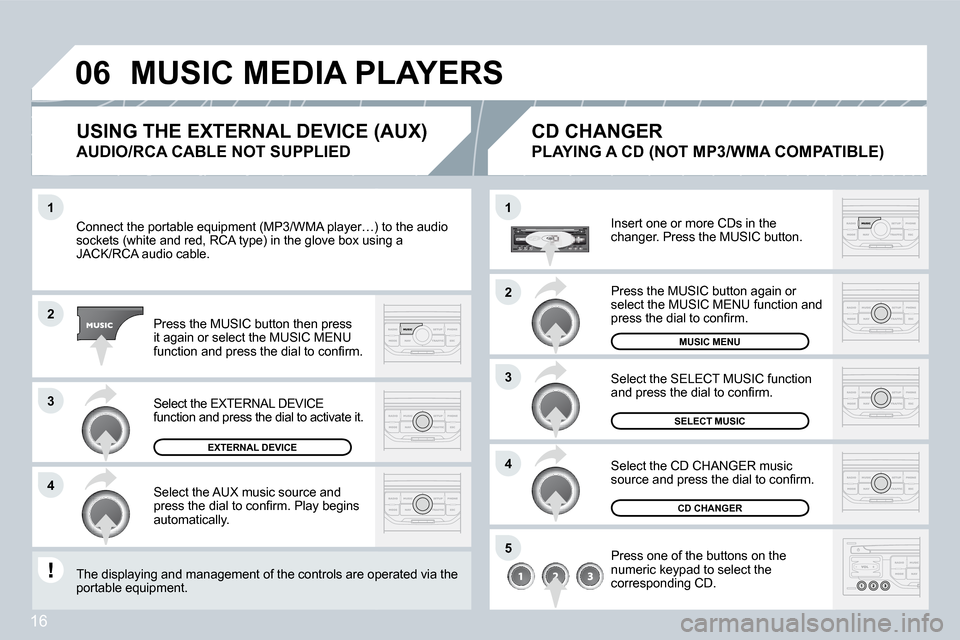

Connect the portable equipment (MP3/WMA player…) to the audio
sockets (white and red, RCA type) in the glove box using a
JACK/RCA audio cable.
Press the MUSIC button then press
it again or select the MUSIC MENU
function and press the dial to conirm.
Select the AUX music source and
press the dial to conirm. Play begins
automatically.
Select the EXTERNAL DEVICE
function and press the dial to activate it.
EXTERNAL DEVICE
Insert one or more CDs in the
changer. Press the MUSIC button.
Press one of the buttons on the
numeric keypad to select the
corresponding CD.
Select the CD CHANGER music
source and press the dial to conirm.
The displaying and management of the controls are o perated via the
portable equipment.
CD CHANGER
Select the SELECT MUSIC function
and press the dial to conirm.
USING THE EXTERNAL DEVICE (AUX)
AUDIO/RCA CABLE NOT SUPPLIED
CD CHANGER
PLAYING A CD (NOT MP3/WMA COMPATIBLE)
SELECT MUSIC
Press the MUSIC button again or
select the MUSIC MENU function and
press the dial to conirm.
MUSIC MENU
MUSIC MEDIA PLAYERS
