Page 15 of 257
18
F A M I L I A R I S A T I O N
MONITORING
Instrument panelControls
A. Speedometer.
B. Rev counter.
C. Fuel gauge.
D. Lighting rheostat.
E. Warning lamp.
Ignition on, the orange and red alert warning lamps come on.
With the engine running, these same warning lamps should go out.
If a warning lamp stays on, refer to the relevant page.
Warning lamps
23 24
A. Deactivation of the ESP/ASR system.
86
B. Deactivation of the visual and audible parking assistance.
114
C. Deactivation of the lane departure warning system.
96
D. Deactivation of the alarm volumetric sensors.
61
Page 41 of 257
42
III
C O M F O R T
A i r c o n d i t i o n i n g
At any time of year, the air condition-
ing is useful for removing air humidity
and misting.
To keep the air conditioning com-
pressor well sealed, it is essential to
operate the air conditioning at least
once in every month.
To be effective, the air conditioning
should only be used with the win-
dows closed.
If you are towing a heavy trailer or if
outside temperatures are very high,
the air conditioning may be tempo-
rarily interrupted in favour of engine
cooling.
Sensor
The automatic air conditioning inside the passenger compartment makes use of the sunlight sensor, which is located on the dashboard behind the instrument panel.
Take care not to obstruct it.
Water arising from condensation in
the air conditioning is allowed to drain
out through an aperture provided for
this purpose; a pool of water may
thus form beneath the vehicle when
stationary.
You are recommended to have the
air conditioning system checked on
a regular basis (see Maintenance
Guide).
The air conditioning uses energy
from the engine to operate. This re-
sults in extra fuel consumption
Page 73 of 257
69
V
V I S I B I L I T Y
Windscreen wiper stalk
2 Fast speed
1 Normal speed
I Intermittent
0 OffAUTO Automatic wiping.
Position I: The timing of the inter-mittent wipe adjusts automatically to the speed of the vehicle.
Position 1 or 2: or when stationary, the windscreen wiper speed automati-cally reduces.
SCREEN WIPE
Deactivating automatic wiping
Go to position I then return to posi-tion 0.
WARNING:
Do not cover the rain sensor, which is visible from the outside of the wind-screen, behind the interior rear view mirror.
When washing the vehicle, switch off the ignition or deactivate auto-matic wiping.
Automatic wiping
AUTO position: press downwards to activate automatic wiping.
Press downwards: Automatic wipe activated.
Note: A press downwards triggers a single wipe, but without deactivating automatic wipe.As a safety precaution, the wiper system is deactivated approx. 1 minute after the ignition has been switched off.
On switching the ignition back on, to reactivate the function:
- return to the Off position,
- change to the position desired.

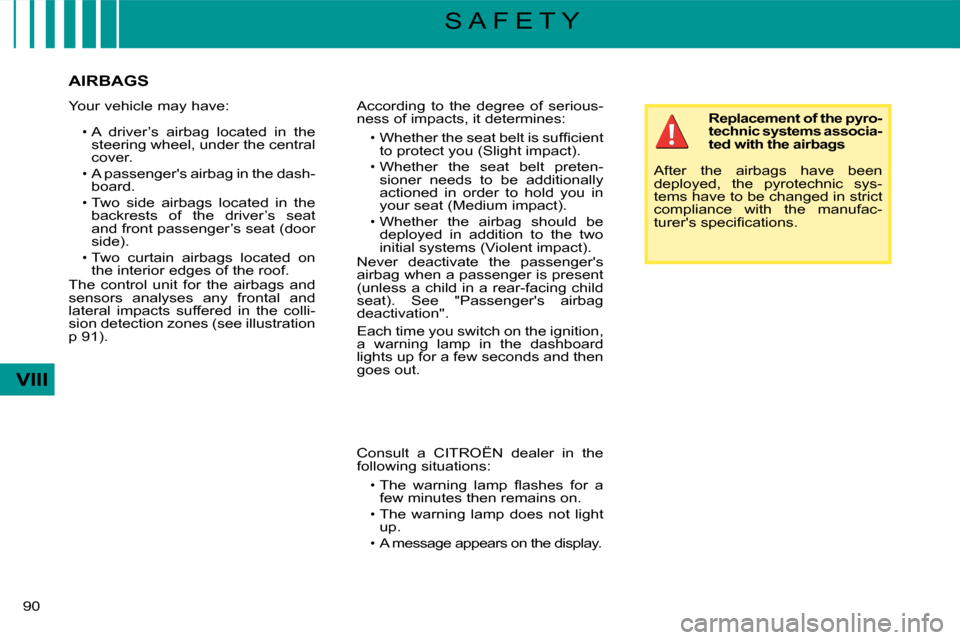

Page 94 of 257
9 0
VIII
S A F E T Y
A I R B A G S
R e p l a c e m e n t o f t h e p y r o - t e c h n i c s y s t e m s a s s o c i a - t e d w i t h t h e a i r b a g s
After the airbags have been d e p l o y e d , t h e p y r o t e c h n i c s y s -tems have to be changed in strict c o m p l i a n c e w i t h t h e m a n u f a c - t u r e r ' s s p e c i fi c a t i o n s .
Your vehicle may have:
A driver’s airbag located in the A s t e e r i n g w h e e l , u n d e r t h e c e n t r a l c o v e r .
A p a s s e n g e r ' s a i r b a g i n t h e d a s h -A b o a r d .
Two side airbags located in the backrests of the driver’s seat a n d f r o n t p a s s e n g e r ’ s s e a t ( d o o r s i d e ) .Two curtain airbags located on t h e i n t e r i o r e d g e s o f t h e r o o f .The control unit for the airbags and sensors analyses any frontal and l a t e r a l i m p a c t s s u f f e r e d i n t h e c o l l i - s i o n d e t e c t i o n z o n e s ( s e e i l l u s t r a t i o n p 9 1 ) .
Page 98 of 257
9 0
VIII
S A F E T Y
A I R B A G S
R e p l a c e m e n t o f t h e p y r o - t e c h n i c s y s t e m s a s s o c i a - t e d w i t h t h e a i r b a g s
After the airbags have been d e p l o y e d , t h e p y r o t e c h n i c s y s -tems have to be changed in strict c o m p l i a n c e w i t h t h e m a n u f a c - t u r e r ' s s p e c i fi c a t i o n s .
Your vehicle may have:
A driver’s airbag located in the A s t e e r i n g w h e e l , u n d e r t h e c e n t r a l c o v e r .
A p a s s e n g e r ' s a i r b a g i n t h e d a s h -A b o a r d .
Two side airbags located in the backrests of the driver’s seat a n d f r o n t p a s s e n g e r ’ s s e a t ( d o o r s i d e ) .Two curtain airbags located on t h e i n t e r i o r e d g e s o f t h e r o o f .The control unit for the airbags and sensors analyses any frontal and l a t e r a l i m p a c t s s u f f e r e d i n t h e c o l l i - s i o n d e t e c t i o n z o n e s ( s e e i l l u s t r a t i o n p 9 1 ) .
Page 125 of 257
1 1 4
IX
D R I V I N G
Proximity sensors are located in the front and rear bumpers of your vehicle.
When manoeuvring, whether forwards or in reverse, at a speed below approx. 6 mph, they warn you of the presence of any obstacle situated within their detection zone, by means of:
- a s o u n d s i g n a l e m i t t e d b y t h e f r o n t or rear loudspeakers,
- t h e d i s p l a y o f t h e o u t l i n e o f y o u r vehicle with shading at the zones where obstacles are detected.
As the vehicle approaches an obstacle, the sound signal tells you its position according to whether the sound issues from the front LH or RH speaker or from the rear LH or RH speaker.
NaviDrive version
Screen C version
- A s t h e v e h i c l e g e t s c l o s e t o the obstacle, the sound signal becomes ever more rapid and the shading appears ever closer to your vehicle’s outline.
- W h e n t h e o b s t a c l e i s l e s s t h a n a r o u n d 2 5 c e n t i m e t r e s f r o m t h e vehicle, the signal becomes continuous and a WARNING panel appears on the display.
Activation/Deactivation
Y o u c a n a c t i v a t e / d e a c t i v a t e t h e parking assistance with a press on control 1. If the parking assistance is inactive, the warning lamp is on.
Activation or deactivation of the parking assistance is memorised when you stop the vehicle.
Note: The system is deactivated automatically if a trailer is attached to the vehicle.
T h e fi t t i n g o f t h e t o w b a r s h o u l d b e c a r r i e d o u t b y t h e C I T R O Ë N T h e fi t t i n g o f t h e t o w b a r s h o u l d T h e fi t t i n g o f t h e t o w b a r s h o u l d
network.
This system does not replace the vigilance and responsibility of the driver.
VISUAL AND AUDIBLE FRONT AND REAR PARKING ASSISTANCE
Page 126 of 257
1 1 5
IX
D R I V I N G
Operation:
- When you engage reverse gear, a sound signal informs you that the system is active. The outline of your vehicle is displayed on the screen. Any obstacles situated at the rear or at the front of the vehicle can be detected.
- Moving forward at a speed lower t h a n a p p r o x . 1 0 k m / h ( 6 m p h ) , either in neutral or in a gear, the outline of your vehicle is displayed on the screen immediately an obstacle is detected in front of the vehicle. Obstacles situated at the front of the vehicle can be detected.
When selecting reverse gear, a short audible sig-nal followed by another audible signal, accom-panied by the illumination of the SERVICE warning lamp indicates a malfunction of the system.
Consult a CITROËN dealer.
Note
- T h e p r o x i m i t y s e n s o r s c a n n o t d e t e c t obstacles situated immediately below or above the bumpers.
- A t h i n o b j e c t s u c h a s a s p i k e o r stake, or other similar object, may be detected only at the start of your manoeuvre but not when the vehicle has approached close to it.
- D u r i n g t h e w i n t e r m o n t h s o r i n bad weather, make sure that the sensors are not covered by dirt or by ice or snow.
Page 133 of 257
122
X
M A I N T E N A N C E
Protection cover
HDi 135 and 140 engines
Remove the protection cover by fi r s t u n c l i p p i n g p o i n t 1, then 3 and4 . D e t a c h p o i n t 2 by pulling towards you, then lift.
To reposition the protection cover, attach point 2 fi r s t . L o w e r t h e c o v e r , keeping it centred. Clip points 1 and4, pushing vertically and slightly rearwards. Clip point 3 pushing down vertically.
HDi engines are of a highly technical nature.
A l l m a i n t e n a n c e a n d r e p a i r s r e q u i r e s p e c i fi c q u a l i fi c a t i o n s which only your CITROËN Dealer can guarantee. A l l m a i n t e n a n c e a n d r e p a i r s r e q u i r e s p e c i fi c q u a l i fi c a t i o n s A l l m a i n t e n a n c e a n d r e p a i r s r e q u i r e s p e c i fi c q u a l i fi c a t i o n s
Bleeding of water from the diesel f u e l fi l t e r
To be bled on a regular basis (at every oil change).
To evacuate the water, slacken the bleed screw or the water in diesel fuel sensor, which is located at the b a s e o f t h e fi l t e r , u n t i l w a t e r c e a s e s t o fl o w o u t .
Then retighten the bleed screw or the water in diesel fuel sensor.
DIESEL INJECTION EQUIPMENTWear of brake discs, brake pads and brake drums
The rate of wear of the brake pads depends on the use of your vehicle (urban use, frequent stops), and on your style of driving or the type of journey.
For information on checking the discs and drums for wear, contact a CITROËN dealer.
After washing the vehicle, brake progressively to dry out the brake linings.
Page 134 of 257
122
X
M A I N T E N A N C E
Protection cover
HDi 135 and 140 engines
Remove the protection cover by fi r s t u n c l i p p i n g p o i n t 1, then 3 and4 . D e t a c h p o i n t 2 by pulling towards you, then lift.
To reposition the protection cover, attach point 2 fi r s t . L o w e r t h e c o v e r , keeping it centred. Clip points 1 and4, pushing vertically and slightly rearwards. Clip point 3 pushing down vertically.
HDi engines are of a highly technical nature.
A l l m a i n t e n a n c e a n d r e p a i r s r e q u i r e s p e c i fi c q u a l i fi c a t i o n s which only your CITROËN Dealer can guarantee. A l l m a i n t e n a n c e a n d r e p a i r s r e q u i r e s p e c i fi c q u a l i fi c a t i o n s A l l m a i n t e n a n c e a n d r e p a i r s r e q u i r e s p e c i fi c q u a l i fi c a t i o n s
Bleeding of water from the diesel f u e l fi l t e r
To be bled on a regular basis (at every oil change).
To evacuate the water, slacken the bleed screw or the water in diesel fuel sensor, which is located at the b a s e o f t h e fi l t e r , u n t i l w a t e r c e a s e s t o fl o w o u t .
Then retighten the bleed screw or the water in diesel fuel sensor.
DIESEL INJECTION EQUIPMENTWear of brake discs, brake pads and brake drums
The rate of wear of the brake pads depends on the use of your vehicle (urban use, frequent stops), and on your style of driving or the type of journey.
For information on checking the discs and drums for wear, contact a CITROËN dealer.
After washing the vehicle, brake progressively to dry out the brake linings.
